Electronic housing - BC 161,6 OT 101100 KMGY VPE80 - 2202324
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Installation component housing, Upper part, Color: light gray, Width: 161.6 mm, Constructional height: 62.2 mm
Why buy this product
Item is from the BC product range
Conforms to DIN EN 43880
Tool-free mounting
Available in overall widths from one to nine width units (17.8 mm ... 161.6 mm)
Inflammability class V0 according to UL 94
Variety of connection technologies
Can be mounted on the DIN rail or the wall
Optional with bus connector for DIN rail mounting
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
4055626052700
64.340 g
85472000
Germany
1 STK
480 STK
Technical data
Standards and Regulations
Flammability rating according to UL 94
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
02/17/2017 Page 1 / 7
https://www.phoenixcontact.com/us/products/2202324
Electronic housing - BC 161,6 OT 101100 KMGY VPE80 - 2202324
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 8.0
eCl@ss 9.0
27180506
27180802
27182702
27182702
ETIM
ETIM 5.0
ETIM 6.0
EC001031
EC001031
UNSPSC
UNSPSC 13.2
31261501
Approvals
Approvals
Approvals
UL Recognized
Ex Approvals
Approval details
UL Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 240868
Accessories
Accessories
Fiber optics
Component housing - HS LC-V-D3/ R2XC1-5,08 - 2202311
Fiber optics Can be used for the BC housing range (housing must be processed), Color: transparent
02/17/2017 Page 2 / 7
https://www.phoenixcontact.com/us/products/2202324
Electronic housing - BC 161,6 OT 101100 KMGY VPE80 - 2202324
Accessories

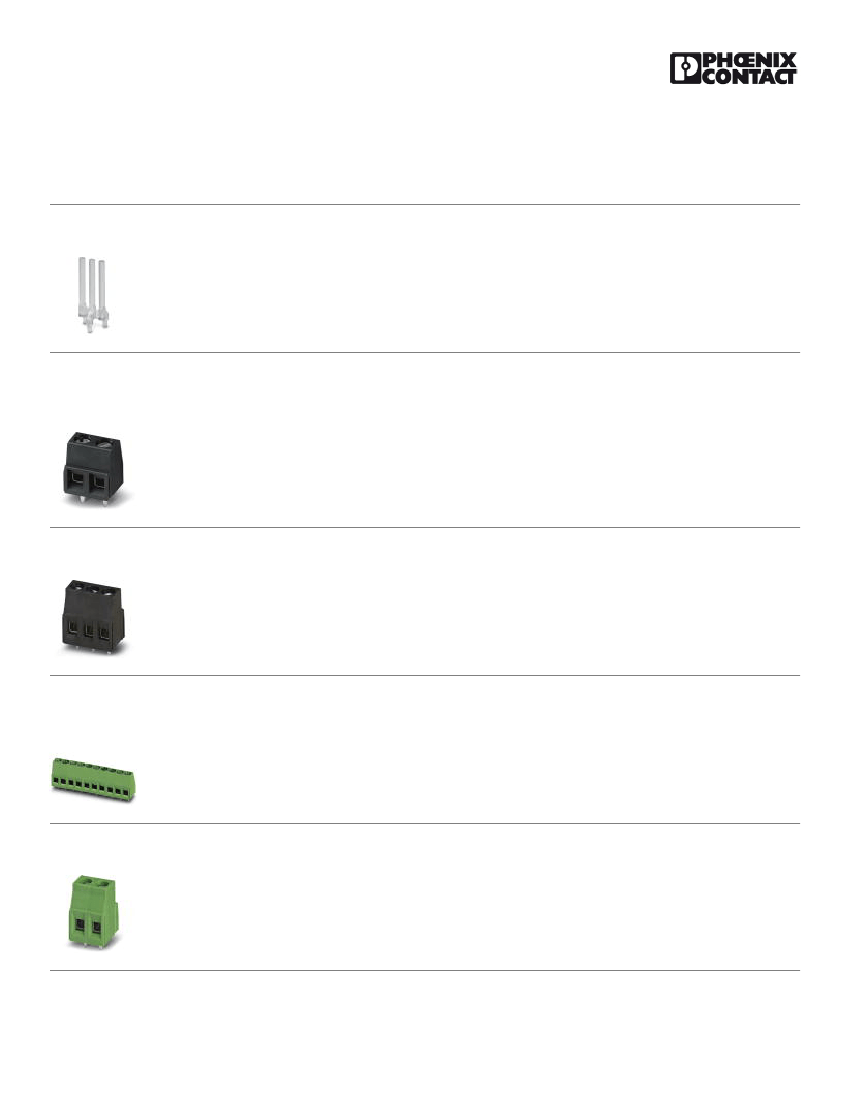

Component housing - HS LC-V-D3/ R3XC1-5,08 - 2202312
Fiber optics Can be used for the BC housing range (housing must be processed), Color: transparent
Necessary add-on products
PCB terminal block - MKDSN 1,5/ 2 HT BK - 1985849
PCB terminal block, Nominal current: 13.5 A, Nom. voltage: 320 V, Pitch: 5 mm, Number of positions: 2, Connection
method: Screw connection with tension sleeve, Mounting: THR soldering, Conductor/PCB connection direction: 0 °,
Color: black, This article can be soldered in the reflow furnace together with SMD components.
PCB terminal block - MKDSN 2,5/ 3 HT BK - 1985933
PCB terminal block, Nominal current: 16 A, Nom. voltage: 320 V, Pitch: 5 mm, Number of positions: 3, Connection
method: Screw connection with tension sleeve, Mounting: THR soldering, Conductor/PCB connection direction: 0 °,
Color: black, This article can be soldered in the reflow furnace together with SMD components.
PCB terminal block - MKDS 1,5/ 3 - 1715035
PCB terminal block, Nominal current: 17.5 A, Nom. voltage: 400 V, Pitch: 5 mm, Number of positions: 3, Connection
method: Screw connection with tension sleeve, Mounting: Wave soldering, Conductor/PCB connection direction: 0 °,
Color: green, The article can be aligned to create different nos. of positions!
PCB terminal block - MKDSN 2,5/ 3 - 1890976
PCB terminal block, Nominal current: 16 A, Nom. voltage: 400 V, Pitch: 5 mm, Number of positions: 3, Connection
method: Screw connection with tension sleeve, Mounting: Wave soldering, Conductor/PCB connection direction: 0 °,
Color: green, The article can be aligned to create different nos. of positions!
02/17/2017 Page 3 / 7
https://www.phoenixcontact.com/us/products/2202324
Electronic housing - BC 161,6 OT 101100 KMGY VPE80 - 2202324
Accessories

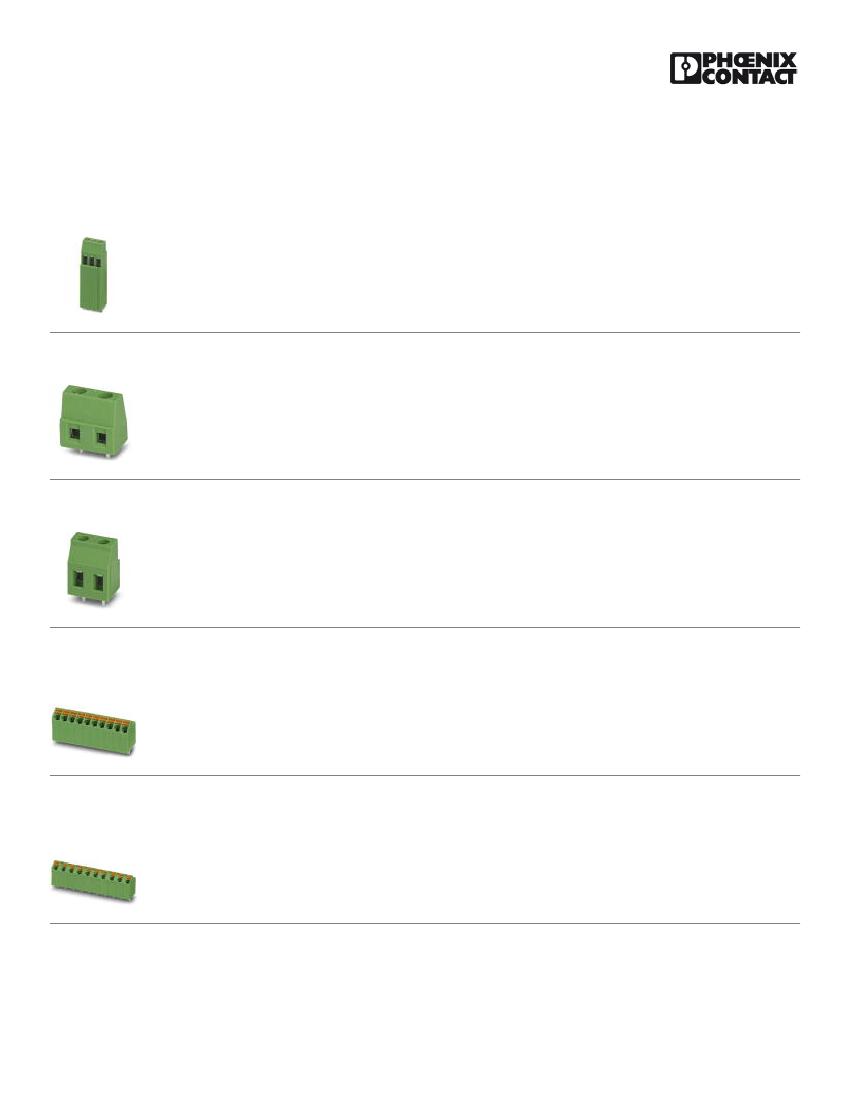

PCB terminal block - MKKDSH 3/ 3 - 1721346
PCB terminal block, Nominal current: 24 A, Nom. voltage: 400 V, Pitch: 5 mm, Number of positions: 3, Connection
method: Screw connection with tension sleeve, Mounting: Wave soldering, Conductor/PCB connection direction: 0 °,
Color: green, The article can be aligned to create different nos. of positions!
PCB terminal block - GMKDS 1,5/ 2 - 1717020
PCB terminal block, Nominal current: 17.5 A, Nom. voltage: 630 V, Pitch: 7.5 mm, Number of positions: 2, Connection
method: Screw connection with tension sleeve, Mounting: Wave soldering, Conductor/PCB connection direction: 0 °,
Color: green, The article can be aligned to create different nos. of positions!
PCB terminal block base - GMKDSP 3/ 2 - 1732021
PCB terminal block, Nominal current: 24 A, Nom. voltage: 630 V, Pitch: 7.5 mm, Number of positions: 2, Connection
method: Screw connection with tension sleeve, Mounting: Wave soldering, Conductor/PCB connection direction: 0 °,
Color: green, The article can be aligned to create different nos. of positions!
PCB terminal block - SPTA 1/ 8-3,5 - 1752162
PCB terminal block, Nominal current: 9 A, Nom. voltage: 200 V, Pitch: 3.5 mm, Number of positions: 8, Connection
method: Push-in spring connection, Mounting: Wave soldering, Conductor/PCB connection direction: 65 °, Color: green
PCB terminal block - SPTA 1/ 6-5,0 - 1752256
PCB terminal block, Nominal current: 9 A, Nom. voltage: 320 V, Pitch: 5 mm, Number of positions: 6, Connection
method: Push-in spring connection, Mounting: Wave soldering, Conductor/PCB connection direction: 65 °, Color: green
02/17/2017 Page 4 / 7
https://www.phoenixcontact.com/us/products/2202324
Electronic housing - BC 161,6 OT 101100 KMGY VPE80 - 2202324
Accessories

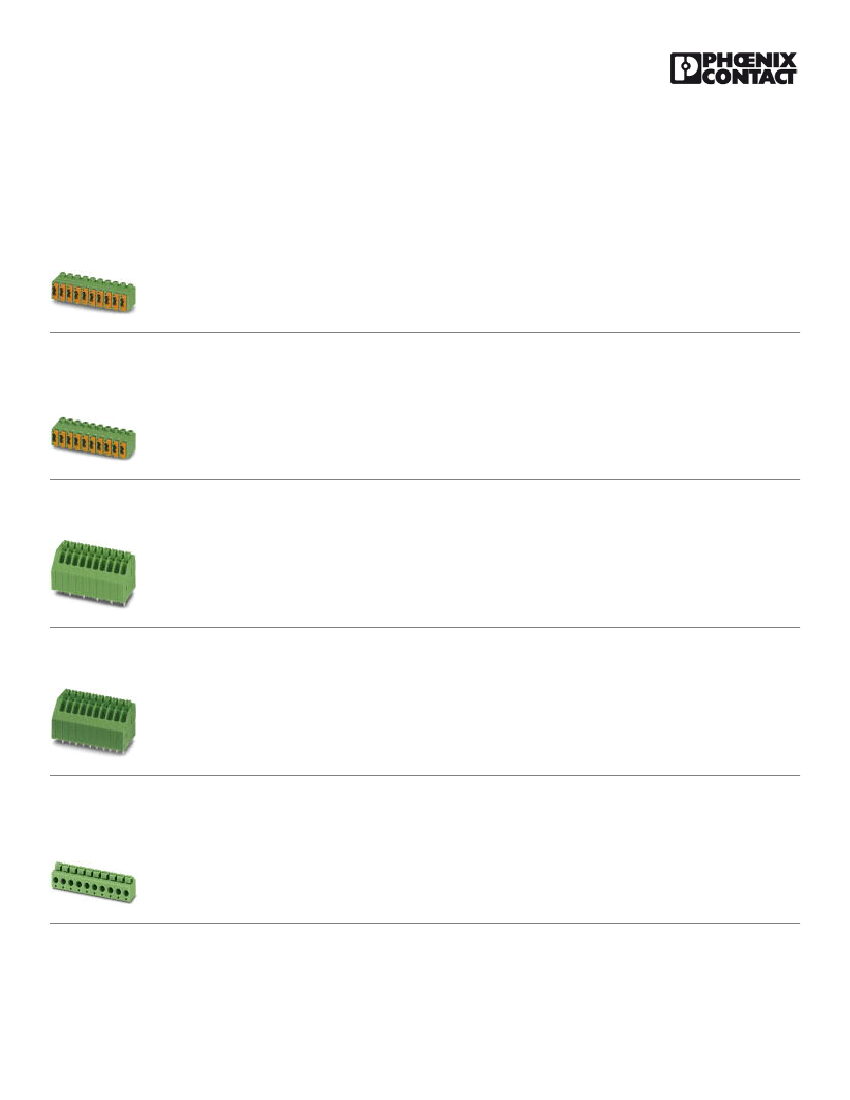

PCB terminal block - FK-MPT 0,5/ 8-3,5-H - 1928822
PCB terminal block, Nominal current: 4 A, Nom. voltage: 250 V, Pitch: 3.5 mm, Number of positions: 8, Connection
method: Push-in spring connection, Mounting: Wave soldering, Conductor/PCB connection direction: 0 °, Color: green
PCB terminal block - FK-MPT 0,5/ 8-ST-3,5 - 1913989
Plug component, Nominal current: 4 A, Rated voltage (III/2): 250 V, Number of positions: 8, Pitch: 3.5 mm, Connection
method: Push-in spring connection, Color: green, Contact surface: Tin
PCB terminal block - PTSA 0,5/11-2,5-Z - 1990096
PCB terminal block, Nominal current: 2 A, Nom. voltage: 250 V, Pitch: 2.5 mm, Number of positions: 11, Connection
method: Push-in spring connection, Mounting: Wave soldering, Conductor/PCB connection direction: 45 °, Color: green,
Offset soldering legs, two-rowed
PCB terminal block - PTSA 0,5/11-2,5-F - 1989832
PCB terminal block, Nominal current: 2 A, Nom. voltage: 250 V, Pitch: 2.5 mm, Number of positions: 11, Connection
method: Push-in spring connection, Mounting: Wave soldering, Conductor/PCB connection direction: 45 °, Color: green,
Soldering legs in front area, one-rowed
PCB terminal block - PTS 1,5/ 6-5,0-H - 1792902
PCB terminal block, Nominal current: 16 A, Nom. voltage: 400 V, Pitch: 5 mm, Number of positions: 6, Connection
method: Push-in spring connection, Mounting: Wave soldering, Conductor/PCB connection direction: 0 °, Color: green
02/17/2017 Page 5 / 7
