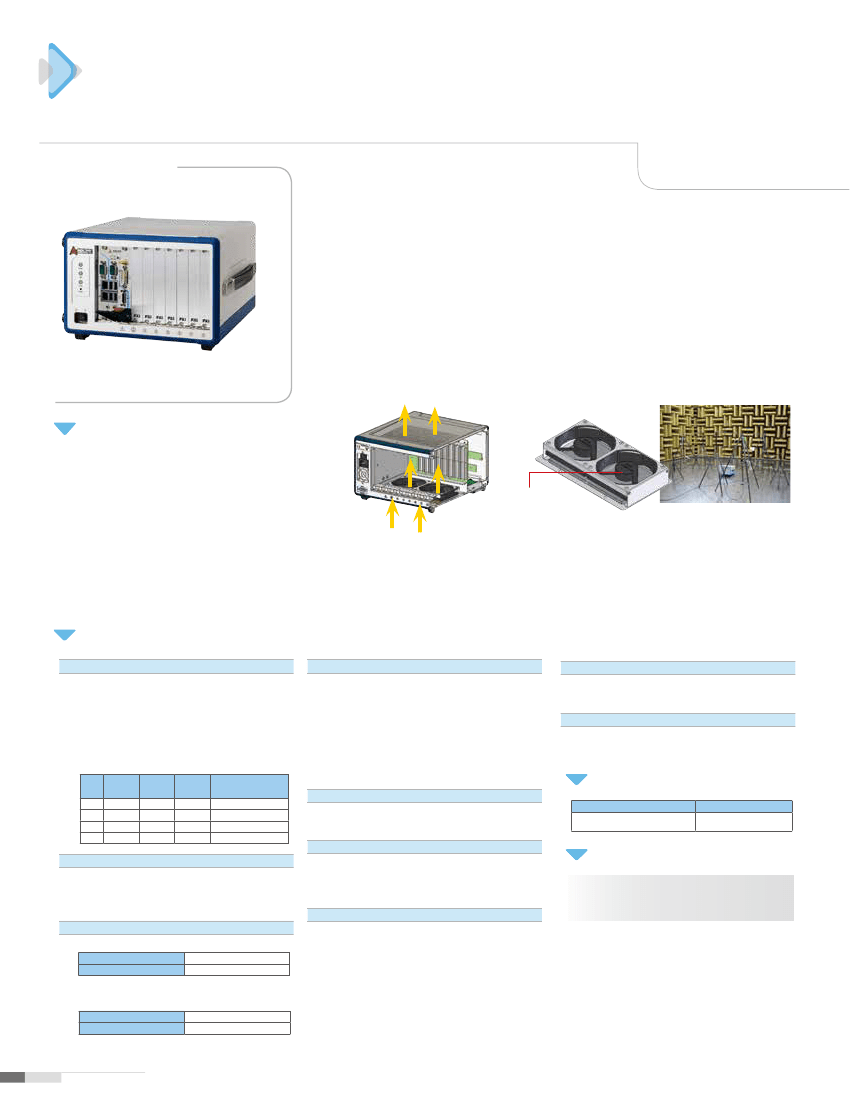

PXIS-2508
8-Slot 3U PXI Chassis with AC
Introduction
The ADLINK PXIS-2508 is the PXI chassis equipped with advanced features and functionalities. Compliant with PXI and Com-
pactPCI specifications, these chassis offer one system slot and seven peripheral slots for more versatile test and measurement
computing. Set in a sleek and lightweight chassis for superior portability, the PXIS-2508 also boasts of wider operating temperature
range, lower operating noise, and robust system build.
The PXIS-2508 is equipped with an intelligent control board that dynamically monitors and manages the chassis status including
the fan speed, system voltages, and internal temperature. A standard RS-232 monitoring port makes remote management possible
as chassis status are exported to and viewed from a remote computer using serial communications.
Equipped with an industrial grade 350 W AC power supply, the PXIS-2508 also come with front panel LED indicators, and easy-
access PXI slots with card guides for convenient installation and deployment. With innovative features and design, PXIS-2508 is
your best choices of PXI platform for test and measurement applications.
Features
■
■
■
■
■
■
■
■
PXI Hardware Specification Rev. 2.2 compliant
Compact 8-slot PXI chassis with one system slot and seven
PXI/CompactPCI peripheral slots
0°C to 55°C extended operating temperature range
41.6 dBA silent operation
Intelligent chassis management
• Automatic fan speed control
• Chassis status monitoring and exporting
• Remote chassis power on/off control
5.9 kg lightweight aluminum-metal construction
350 W industrial-grade AC power supply
Power, temperature, and fan monitoring LEDs
92 mm Fan
3000 RPM, 60 CFM, 38 dBA
Extended Operating Temperature Range
Silent Operation
Specifications
Power Supply
■
Physical
■
Emissions Compliance
■
■
AC Input
Number of slots: 8
(1 system slot + 7 peripheral slots)
Dimensions:
(10.9” x 6.9” x 11.8”)
EN 61326-1
FCC Class A
• Input
voltage range: 100 to 240 V
AC
• Input
voltage frequency: 50 to 60 Hz
• Input
current rating: 8 A/115 V
AC
or 4 A/230 V
AC
■
■
• 280
mm (W) x 177 mm (H) x 303 mm (D)
■
CE Compliance
■
■
DC Output
Safety: EN 61010-1
Immunity: EN 61326-1
• Total
DC power output 350 W
VDC
Minimum
Maximum
Load
Regulation
Maximum Ripple
& Noise
Weight:
• 5.9
kg (13 lbs)
Operating Environment
■
■
Recommended System Controller
PXIS-2508
PXI-3980/3950
√
+5 V
+12 V
+3.3 V
-12 V
3.0 A
2.0 A
1.0 A
0.1 A
35.0 A
18.0 A
20.0 A
2.0 A
±5%
±5%
±5%
±5%
50 mV
120 mV
50 mV
120 mV
Ambient temperature: 0˚C to 55˚C (32˚F to 131˚F)
Relative humidity: 10% to 90%, non-condensing
Storage Environment
Cooling
■
■
■
Ambient temperature:
Relative humidity: 10% to 90%, non-condensing
Ordering Information
■
PXIS-2508
3U 8-Slot Smart PXI Chassis with 350 W AC
Power Supply
■
PXIS-2508 Rack-mount Kit
Rack-mount Kit for PXIS-2508
Fans: 2 x 60 CFM fans with filters
Per-slot cooling capacity: 25 W
(verified by 55°C chamber test)
• -20˚C
to 70˚C (-4˚F to 158˚F)
■
Shock and Vibration
■
■
Acoustic Emission
■
Functional shock: 30 G, half-sine, 11 ms pulse duration
Random vibration:
Sound Pressure Level (dBA)
Minimal fan speed
Maximal fan speed
41.6 dB
47.3 dB
• Operating:
5 to 500 Hz, 0.5 G
RMS
, 3 axes
• Non-operating:
5 to 500 Hz, 2.46 G
RMS
, 3 axes
The combined output power of +5 V and +3.3 V cannot exceed 35 A.
■
Sound Power (dBA)
Minimal fan speed
Maximal fan speed
51.9 dB
55.5 dB
Tested in accordance with ISO 7779:1999/Amd. 1:2003(E)
1-21 www.adlinktech.com
Updated September 23, 2014. ©2014 ADLINK Technology, Inc. All Rights Reserved. All specifications are subject to change without further notice.
