Type 3R Painted Galvanized Steel Junction Box (C3R SC Series) - Hammond Mfg.
Quality Products. Service Excellence.
Type 3R Painted Galvanized Steel Junction Box
C3R SC Series
Lift-Off Cover with Screws and w/ Knockouts
Application
Designed for use as a wiring/junction box.
Provides protection against rain, sleet, snow and dripping water.
Standards
UL-50 Type 3R
CSA Type 3R
Complies with:
NEMA Type 3R
IEC 60529, IP24
Construction
Formed and spot welded from 16 or 14 gauge galvanized steel.
Drip-shield top and seam-free sides, front and back.
Slip-on removable cover fastened with plated steel screws.
Door handles on body type C enclosures.
Embossed mounting holes on back of enclosure.
Easily removed knockouts on bottom of enclosure.
Padlocking hasp.
No Gasket.
Finish
Enclosure and cover are finished in ANSI 61 gray powder coating.
https://www.hammfg.com/electrical/products/commercial/c3rsc
1/4
11/18/2017
Type 3R Painted Galvanized Steel Junction Box (C3R SC Series) - Hammond Mfg.
https://www.hammfg.com/electrical/products/commercial/c3rsc
2/4
11/18/2017
Type 3R Painted Galvanized Steel Junction Box (C3R SC Series) - Hammond Mfg.

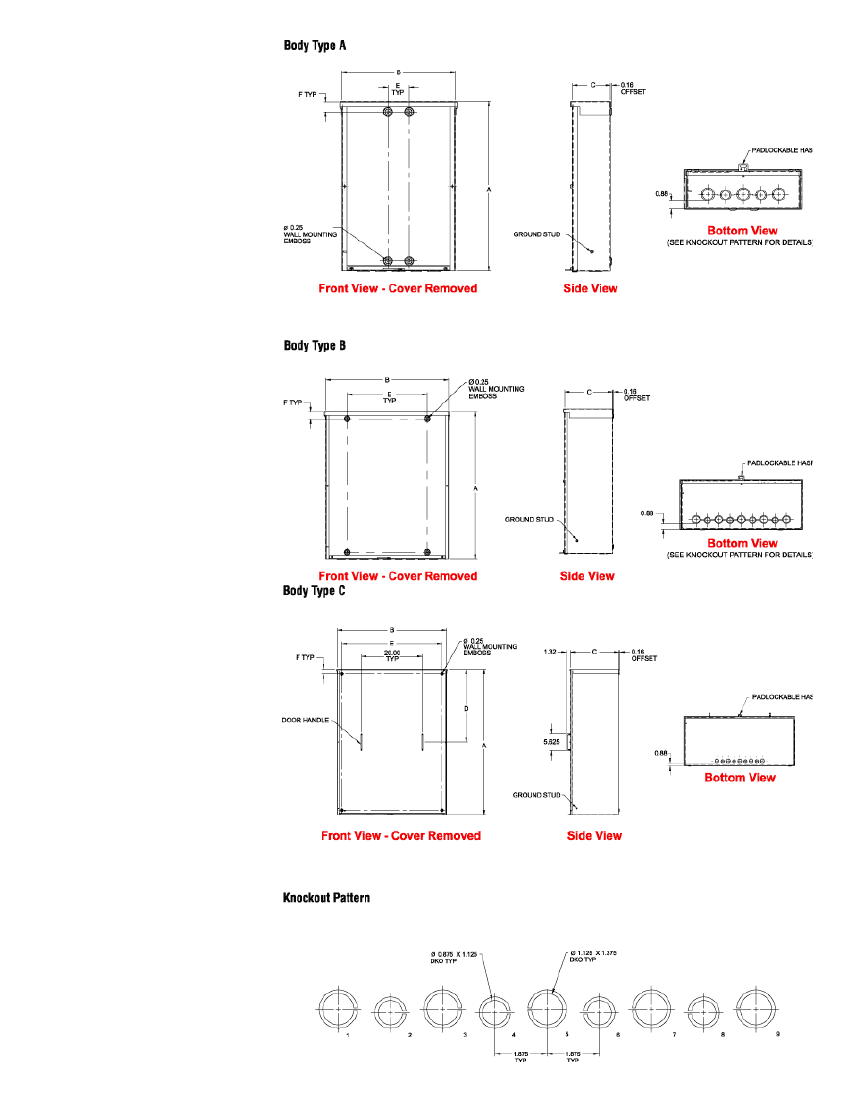

Mounting
Part No.
C3R444SC
C3R644SC
C3R1244SC
C3R664SC
C3R864SC
C3R884SC
C3R1084SC
C3R1284SC
C3R10104SC
C3R12104SC
C3R12124SC
C3R18124SC
C3R18184SC
C3R666SC
C3R1866SC
C3R886SC
C3R1086SC
C3R10106SC
C3R1286SC
C3R12106SC
C3R12126SC
C3R15126SC
C3R16126SC
C3R18126SC
C3R18186SC
C3R24126SC
C3R24186SC
C3R24246SC
C3R888SC
C3R2488SC
C3R12128SC
C3R15128SC
C3R18128SC
C3R24168SC
C3R18188SC
C3R24188SC
C3R24208SC
C3R24248SC
C3R30248SC
C3R48368SC
C3R181810SC
C3R241810SC
C3R242410SC
C3R302410SC
C3R242412SC
C3R303012SC
C3R363012SC
C3R363612SC
C3R303016SC
C3R483616SC
Body Type
A
A
A
A
A
A
A
A
A
A
A
A
B
A
A
A
A
A
A
A
A
A
A
A
B
B
B
B
A
A
A
A
A
B
B
B
B
C
C
C
C
C
C
C
C
C
C
C
C
C
A
4.00
6.00
12.00
6.00
8.00
8.00
10.00
12.00
10.00
12.00
12.00
18.00
18.00
6.00
18.00
8.00
10.00
10.00
12.00
12.00
12.00
15.00
16.00
18.00
18.00
24.00
24.00
24.00
8.00
24.00
12.00
15.00
18.00
24.00
18.00
24.00
24.00
24.00
30.00
48.00
18.00
24.00
24.00
30.00
24.00
30.00
36.00
36.00
30.00
48.00
B
4.00
4.00
4.00
6.00
6.00
8.00
8.00
8.00
10.00
10.00
12.00
12.00
18.00
6.00
6.00
8.00
8.00
10.00
8.00
10.00
12.00
12.00
12.00
12.00
18.00
12.00
18.00
24.00
8.00
8.00
12.00
12.00
12.00
16.00
18.00
18.00
20.00
24.00
24.00
36.00
18.00
18.00
24.00
24.00
24.00
30.00
30.00
36.00
30.00
36.00
C
4.00
4.00
4.00
4.00
4.00
4.00
4.00
4.00
4.00
4.00
4.00
4.00
4.00
6.00
6.00
6.00
6.00
6.00
6.00
6.00
6.00
6.00
6.00
6.00
6.00
6.00
6.00
6.00
8.00
8.00
8.00
8.00
8.00
8.00
8.00
8.00
8.00
8.00
8.00
8.00
10.00
10.00
10.00
10.00
12.00
12.00
12.00
12.00
16.00
16.00
D
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
12.04
15.04
24.04
9.04
12.04
12.04
15.04
12.04
15.04
18.04
18.04
15.04
24.04
E
1.88
1.88
1.88
2.25
2.25
2.25
2.25
2.25
2.25
2.25
2.25
2.25
13.00
2.25
2.25
2.25
2.25
2.25
2.25
2.25
2.25
2.25
2.25
2.25
13.00
13.00
13.00
13.00
2.25
2.25
2.25
2.25
2.25
13.00
13.00
13.00
13.00
13.00
13.00
33.00
13.00
13.00
13.00
13.00
13.00
27.00
27.00
33.00
27.00
33.00
F
2.00
1.06
1.06
1.06
1.06
1.06
1.06
1.06
1.06
1.06
1.06
1.06
1.12
1.06
1.06
1.06
1.06
1.06
1.06
1.06
1.06
1.06
1.06
1.06
1.12
1.12
1.12
1.12
1.06
1.06
1.06
1.06
1.06
1.12
1.12
1.12
1.12
1.12
1.12
1.50
1.12
1.12
1.12
1.50
1.12
1.50
1.50
1.50
1.50
1.50
Knockout
Pattern
2-3
2-3
2-3
2-3-4
2-3-4
6-7-8-9
6-7-8-9
6-7-8-9
3-4-5-6-7
3-4-5-6-7
3-4-5-6-7
3-4-5-6-7
1-2-3-4-5-6-7-8-9
2-3-4
2-3-4
6-7-8-9
6-7-8-9
3-4-5-6-7
6-7-8-9
3-4-5-6-7
3-4-5-6-7
3-4-5-6-7
3-4-5-6-7
3-4-5-6-7
1-2-3-4-5-6-7-8-9
3-4-5-6-7
1-2-3-4-5-6-7-8-9
1-2-3-4-5-6-7-8-9
6-7-8-9
6-7-8-9
3-4-5-6-7
3-4-5-6-7
3-4-5-6-7
3-4-5-6-7
1-2-3-4-5-6-7-8-9
1-2-3-4-5-6-7-8-9
1-2-3-4-5-6-7-8-9
1-2-3-4-5-6-7-8-9
1-2-3-4-5-6-7-8-9
1-2-3-4-5-6-7-8-9
1-2-3-4-5-6-7-8-9
1-2-3-4-5-6-7-8-9
1-2-3-4-5-6-7-8-9
1-2-3-4-5-6-7-8-9
1-2-3-4-5-6-7-8-9
1-2-3-4-5-6-7-8-9
1-2-3-4-5-6-7-8-9
1-2-3-4-5-6-7-8-9
1-2-3-4-5-6-7-8-9
1-2-3-4-5-6-7-8-9
Data subject to change without notice
