8
222.00 mm
[8.740 in]
7
6
5
105.10 mm
[4.138 in]
4
3
2
1
212.00 mm
[8.346 in]
A
D
101.00 mm
[3.976 in]
D
124.84 mm
[4.915 in]
(Inner Screw Post
Clearance)
B
B
136.00 mm 146.00 mm
[5.354 in]
[5.748 in]
136.84 mm
[5.387 in]
(Inner Box Width)
A

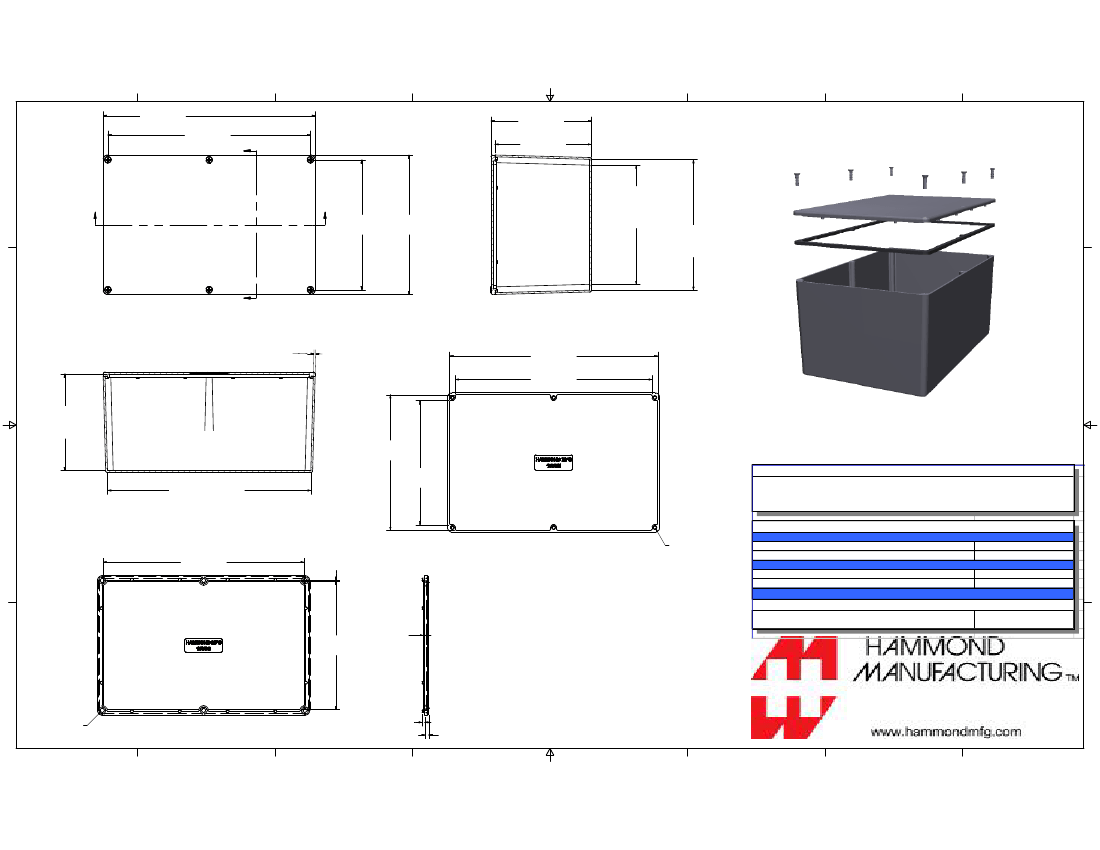

Top View of Assembly
C
2.00 mm
[0.079 in]
(Wall Thickness)
SECTION A-A
End View of Assembly
218.00 mm
[8.583 in]
206.00 mm
[8.110 in]
C
101.10 mm
[3.980 in]
(Inner Box Height)
142.00 mm
[5.591 in]
212.84 mm
[8.380 in]
(Inner Box Length)
B
130.00 mm
[5.118 in]
Enclosures can be Factory Modified ( Milling, Drilling, Printing etc. )
Contact Factory mjm@hammondmfg.com for quotes
Solid models of this enclosure available in STEP or IGES.
NOTE
Purchased assembly includes box, lid, and 6 cover screws.
Box and lid are made from Diecast Aluminum Alloy.
EVA Foam Gasket supplied with Liquid Resistant Enclosures
\
SECTION B-B
Side View of Assembly
210.07 mm
[8.270 in]
1.47 mm
[0.058 in]
B
PART NUMBERS
Top View Looking Inside Box
M3.5 x 0.6
(Threaded Holes)
1550H Enclosure
Unfinishe d
Bla ck Te x ture d Polye ste r Pow de r Pa int
1550W H Liquid Re sista nt Enclosure
Unfinishe d
Bla ck Te x ture d Polye ste r Pow de r Pa int
Acce ssorie s
1550H
1550HBK
1550W H
1550W HBK
Recommended T orque: 75 ozf.in / 55 cN.m
134.07 mm
[5.278 in]
1.50 mm
[0.059 in]
Unfinshe d Cove r Scre w s (Pkg 100)
[M 3.5 x 0.6 18-8 SS]
1550MS100
A
n
4.10 mm
[0.161 in]
8
View Looking Inside Lid
7
6
2.90 mm
[0.114 in]
1550WH
4.10 mm
[0.161 in]
5
4
3
2
1
A
Embedded System
