PJSP2016: DescriptionEnclosures, Boxes, u0026 Cases PJ Swing Panel; CategoryTopical application Mechanical and electrical/engineering/automation; File Size110KB，1 Pages; ManufacturerHammond; Websitehttp://www.hammondmfg.com

Download Datasheet Parametric Compare View All

PJSP2016 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PJSP2016	-	-	View	Buy Now

PJSP2016 Overview

Enclosures, Boxes, u0026 Cases PJ Swing Panel

PJSP2016 Parametric

Parameter Name	Attribute value
Product Category	Enclosures, Boxes, & Cases
Manufacturer	Hammond
RoHS	Details
Product	Boxes
Type	Swing, Windowed
Color	White
Length	19.25 in
Width	15.25 in
NEMA Rating	4X
Factory Pack Quantity	1
Unit Weight	3 lbs

Preview

Download Datasheet

View All

11/27/2017

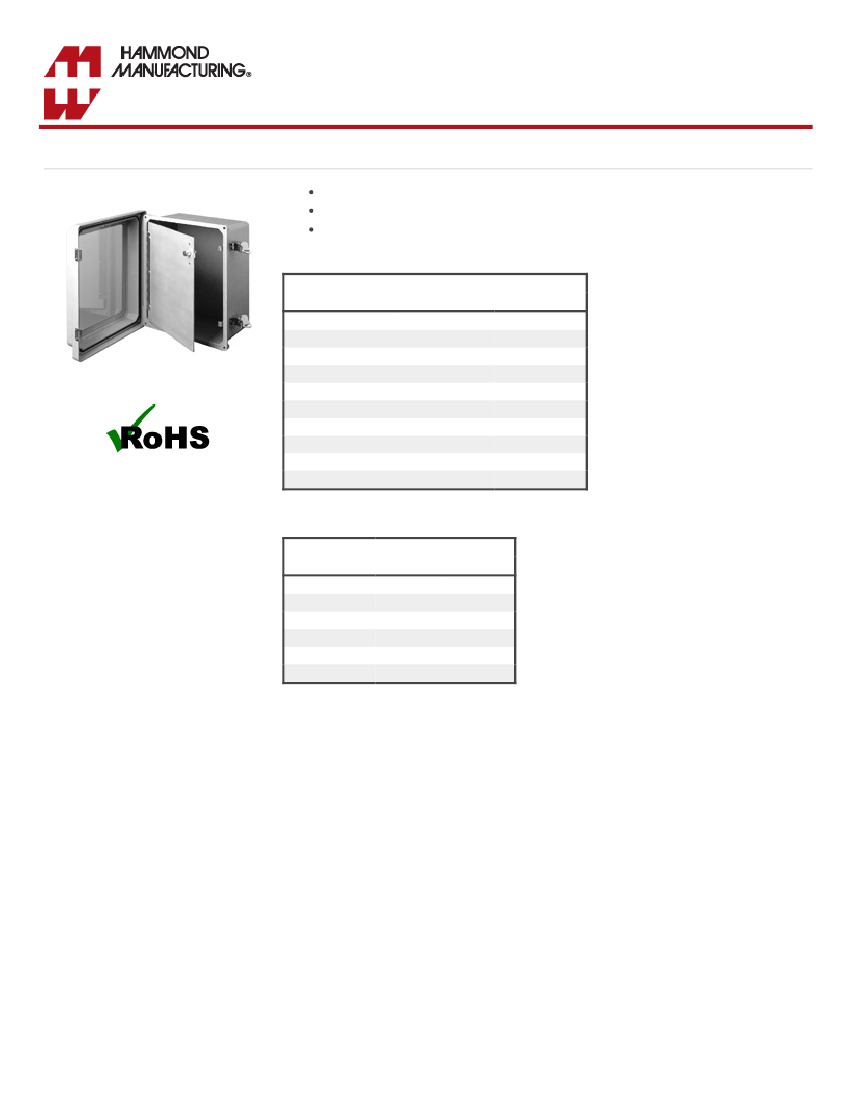

Swing Panel (PJ/PJU Series) - Hammond Mfg.

Quality Products. Service Excellence.

Swing Panel

PJ/PJU Series

Hinged aluminum panel.

Mounts at front of enclosure body.

Field installed with no drilling required.

Use with PJ Series Raised Lid Enclosures

Panel Dimensions

Part No.

PJSP108

PJSP1210

PJSP1212

PJSP1412

PJSP1614

PJSP1816

PJSP2016

PJSP2420

PJSP2424

PJSP3024

Height

9.50

11.50

13.50

15.50

17.63

19.25

23.25

23.38

29.25

Width

7.50

9.50

11.37

11.50

13.50

15.63

15.25

19.38

23.25

23.38

Use with PJU Series Enclosures

Panel Dimensions

Part No.

PJSPU108

PJSPU1210

PJSPU1412

PJSPU1614

PJSPU1816

PJSPU2016

Height

9.64

11.64

13.64

15.64

17.90

19.65

Width

7.87

9.86

11.86

13.86

15.99

15.55

Data subject to change without notice

https://www.hammfg.com/electrical/products/accessories/pjsp

1/1
