1455Q1601BU: DescriptionRS-422/RS-485 Interface IC 3.0V-5.5V RS-485 RS-422 Transceivers; CategoryTopical application Mechanical and electrical/engineering/automation; File Size180KB，1 Pages; ManufacturerHammond; Websitehttp://www.hammondmfg.com

Download Datasheet Parametric Compare View All

1455Q1601BU Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1455Q1601BU	-	-	View	Buy Now

1455Q1601BU Overview

RS-422/RS-485 Interface IC 3.0V-5.5V RS-485 RS-422 Transceivers

1455Q1601BU Parametric

Parameter Name	Attribute value
Product Category	Enclosures, Boxes, & Cases
Manufacturer	Hammond
RoHS	Details
Product	Enclosures
Type	Extruded
Material	Aluminum
Color	Blue
Length	6.3 in
Width	4.92 in
Height	2.03 in
Packaging	Bulk
Cover Color	Blue
Dimensions	6.3 in L x 4.92 in W x 2.03 in H
Features	Designed for standard Eurocards, aluminum end panels
Height - in	2.03
Height - mm	51.562
Length - in	6.3
Length - mm	160.02
Factory Pack Quantity	1
Width - in	4.92
Width - mm	124.968
Unit Weight	1 lb

Preview

Download Datasheet

View All

2

1

120.48

`

0.89 mm

[4.743

`

0.035 in]

5.18 mm

[0.204 in]

124.80 mm

[4.913 in]

1.45 mm

[0.057 in]

47.50

`

0.61 mm

[1.870

`

0.024 in]

51.50 mm

[2.028 in]

50.90 mm

[2.004 in]

43.50 mm

[1.713 in]

B

2.00 mm TYP

[0.079 in]

1.50 mm TYP

[0.059 in]

2.49 mm

[0.098 in]

4 X

n

3.50 mm THRU

w n

5.75 mm X 82.0°

115.50 mm

[4.547 in]

OPTIONAL FLANGE END PANEL

1455QF

EXTRUSION

END PLATE

125.00 mm

[4.921 in]

EXTRUSION DESIGNED FOR 120MM WIDE PC BOARD

129.00 mm

[5.079 in]

1.75 mm

[0.069 in]

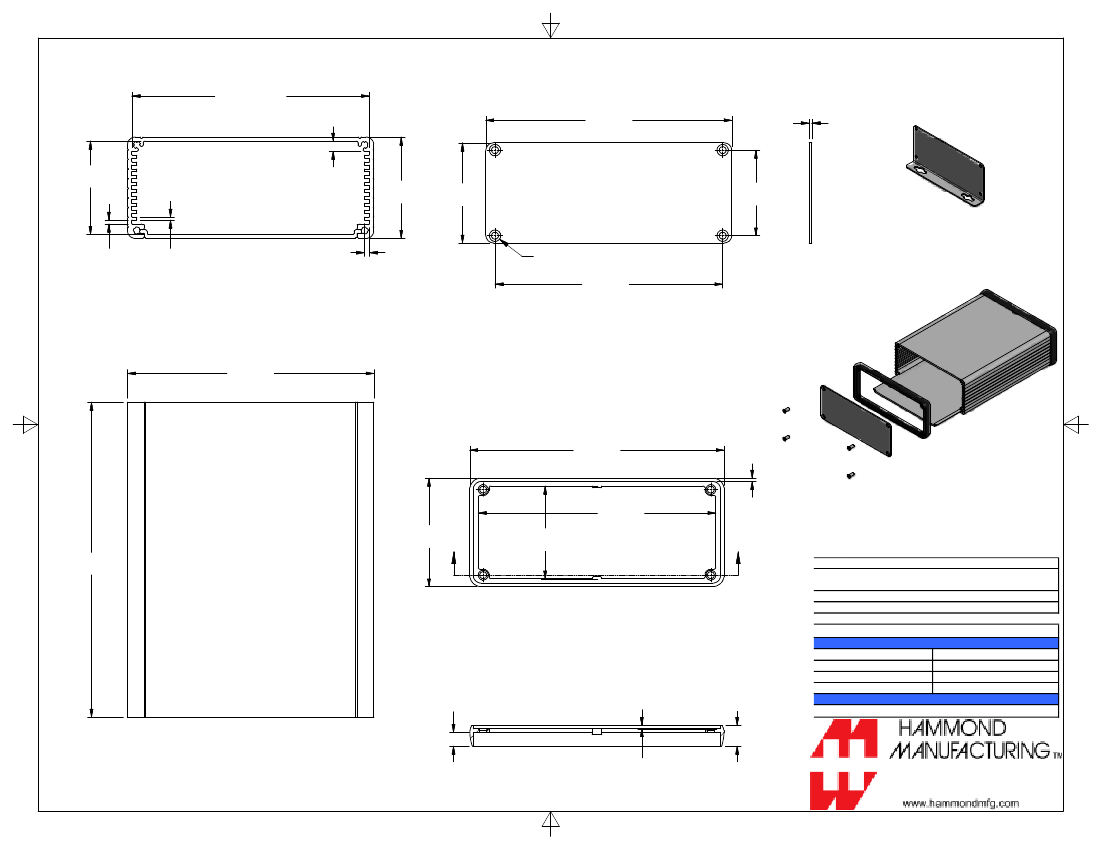

EXPLODED ASSEMBLY VIEW

120.50 mm

[4.744 in]

55.13 mm

[2.170 in]

160.00

`

0.50 mm

[6.299

`

0.020 in]

47.13 mm

[1.856 in]

D

Enclosures can be Factory Modified ( Milling, Drilling, Printing etc. )

Solid models of this enclosure available in STEP or IGES.

Contact Factory

mjm@hammondmfg.com°

NOTE

Purchased assembly includes box, plastic bezels, end panels, #6

Taptight screws and self adhesive rubber feet.

Box made from Extruded Aluminum 6063.

Bezels made with polycarbonate.

A

1455Q1601

PART NUMBERS

A

1455Q1601

1455Q1601BK

1455Q1601BU

1455Q1601RD

OPEN BEZEL

7.00 mm

[0.276 in]

10.50 mm

[0.413 in]

Clear Anodized

Black Anodized

Blue Anodized

Red Anodized

ACCESSORIES

See website for accessories.

1.70 mm

[0.067 in]

1455Q1601

1

2

1455Q1601BU Related Products

	1455Q1601BU	1455Q1601BK	1455Q1601RD	1455Q1601
Description	RS-422/RS-485 Interface IC 3.0V-5.5V RS-485 RS-422 Transceivers		Audio Amplifiers AUDIO LINE DRIVERS	Digital to Analog Converters - DAC 16B Ultralow Glitch Vltg Output DAC
Product Category	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases
Manufacturer	Hammond	Hammond	Hammond	Hammond
RoHS	Details	Details	Details	Details
Length	6.3 in	6.3 in	6.3 in	6.3 in
Width	4.92 in	4.92 in	4.92 in	4.8 in
Height	2.03 in	2.03 in	2.03 in	2.1 in
Dimensions	6.3 in L x 4.92 in W x 2.03 in H	6.3 in L x 4.92 in W x 2.03 in H	6.3 in L x 4.92 in W x 2.03 in H	6.3 in L x 4.8 in W x 2.1 in H
Height - in	2.03	2.03	2.03	2.1
Height - mm	51.562	51.562	51.562	53.34
Length - in	6.3	6.3	6.3	6.3
Length - mm	160.02	160.02	160.02	160.02
Factory Pack Quantity	1	1	1	1
Width - in	4.92	4.92	4.92	4.8
Width - mm	124.968	124.968	124.968	121.92
Unit Weight	1 lb	1 lb	1 lb	1 lb
Product	Enclosures	Enclosures	-	Enclosures
Type	Extruded	Bench Top	-	Bench Top
Material	Aluminum	Aluminum	-	Aluminum
Color	Blue	Black	-	Transparent
Cover Color	Blue	Black	-	Transparent
Features	Designed for standard Eurocards, aluminum end panels	Sized For Standard Eurocards	-	Sized For Standard Eurocards
