1554MPB1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 1554MPB1

1554MPB1: DescriptionHeavy Duty Power Connectors PP75 #10-12 AWG CONTACT - BULK; CategoryTopical application Mechanical and electrical/engineering/automation; File Size171KB，2 Pages; ManufacturerHammond; Websitehttp://www.hammondmfg.com

Download Datasheet Parametric Compare View All

1554MPB1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1554MPB1	-	-	View	Buy Now

1554MPB1 Overview

Heavy Duty Power Connectors PP75 #10-12 AWG CONTACT - BULK

1554MPB1 Parametric

Parameter Name	Attribute value
Product Category	Enclosures, Boxes, & Cases
Manufacturer	Hammond
RoHS	Details
Product	Enclosures
Type	1 Button
Material	Polycarbonate
Color	Gray
Length	3.5 in
Width	3.5 in
Height	2.4 in
IP Rating	IP66
NEMA Rating	4, 4X, 12, 13
Flammability Rating	UL 94 5VA
Cover Color	Gray
Dimensions	3.5 in L x 3.5 in W x 2.4 in H
Features	1 hole, 22.5 mm
Height - in	2.4
Height - mm	60.96
Length - in	3.5
Length - mm	88.9
Factory Pack Quantity	1
Width - in	3.5
Width - mm	88.9
Unit Weight	5.600058 oz

Preview

Download Datasheet

View All

11/2/2017

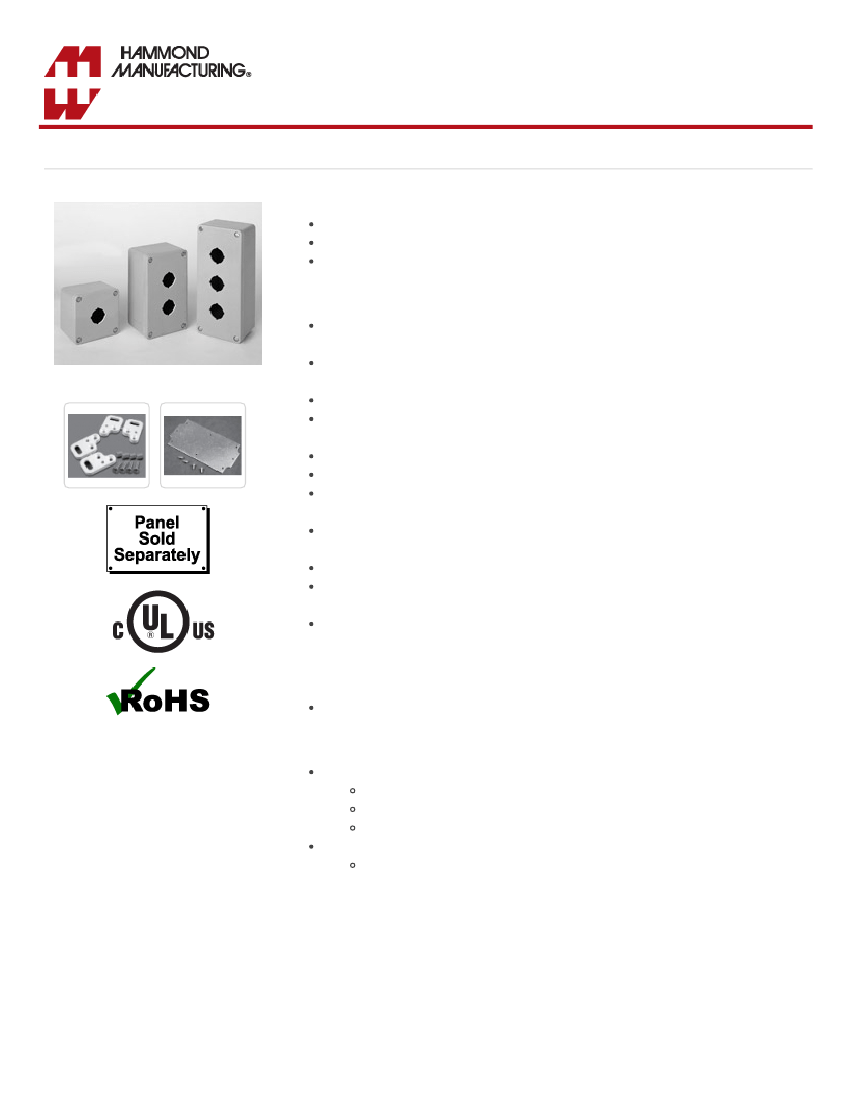

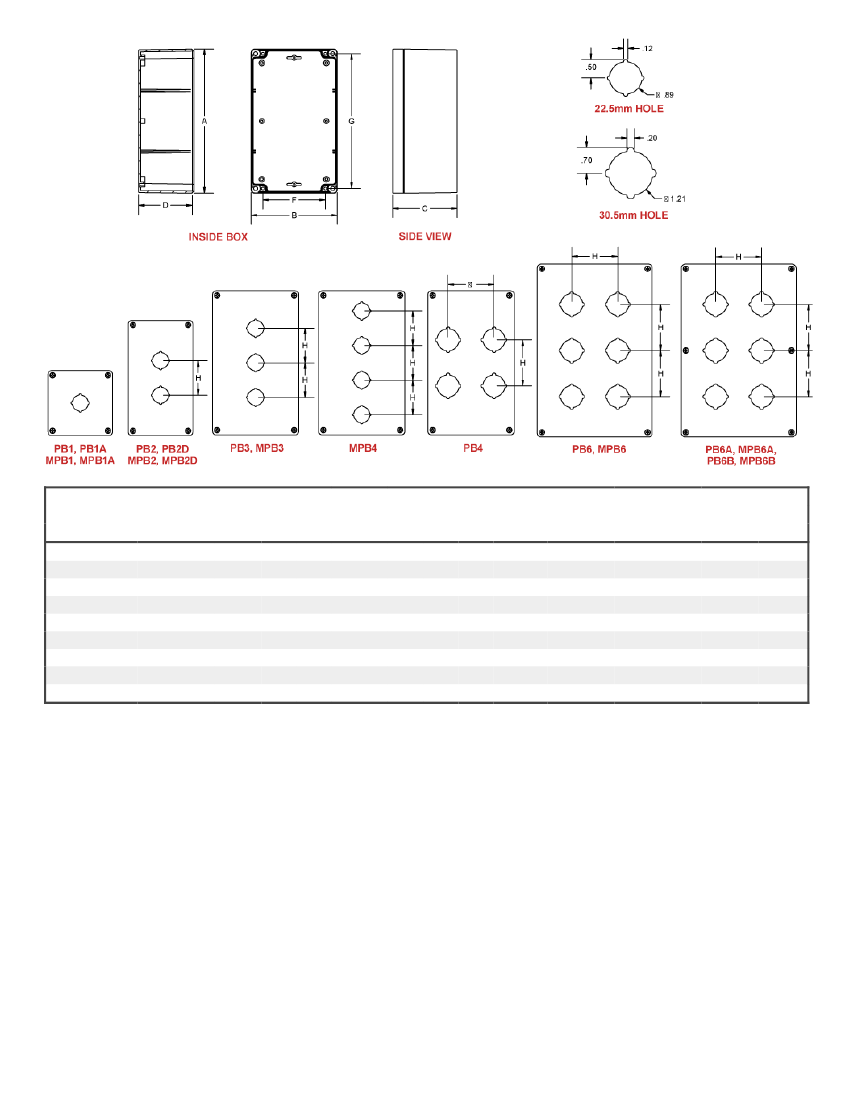

Type 4, 4X Polycarbonate Pushbutton Enclosure (1554 PB Series) - Hammond Mfg.

Quality Products. Service Excellence.

Type 4, 4X Polycarbonate Pushbutton Enclosure

1554 PB Series

Standards

IP66

NEMA 4, 4X, 6, 6P, 12 & 13

UL94 5V

Construction

Electronic instrument enclosures, designed for mounting printed circuit boards or DIN rail

mounted components.

The polycarbonate material carries a UL flammability rating of UL94 5V and is suitable for

outdoor use.

Lid and mounting holes are located outside of the gasket seal.

Lid is secured with self captivating M4 stainless steel machine screws (included),

threaded into integral stainless steel bushings (for repetitive assembly & disassembly).

Heavy duty 16 gauge galvanized steel panels available (see chart)

All stainless steel hardware to avoid corrosion caused by dissimilar metals.

Gasket is a preformed, high temperature U.L. listed silicone rubber. Gasket is

replaceable.

Gasketed lid with two piece “tongue & groove” construction provides protection against

access of oil, dust and water.

Internal DIN rail mounting tabs.

Threaded (M3) integral brass inserts & standoffs designed for M3.5 or #6 self tapping

screws for P.C. board or inner panel mounting in all but the smallest size.

Vertical P.C. card guides (for 1.5 mm thick P.C. boards) are molded in all but the smallest

size

Finish

Color is light gray (RAL 7035)

Accessories

Optional Inner Panel

Heavy duty panels for mounting components

Galvanized 16 ga. steel.

Includes mounting hardware.

Optional Mounting Feet

Part No.

1554FT

https://www.hammfg.com/electrical/products/operator/1554pb

1/2

1554MPB1 Related Products

	1554MPB1	1554PB2	1554MPB3	1554MPB2	1554MPB4	1554PB3	1554MPB6	1554PB4	1554PB6
Description	Heavy Duty Power Connectors PP75 #10-12 AWG CONTACT - BULK		Enclosures, Boxes, u0026 Cases 22mm Pushbutton Box 3.5x4.7x7.9" 1Hole	Modular Connectors / Ethernet Connectors RECP CAT6A D series SHD feedthrough, blk	DIN Rail Terminal Blocks UT 4 DIN RAIL TERM.	Enclosures, Boxes, u0026 Cases 30.5mm PushbuttonBox 3.5x4.7x7.9" 1Hole	LED Panel Mount Indicators Diffused Red Indicator Light		Enclosures, Boxes, u0026 Cases 30.5mm PushbuttonBox 3.5x6.3x9.5" 1Hole
Product Category	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases
Manufacturer	Hammond	Hammond	Hammond	Hammond	Hammond	Hammond	Hammond	Hammond	Hammond
RoHS	Details	Details	Details	Details	Details	Details	Details	Details	Details
Product	Enclosures	Enclosures	Enclosures	Enclosures	Enclosures	Enclosures	Enclosures	Enclosures	Enclosures
Type	1 Button	2 Button	3 Button	2 Button	4 Button	3 Button	6 Button	4 Button	6 Button
Material	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate
Color	Gray	Gray	Gray	Gray	Gray	Gray	Gray	Gray	Gray
Length	3.5 in	6.3 in	7.9 in	6.3 in	7.9 in	7.9 in	9.5 in	7.9 in	9.5 in
Width	3.5 in	3.5 in	4.7 in	3.5 in	4.7 in	4.7 in	6.3 in	4.7 in	6.3 in
Height	2.4 in	2.4 in	3.5 in	2.4 in	3.5 in	3.5 in	3.5 in	3.5 in	3.5 in
IP Rating	IP66	IP66	IP66	IP66	IP66	IP66	IP66	IP66	IP66
NEMA Rating	4, 4X, 12, 13	4, 4X, 12, 13	4, 4X, 12, 13	4, 4X, 12, 13	4, 4X, 12, 13	4, 4X, 12, 13	4, 4X, 12, 13	4, 4X, 12, 13	4, 4X, 12, 13
Flammability Rating	UL 94 5VA	UL 94 5VA	UL 94 5VA	UL 94 5VA	UL 94 5VA	UL 94 5VA	UL 94 5VA	UL 94 5VA	UL 94 5VA
Cover Color	Gray	Gray	Gray	Gray	Gray	Gray	Gray	Gray	Gray
Dimensions	3.5 in L x 3.5 in W x 2.4 in H	6.3 in L x 3.5 in W x 2.4 in H	7.9 in L x 4.7 in W x 3.5 in H	6.3 in L x 3.5 in W x 2.4 in H	7.9 in L x 4.7 in W x 3.5 in H	7.9 in L x 4.7 in W x 3.5 in H	9.5 in L x 6.3 in W x 3.5 in H	7.9 in L x 4.7 in W x 3.5 in H	9.5 in L x 6.3 in W x 3.5 in H
Features	1 hole, 22.5 mm	2 holes, 30.5 mm	3 holes, 22.5 mm	2 holes, 22.5 mm	4 holes, 22.5 mm	3 holes, 30.5 mm	6 holes, 22.5 mm	4 holes, 30.5 mm	6 holes, 30.5 mm
Height - in	2.4	2.4	3.5	2.4	3.5	3.5	3.5	3.5	3.5
Height - mm	60.96	60.96	88.9	60.96	88.9	88.9	88.9	88.9	88.9
Length - in	3.5	6.3	7.9	6.3	7.9	7.9	9.5	7.9	9.5
Length - mm	88.9	160.02	200.66	160.02	200.66	200.66	241.3	200.66	241.3
Factory Pack Quantity	1	1	1	1	1	1	1	1	1
Width - in	3.5	3.5	4.7	3.5	4.7	4.7	6.3	4.7	6.3
Width - mm	88.9	88.9	119.38	88.9	119.38	119.38	160.02	119.38	160.02
Unit Weight	5.600058 oz	8.160084 oz	8.160084 oz	8.320085 oz	1 lb	1 lb	1.300 lbs	1 lb	1.300 lbs
