WMPV22E Overview

Racks u0026 Rack Cabinet Accessories FRONT AND REAR VERTICAL MANAGER

WMPV22E Parametric

Parameter Name	Attribute value
Product Category	Racks & Rack Cabinet Accessories
Manufacturer	Panduit
RoHS	Details
Product	Racks
Type	Cable Managers
Color	Black
Features	Includes hinged covers, wire retainers and side mount brackets
Factory Pack Quantity	1
Unit Weight	10.600 lbs

Preview

Download Datasheet

View All

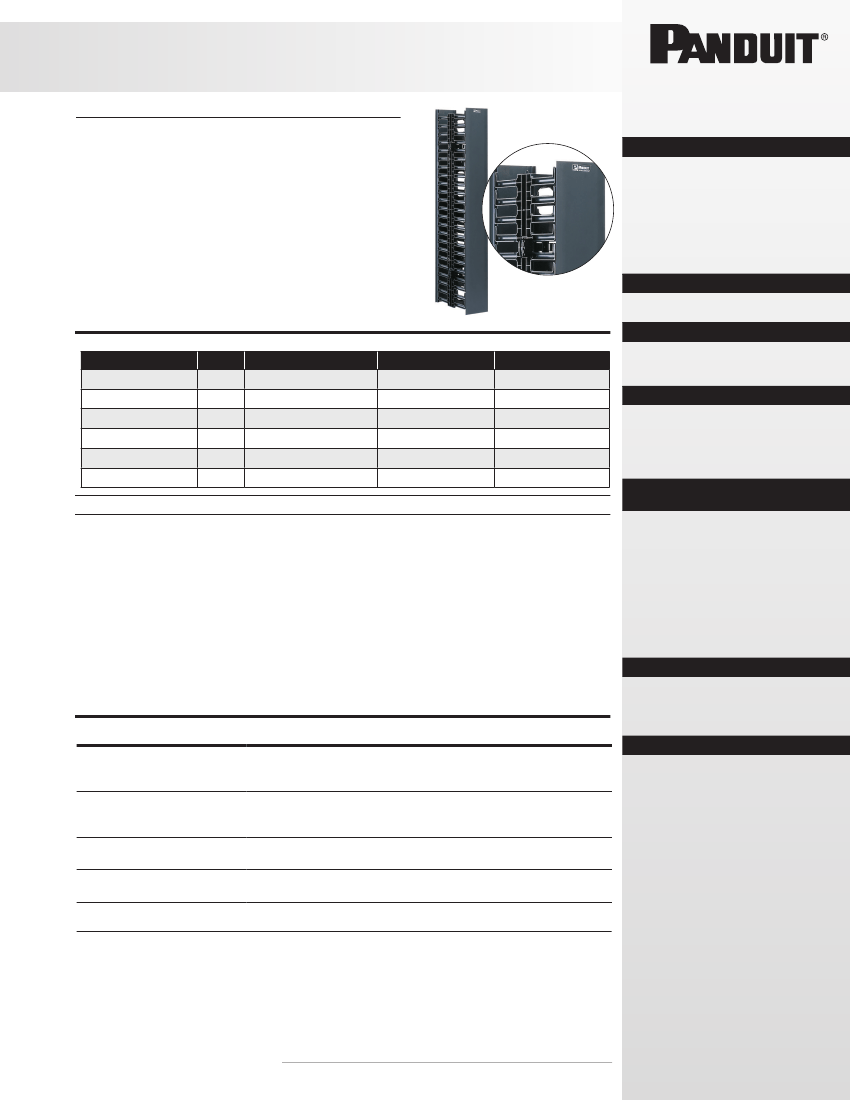

NetRunner

™

Vertical Cable Managers

specifications

The vertical cable manager shall be capable of mounting to

EIA racks to manage cables on the front and rear of the rack.

The manager shall be molded out of plastic and possess cable

management fingers and pass through holes. The fingers shall

provide integral bend radius control and be spaced so that the

gaps between the fingers align with EIA rack spaces. The pass

through holes shall provide bend radius control and slots that

can be used for securing of cable straps. The vertical manager

shall have a dual hinged cover that can be opened to the left

or right 110 degrees. The manager shall be able to accept

wire retainers that can be snapped on to the cable

management fingers.

S P E C I F I C AT I O N S H E E T

NetRunner

™

Vertical Cable Managers

Front and rear

22 RU, 4" x 5":

WMPV22E

45 RU, 4" x 5":

WMPV45E

45 RU, 6" x 6":

WMPVHC45E

Front only

22 RU, 4" x 5":

WMPVF22E

45 RU, 4" x 5":

WMPVF45E

45 RU, 6" x 6":

WMPVHCF45E

Replacement Covers

4" wide:

6" wide:

WMPVHRCE

WMPVHCRCE

technical information

Dimensions:

Part Number

WMPV22E

WMPVF22E

WMPV45E

WMPVF45E

WMPVHC45E

WMPVHCF45E

Height in (mm)

41.5 (1054)

83.0 (2108)

Width in (mm)

4.9 (125)

6.7 (170)

Depth in (mm)

12.0 (306)

6.5 (165)

12.0 (306)

6.5 (165)

14.1 (357)

7.6 (192)

Standard 2 Post Racks – 7 Foot

19" mount:

R2P

19" mount:

R2PS

23" mount:

R2PW

4 Post Racks, 19" Mount – 7 Foot

23" deep:

R4P23*

30" deep:

R4P*

36" deep:

R4P36*

42" deep:

R4P42*

*Add "CN" for Cage Nut Rails

NetManager

™

High Capacity

Horizontal Cable Managers

Front and rear

1 RU:

NM1

2 RU:

NM2

3 RU:

NM3

4 RU:

NM4

Front only

1 RU:

NMF1

2 RU:

NMF2

3 RU:

NMF3

4 RU:

NMF4

PatchLink

™

Horizontal

Front and rear, 2 RU:

Front and rear, 1 RU:

Front only, 2 RU:

Front only, 1 RU:

Cable Managers

WMP1E

WMPSE

WMPF1E

WMPFSE

Packaging:

Mounting options:

Managers include hinged covers, mounting brackets and #12 – 24 screws

When attached to the side of a standard 19" EIA rack, the pitch of a

WMPV vertical manager is 25.3" and the pitch of a WMPVHC vertical

manager is 27.1"

Managers can be center mounted between two adjacent EIA 19" or 23"

racks by using the WMPVCBE bracket kit

Managers can be mounted to Panduit R2PS and 7 foot R4P series of

4 post racks by using the WMPVSMK hardware kit; two kits are needed

for center mounting

Managers can be side or center mounted to the front or rear of a rack with

dimensions of up to 1 5/8" (41.1mm) from the outside edge of a rack to the

center of the mounting hole by using the WMPVCMB bracket kit; two kits

are needed for center mounting; when attached to the side of a 19" rack

using a WMPVCMB bracket kit, the pitch of a WMPV vertical manager is

25.8" and the pitch of WMPVHC vertical manager is 27.6"

key features and benefits

Bend radius fingers

Align with rack spaces to support cables as they transition to the

vertical pathway; pass through holes maintain cable bend radius

ensuring network performance and reliability

Each accommodates up to 54 Category 6 cables eliminating

the need to remove fingers for cable routing speeding installation

and maintenance

Can be opened 110 degrees to the left or right to provide complete

access to the cables inside the vertical pathway

On the end of each finger to help contain cables within each rack

unit to simplify installation and maintenance

Large finger opening

Dual hinged cover

Integral cable retainers

applications

Panduit

NetRunner

™

Vertical Cable Managers

provide a cost-effective solution that organize,

manage, and protect network cabling in

telecommunication rooms and data centers.

Cable management fingers simplify cable routing

during installation and maintenance. Bend radius

control helps protect cables from kinks, snags,

and crushing, ensuring system performance

and reliability. Multiple sizes and mounting

options allow for use in a variety of applications.

When used with Panduit

Mini-Com

Patch

Panels, patch cords, horizontal cable managers

and racks, the user receives a complete

end-to-end solution that satisfies functional

requirements and showcases network cabling.

w w w.pa nd uit.c om

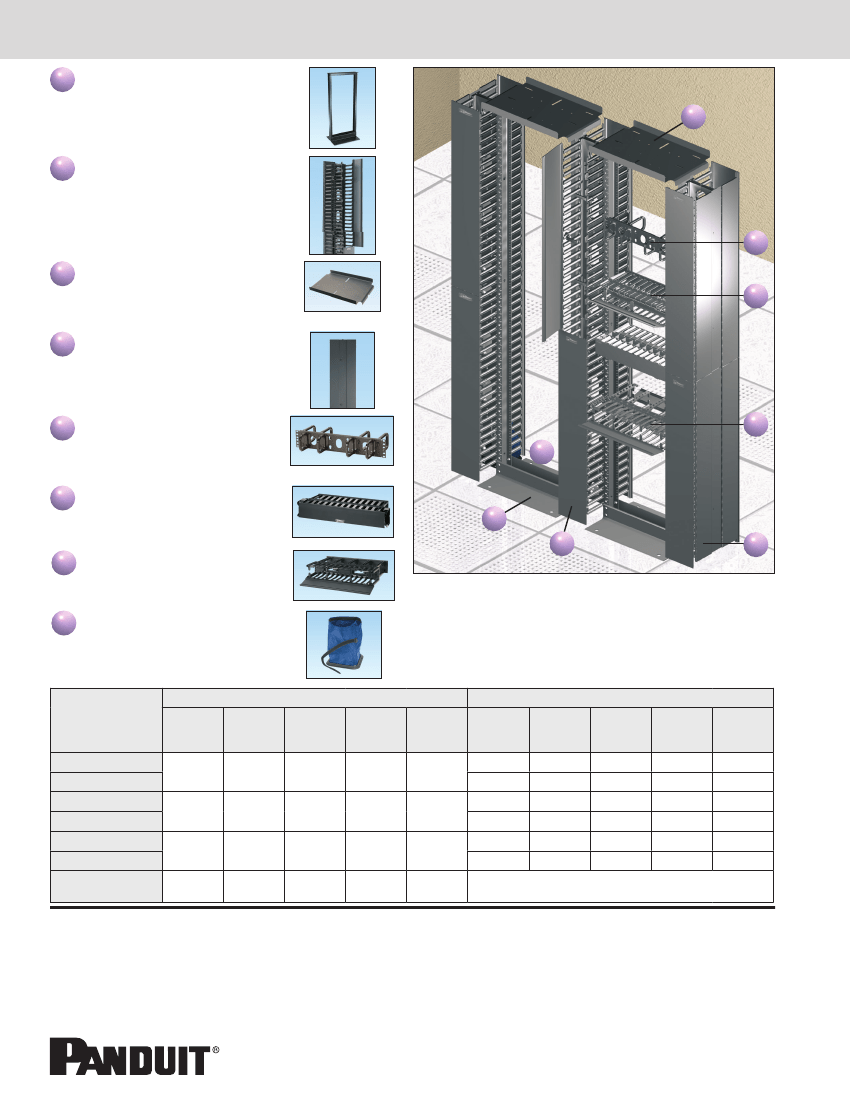

Accessories

Center mount

bracket kit :

WMPVCBE

(For use with EIA standard racks)

Side mount

hardware kit :

WMPVSMK

(For use with R2PS 2 post rack

and 7 foot R4P series of 4 post racks.)

Rack adapter

bracket kit:

WMPVCMB

(For use with racks with dimensions

up to 1 5/8" (41.1mm) from outside

edge of the rack to the center of

the mounting hole)

Cable retainers:

WR5E-X

(Package of 10)

Rack top trough

with waterfall:

WMPV45ERTW

(For use with R2P

and WMPV45E/WMPHC45E)

End panel:

WMPV45EPB1

(For use with WMPV45E)

End panel:

NREPB1

(For use with WMPVHC45E)
