1451-29BK3: CategoryTopical application Mechanical and electrical/engineering/automation; File Size184KB，1 Pages; ManufacturerHammond; Websitehttp://www.hammondmfg.com

Download Datasheet Parametric Compare View All

1451-29BK3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1451-29BK3	-	-	View	Buy Now

1451-29BK3 Parametric

Parameter Name	Attribute value
Product Category	Enclosures, Boxes, & Cases
Manufacturer	Hammond
RoHS	Details
Product	Enclosures
Type	Vented
Material	Steel
Color	Black
Length	10 in
Width	12 in
Height	5.2 in
Dimensions	10 in L x 12 in W x 5.2 in H
Height - in	5.2
Height - mm	132.08
Length - in	10
Length - mm	254
Factory Pack Quantity	1
Width - in	12
Width - mm	304.8
Unit Weight	3 lbs

Preview

Download Datasheet

View All

8

7

6

5

4

3

2

1

D

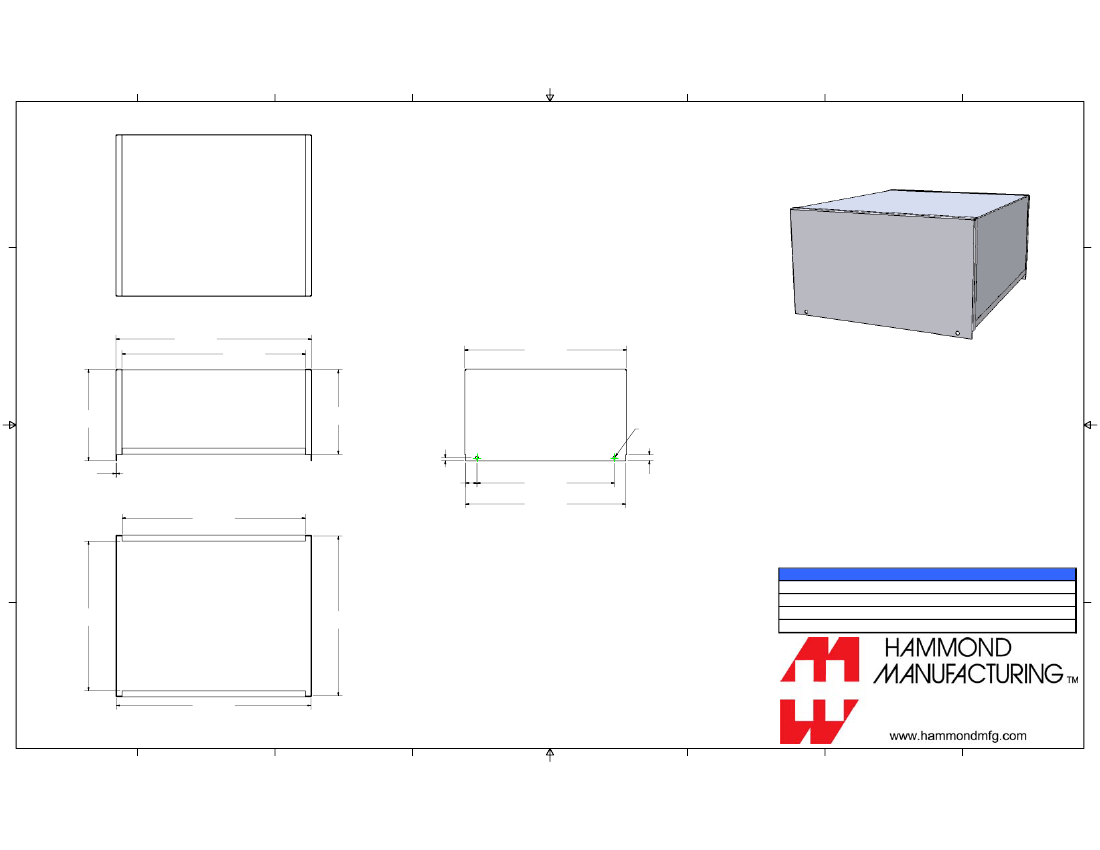

TOP VIEW OF ASSEMBLY

C

307.01 mm

[12.087 in]

C

287.96 mm

[11.337 in]

254.00 mm

[10.000 in]

143.79 mm

[5.661 in]

132.56 mm

[5.219 in]

4.76 mm

[.188 in]

n

4.76 mm 4X

[.188 in]

.91 mm

[.036 in]

TYP. MATERIAL

THICKNESS

B

SIDE VIEW OF ASSEMBLY

17.70 mm

[.697 in]

215.85 mm

[8.498 in]

251.26 mm

[9.892 in]

9.53 mm

[.375 in]

287.53 mm

[11.320 in]

Note:

Enclosures can be Factory Modified ( Milling, Drilling, Printing etc. )

Contact Factory

mjm@hammondmfg.com for quotes

Solid models of this enclosure available in STEP or IGES Format.

B

END VIEW OF ASSEMBLY

234.95 mm

[9.250 in]

250.80 mm

[9.874 in]

1451-29

Material: 20ga. W elded Steel, Gray color

Cover: Perforated Steel

Screws: 4 Supplied (#6-32 X 1/4" self tap)

For use with 1441 and 1444 series chassis.

A

305.18 mm

[12.015 in]

BOTTOM VIEW OF ASSEMBLY

8

7

6

5

4

3

2

1451-29

1

A

1451-29BK3 Related Products

	1451-29BK3	1451-29
Description		Chemicals 1.7oz ADHSVE CLEAR EPOXY
Product Category	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases
Manufacturer	Hammond	Hammond
RoHS	Details	Details
Product	Enclosures	Enclosures
Type	Vented	Vented
Material	Steel	Steel
Color	Black	Gray
Length	10 in	10 in
Width	12 in	12 in
Height	5.2 in	5.2 in
Dimensions	10 in L x 12 in W x 5.2 in H	10 in L x 12 in W x 5.2 in H
Height - in	5.2	5.2
Height - mm	132.08	132.08
Length - in	10	10
Length - mm	254	254
Factory Pack Quantity	1	1
Width - in	12	12
Width - mm	304.8	304.8
Unit Weight	3 lbs	3 lbs
