1456WH3BKBU datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 1456WH3BKBU

1456WH3BKBU: DescriptionEnclosures, Boxes, u0026 Cases Sloped Metal Console; CategoryTopical application Mechanical and electrical/engineering/automation; File Size235KB，1 Pages; ManufacturerHammond; Websitehttp://www.hammondmfg.com

Download Datasheet Parametric Compare View All

1456WH3BKBU Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1456WH3BKBU	-	-	View	Buy Now

1456WH3BKBU Overview

Enclosures, Boxes, u0026 Cases Sloped Metal Console

1456WH3BKBU Parametric

Parameter Name	Attribute value
Product Category	Enclosures, Boxes, & Cases
Manufacturer	Hammond
RoHS	Details
Product	Cases
Type	Sloped Console
Material	Aluminum
Color	Black
Length	20 in
Width	8.3 in
Height	3 in
Cover Color	Blue
Dimensions	20 in L x 8.3 in W x 3 in H
Features	Comes In Self Adhesive Rubber Feetand Required Mounting Hardware
Height - in	3
Height - mm	76.2
Length - in	20
Length - mm	508
Factory Pack Quantity	1
Width - in	8.3
Width - mm	210.82
Unit Weight	4.100 lbs

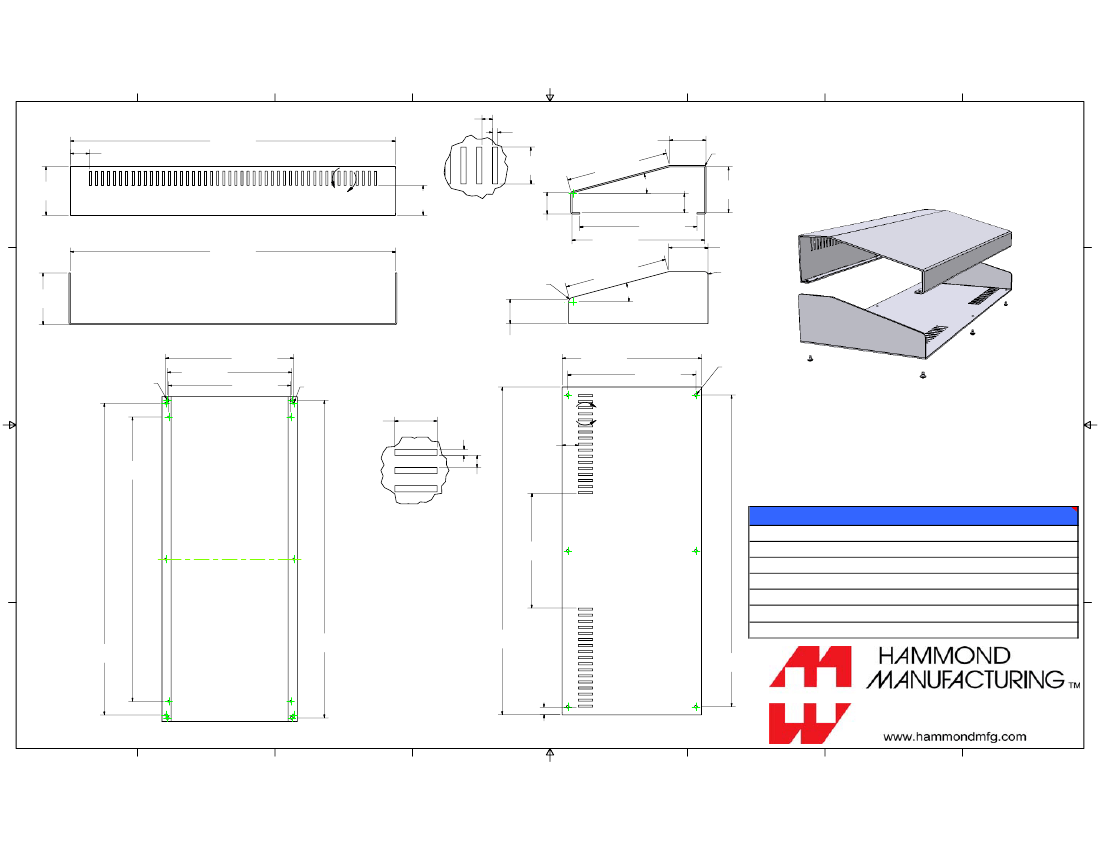

Preview

Download Datasheet

View All

6.35 mm

[0.250 in]

3.18 mm

[0.125 in]

22.23 mm

[0.875 in]

76.20 mm

[3.000 in]

29.57 mm

[1.164 in]

509.98 mm

[20.078 in]

46.81 mm

[1.843 in]

R3.07 mm 5X

[0.121 in]

0.15 in]

1 6 05

[6.

30.20 mm

15.0° [1.189 in] 72.09 mm

[2.838 in]

183.74 mm

[7.234 in]

61.70 mm

[2.429 in]

R4.76 mm

[0.188 in]

57.15 mm

[2.250 in]

DETAIL A

34.13 mm

[1.344 in]

208.20 mm

[8.197 in]

51 m

161. 59 in]

[6.3

15.0°

510.49 mm

[20.098 in]

R6.35 mm

[0.250 in]

81.43 mm

[3.206 in]

ASSEMBLY - REAR VIEW (OPEN)

4.80 mm 4X

195.17 mm

[7.684 in]

201.22 mm

[7.922 in]

191.67 mm

[7.546 in]

2.79 mm10X

38.36 mm

[1.510 in]

ASSEMBLY - SIDE VIEW (OPEN)

218.67 mm

[8.609 in]

201.19 mm

[7.921 in]

4.34 mm 6X

[0.171 in]

[0.189 in]

[0.110 in]

22.23 mm

[0.875 in]

3.18 mm

[0.125 in]

25.40 mm

[1.000 in]

446.48 mm

[17.578 in]

6.35 mm

[0.250 in]

Enclosures can be Factory Modified ( Milling, Drilling, Printing etc. )

Contact Factory mjm@hammondmfg.com for quotes

Solid models of this enclosure available in STEP or IGES.

DETAIL B

1456W H3

179.78 mm

[7.078 in]

489.36 mm

[19.266 in]

498.55 mm

[19.628 in]

514.60 mm

[20.260 in]

B e ig e

Top, B lue C as e -

1456W H 3W H B U

B la ck

Top, B lue C as e -

1456W H 3B K B U

E nc los ure C as e - 12 ga. A lum inum

Top P anel S iz es to 14" W ide - 14 ga. A lum inum

S elf A dhes ive R ubber F eet Inc luded (4 pc s .)

R equired H ardw are Inc luded

R eplac em ent S c rew s - 1421-J6 (6 pc s .)

489.33 mm

[19.265 in]

11.84 mm

[0.466 in]

TOP PANEL - BOTTOM VIEW

ENCLOSURE CASE - BOTTOM VIEW

1456WH3
