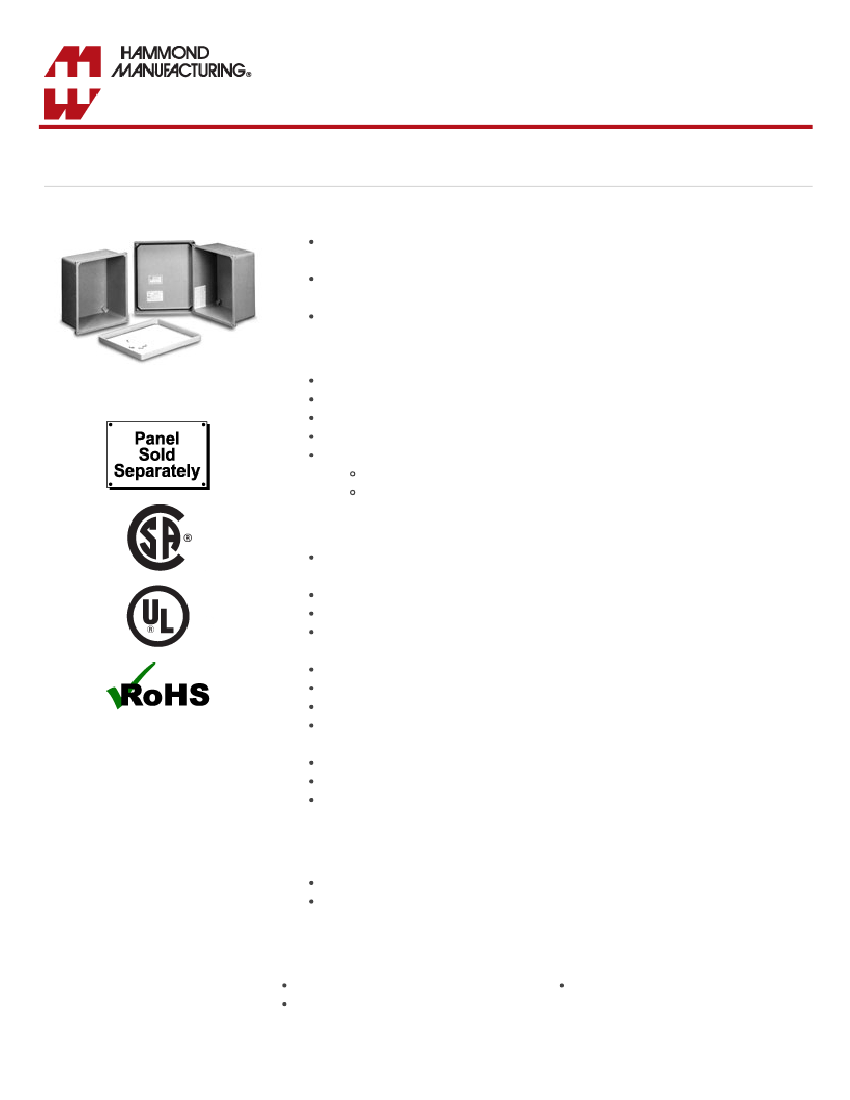

Type 4X Polyester Junction Box
PJ Series
Lift-Off Cover/Hinged Door with Screws
Application
Designed for use as instrument enclosures, electric, hydraulic or pneumatic control
housings, electrical junction boxes or terminal wiring enclosures.
Provides outstanding insulation and protection where equipment may be hosed down or
be very wet.
Ideal in applications with high temperatures or highly corrosive environments.
Standards
UL 508A Type 1, 2, 3, 4, 4X, 12 and 13
UL 508A Type 6P (see table)
CSA Type 1, 2, 3, 4, 4X, 12 and 13
CSA Type 6P (see table)
Complies with
NEMA Type 1, 2, 3, 4, 4X,12 and 13
IEC 60529, IP66
Construction
Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or
drilled.
Enhanced UV inhibitors protect against outdoor weathering.
Standard JIC sizes under 18" x 16".
10-32 threaded brass inserts are provided for optional inner panel or terminal kit
mounting. Mounting hardware included.
Cover is fastened with captive stainless steel screws in threaded brass inserts.
Captive oil resistant gasket provides a positive seal.
Threaded brass inserts are provided for mounting feet to the rear of the enclosure.
Stainless steel mounting brackets and hardware are provided for mounting feet to the rea
of the enclosure.
Operating temperatures between 130°C and -40°C (266°F to -40°F).
Impact index of 6.78J (5 ft/lb).
For corrosion resistance information, please refer to table in the Technical Information
section.
Finish
Fiberglass polyester material has a gray finish.
Optional inner panels are available in white powder coated finished steel, unfinished
aluminum, or Fiberglass.
Accessories
PJ/PJU Replacement Hardware Kits
Terminal Kit Assemblies
Inner Panels
https://www.hammfg.com/electrical/products/corrosion/pj
1/3
11/4/2017
Type 4X Polyester Junction Box (PJ Series) - Hammond Mfg.
Lift-Off
Cover
Part No.
PJ664²
PJ864²
PJ1084²
PJ1086²
PJ12106²
PJ12124
PJ12126
PJ14126²
PJ16148
PJ18168
PJ20168
Hinged
Cover
Part No.
PJ664H
PJ864H
PJ1084H
PJ1086H
PJ12106H
PJ12124H
PJ12126H
PJ14126H
PJ16148H
PJ18168H
PJ20168H

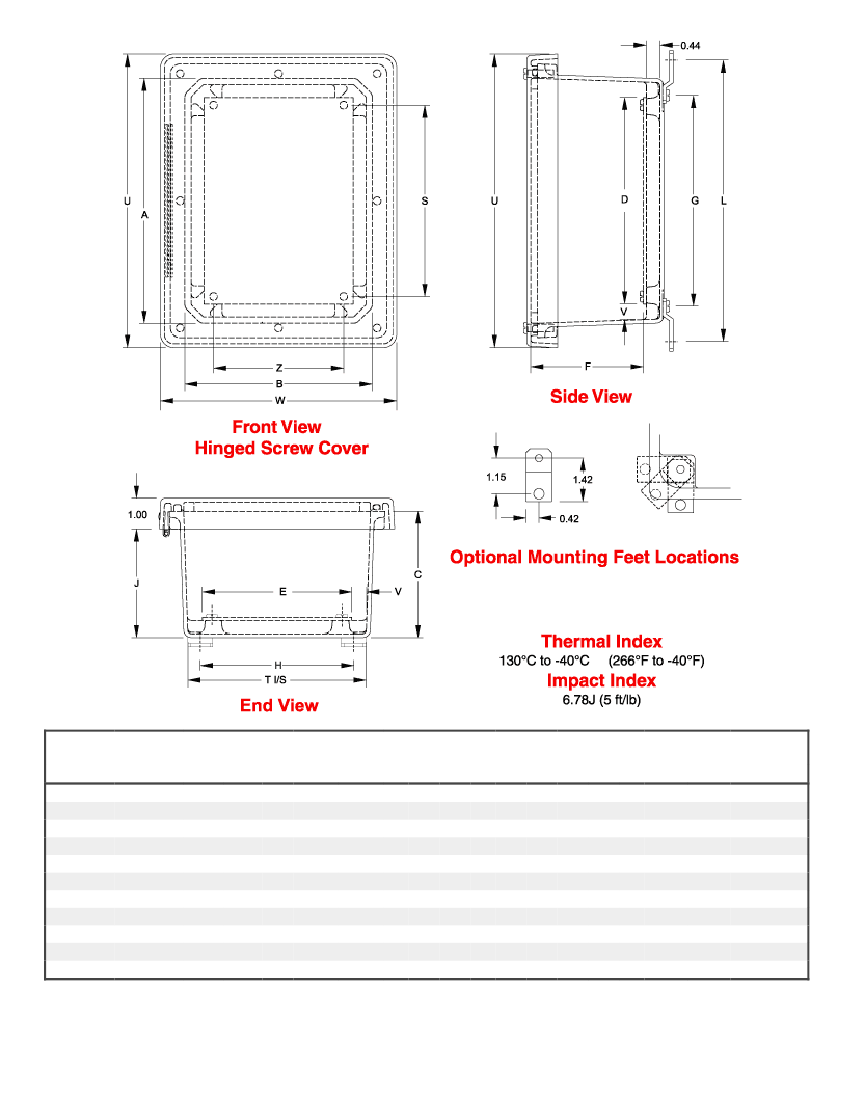

A
Enclosure
Dimensions
B
6.10
6.12
8.26
8.26
10.26
12.13
12.13
12.26
14.40
16.40
16.00
C
4.13
4.13
4.13
6.13
6.13
4.13
6.13
6.13
8.13
8.13
8.13
6.10
8.00
10.13
10.13
12.13
12.13
12.13
14.13
16.27
18.40
20.00
Panel
Dimensions
D
4.88
6.75
8.75
8.75
10.75
10.75
10.75
12.75
14.75
16.88
18.44
E
4.88
4.88
6.88
6.88
8.88
10.88
10.88
10.88
12.88
14.88
14.44
F
G
H
J
3.76 5.01
3.68 6.89
3.68 8.89
5.68 8.89
Centers
S
Z
4.25
4.25
L
7.32
9.19
T
V
5.01 3.52 4.25
5.01 3.47 6.25
7.01 3.47 8.25
7.01 5.47 8.25
5.83 0.49
5.85 0.50
Cover
Dimensions
U
7.69
9.59
11.77
11.77
13.77
13.72
13.72
15.73
17.87
20.00
21.59
W
7.69
7.71
9.90
9.90
11.90
13.72
13.72
13.85
15.99
18.00
17.59
Opt. Steel
Panel
Part No.¹
14R0505
14R0705
14R0907
14R0907
14R1109
14R1111
14R1111
14R1311
14R1513
P1868
P2068
6.25 11.19 7.85 0.50
6.25 11.19 7.85 0.50
5.68 10.89 9.01 5.47 10.25 8.25 13.19 9.85 0.50
3.68 10.89 11.03 3.47 10.25 10.25 13.33 11.85 0.50
5.68 10.89 11.03 5.47 10.25 10.25 13.33 11.85 0.50
5.68 12.89 11.01 5.47 12.25 10.25 15.19 11.85 0.50
7.68 14.89 13.01 7.47 14.25 12.25 17.19 13.71 0.50
7.68 16.97 14.97 7.47 16.25 14.25 19.28 15.72 0.50
7.68 18.54 14.54 7.47 17.81 13.81 20.84 15.31 0.52
¹
Aluminum and fiberglass panels available
² Type 6P
Data subject to change without notice
https://www.hammfg.com/electrical/products/corrosion/pj
2/3
