1590BSCB: DescriptionDIN Rail Power Supplies 30W 115-230Vin 24Vout 1.25 DIN; CategoryTopical application Mechanical and electrical/engineering/automation; File Size232KB，1 Pages; ManufacturerHammond; Websitehttp://www.hammondmfg.com

Download Datasheet Parametric Compare View All

1590BSCB Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1590BSCB	-	-	View	Buy Now

1590BSCB Overview

DIN Rail Power Supplies 30W 115-230Vin 24Vout 1.25 DIN

1590BSCB Parametric

Parameter Name	Attribute value
Product Category	Enclosures, Boxes, & Cases
Manufacturer	Hammond
RoHS	Details
Product	Boxes
Length	4.4 in
Width	2.38 in
Height	1.5 in
Dimensions	4.4 in L x 2.38 in W x 1.5 in H
Height - in	1.5
Height - mm	38.1
Length - in	4.4
Length - mm	111.76
Factory Pack Quantity	1
Width - in	2.38
Width - mm	60.452
Unit Weight	7.840080 oz

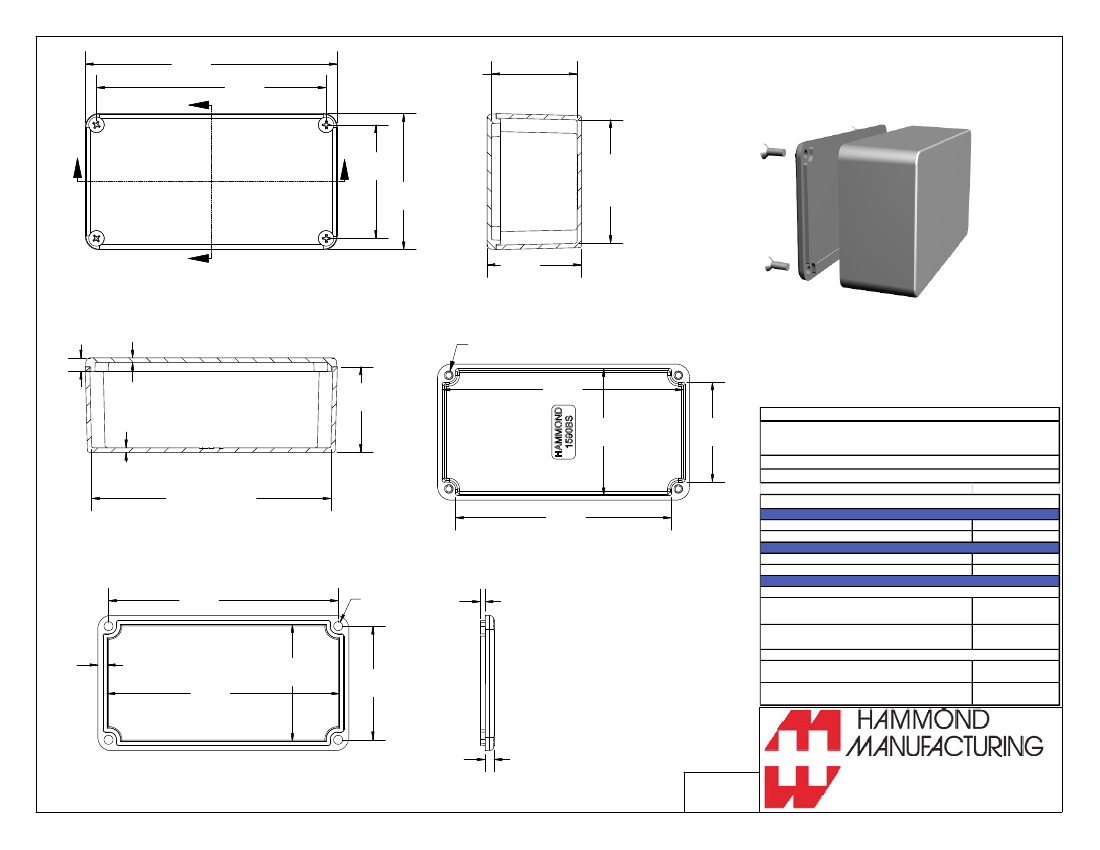

Preview

Download Datasheet

View All

112.00

[4.409]

102.10

[4.020]

38.00

[1.496]

INSIDE

HEIGHT

50.50

[1.988]

60.50

[2.382]

54.97

[2.164]

INSIDE

WIDTH

TOP VIEW

6.00

[.236]

42.00

[1.654]

SECTION A-A

END VIEW

4X 6-32 UNC



11.00

 

3.90



3.00

2.00

[.079]

38.00

[1.496]

107.24

[4.222]

56.50

[2.224]

44.50

[1.752]

Enclosures can be Factory Modified ( Milling, Drilling, Printing etc.)

Contact Factory

mjm@hammondmfg.com for quotes

Solid models of this enclosure available in STEP or IGES.

(Part number and text placement/orientation on our products are subject to change,

we do not recommend using them as a locating reference for modification purposes)

NOTE

Purchased assembly includes box, lid and 4 cover screws.

Box and lid are made from Diecast Aluminum Alloy.

Silicone Gasket supplied with liquid resistant enclosure.

2.00

[.079]

106.47

[4.192]

INSIDE LENGTH

Recommended Torque: 50-55 cN.m [71-78 ozf.in]

Recommended Torque with Gasket : 25-30 cN.m [36-43 ozf.in]

SECTION B-B

SIDE VIEW

102.10

[4.020]



4.00

[.157]

2.00

[.079]

96.00

[3.780]

PART NUMBERS

1590BS Enclosure

1590BS

Natural Finish Enclosure

1590BSBK

Black Textured Enclosure

1590BS Liquid Resistant Enclosure (Silicone Gasket)

1590W BS

Natural Finish Enclosure

1590W BSBK

Black Textured Enclosure

ACCESSORIES

INSIDE BOX

Liquid Resistant Cover Screws

Stainless Steel Cover Screw s (Pkg 100)

[6-32 x 1/2" With O-Ring]

Black Stainless Steel Cover Screw s (Pkg 100)

[6-32 x 1/2" W ith O-Ring]

1590WMS100

1590WMS100BK

4.19

[.165]

103.46

[4.073]

52.06

[2.050]

Standard Cover Screws

50.50

[1.988]

Plated Cover Screw s (Pkg 100)

[6-32 x 1/2"]

Black Cover Screw s (Pkg 100)

[6-32 x 1/2"]

1590MS100

1590MS100BK

4.00

[.157]

INSIDE LID

Dimensions:

[inches]

1590BS

www.hammondmfg.com
