1457C1201E datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 1457C1201E

Preview

1457C1201E: DescriptionEnclosures, Boxes, u0026 Cases EMI/RMI ClearAnodize 4.8x2.4x1.3"Extruded; CategoryTopical application Mechanical and electrical/engineering/automation; File Size909KB，1 Pages; ManufacturerHammond; Websitehttp://www.hammondmfg.com

Download Datasheet Parametric Compare View All

1457C1201E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1457C1201E	-	-	View	Buy Now

1457C1201E Overview

Enclosures, Boxes, u0026 Cases EMI/RMI ClearAnodize 4.8x2.4x1.3"Extruded

1457C1201E Parametric

Parameter Name	Attribute value
Product Category	Enclosures, Boxes, & Cases
Manufacturer	Hammond
RoHS	Details
Product	Cases
Type	Bench Top
Material	Aluminum
Color	Transparent
Length	4.8 in
Width	2.4 in
Height	1.3 in
IP Rating	IP54
Cover Color	Transparent
Dimensions	4.8 in L x 2.4 in W x 1.3 in H
Features	Designed to House P.C. Boards or for Equipment Interfacing
Height - in	1.3
Height - mm	33.02
Length - in	4.8
Length - mm	121.92
Factory Pack Quantity	1
Width - in	2.4
Width - mm	60.96
Unit Weight	5.600058 oz

Preview

Download Datasheet

View All

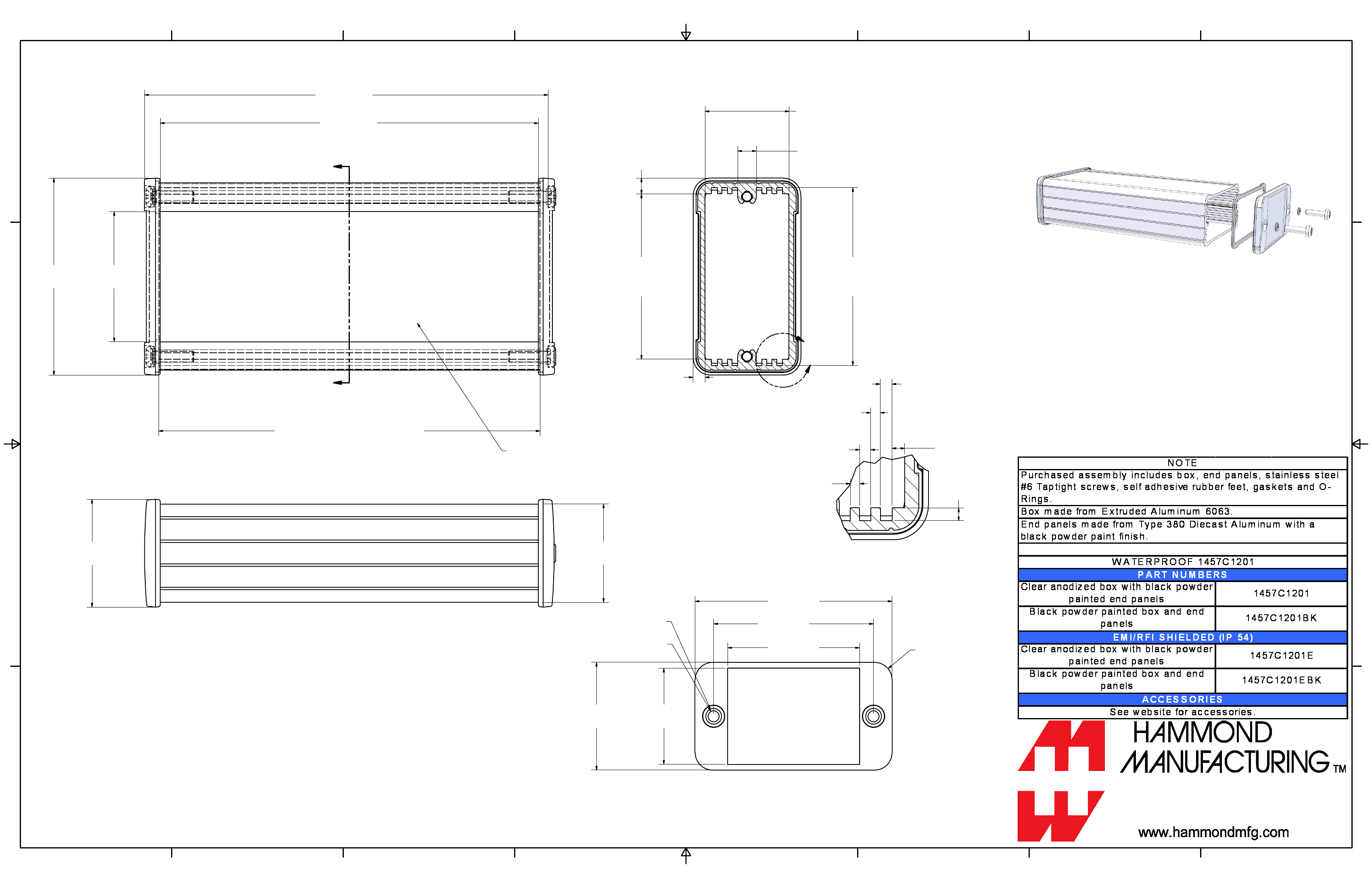

8

7

6

5

4

3

2

1

127.03 mm

[5.001 in]

D

119.00 mm

[4.685 in]

[

1.041

5.00 mm

[0.197 in]

26.44

+0.00

mm

- 0.18

+0.000

- 0.007

in

]

D

R

5.85 mm

[0.230 in]

62.00 mm

[2.441 in]

41.00 mm

[1.614 in]

[

2.047

52.00

+0.00

mm

- 0.18

+0.000

- 0.007

in

]

[

2.205

56.00

+0.00

mm

- 0.18

+0.000

- 0.007

in

]

C

S

R

120.00

+0.54

mm

- 0.50

3.75 mm

[0.148 in]

SECTION R-R

.75mm (.030") Deep Recess For Labels/Keypads etc.

[

0.073

1.50 mm

[0.059 in]

+0.00

- 0.18

1.85

+0.00

mm

- 0.18

+0.000

- 0.007

in

]

PROTECTION TO IP 65

Enclosures

can be Factory Modified ( Milling, Drilling, Printing etc. )

Contact

Factory

mjm@hammondmfg.com for quotes

Solid

models of this enclosure available in STEP or IGES.

[

4.724

+0.02

- 0.02

in

]

Inside Face to Face Dimension

[

0.068

1.72

mm

in

+0.000

- 0.007

]

2.00 mm

[0.079 in]

2.00 mm

[0.079 in]

ASSEMBLY - VIEW FROM TOP

1.50 mm

[0.059 in]

B

33.93 mm

[1.336 in]

30.93 mm

[1.218 in]

62.00 mm

[2.441 in]

50.31 mm

[1.981 in]

41.52 mm

[1.635 in]

DETAIL S

B

n

5.00 mm

x

0.60 mm 2X

n

3.50 mm

x

8.00 mm

v n

7.00 mm

x

2.00 mm 2X

R5.49 mm 2X

[0.216 in]

Fits 120mm (4.724") X 55.5mm (2.185") PCB

Note: Aluminum extrusion has a tolerance of -/+ .02"

A

33.93 mm

[1.336 in]

30.23 mm

[1.190 in]

A

END PANEL - VIEW FROM OUTSIDE

1457C1201

3

2

1

8

7

6

5

4

1457C1201E Related Products

	1457C1201E	1457C1201BK	1457C1201
Description	Enclosures, Boxes, u0026 Cases EMI/RMI ClearAnodize 4.8x2.4x1.3"Extruded		USB Cables / IEEE 1394 Cables USB Embedded Serial Conv 5V 0.1" Header
Product Category	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases
Manufacturer	Hammond	Hammond	Hammond
RoHS	Details	Details	Details
Product	Cases	Cases	Cases
Type	Bench Top	Bench Top	Bench Top
Material	Aluminum	Aluminum	Aluminum
Color	Transparent	Black	Transparent
Length	4.8 in	4.73 in	4.8 in
Width	2.4 in	2.4 in	2.4 in
Height	1.3 in	1.21 in	1.21 in
IP Rating	IP54	IP65	IP65
Cover Color	Transparent	Black	Transparent
Dimensions	4.8 in L x 2.4 in W x 1.3 in H	4.73 in L x 2.4 in W x 1.21 in H	4.8 in L x 2.4 in W x 1.21 in H
Features	Designed to House P.C. Boards or for Equipment Interfacing	Designed to House P.C. Boards or for Equipment Interfacing	Designed to House P.C. Boards or for Equipment Interfacing
Height - in	1.3	1.21	1.21
Height - mm	33.02	30.734	30.734
Length - in	4.8	4.73	4.8
Length - mm	121.92	120.142	121.92
Factory Pack Quantity	1	1	1
Width - in	2.4	2.4	2.4
Width - mm	60.96	60.96	60.96
Unit Weight	5.600058 oz	4.800049 oz	4.800049 oz
