271-I-A: DescriptionEnclosures, Boxes, u0026 Cases 6.88 x 4.88 x 1.52 Almond; CategoryTopical application Mechanical and electrical/engineering/automation; File Size722KB，2 Pages; ManufacturerSERPAC

Download Datasheet Parametric Compare View All

271-I-A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	271-I-A	-	-	View	Buy Now

271-I-A Overview

Enclosures, Boxes, u0026 Cases 6.88 x 4.88 x 1.52 Almond

271-I-A Parametric

Parameter Name	Attribute value
Product Category	Enclosures, Boxes, & Cases
Manufacturer	SERPAC
RoHS	Details
Material	Acrylonitrile Butadiene Styrene (ABS)
Color	Almond
IP Rating	IP40
NEMA Rating	1
Flammability Rating	UL 94 HB
Features	Customs, Colors, Machining, Molding & Pad Printing, 2-Piece Standard Design
Factory Pack Quantity	1

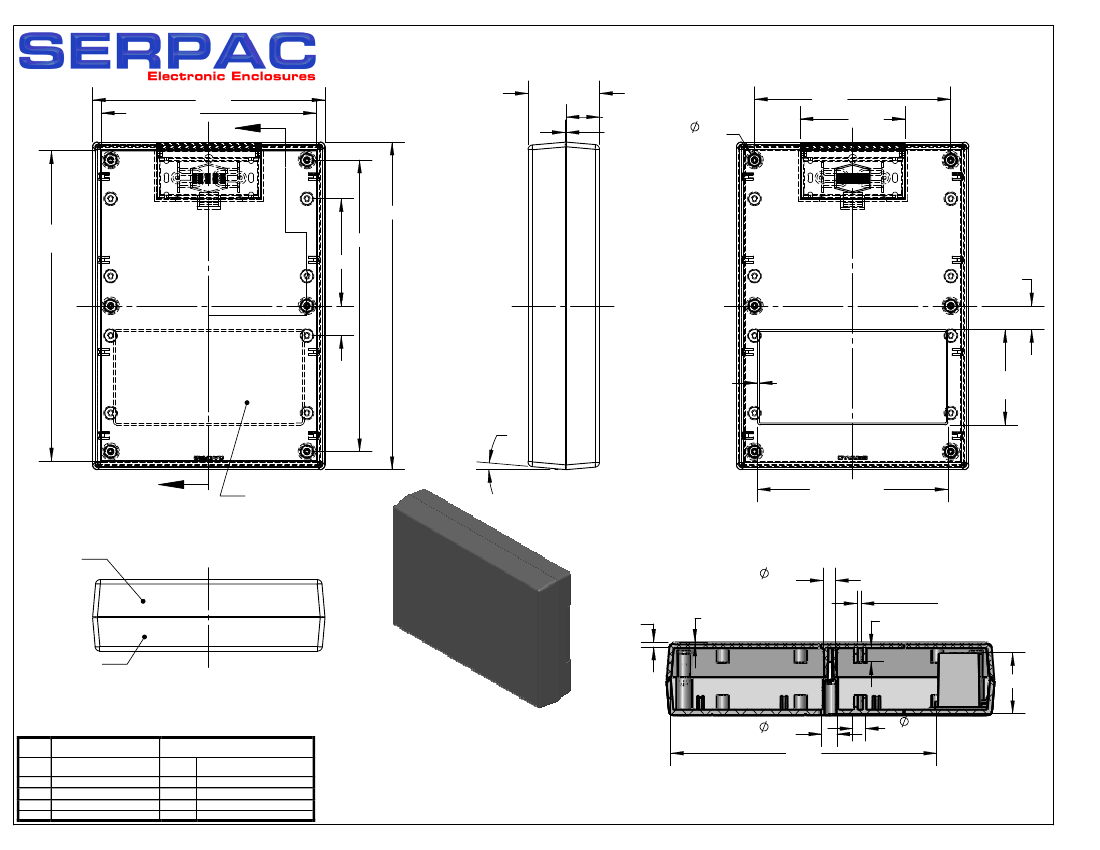

Preview

Download Datasheet

View All

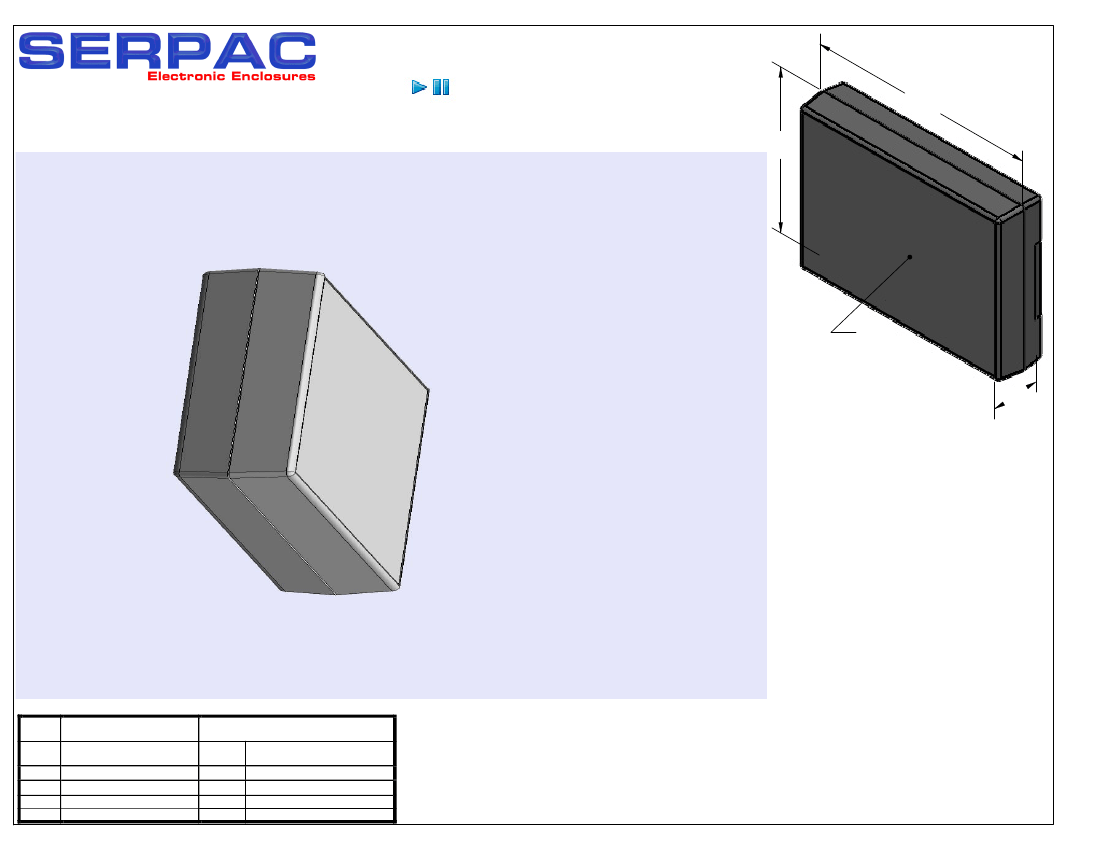

-Click on image to show toolbar. Use

to Play/Pause Animation.

-Left click and drag on image to move 3D model.

W

4.88

271i

(3D exploded)

L

6.88

TOP

i-plate area

4.52" X 6.52"

Non-Textured

0.015" recessed

H

1.50

PART

NO.

7-1i

27

1025

6005

DESCRIPTION

(Included)

TOP

BOTTOM

Battery Cover

#4X3/8” Self tapping (6)

ACCSESSORIES

(Optional)

PART

NO.

379

479

50

DESCRIPTION

Prototype grid board (bottom)

Prototype clad board (bottom)

Non-skid feet

3D model options:

a) Zoom in & out with center wheel.

b) Pause at any moment to view and or print views.

c) Change the views to ortho and section views if needed from the Views pull down menu.

d) Explore options included in the tool bar like: Views, Transparency of model, Lighting type, etc.

Notes:

(Enclosure weight 0.41 lb / 187 gm)

1) Enclosure meets or exceeds IP40 and NEMA 1

2) Circuit Board drawings can be download at:

http://www.serpac.com/Accessories/CircuitBoard/drawings/379-479-cbg.pdf

3) All components are RoHS Compliant.

Ph. (626) 331-0517 Fx. (626) 331-8584 serpac.com

ALL DIMENSIONS ARE ± .010"

4/13/10

(1 of 2)

619 Commercial Ave. Covina, CA 91723
