253-I-G: DescriptionEnclosures, Boxes, u0026 Cases 5.63 x 3.25 x 2.51 Gray; CategoryTopical application Mechanical and electrical/engineering/automation; File Size633KB，2 Pages; ManufacturerSERPAC

Download Datasheet Parametric Compare View All

253-I-G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	253-I-G	-	-	View	Buy Now

253-I-G Overview

Enclosures, Boxes, u0026 Cases 5.63 x 3.25 x 2.51 Gray

253-I-G Parametric

Parameter Name	Attribute value
Product Category	Enclosures, Boxes, & Cases
Manufacturer	SERPAC
RoHS	Details
Material	Acrylonitrile Butadiene Styrene (ABS)
Color	Gray
IP Rating	IP40
NEMA Rating	1
Flammability Rating	UL 94 HB
Cover Color	Gray
Features	Customs, Colors, Machining, Molding & Pad Printing, 2-Piece Standard Design
Factory Pack Quantity	1

Preview

Download Datasheet

View All

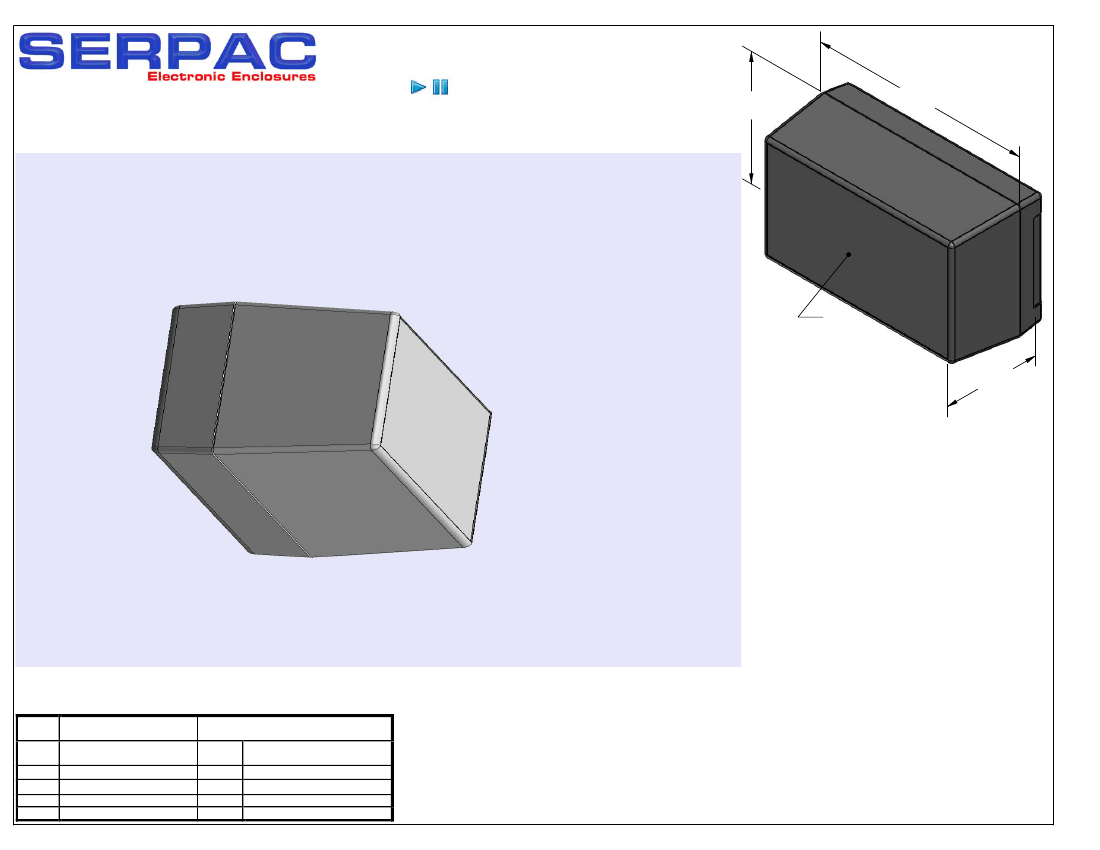

253i

(3D exploded)

-Click on image to show toolbar. Use

to Play/Pause Animation.

-Left click and drag on image to move 3D model.

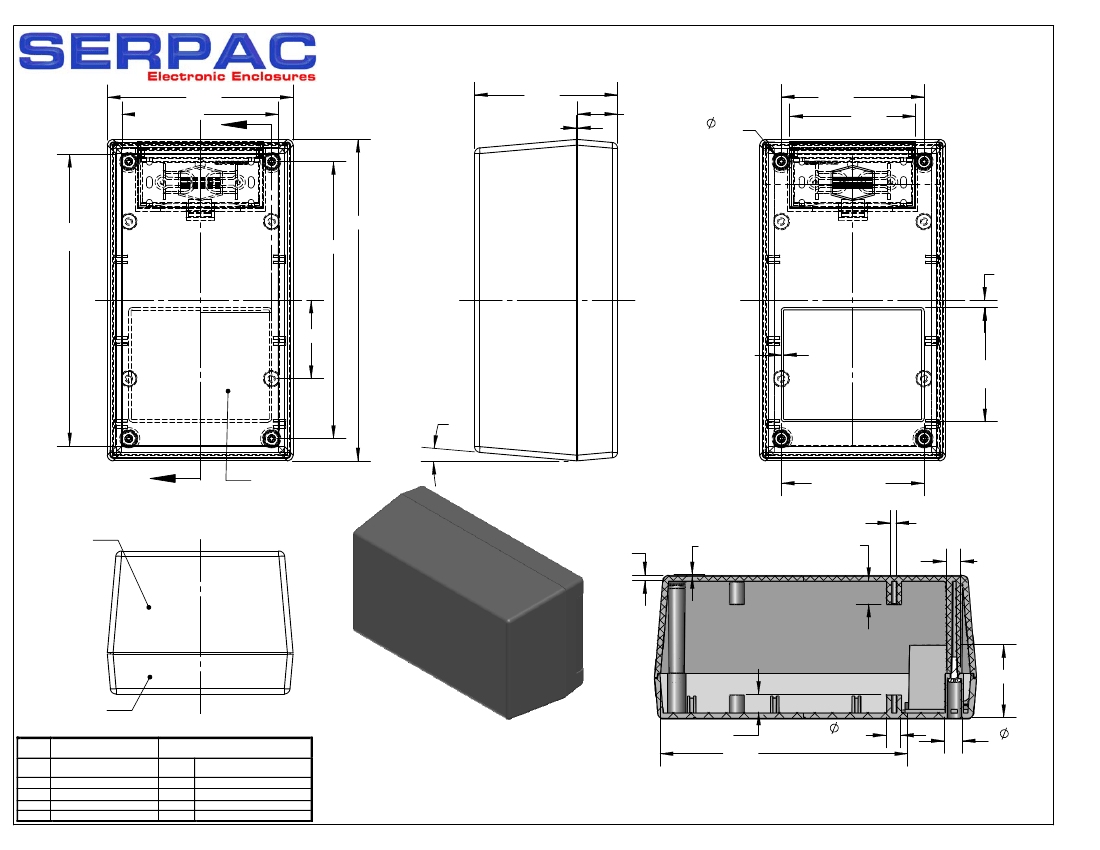

3.25

5.62

TOP

i-plate area

2.74" X 5.10"

Non-Textured

0.015" recessed

2.50

PART

NO.

5-3i

1025

6005

3D model options:

a) Zoom in & out with center wheel.

b) Pause at any moment to view and or print views.

c) Change the views to ortho and section views if needed from the Views pull down menu.

d) Explore options included in the tool bar like: Views, Transparency of model, Lighting type, etc.

DESCRIPTION

(Included)

TOP

BOTTOM

Battery Cover

#4X3/8” Self tapping (4)

ACCSESSORIES

(Optional)

PART

NO.

359

459

DESCRIPTION

Prototype grid board (bottom)

Prototype clad board (bottom)

Non-s kid f eet

http://www.serpac.com/Products/Accessories/CircuitBoard/drawings/X53_CB.pdf

Notes:

(Enclosure weight 0.32 lb / 146 gm)

1) Enclosure meets or exceeds IP40 and NEMA 1

2) Circuit Board drawings can be download at:

Top:

Bottom:

http://www.serpac.com/Products/Accessories/CircuitBoard/drawings/359-459-cbg.pdf

3) All components are RoHS Compliant.

Ph. (626) 331-0517 Fx. (626) 331-8584 serpac.com

ALL DIMENSIONS ARE ± .010"

4/22/10

(1 of 2)

619 Commercial Ave. Covina, CA 91723

253-I-G Related Products

	253-I-G	253-I-B	253-I-A
Description	Enclosures, Boxes, u0026 Cases 5.63 x 3.25 x 2.51 Gray	Enclosures, Boxes, u0026 Cases 5.63 x 3.25 x 2.53 Black	Enclosures, Boxes, u0026 Cases 5.63 x 3.25 x 2.52 Almond
Product Category	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases
Manufacturer	SERPAC	SERPAC	SERPAC
RoHS	Details	Details	Details
Material	Acrylonitrile Butadiene Styrene (ABS)	Plastic	Plastic
Color	Gray	Black	Brown
IP Rating	IP40	IP40	IP40
NEMA Rating	1	1	1
Flammability Rating	UL 94 HB	UL 94 HB	UL 94 HB
Cover Color	Gray	Black	Brown
Features	Customs, Colors, Machining, Molding & Pad Printing, 2-Piece Standard Design	Customs, Colors, Machining, Molding & Pad Printing, 2-Piece Standard Design	Customs, Colors, Machining, Molding & Pad Printing, 2-Piece Standard Design
Factory Pack Quantity	1	1	1
Product	-	Enclosures	Enclosures
Length	-	143.01 mm	143.01 mm
Width	-	82.55 mm	82.55 mm
Height	-	63.76 mm	63.76 mm
Dimensions	-	143.01 mm L x 82.55 mm W x 63.76 mm H	143.01 mm L x 82.55 mm W x 63.76 mm H
