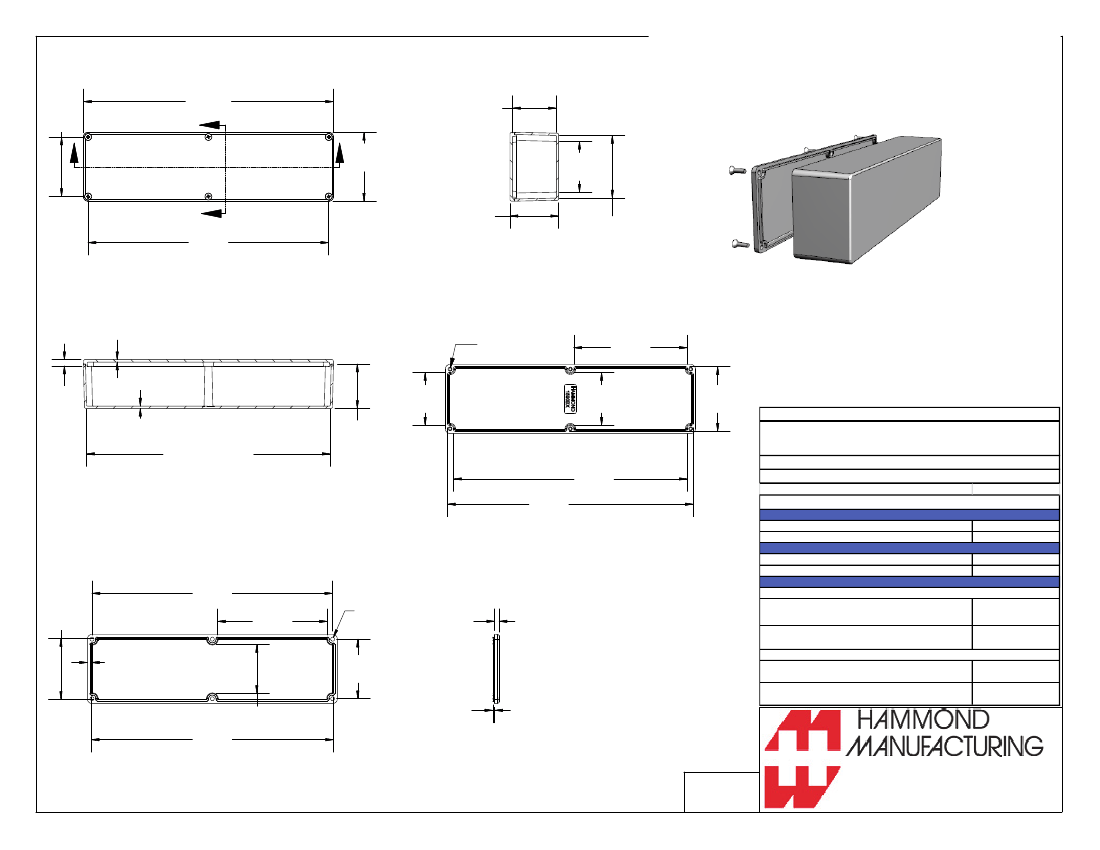

60.50
[2.382]
254.00
[10.000]
A
70.00
[2.756]
44.70
[1.760]
INSIDE
HEIGHT
51.68
[2.035]
49.50
[1.949]
B
A
244.50
[9.626]
B
TOP VIEW
2.50
[.098]
SECTION A-A
END VIEW
63.68
[2.507]
INSIDE
WIDTH
6-32 UNC
7.01
4.00
3.00
115.25
[4.537]
53.50
[2.106]
65.50
[2.579]
6.50
[.256]
2.30
[.091]
247.68
[9.751]
INSIDE LENGTH
45.00
[1.772]
53.50
[2.106]
Enclosures can be Factory Modified ( Milling, Drilling, Printing etc.)
Contact Factory
mjm@hammondmfg.com for quotes
Solid models of this enclosure available in STEP or IGES.
(Part number and text placement/orientation on our products are subject to change,
we do not recommend using them as a locating reference for modification purposes)
NOTE
Purchased assembly includes box, lid and 6 cover screws.
Box and lid are made from Diecast Aluminum Alloy.
Silicone Gasket supplied with liquid resistant enclosure.
SECTION B-B
SIDE VIEW
237.50
[9.350]
249.50
[9.823]
Recommended Torque: 50-55 cN.m [71-78 ozf.in]
Recommended Torque with Gasket : 25-30 cN.m [36-43 ozf.in]
PART NUMBERS
1590BX Enclosure
1590BX
Natural Finish Enclosure
1590BXBK
Black Textured Enclosure
1590BX Liquid Resistant Enclosure (Silicone Gasket)
1590WBX
Natural Finish Enclosure
1590WBXBK
Black Textured Enclosure
ACCESSORIES
INSIDE BOX
244.50
[9.626]
111.75
[4.400]
4.12
[.162]
62.00
[2.441]
4X
4.00
[.157]
Liquid Resistant Cover Screws
4.50
[.177]
Stainless Steel Cover Screw s (Pkg 100)
[6-32 x 1/2" With O-Ring]
Black Stainless Steel Cover Screw s (Pkg 100)
[6-32 x 1/2" With O-Ring]
1590WMS100
1590WMS100BK
60.50
[2.382]
2.00
[.079]
Standard Cover Screws
Plated Cover Screw s (Pkg 100)
[6-32 x 1/2"]
Black Cover Screw s (Pkg 100)
[6-32 x 1/2"]
1590MS100
1590MS100BK
246.00
[9.685]
49.88
[1.964]
INSIDE LID
Dimensions:
mm
[inches]
1590BX
