Preview

231RAL: DescriptionEnclosures, Boxes, u0026 Cases 4.38 x 3.25 x 1.51 ALMOND; CategoryTopical application Mechanical and electrical/engineering/automation; File Size209KB，1 Pages; ManufacturerSERPAC

Download Datasheet Parametric View All

231RAL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	231RAL	-	-	View	Buy Now

231RAL Overview

Enclosures, Boxes, u0026 Cases 4.38 x 3.25 x 1.51 ALMOND

231RAL Parametric

Parameter Name	Attribute value
Product Category	Enclosures, Boxes, & Cases
Manufacturer	SERPAC
RoHS	Details
Factory Pack Quantity	1
Unit Weight	3.359845 oz

Preview

Download Datasheet

View All

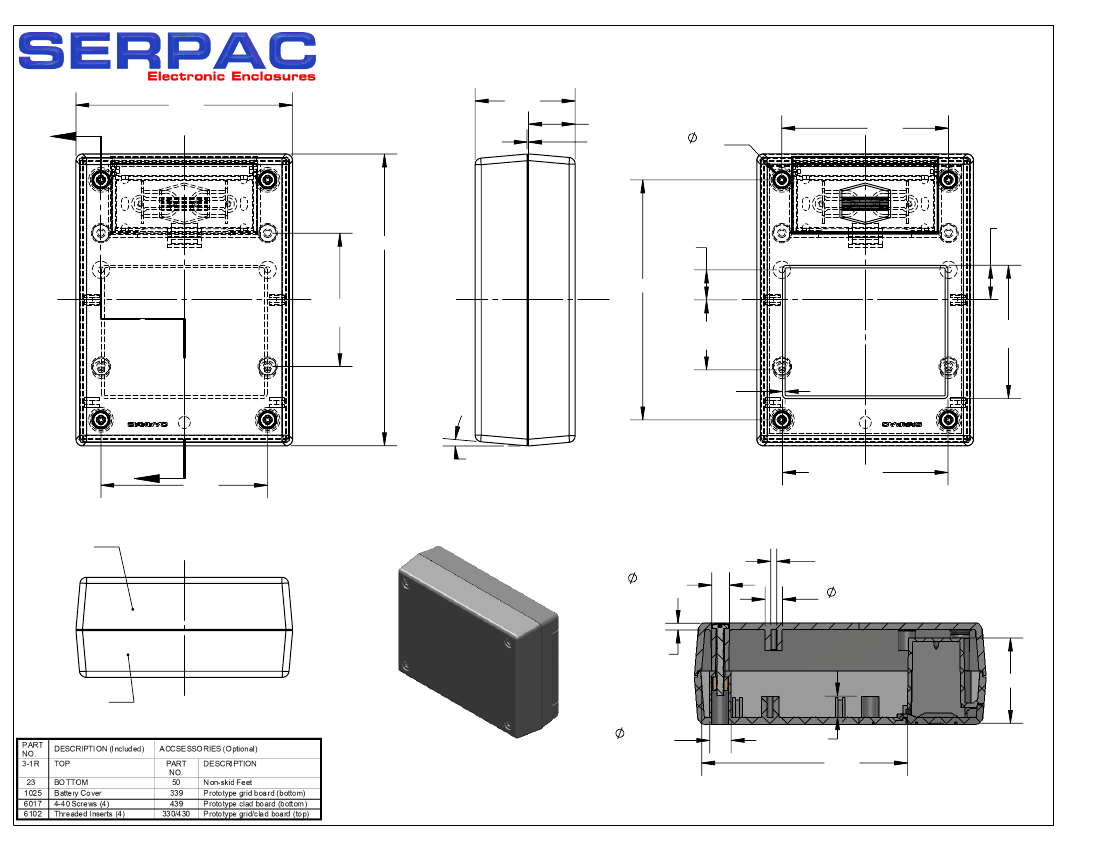

231R

(user print)

3.25

1.50

.70

.02

.25

4 plc's

2.50

A

4.38

3.60

2.00

top bosses

.52

.45

1.05

bottom bosses

.04 X .02

deep

2.00

Insert Area

A

5°

2.50

2.48

Insert Area

TOP

.26 typ.

4 plc's

.09

typ. for

#4 screw

.26 typ.

8 plc's

.10

typ.

1.28

BOTTOM

.32 typ.

4 plc's

.31

8 plc's

Notes:

Enclosure weight .22 lbs / 100 gm

3.09

1) Enclosure meets or exceeds IP40 and NEMA 1

2) Circuit Board drawings can be download at:

ALL DIMENSIONS ARE ± .010"

4/25/12

(2 of 2)

http://www.serpac.com/Accessories/CircuitBoard/drawings/330-430-cbg.pdf

2009 Wright Ave. La Verne, CA 91750

3) All components are RoHS Compliant.

Ph. (626) 331-0517 Fx. (626) 331-8584 www.serpac.com

SECTION A-A

SCALE 1 : 1.5
