NOTES:
UNLESS OTHERWISE SPECIFIED
1. CORNERS DRAWN SHARP TO BE R.005 MAXIMUM.
2. EXTERIOR SURFACE TEXTURE TO BE LIGHT EDM FINISH.
EQUIVELANT TO MT-11010.
3. INTERIOR SURFACE TEXTURE TO BE: NONE.
4. ALL INSIDE RADII .010R.
UNLESS OTHERWISE SPECIFIED.
REV. DRAWN BY
A
B
C
D
E
M BOYER
M BOYER
M BOYER
M BOYER
M BOYER
ECO No
DR XXX
R E V I S I O N
DESCRIPTION
PRELIMINARY RELEASE
ADD THICKER COMPONENTS
ADD SECOND PRESS POST
REDUCE WIDTH AND THICKNESS
ADD VIEWS AND NOTES
DATE
17-Sep-11
09-May-12
15-May-12
16-May-12
06-Feb-13
APPROVED
D.C.
D.C.
D.C.
D.C.
5. ALL EXTERNAL DIMENSIONS AFFECTED BY THE DRAFT APPLY AT
THE LARGE END OF THE FEATURE, AND ALL INTERNAL FEATURES
AFFECTED BY THE DRAFT APPLY AT THE SMALL END OF THE FEATURE
UNLESS OTHERWISE SPECIFIED.
6. 1 DEGREE DRAFT IN THE DIRECTION OF PULL IS PERMISSIBLE
UNLESS OTHERWISED SPECIFIED.
7. THIS ENCLOSURE IS A PRESS FIT ASSEMBLY. FOR PERMANENT
CLOSURE: A DROP OF ADHESIVE OR ULTRASONIC WELDING IS REQUIRED.
8. MATERIAL / COLOR:
ABS PLASTIC IS STANDARD IN BLACK OR WHITE.
CUSTOM MATERIALS AND COLORS ARE AVAILABLE UPON REQUEST FOR QUOTE.
9. PCB SIZES ARE RECOMMENDATIONS ONLY. FINAL SIZES AND
VERIFICATION OF IT'S FIT ARE THE SOLE RESPONSIBILITY OF OEM.
10. THE GATE REMNANT FOR THIS ENCLOSURE IS LOCATED IN THIS POSITION
TO MINIMIZE THE COSMETIC IMPACT. IT IS HOWEVER VISIBLE AND VARIES
IN SIZE / SHAPE. IT IS EASILY REMOVED WITH CLIPPERS. IF YOU
WOULD LIKE NEW AGE TO CLIP THIS FOR YOU, PLEASE ASK YOUR SALES
REPRESENTIVE FOR A FREE QUOTE.
11. THIS DRAWING IS BASED ON A SOLID MODEL, AND IS FURTHER DEFINED
BY THE SOLID MODEL FILE.
12. ALLOWABLE FLASH: 0.010 MAX.
13. ALL EJECTOR PIN MARKS TO BE WITHIN 0.010" OF FLUSH,
PROTRUDING OR BELOW FLUSH.
14. TRIM GATE WITHIN 0.015" OF FLUSH.
VOLUME = .0771 INCH^3
4
VOLUME = .0513 INCH^3
2

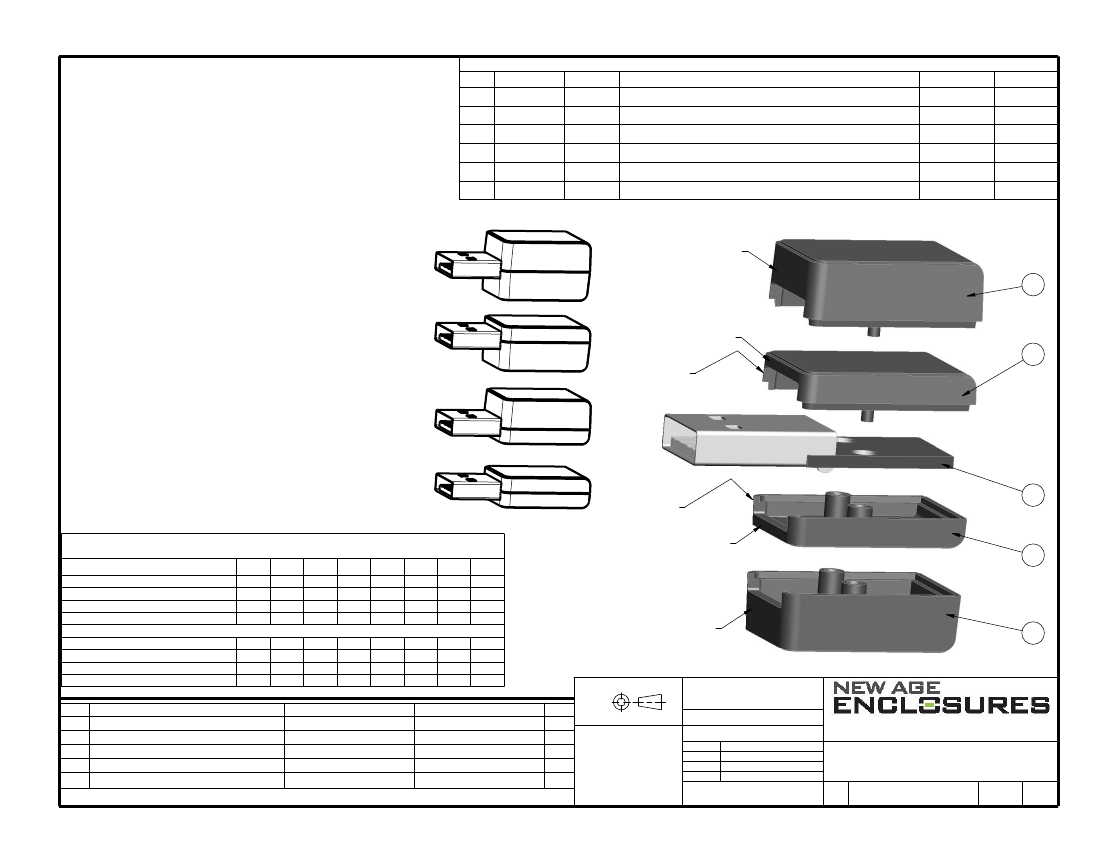

EXAMPLES
NOTE 10
CONFIGURATION LEGEND
-Tx
-Fx
-Cx
-Bx
-xS
-xU
=
=
=
=
=
=
BOTH
BOTH
ONLY
ONLY
COVER AND BASE ARE TALL
COVER AND BASE ARE SHORT (FLAT)
THE COVER IS TALL (BASE IS FLAT)
THE BASE IS TALL (COVER IS FLAT)
5
NOTE 10
STANDARD ENCLOSURE (NO USB OPENING)

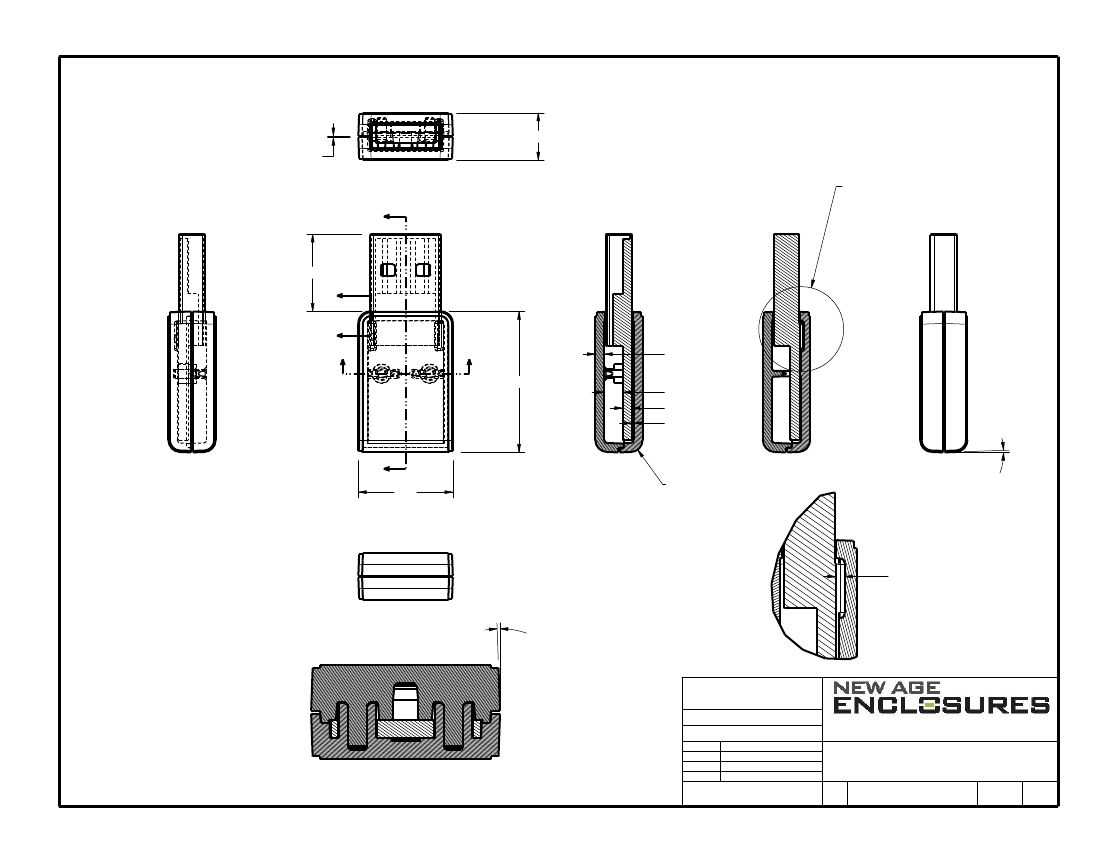

ENCLOSURE WITH MOLDED TYPE A USB OPENING
090604(xx) CONFIGURATIONS
-TS
090604
090604
090606
090606
090604
090604
090606
090606
5
4
3
2
1
VOLUME = .0463 INCH^3
-TU
-FS
1
-FU
1
-CS
-CU
-BS
1
-BU
1
VOLUME = .0732 INCH^3
SCALE 2.000
1

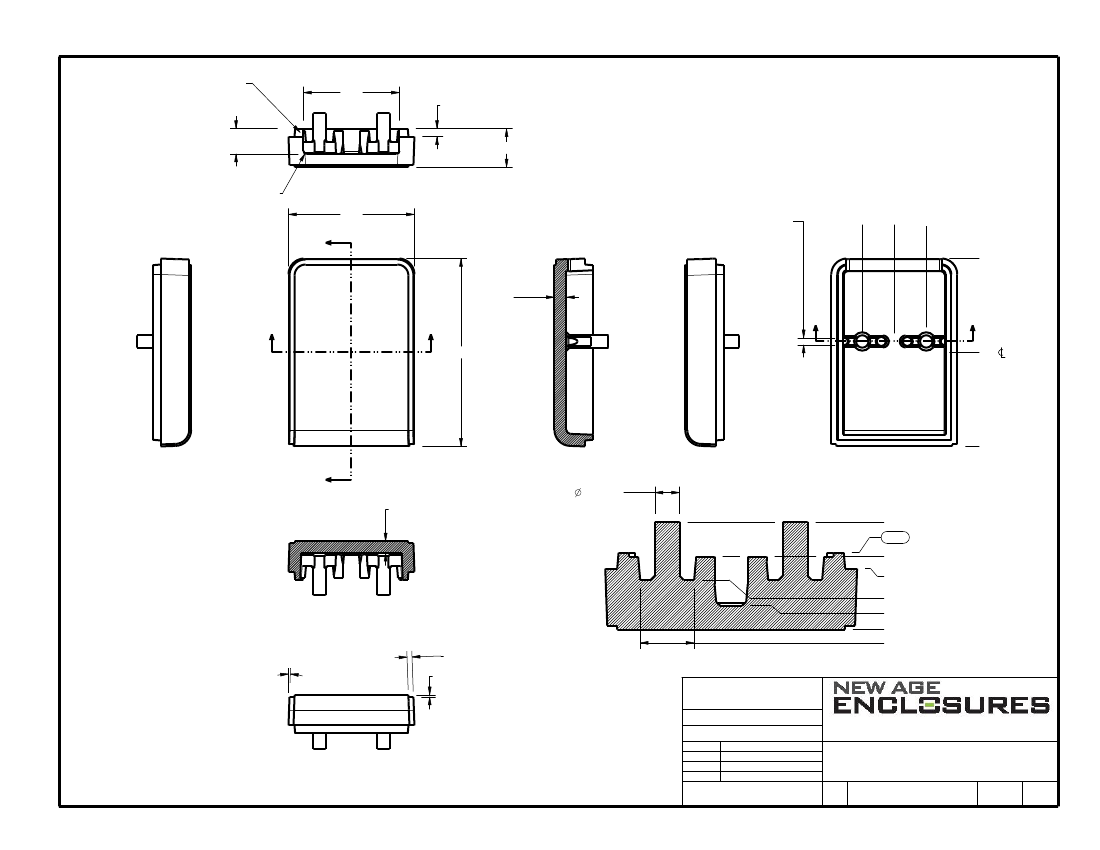

COVER
COVER w/ TYPE A USB
TALL COVER

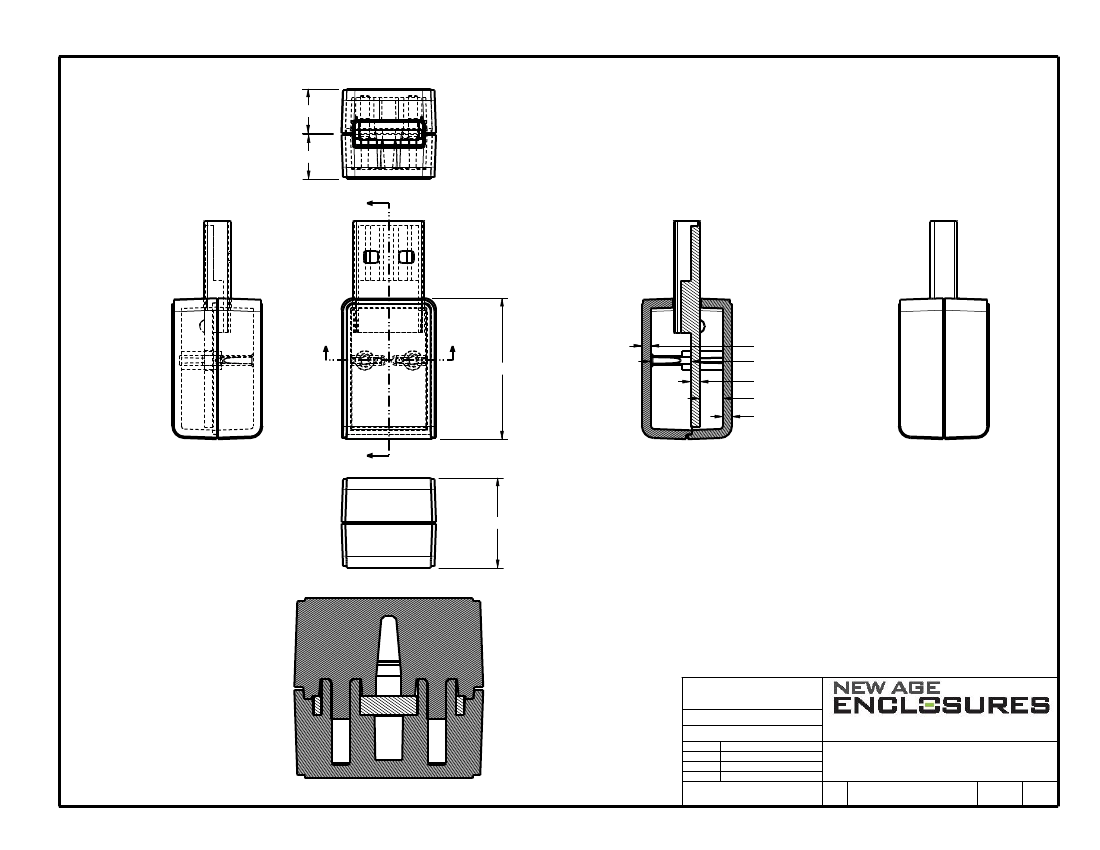

TALL COVER w/ TYPE A USB

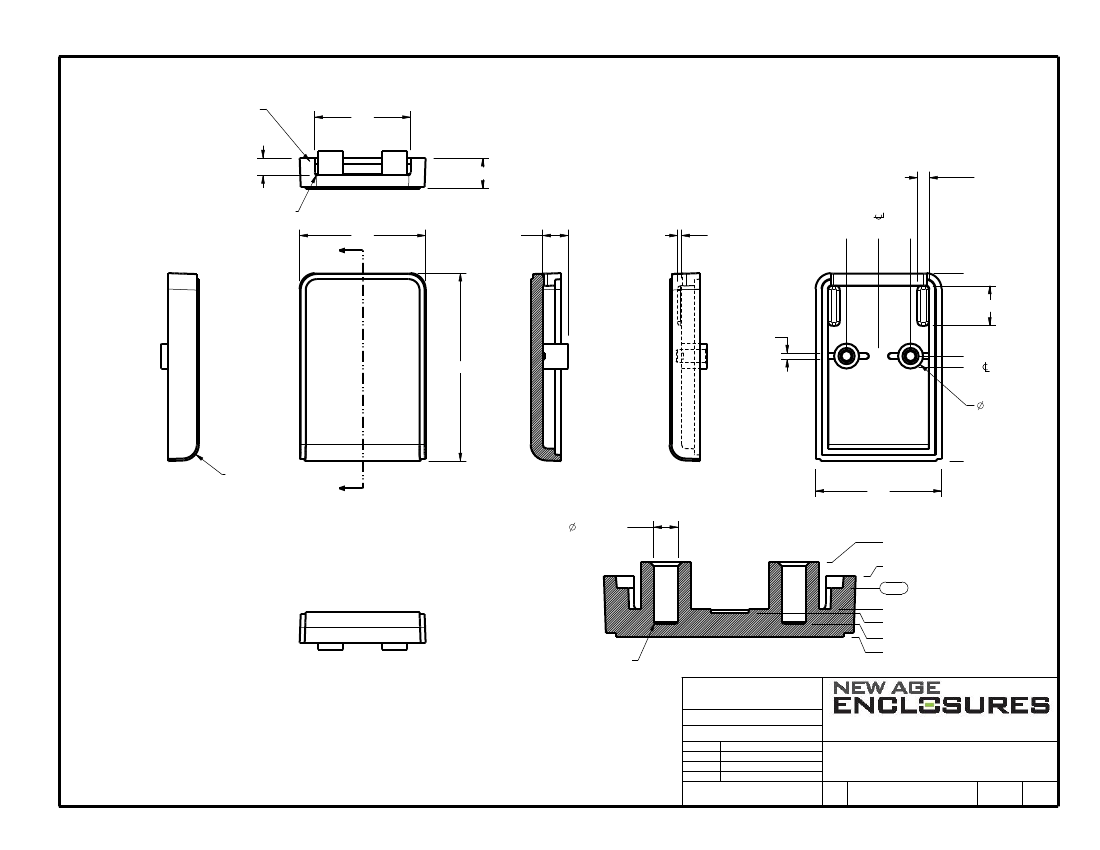

BASE
BASE w/ TYPE A USB
TALL BASE
TALL BASE w/ TYPE A USB
090604 PCB - REFERENCE
090606U COVER - STANDARD
090606U BASE - STANDARD
090604U COVER - STANDARD
090604U BASE - STANDARD
1
1
1
1
1
1
1
1
3
1
1
.062" THICK
ABS
ABS
ABS
ABS
1
1
1
1
1
1
1
THIRD ANGLE PROJECTION
TOLERANCES: UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN U.S. INCHES.
CUSTOMER SUPPLIED
BLACK or WHITE
BLACK or WHITE
BLACK or WHITE
BLACK or WHITE
DO NOT SCALE DRAWING
NOTICE: THE INFORMATION AND DATA
CONTAINED HEREIN IS CONSIDERED
PROPRIETARY TO ALLTEC INTEGRATED
MFG INC & SHALL REMAIN THE EXCLUSIVE
PROPERTY OF ALLTEC INTEGRATED MFG INC
THE HOLDER WILL ASSUME CUSTODY AND
CONTROL THAT THIS DOCUMENT WILL
NOT BE COPIED, REPRODUCED, OR
DISCLOSED WITHOUT THE EXPRESS WRITTEN
CONSENT OF ALLTEC INTEGRATED MFG INC
POSSESSION OF THIS DOCUMENT DOES
NOT CONSTITUTE A GRANT TO
MANUFACTURE ANY ITEMS.
© 2013
NEW AGE ENCLOSURES
Customer's Part No:
APPROVAL
CHECK
ENG.
SCALE
DRAWN BY
BY
DATE
X.XX = .015 X.XXXX = .001
X.XXX = .010
X.X° = 1°
090604
4330 Santa Fe Road
ph. (805) 595-1310
www.newageenclosures.com
San Luis Obispo, CA. 93401
fax (805) 595-1024
ITEM
DESCRIPTION
MATERIAL
COLOR
QTY.
AS NOTED
17-Sep-11
EXPAND. USB - STANDARD
090604XX-XXX
SIZE
DRAWING NAME
SHEET
REV.DOC
BILL OF MATERIALS
M BOYER
A 090604_RE
1 OF 7
E
MCU
