1200-14000 BTU/H Indoor Air Conditioner
DTT Series
Type 12, Top Mounting
Description
Designed for top mounting where space limitations do not allow side mounting on the
enclosure surface.
Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with
contaminated ambient air.
Excellent security level due to patented condensate management system, which prevents
condensate from penetrating the enclosure.
High reliability and long maintenance intervals
Quick release mounting frame
Standards
Maintains NEMA 12 rating
IP 54
UR, cUR and CE
Features
R134a refrigerant.
Thermostat control accessible from inside enclosure.
Hot gas bypass valve prevents evaporator freeze up while minimizing heavy inrush
currents on large BTU/H units.
Built in condensate evaporator.
Continuous air circulation from high capacity fans.
EMI/RFI suppression meets CE.
Self-diagnostics on startup.
Fault indication via LED light.
Provision for door contact allowing power down when enclosure door is opened.
Gasket, mounting kit and template for enclosure cutout and drilling are included.
Condensate drain hose and clamp provided.
Accessories
Remote Door Switches
Condensate Bottle
https://www.hammfg.com/electrical/products/climate/dtt6x01
1/3
11/28/2017

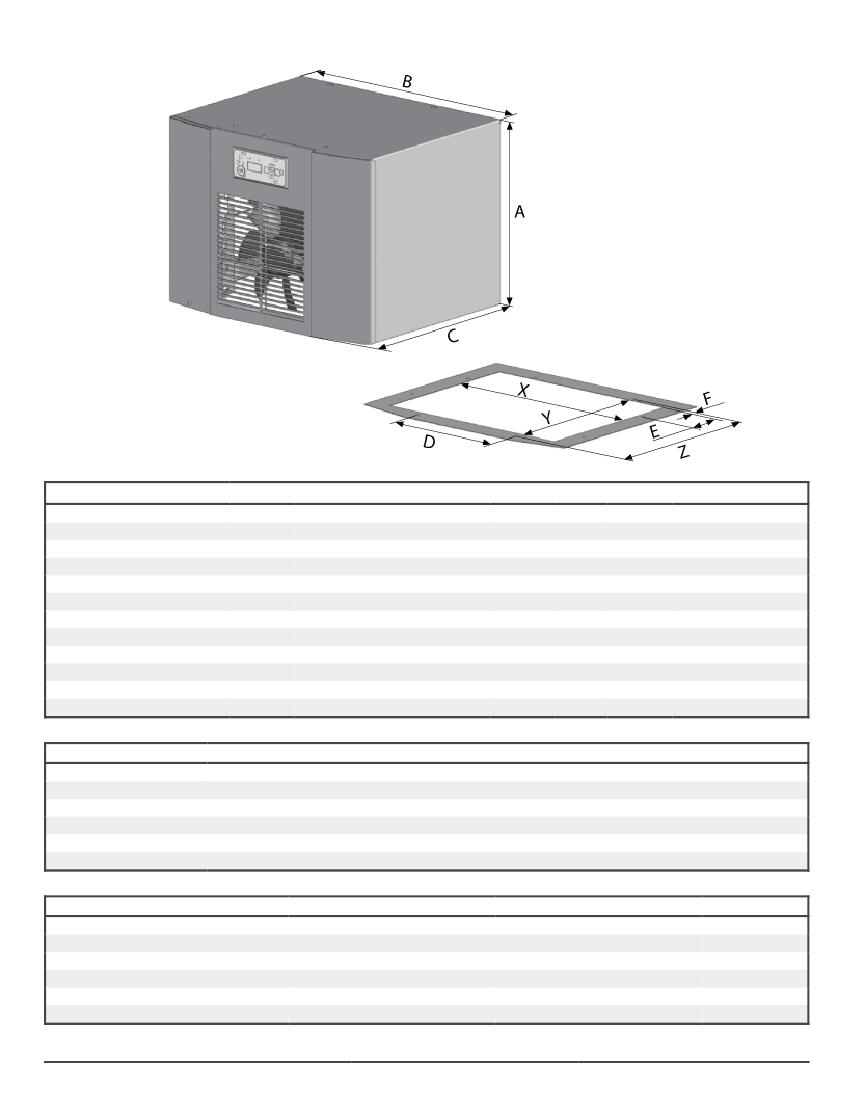

1200-14000 BTU/H Indoor Air Conditioner (DTT Series) - Hammond Mfg.
DTT6601A460LG
DTT6801A460LG
13600
400/460
50/60 Hz
1618/2050
3.4/3.5
17.1/19.5
Cooling Capacity (BTU)
Rated Voltage +/- 10%
Frequency
Power Consumption (W)
Running Amps
Starting Current (A)
10000
400/460
50/60 Hz
1700/2100
2.45/2.49
8.9/9.9
All Models
Electrical Connection
Min/Max Ambient
Temp
Exterior Case
Terminal Block with Plug
+59...+131 F / +15...+55 C
Galvanized Sheet Steel Color RAL 7035 Powder
Finish
Quick Installation Frame
Part No.
DTT61016202LG
DTT63016401LG
DTT66016801LG
Use with Models
DTT 6101 / DTT6201
DTT 6301 / DTT 6401
DTT 6601 / DTT 6801
Data subject to change without notice
