231-ALMOND: DescriptionEnclosures, Boxes, u0026 Cases 3.25X4.38X1.51 AL; CategoryTopical application Mechanical and electrical/engineering/automation; File Size177KB，1 Pages; ManufacturerSERPAC

Download Datasheet Parametric Compare View All

231-ALMOND Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	231-ALMOND	-	-	View	Buy Now

231-ALMOND Overview

Enclosures, Boxes, u0026 Cases 3.25X4.38X1.51 AL

231-ALMOND Parametric

Parameter Name	Attribute value
Product Category	Enclosures, Boxes, & Cases
Manufacturer	SERPAC
RoHS	Details
Product	Enclosures
Material	Plastic
Color	Brown
Length	111.26 mm
Width	82.55 mm
Height	38.36 mm
IP Rating	IP40
NEMA Rating	1
Flammability Rating	UL 94 HB
Cover Color	Brown
Dimensions	111.26 mm L x 82.55 mm W x 38.36 mm H
Features	Customs, Colors, Machining, Molding & Pad Printing, 2-Piece Standard Design
Factory Pack Quantity	1
Unit Weight	3.359845 oz

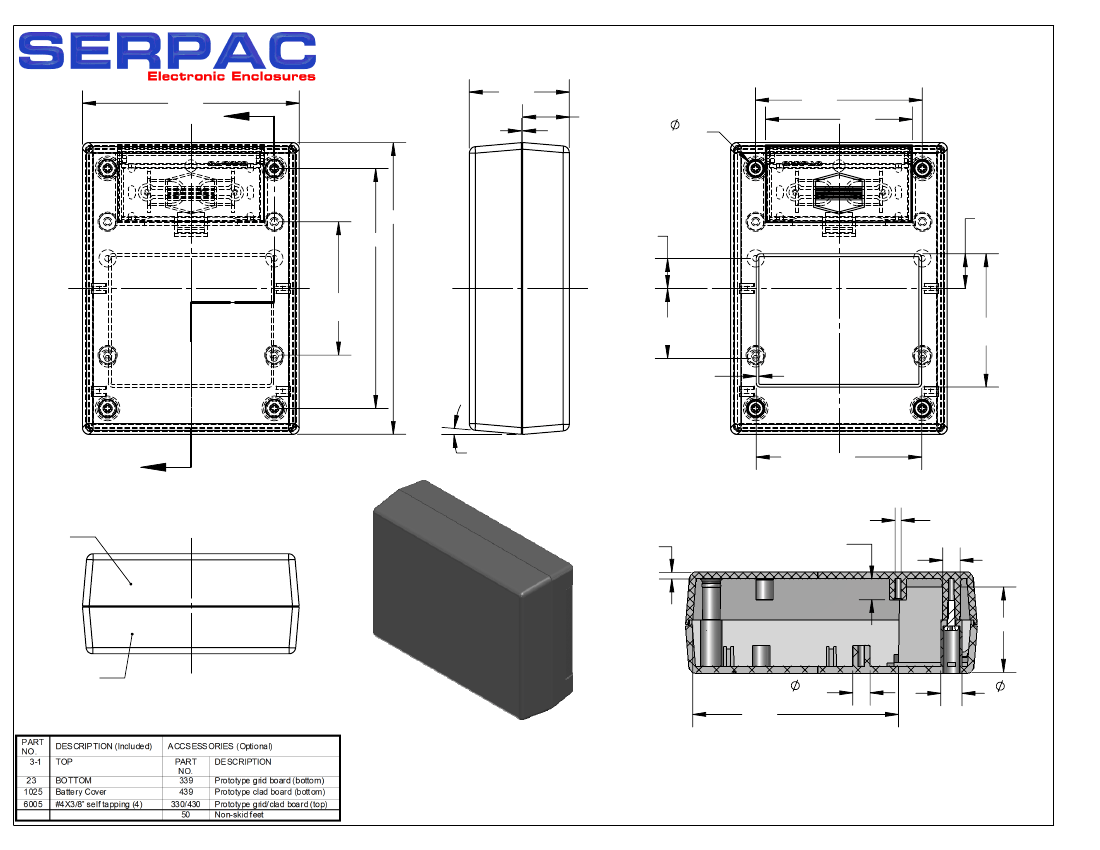

Preview

Download Datasheet

View All

231

(user print)

3.25

1.50

2.50

.70

.25

4 plc's

2.20

.02

4.38

3.60

.45

.52

2.00

top bosses

1.05

bottom bosses

.04 X .02 deep

2.00

Insert Area

5°

2.48

Insert Area

.09

typ. for

#4 screw

.26

4 plc's

TOP

.10

typ.

.31

8 plc's

1.28

BOTTOM

3.09

.26

8 plc's

.32

4 plc's

SECTION A-A

SCALE 1 : 1.5

Notes:

(Enclosure weight 0.21 lb / 95 gm)

1) Enclosure meets or exceeds IP40 and NEMA 1

2) Circuit Board drawings can be download at:

ALL DIMENSIONS ARE ± .010"

4/23/12

(2 of 2)

http://www.serpac.com/Accessories/CircuitBoard/drawings/339-439-cbg.pdf

2009 Wright Ave. La Verne, CA 91750

3) All components are RoHS Compliant.

Ph. (626) 331-0517 Fx. (626) 331-8584 www.serpac.com
