250.20
[9.85]
A
237.50
[9.35]
50.92
[2.00]
(INSIDE
DEPTH)
3.28
[.13]
(AVERAGE
WALL
THICKNESS)
B
A
15.00
[.59]
B
68.00
[2.68]
79.80
[3.14]
71.65
[2.82]
(INSIDE
WIDTH)
TOP VIEW
1.40
[.06]
6.25
[.25]
222.05
[8.74]
56.90
[2.24]
SECTION A-A
END VIEW
43.30
[1.70]
239.00
[9.41]
222.54
[8.76]
241.87
[9.52]
(INSIDE LENGTH
)
SECTION B-B
SIDE VIEW
69.20 44.59
[2.72] [1.76]
68.00
[2.68]
Enclosures can be Factory Modified ( Milling, Drilling, Printing etc.)
Contact Factory
mjm@hammondmfg.com for quotes
Solid models of this enclosure available in STEP or IGES.
(Part number and text placement/orientation on our products are subject to change,
we do not recommend using them as a locating reference for modification purposes)
3.52
[.14]
237.50
[9.35]
NOTE
Purchased assembly includes box, lid, silicone gasket,
4 cover screws and 4 ground screws with washers.
Box and lid are made from Diecast Aluminum Alloy.
Recommended cover screw Torque 5-7.5 lbf.in ( 50 -75 cN.m)
INSIDE LID
241.87
[9.52]
23.50
[.93]
224.86
[8.85]
238.20
[9.38]
C
1590Z140
DRAWINGS AVALIBLE
FOR STEEL INNER PANEL
10.10
[.40]

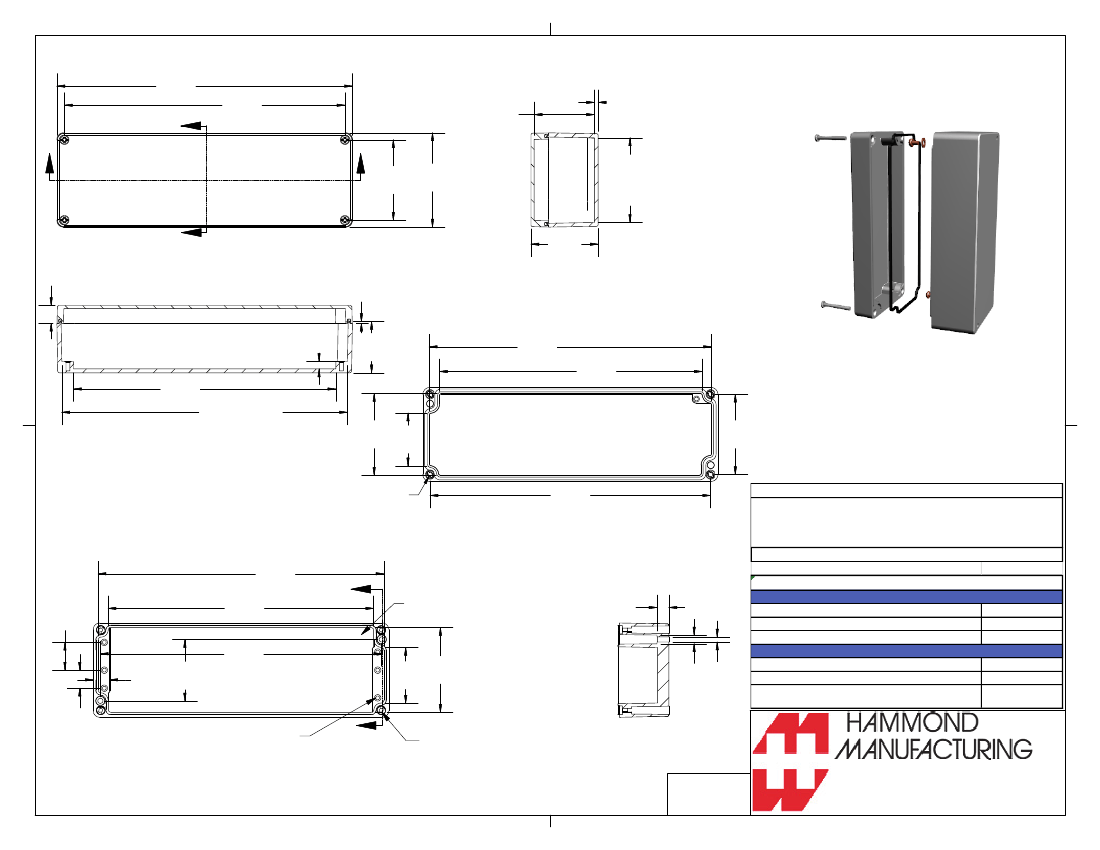

1590Z140 Enclosure
Basic Enclosure
Black Enclosure
Grey Enclosure - RAL7001 Gloss
1590Z140
1590Z140BK
1590Z140GY
1590Z140PL
1590Z140G
ACCESSORIES
13.97 52.00
[.55] [2.05]
15.30
[.60]
47.17 71.65
[1.86] [2.82]
7.46 4.35
[.29] [.17]
Steel Inner Panel
Pre-Formed Silicone Gasket
Copper Ground Hardware (2 Pack)
[M4 - 0.7 X 6mm / M4 Washer]
SCGM4
ACCEPTS
M4 MACHINE
GROUND SCREW
C
ACCEPTS M4 - 0.7
MACHINE SCREW
SECTION C-C
MOUNTING HOLE
Dimensions:
mm
[inches]
®
INSIDE BOX
1590Z140
