1434-20: CategoryTopical application Mechanical and electrical/engineering/automation; File Size194KB，1 Pages; ManufacturerHammond; Websitehttp://www.hammondmfg.com

Download Datasheet Parametric Compare View All

1434-20 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1434-20	-	-	View	Buy Now

1434-20 Parametric

Parameter Name	Attribute value
Product Category	Enclosures, Boxes, & Cases
Manufacturer	Hammond
RoHS	Details
Product	Accessories
Type	Bottom Panel
Material	Aluminum
Color	Unfinished
Length	17 in
Width	4 in
Height	3 in
Cover Color	Unfinished
Dimensions	17 in L x 4 in W x 3 in H
Features	Cover for aluminum chassis 1444
Height - in	3
Height - mm	76.2
Length - in	17
Length - mm	431.8
Factory Pack Quantity	1
Width - in	4
Width - mm	101.6
Unit Weight	4.320044 oz

Preview

Download Datasheet

View All

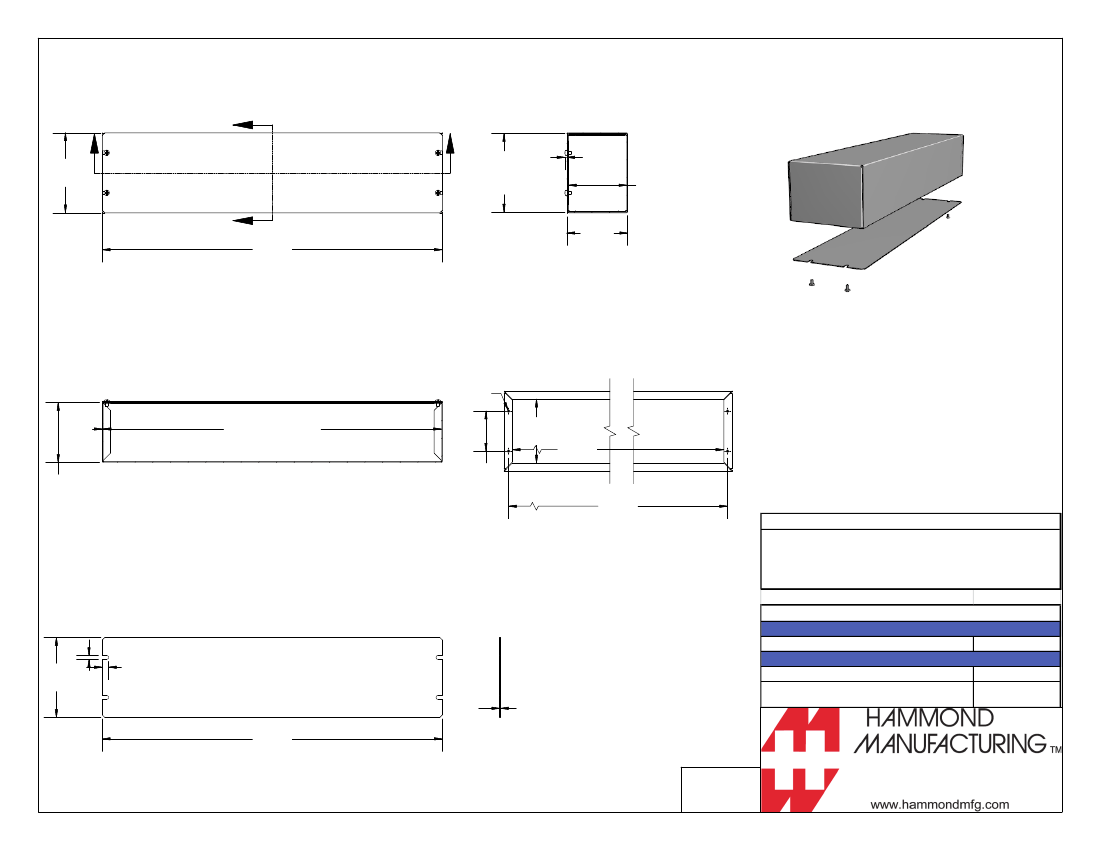

Bottom View of Assembly

A

101.60

[4.00]

SECTION A-A

End View of Assembly

B

A

431.80

[17.00]

B

2.52

99.57 [.10]

[3.92]

(Inner Box Width)

74.17

[2.92]

(Inner Box Height)

77.22

[3.04]

Bottom View of Chassis

(Sold Separately)

SECTION B-B

Side View of Assembly

1.02

[.040]

429.77

[16.92]

(Inner Box Length)

50.80

[2.00]

420.73

[16.56]



2.95

[.12]

80.98

[3.19]

411.18

[16.19]

Enclosures can be Factory Modified ( Milling, Drilling, Printing etc.)

Contact Factory

mjm@hammondmfg.com for quotes

Solid models of this enclosure available in STEP or IGES.

76.20

[3.00]

(Chassis Height)

NOTE

All Components Sold Separately

Chassis is Made of 0.040" Aluminum.

Bottom Plate is Made of 0.040" Aluminum.

Bottom Plate

(Sold Separately)

PART NUMBERS

1444-20 Enclosure

Natural Finish Chassis

1444‐20

1434‐20

1421J6

101.60

[4.00] 4.78

[.19]

7.92

[.31]

1.02

[.040]

431.80

[17.00]

Dimensions:

mm

[inches]

ACCESSORIES

Natural Finish Bottom Plate

Plated Cover Screws (Pkg 6)

[6-32 x 1/4" Self-Tapping Screws]

1444-20

1434-20 Related Products

	1434-20	1444-20
Description		Rectifiers 1000V 1a Rectifier Glass Passivated
Product Category	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases
Manufacturer	Hammond	Hammond
RoHS	Details	Details
Product	Accessories	Enclosures
Material	Aluminum	Aluminum
Color	Unfinished	Unfinished
Length	17 in	17 in
Width	4 in	4 in
Height	3 in	3 in
Cover Color	Unfinished	Unfinished
Dimensions	17 in L x 4 in W x 3 in H	17 in L x 4 in W x 3 in H
Features	Cover for aluminum chassis 1444	Spot Welded Heavy Duty Construction Chassis
Height - in	3	3
Height - mm	76.2	76.2
Length - in	17	17
Length - mm	431.8	431.8
Factory Pack Quantity	1	1
Width - in	4	4
Width - mm	101.6	101.6
Unit Weight	4.320044 oz	12.000123 oz
