THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY -
ALL RIGHTS RESERVED.
7
-
6
5
4
3
2
REVISIONS
P
LTR
DESCRIPTION
1
DATE
DWN
APVD
C
COPYRIGHT
-
D
REV PER ECO 14-006461
4-30-14
CT
KH
1. THIS KIT INCLUDES: GPRB1 RECEPTACLE SHELL SUB ASSY; TE PART NO. 1738240-1
GPRBEP3SA 3P3 SOCKET INSERT; TE PART NO. 1954327-1 (INSTALLED)
AND SIZE 5 CRIMP SOCKET CONTACT; TE PART NO. 1954722-1. (NOT INSTALLED)
2. MATERIALS:
SHELL
& KEY RETENTION PLATE: ALUMINUM ALLOY
LOCKING POST: STAINLESS STEEL PER ASTM B883
SPRING: STAINLESS STEEL PER AISI 301
SPRING SUPPORT, LOCKING POST SUPPORT
& CAPTIVE SCREW: STAINLESS STEEL
PER AISI 303
SCREW RETENTION CLIPS: STAINLESS STEEL PER AISI 304
INSERT RETENTION CLIP: COPPER ALLOY PER ASTM B194
POLARIZATION KEY: PEI THERMOPLASTIC PER ASTM D5205
PROTECTIVE COVER: THERMOPLASTIC ELASTOMER
3. FINISH:
SHELL: ELECTROLESS NICKEL PER SAE AMS-C-26074, CLASS 1.
KEY RETENTION PLATE: ANODIZED, COLOR: CLEAR
4
5
6
7
8
9
10
55.04 MAX

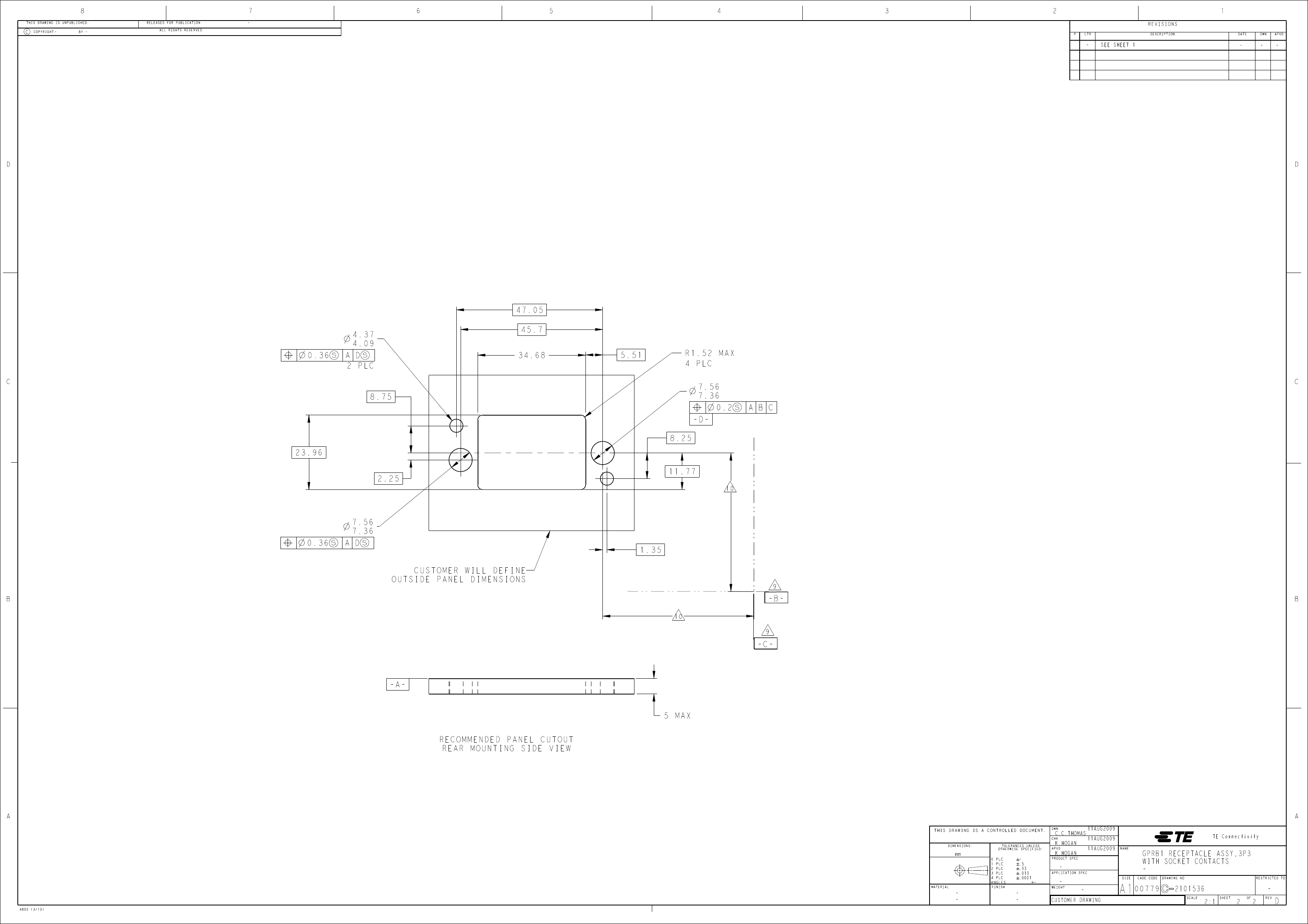

PANEL MOUNTING HOLES
2 PLC
6
7
D
23.44
MAX
17.6
MAX
SOCKET CONTACT
QTY = 3
D
6
7
TE PART NO. AND DATE CODE MARKED IN THIS AREA.
#4-40 CAPTIVE SCREWS ON KEY RETENTION PLATE RECOMMENDED TORQUE: 0.8 N-m.
#6-32 SCREWS ARE REQUIRED FOR REAR PANEL MOUNTING (NOT INCLUDED) RECOMMENDED
LOCKING TORQUE: 1.6 N-m.
THREADED HOLES ARE SELF LOCKING.
THE POLARIZATION KEYS
& RETENTION PLATE ARE SHIPPED UNASSEMBLED FOR -1.
DATUMS ARE ESTABLISHED BY THE CUSTOMER.
BASIC DIMENSIONS ARE ESTABLISHED BY THE CUSTOMER.
30.73
REF
4
DUST COVER
QTY = 1
11. THIS PRODUCT IS SOLD BY Tyco Electronics UNDER A LICENSE FROM RADIALL SA.
C
#4-40 UNC-2B
2 PLC
(BACKSHELL MOUNTING
HOLES)
C
5
8
8
CAPTIVE SCREW
QTY = 2
RETENTION PLATE
SHELL
KEY 1
KEY 2
POLARIZATION KEY
QTY = 2
POLARIZATION: SEE TABLE
LOCKING POST
QTY = 2
B
8
3P3 INSERT
B
CODE NUMBER 01 SHOWN =
A
A
POLARIZATION KEY 2
POLARIZATION KEY 1
CODE NUMBER
01
02
03
04
05
06
07
08
KEY 1
D
C
B
A
D
C
B
A
D
C
B
A
D
C
B
A
KEY 2
A
A
A
A
D
D
D
D
C
C
C
C
B
B
B
B
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DWN
CHK
"07"
"16"
"11"
"06"
UNINSTALLED
KEYING
POSITIONS
"01"
"02"
2101536-7
2101536-6
2101536-5
2101536-4
2101536-3
2101536-2
2101536-1
PART NO
A
KEY HOLE
A
B
C
D
09
10
11
12
13
14
15
16
A
C.C.THOMAS
K.HOGAN
K.HOGAN
-
-
11AUG2009
11AUG2009
11AUG2009
NAME
TE Connectivity
mm
APVD

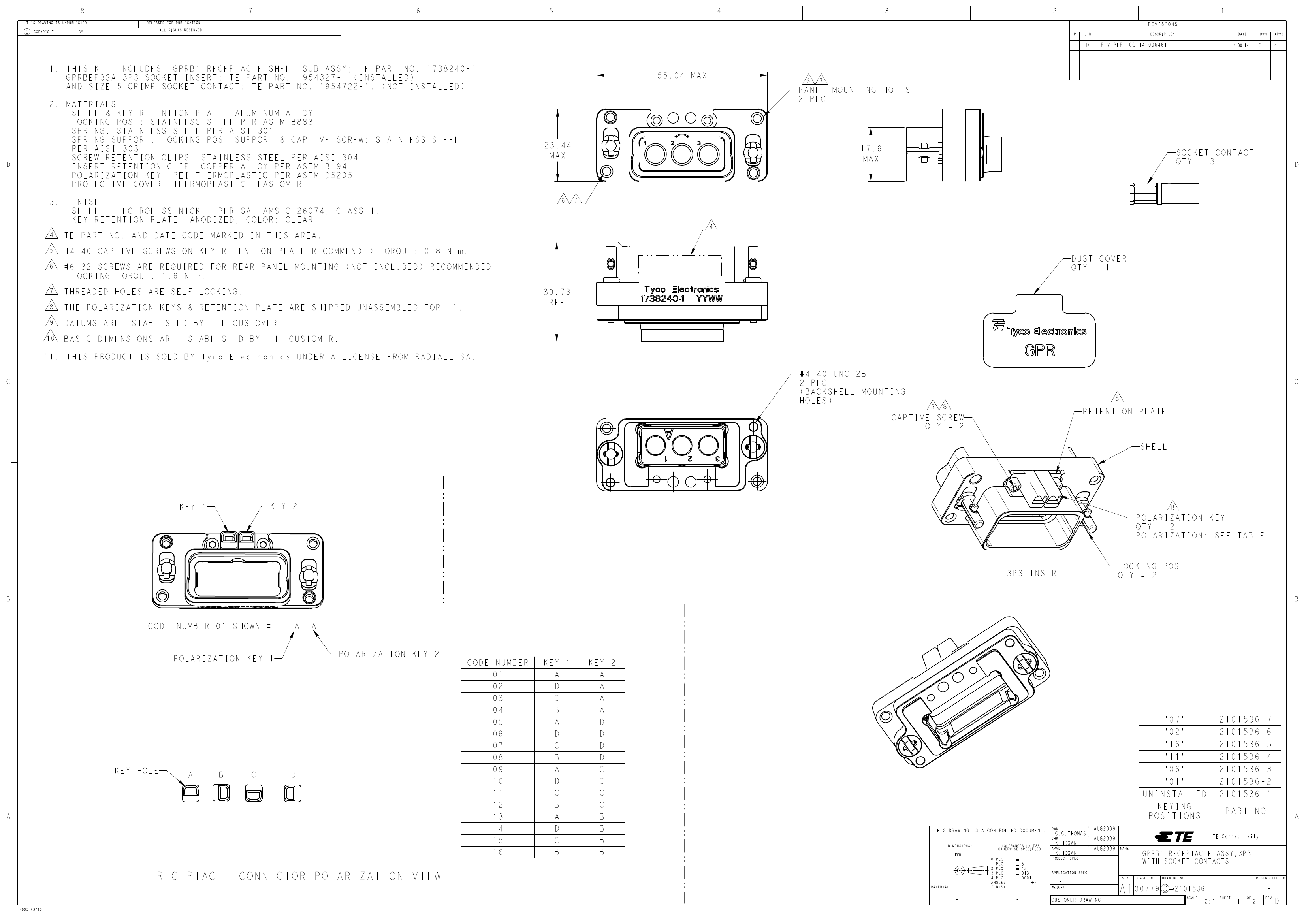

RECEPTACLE CONNECTOR POLARIZATION VIEW
4805 (3/13)
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
.5
.13
.013
.0001
PRODUCT SPEC
APPLICATION SPEC
-
-
-
-
-
WEIGHT
-
CUSTOMER DRAWING
A1
00779
SIZE
CAGE CODE
GPRB1 RECEPTACLE ASSY,3P3
WITH SOCKET CONTACTS
-
DRAWING NO
RESTRICTED TO
2101536
SCALE
2:1
SHEET
1
OF
2
REV
-
D
