DT80PW480D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> DT80PW480D

DT80PW480D: DescriptionDesktop AC Adapters 80W 48Vout 1.67A; CategoryPower/power management; File Size86KB，2 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com

Download Datasheet Parametric Compare View All

DT80PW480D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DT80PW480D	-	-	View	Buy Now

DT80PW480D Overview

Desktop AC Adapters 80W 48Vout 1.67A

DT80PW480D Parametric

Parameter Name	Attribute value
Product Category	Desktop AC Adapters
Manufacturer	TDK Corporation
RoHS	Details
Region	Universal
Input Voltage	90 VAC to 264 VAC
Number of Outputs	1 Output
Output Power	80 W
Output Voltage-Channel 1	48 V
Output Current-Channel 1	1.67 A
Commercial/Medical	Commercial
DC Output Connector	4 Pin DIN
DC Output Cord Length	1.05 m
Efficiency	Level VI
AC Plug included/required	Required
Load Regulation	Regulated
Mounting Style	Desktop
Factory Pack Quantity	1

Preview

Download Datasheet

View All

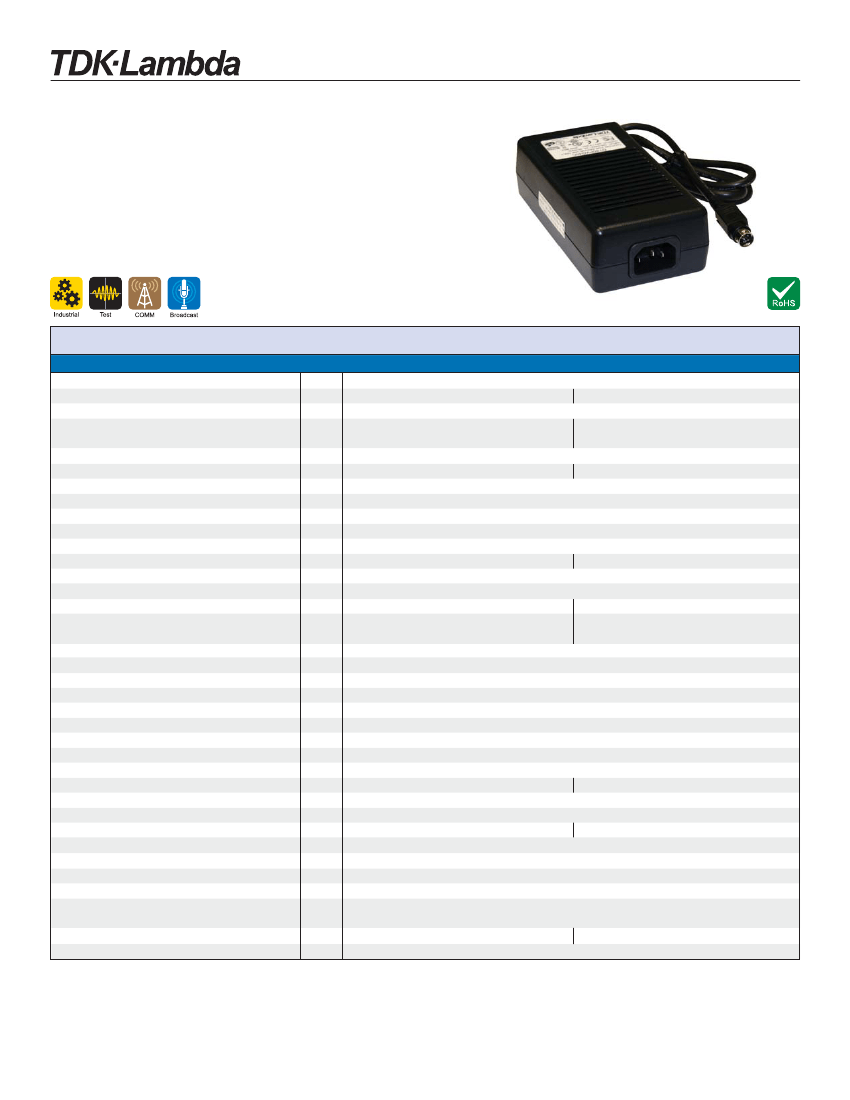

DT62 / 80D Series

40W to 80W AC-DC External Power Supplies

Features



Meet Efﬁciency Level VI requirements



No load Power consumption < 210mW DT62, <150mW DT80



Power Factor Correction (DT80)



LED ON indicator (Blue)

Key Market Segments & Applications

Speciﬁcations

Model

Input Voltage range

VAC

Inrush Current at 115VAC, cold start 25°C ambient

Input Current (Maximum)

Power Factor

Leakage Current (typ, 264VAC 63Hz)

Hold Up Time (Typ) at 115VAC input, full load

Temperature Coefﬁcient

Voltage Accuracy

Adjustment Range

Minimum Load

Total Regulation

Ripple & Noise

Short Circuit Protection

Overvoltage Protection

Efﬁciency at Average Load

Operating Temperature

Storage Temperature

Humidity (non condensing)

Cooling

Withstand Voltage

Vibration (non operating)

Shock

Safety Agency Certiﬁcations

Department of Energy (DOE) regulation

EU CoC V.5

Ofﬂoad Power Consumption

Conducted & Radiated EMI

Immunity

Weight (Typ)

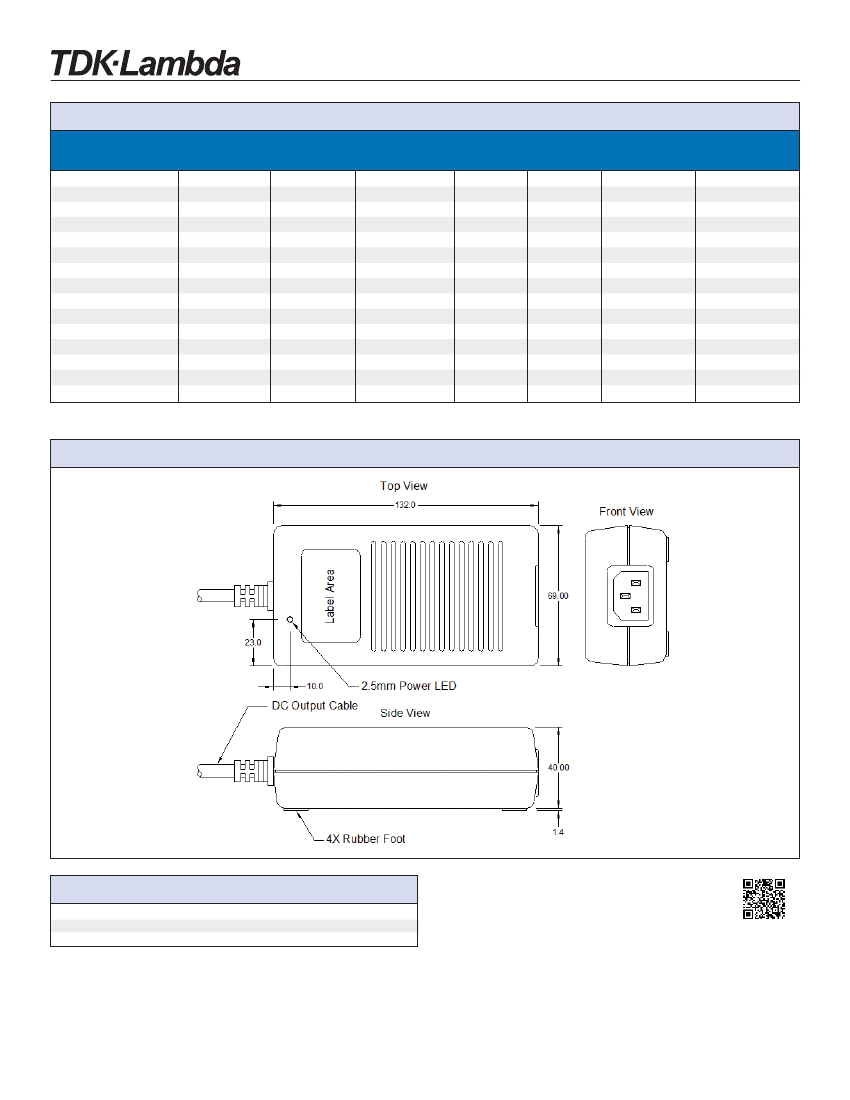

Size (WxLxH)

Cable Length and Thickness

AC Input Connector

Output Connector

MTBF (MIL-HDBK), 100% load, 25C

Warranty

°C

Inches

(mm)

Hours

Years

DT62PWxxxD

90 - 264VAC (47 - 63Hz)

<50A

<75A

2A (90VAC input)

Meets EN61000-3-2

Typically 0.9 at full load

(Meets EN61000-3-2)

0.7mA

>10ms

>20ms

±0.05%/°C

±2%

None

±5%

1% or 240mV ( whichever is lower)

240mV

Continuous - hiccup mode

110 - 140% of nominal (Cycle input power to reset)

>88%

>89% (>87% 9V model)

0 to +70°C, derating linearly

0 to +60°C, derating linearly

to 50% load above 50°C

to 50% load above 40°C

-10 to +85°C

10 - 90% RH

Convection

Input to Ground 1.5kVAC, Input to Output 3kVAC (Output is connected to Ground)

23.52m/s

(10 - 55Hz: constant sweep 1 min X, Y, Z for 1 hour)

< 196.1 m/s

(20G)

UL60950-1, EN609501-1, IEC60950-1, CE Mark

See model selector

<210mW

<150mW

EN55022-B, FCC Class B

EN55024

400g

440g

2.72 x 5.2 x 1.57”

(69 x 132 x 40mm)

1050mm

IEC 320-C14 (Accepts IEC 320-C13)

Kycon KPPX-4P or equivalent

Pins 1 & 2: -Vout, Pins 3 & 4: +Vout

140,000 hours

120,000 hours

Three Years

DT80PWxxxD

1-800-526-2324 • www.us.tdk-lambda.com/lp/

142

Disclaimer: us.tdk-lambda.com/lp/legal.htm
