ZWS300BAF36-CO2 datasheet, PDF

Datasheet> All Categories > Power/power management> ZWS300BAF36-CO2

ZWS300BAF36-CO2: DescriptionSwitching Power Supplies 302W 36Vout 8.4A PCB Coating; CategoryPower/power management; File Size2MB，2 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com

Download Datasheet Parametric View All

ZWS300BAF36-CO2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZWS300BAF36-CO2	-	-	View	Buy Now

ZWS300BAF36-CO2 Overview

Switching Power Supplies 302W 36Vout 8.4A PCB Coating

ZWS300BAF36-CO2 Parametric

Parameter Name	Attribute value
Product Category	Switching Power Supplies
Manufacturer	TDK Corporation
RoHS	Details
Product	Switching Supplies
Output Voltage-Channel 1	36 V
Number of Outputs	1 Output
Output Power	302.4 W
Open Frame/Enclosed	Open Frame
Input Voltage	85 VAC to 265 VAC, 120 VDC to 370 VDC
Output Current-Channel 1	8.4 A
Commercial/Medical	Commercial
Mounting Style	Chassis
Length	7.09 in
Width	3.31 in
Height	1.65 in
Approvals	EN60950-1, UL60950-1
Factory Pack Quantity	1
Unit Weight	1.190 lbs

Preview

Download Datasheet

View All

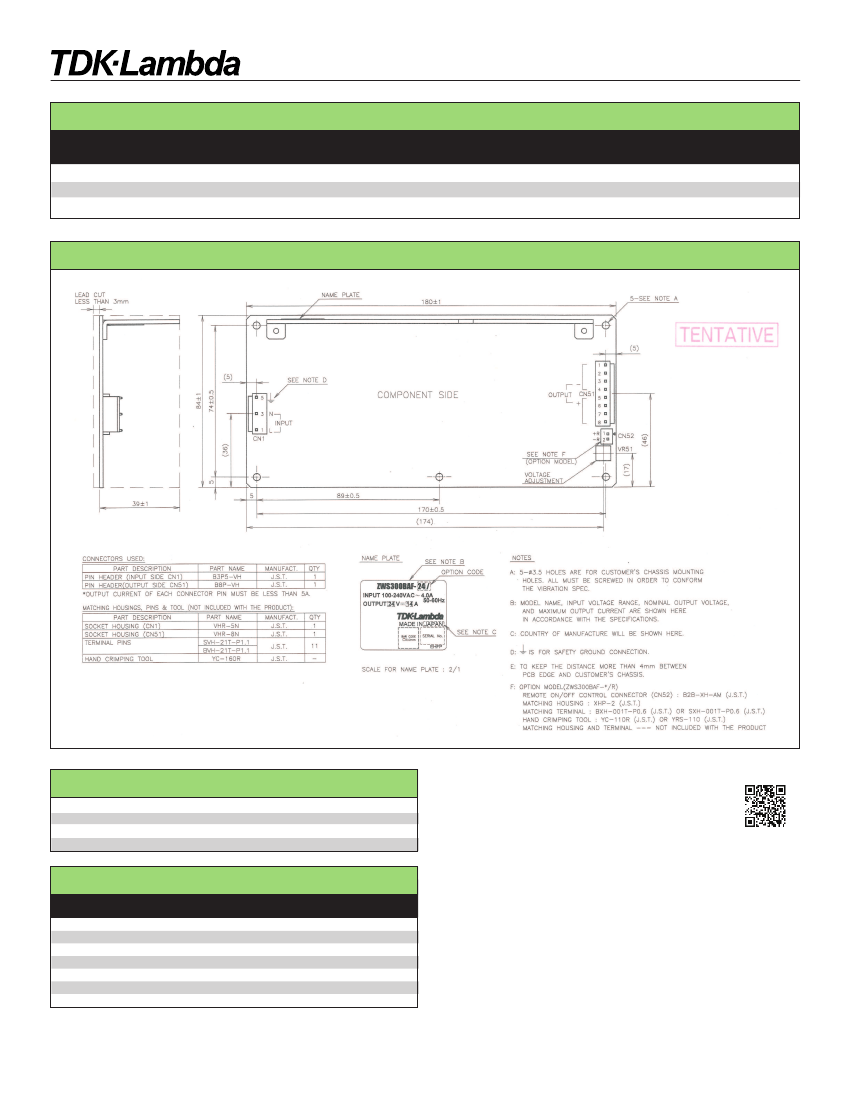

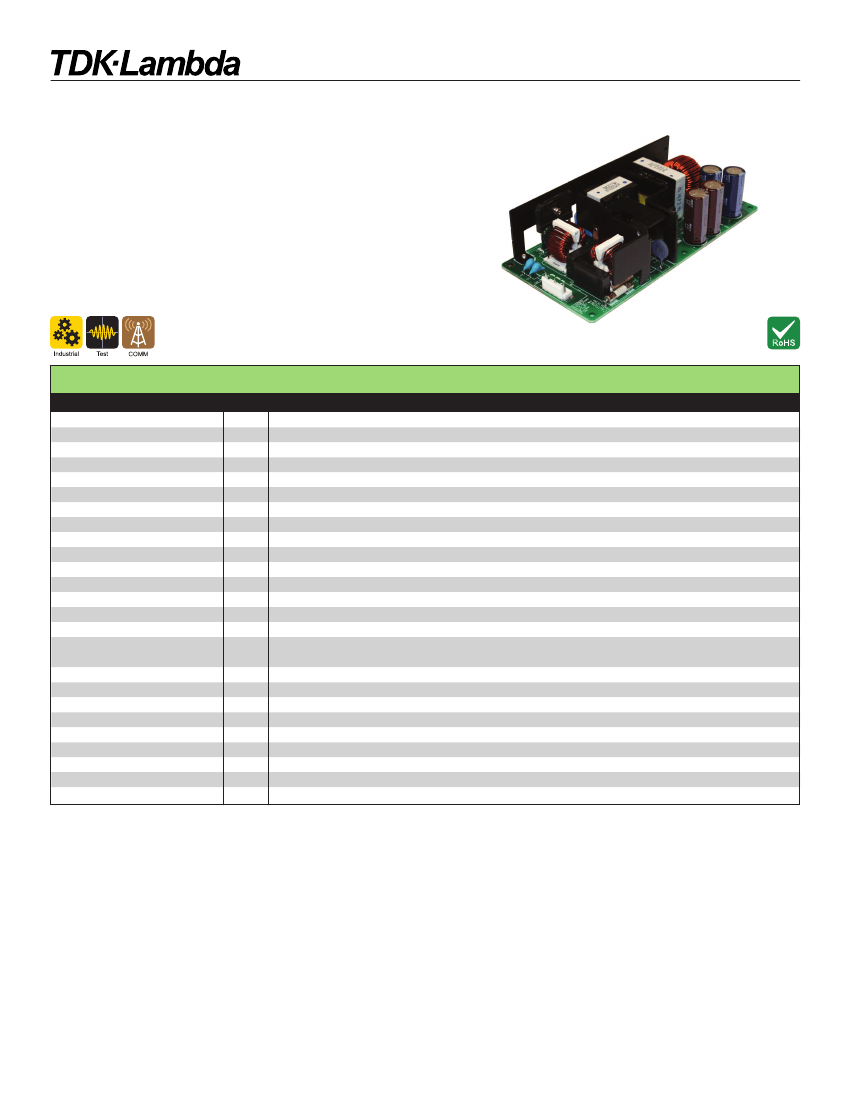

ZWS300BAF Series

300W Single Output, Convection Cooled Power Supplies

Features

Universal Input (85 - 265VAC)

Power Factor Corrected

Convection cooling

Five year warranty

Less than 0.5mA earth leakage current

Key Market Segments & Applications

Speciﬁcations

Model

Input Voltage

Input Current

Inrush Current

(1)(2)

Power Factor

Leakage Current

Temperature Coefﬁcient

Overcurrent Protection

(3)

Overvoltage Protection

Hold Up Time (Typ)

(1)

Efﬁciency

(1)

Remote On/Off

Operating Temperature

Storage Temperature

Humidity (non condensing)

Cooling

Withstand Voltage

%/°C

°C

%RH

ZWS300BAF

85-265VAC (47-63Hz), 120-370VDC

3.5 / 1.8

15 / 30

0.98 at 100VAC, 0.93 at 200VAC, Meets EN61000-3-2

0.5mA Max. Typically 0.2mA (100VAC), 0.4mA (230VAC)

<0.02%/°C

>116% of rated output current

24V: 28.8-33.6V, 36V: 41.4-48.6V, 48V: 55.2-64.8V

18ms at 100VAC input

88 / 91%

Optional, contact factory

-10°C to +70°C, derate linearly to 40% load from 45°C to 70°C

-30 to +75°C

Operating: 30 - 90%RH, Storage: 10 - 90%RH

Convection

Input to Ground 2kVAC (20mA), Input to Output 3kVAC (20mA), Output to Ground 500VAC

(20mA) for 1 min.

>100M at 25°C & 70%RH, Output to Ground 500VDC

10 - 55Hz (1 minute sweep), 19.6m/s

constant X, Y, Z 1 hour each

< 196.1 m/s

UL60950-1, CSA60950-1, EN60950-1, EN50178 OV II, CE Mark

EN55011/EN55022-B, FCC Class B, VCCI-B

EN61000-4-2 (lvl2, 3), -3 (lvl 3), -4 (lvl 3), -5 (lvl 3, 4), -6 (lvl 3), -8 (lvl 4), -11; EN61000-6-2

540g

3.31 x 1.65 x 7.09” (84 x 42 x 180)

Five Years

Isolation Resistance

Vibration (non operating)

Shock

Safety Agency Certiﬁcations

Conducted & Radiated EMI

Immunity

Weight (Typ)

Size (WxHxD)

in (mm)

Warranty

yrs

Notes:

(1) 100 / 200VAC Input

(2) 25°C ambient (cold start)

(3) Avoid prolonged operartion in overload

1-800-526-2324 • www.us.tdk-lambda.com/lp/

116

Disclaimer: us.tdk-lambda.com/lp/legal.htm
