DTE150-03X-F-W

The Power Professionals

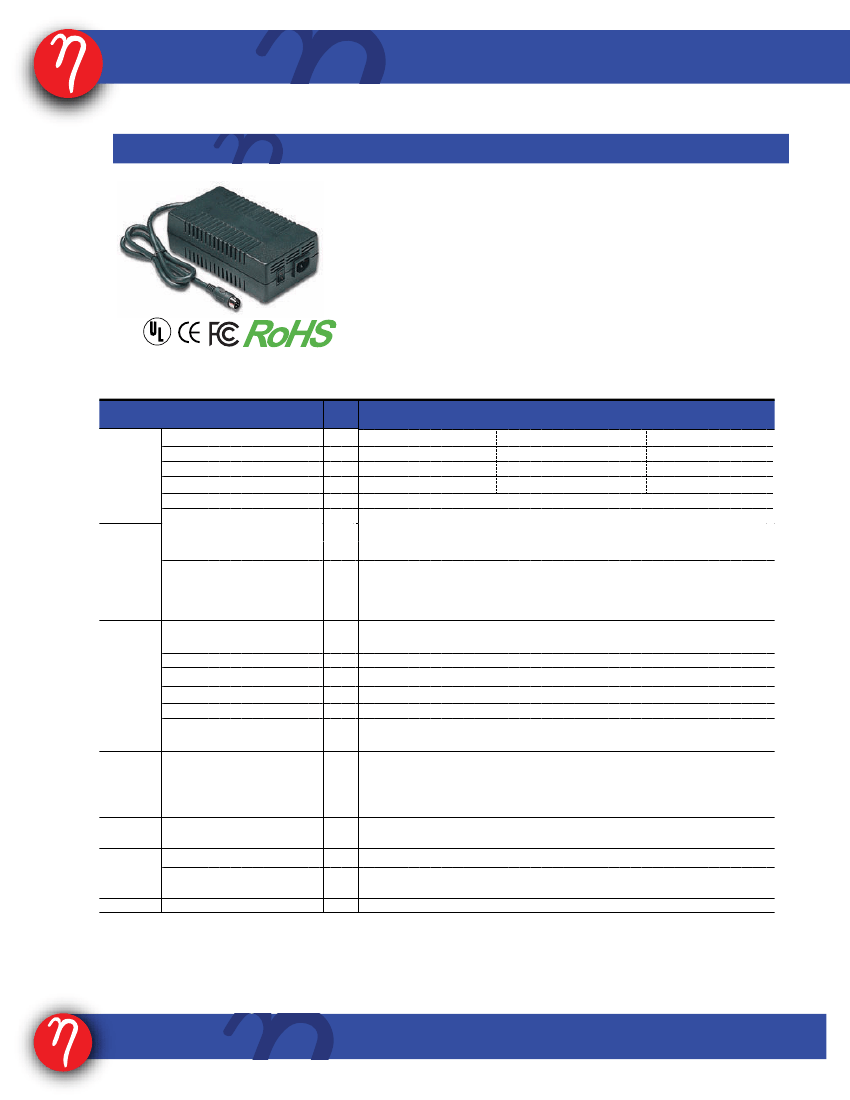

150W

Triple Output

• With Active PFC

• Universal Input

• AC Input: IEC 320-C14 Inlet

• Two year warranty

• High reliability

• 100% burn-in tested

• 40mm cooling fan with speed control

• 100% hi-pot tested

• Short-circuit, over load, over voltage

protection

Optional +5VSB @2A with 5%

O/P regulation and 50mV ripplea

MODEL/CHANNEL

Output Rating

Vo

Io (min)

Io (max)

Ripple & Noise

O/P Regulation

Po (Max.)

Range

Unit

Vo

A

mV

%

-

V

Hz

VAC

%

VAC

Hz

VAC

W

-

VAC

DTE150-03X-F-W

+5Vdc

1.5A

15A

50mV

+12Vdc

2A

8A

120mV

5%

150

-12Vdc

0.15A

1.5A

120mV

INPUT

Input Voltage Range

Power Factor

Efﬁciency

Ripple & Noise

90 - 264VAC

47-63Hz

>0.9 (20%~100% Load)

>80% @ full load, 115VAC

1%

47 - 63Hz

> 0.95 @115VAC; > 0.90 @230VAC @full load

< 75A peak @115VAC; < 150A peak @230VAC cold start @25°C

2.5A @90VAC; 1.25A @264VAC max.

150Watts

Shutdown and latch off, AC recycle

> 16ms typical @full load, 115VAC

90-264VAC

Efﬁciency

Input range

Frequency

Power Factor

Inrush current

Input current (rms)

Maximum output power (Po)

Over Voltage Protection

Environmental

Operating Temperature

Specification

Storage Temperature

Humidity

MTBF demonstrated

Environmental

Safety Standards

Agencies

EMI Standards (Meet)

Over Load Protection

Short circuit protection

Dimension/*Weight

Hold–up time

°

C

°

C

%

-

Protection

Over Voltage Protection

0 to +50°C

-10 to +70°C

20~90%

>100,000 hours at full load and 25°C ambient temperature

UL 60950-1 CSA 22.2-No.60950-1 TUV EN60950-1 CB IEC 60950-1

FCC Class B CISPR 22 Class B

EN 55022 Class B CE

Auto-recover

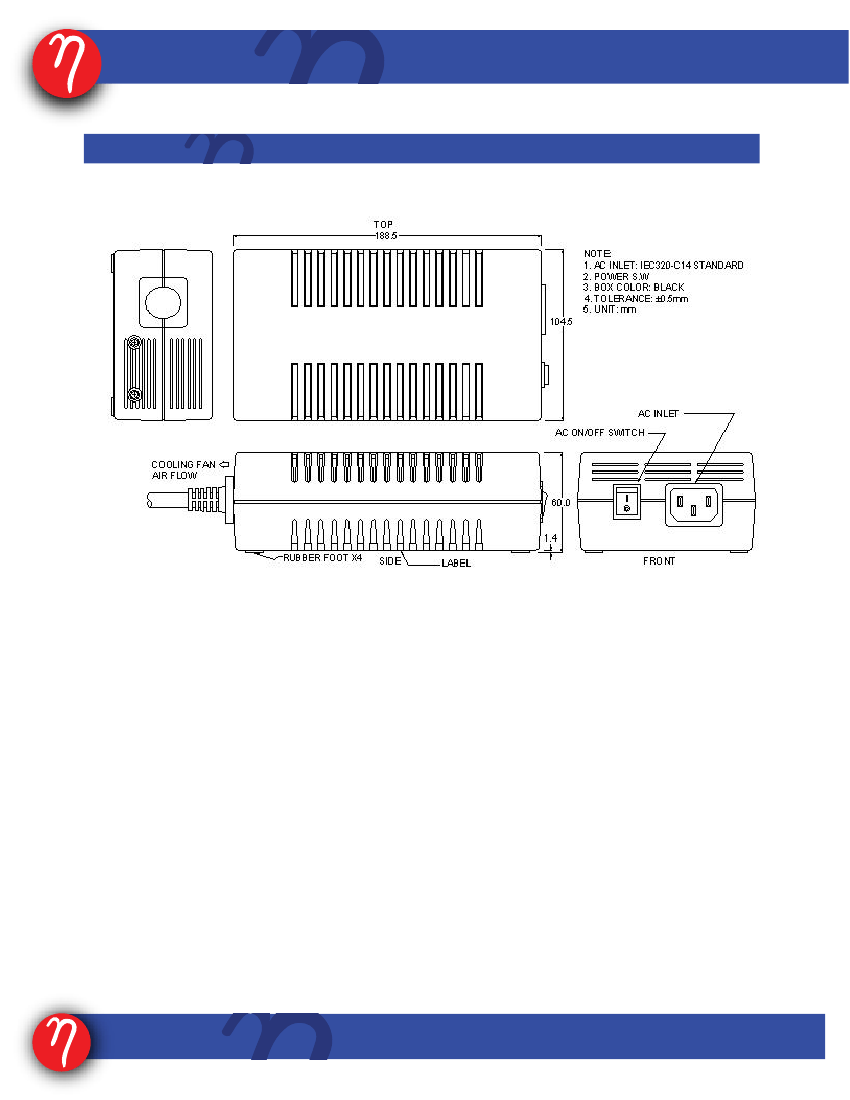

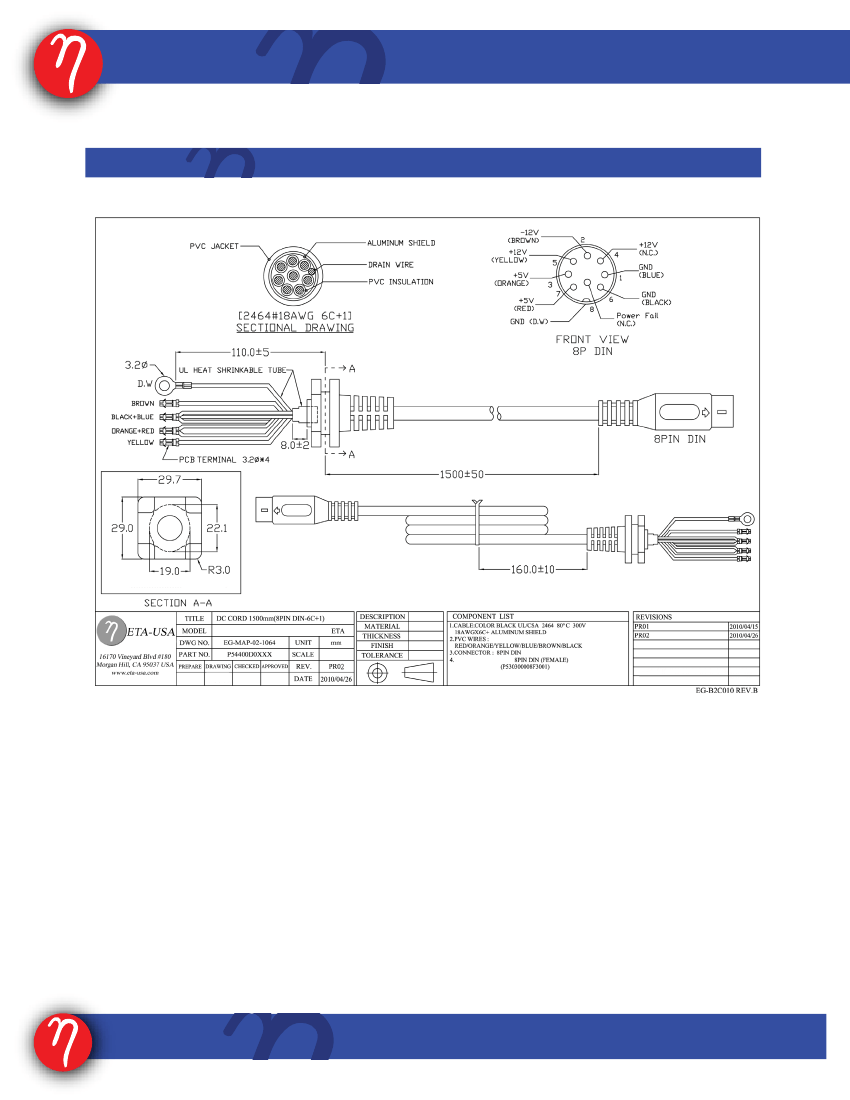

L188.5×W104.5×H60mm

mm/g

Note: 1. Peak–to–peak with 20MHz bandwidth with a tantalum 10uF

Hold–up time >10ms typical at full load @ 115VAC

ETA-USA

16170 Vineyard Blvd. Suite 180 Morgan Hill, CA 95037 http://www.eta-usa.com

Toll-free (US only): 800-ETA-POWR (800-382-7697) Telephone: 408 778-2793 FAX: 408-779-2753
