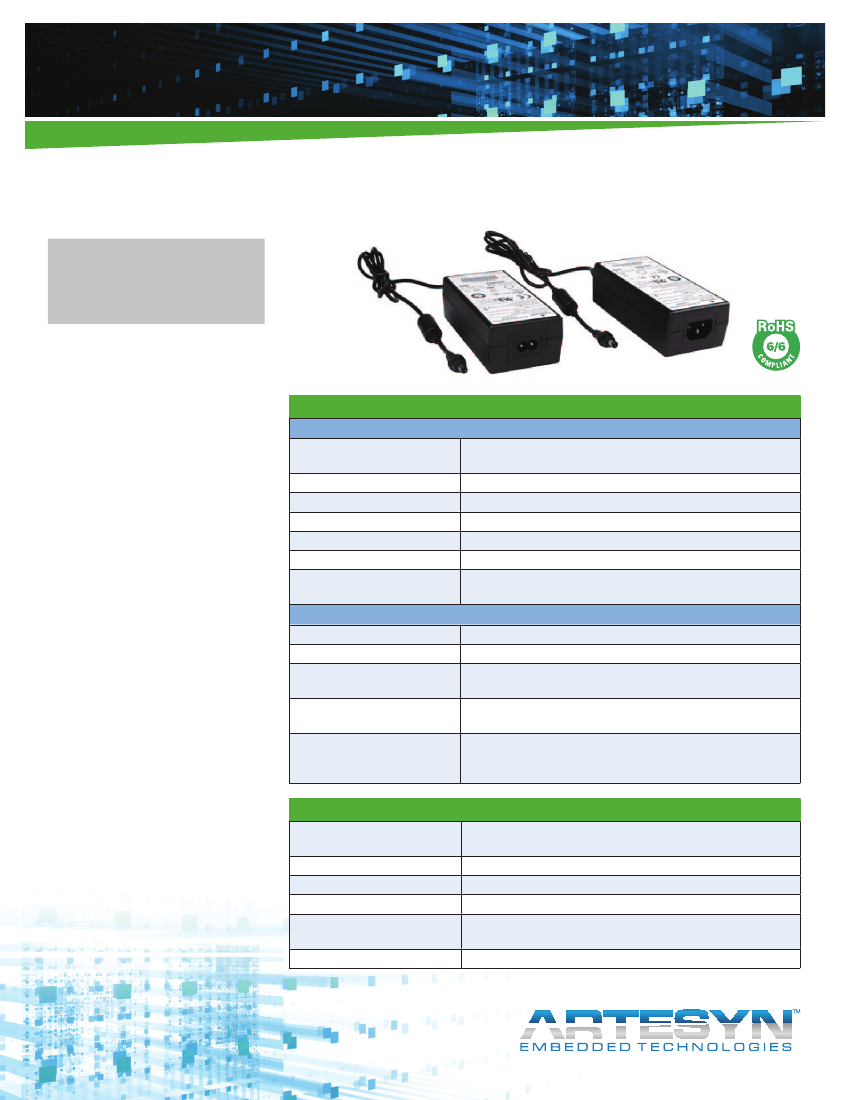

POWER
Data Sheet
Total Power: 40 Watts
Input Voltage: 90 - 264 Vac
127 - 300 Vdc
# of Outputs: Single
Special FeatureS
Medical and ITE safeties
Universal AC input
Fully regulated output
Overload and short circuit protection
Constant voltage
High efficiency
High MTBF
IEC320 AC input receptacle
3 pin (type C14) Class I
2 pin (type C8) Class II
Built in EMI filter (CISPR 22 Class B)
LED power good indicator
Input power < 49 watts
Complies with EN61000-3-2
Meets Energy Star Efficiency Level V
CE Mark EMC, LVD & ErP 2011
Less than 300 mW No-Load power
consumption
DP40
40 Watts
Electrical Specifications
Input
Input range:
Frequency:
Inrush current:
Input current:
Efficiency:
EMI/RFI:
Safety ground leakage current:
Output
Maximum Power (Po):
Hold-up time:
Overvoltage protection:
40 W
10 ms. typical at full load @ 115 Vac
20% - 45% above nominal output maximum
Latching type, recycle AC to reset.
Output short circuit protection auto recover
Overload protected @ 110 - 160% above peak rating
1.2 m DC cable with 2.5 mm I.D, 5.5 mm O.D center plug
DC plug center +v
DC plug outer -v
90 - 264 Vac (wide range)
127 - 300 Vdc
47 - 63 Hz
< 50A @ 230 Vac, cold start @ 25 °C
< 0.5 A rms @ 115 Vac; < 0.25 A @ 230 Vac
84% @ full load typical, @115 Vac
FCC Part 15, Subpart B Class B & EN55022 (CISPR 22) Class B
300 μA @ 50/60 Hz, 264 Vac input for 3 pin model
100 μA @ 50/60 Hz, 264 Vac input for 2 pin model
SaFety
UL
cUL
TUV
CE
CB
CCC
60950-1, 60601-1
60950-1, 60601-1
60950-1, 60601-1
EMC, LVD & ErP 2011
Certificate and report
China Approval
Overload protection:
Cable/connector:
Environmental Specifications
Operating temperature:
Storage temperature:
Electromagnetic susceptibility:
Humidity:
Vibration:
MTBF demonstrated:
0 ° to +40 °C ambient. Derate each output as 2.5% per degree
from 40 °C to 60 °C. -20 °C start up
-40 °C to +85 °C
Designed to meet EN61000-4, -2, -3, -4, -5, -6, -8, -11, Level 3
Operating; non-condensing 10% to 90% RH
Three orthogonal axes, 3 sweeps per axe at 1 oct/min. 2G peak 8Hz
to 500Hz, operational
> 550,000 hours at full load and 25 °C ambient conditions
DP40 Data Sheet
Ordering Information
Model
Number
DP4009N2M
DP4009N3M
DP4012N2M
DP4012N3M
DP4015N2M
DP4015N3M
Output Voltage
9V
9V
12 V
12 V
15 V
15 V
18 V
18 V
24 V
24 V
48 V
48 V
Maximum Load
4.44 A
4.44 A
3.33 A
3.33 A
2.67 A
2.67 A
2.22 A
2.22 A
1.67 A
1.67 A
0.84 A
0.84 A
Peak Load
1
5.4 A
5.4 A
4.4 A
4.4 A
3.5 A
3.5 A
3.0 A
3.0 A
2.2 A
2.2 A
1.2 A
1.2 A
Regulation
2
± 8%
± 8%
± 5%
± 5%
± 5%
± 5%
± 5%
± 5%
± 5%
± 5%
± 5%
± 5%
Ripple
P/P (PARD)
3
90 mV
90 mV
120 mV
120 mV
150 mV
150 mV
150 mV
150 mV
240 mV
240 mV
480 mV
480 mV
DP4018N2M
DP4018N3M
DP4024N2M
DP4024N3M
DP4048N2M
DP4048N3M
1. Peak current lasting < 15 seconds with a maximum 10% duty cycle.
2. At 25 ºC including initial tolerance, line voltage, load currents and output voltages adjusted to factory settings.
3. Peak-to-peak with 20 MHz bandwidth and 10 μF (tantalum capacitor) in parallel with a 0.1 μF capacitor at rated line voltage and load ranges.

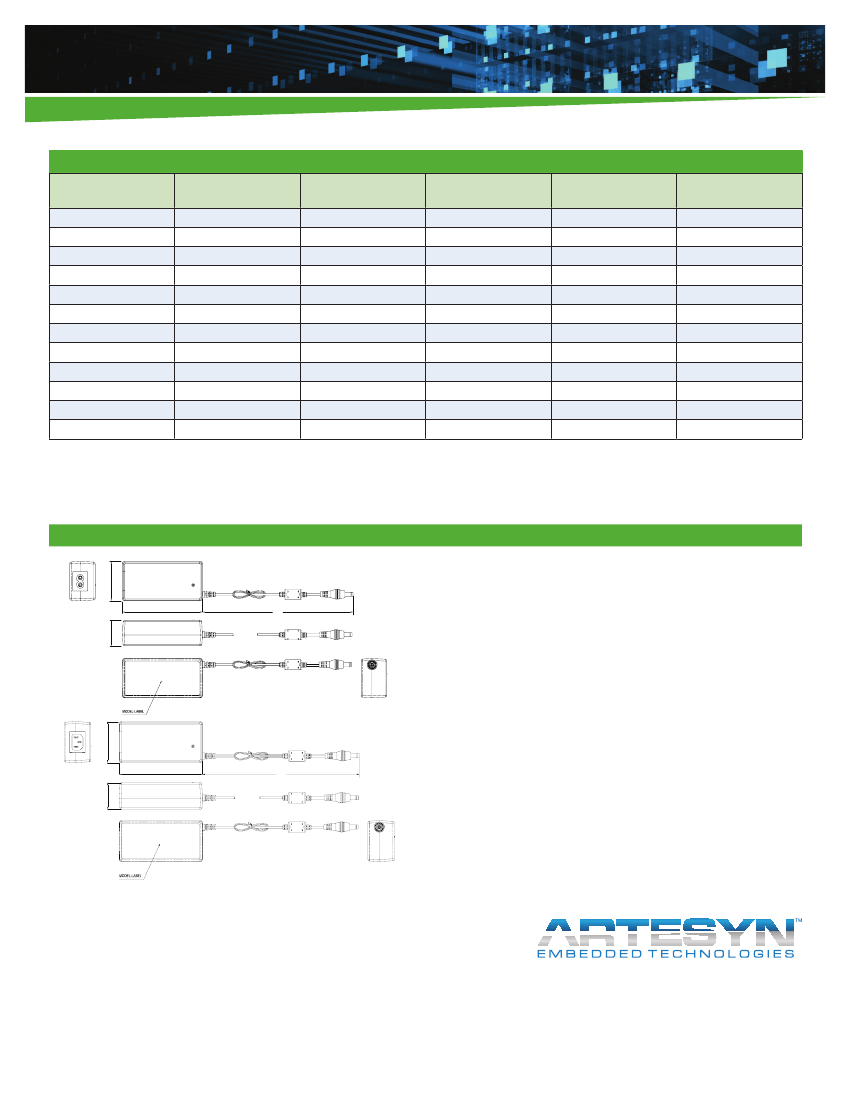

Mechanical Drawing
Notes:
1. Specifications subject to change without notice.
4.88"
(124.0)
48"
(1219 ± 20)
2.4"
(61.0)
2. All dimensions in inches (mm), tolerance is ± 0.02” (± 0.5 mm)
3. Warranty: 2 year
4. Weight: 0.55 lb./.25 kg
5. AC input power cord sold separately.
6. Specifications are for convection rating at factory settings at 115 Vac
input, 25 °C unless otherwise stated
2.4"
(61.0)
1.55"
(39.5)
4.88"
(124.0)
48"
(1219 ± 20)
1.55"
(39.5)
WORLDWIDE OFFICES
americas
2900 S.Diablo Way
Tempe, AZ 85282
USA
+1 888 412 7832
europe (uK)
Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX
United Kingdom
+44 (0) 1384 842 211
asia (HK)
14/F, Lu Plaza
2 Wing Yip Street
Kwun Tong, Kowloon
Hong Kong
+852 2176 3333
www.artesyn.com
For more information:
www.artesyn.com/power
For support:
productsupport.ep@artesyn.com
DP40-DS 05.29.14
While every precaution has been taken to ensure accuracy and completeness in this literature, Artesyn
Embedded Technologies assumes no responsibility, and disclaims all liability for damages resulting from use of
this information or for any errors or omissions. Artesyn Embedded Technologies, Artesyn and the Artesyn
Embedded Technologies logo are trademarks and service marks of Artesyn Embedded Technologies, Inc. All other
names and logos referred to are trade names, trademarks, or registered trademarks of their respective owners.
© 2014 Artesyn Embedded Technologies, Inc.
