iAC12016A008V-002-R datasheet, PDF

Datasheet> All Categories > semiconductor> Power management> iAC12016A008V-002-R

iAC12016A008V-002-R: Categorysemiconductor Power management; File Size499KB，2 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com

Download Datasheet Parametric Compare View All

iAC12016A008V-002-R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	iAC12016A008V-002-R	-	-	View	Buy Now

iAC12016A008V-002-R Parametric

Parameter Name	Attribute value
Product Category	Non-Isolated DC/DC Converters
Manufacturer	TDK Corporation
RoHS	Details
Product	Non-Isolated / POL
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Factory Pack Quantity	250
Unit Weight	0.423288 oz

Preview

Download Datasheet

View All

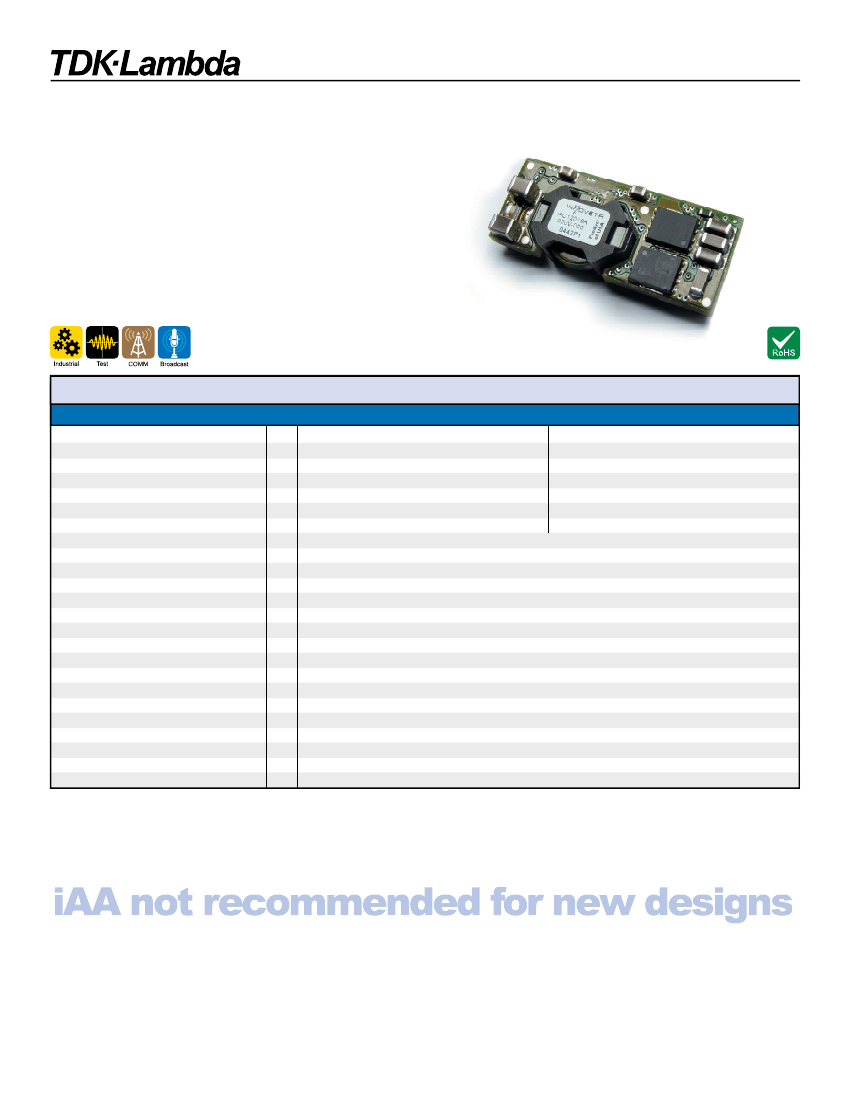

iAA/iAC Series

15 - 16A Non-isolated SMT Point of Load

Features



Standard Industry Footprint



3.0-5.5V and 6.0-14.0V Inputs



0.8-5.0V Nominal Outputs



Surface Mount



High operating eﬃciency (up to 95%)



Constant switching frequency



Starts with pre-biased output

Key Market Segments & Applications

Speciﬁcations

Model

Nominal Output Voltage

Input Voltage Range

Input Current (max)

Output Voltage Tolerance

Ripple & Noise (max)(pk to pk)

Line Regulation (max)

Load Regulation (max)

Overload Protection

Overvoltage Protection

Remote Sense

Remote On / Oﬀ

Sequencing

Temperature (operating)

Temperature (storage)

Humidity (operating)

Humidity (storage)

Cooling

Isolation Voltage

Vibration (non operating)

Shock

Safety Agency Approvals

Weight (max)

Size

Warranty

iAA05015A008V

iAC12016A008V

VDC

0.75-3.63

0.8 - 5.0

(2)

VDC

3.0-5.5

6.0

(1)

-14

VDC

±3.3% Vo, set

-2.5 to +3.5% Vo, set

(3) mV

100

Inception - 175-235% of rated output; Short circuit - auto recovery

N/A

Yes

Positive or Negative Logic available, see Model Selector

See Model Selector

°C

-40 to 125

°C

-55 to 125

20-95% RH Non condensing

Per IPC / JEDEC J-STD-020, for MSL-1

(<30C/85%RH) in original packaging

Convection or forced air

N/A

5 to 50Hz @ 0.5g (4.9m/s ), and 50 to 500Hz @ 1.5g (14.7m/s

) per Bellcore TR-EOP-000063-5.4.4

196.1m/s

UL60950 (US and Canada), VDE0805 (IEC60950), CB scheme (IEC60950)

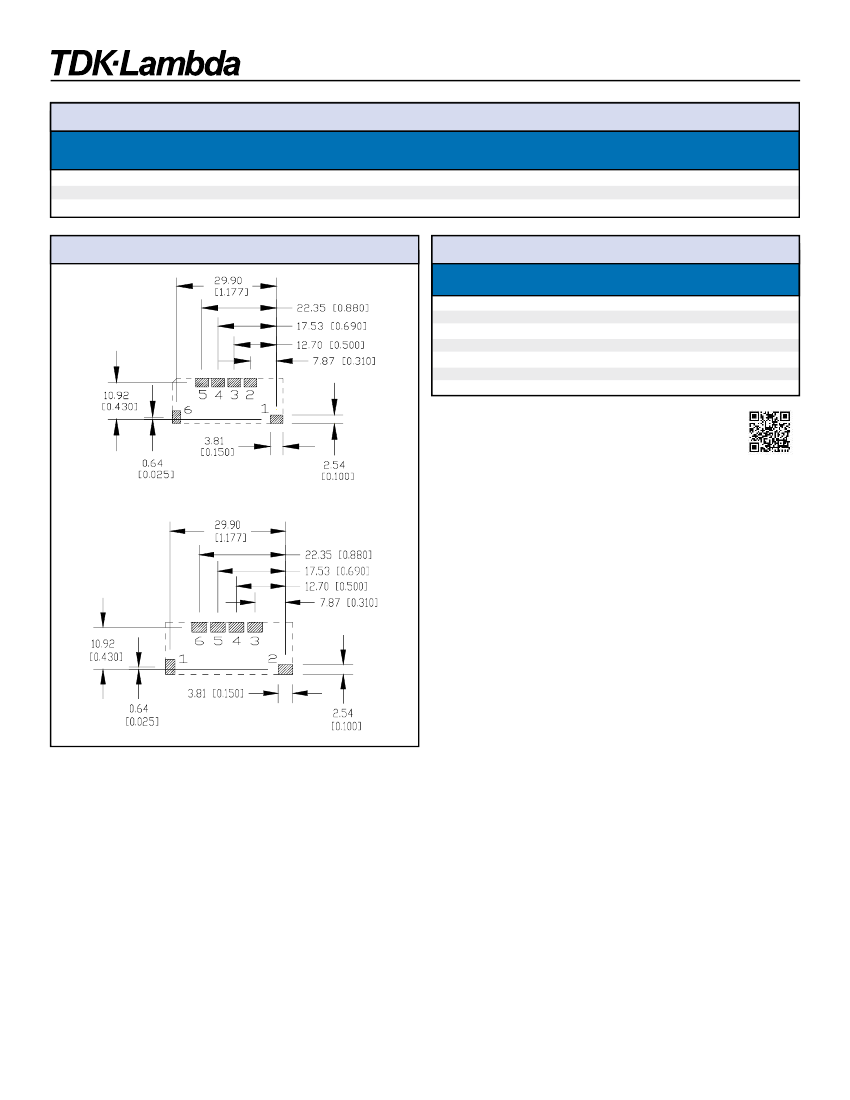

33 x 13.5 x 8.5

3 Years

(3) Measured across one 0.1µF ceramic capacitor and one

47µF ceramic capacitor; BW = 20MHz

(4) iAC MSL-2

Notes: See website for detailed speciﬁcations

(1) 8.3 - 14.0V when output is >3.63V

(2) 4.5 - 5.5V when output is ≥3.0V

iAA last time buy October 13th, 2017

1-800-526-2324 • www.us.tdk-lambda.com/lp/

198

Disclaimer: us.tdk-lambda.com/lp/legal.htm

iAC12016A008V-002-R Related Products

	iAC12016A008V-002-R	iAA05015A008V-000-R
Description		Non-Isolated DC/DC Converters 5Vin 0.8-3.6VOut 15A 49.5W SMT Pos Logic
Product Category	Non-Isolated DC/DC Converters	Non-Isolated DC/DC Converters
Manufacturer	TDK Corporation	TDK Corporation
RoHS	Details	Details
Product	Non-Isolated / POL	Non-Isolated / POL
Unit Weight	0.423288 oz	0.423288 oz
Packaging	Reel	Reel
