GT03-111-052-A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> GT03-111-052-A

GT03-111-052-A: DescriptionPulse Transformers Gate Drive Transformer; CategoryPower management transformer; File Size98KB，1 Pages; ManufacturerICE Components; Websitehttp://www.icecomponents.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

GT03-111-052-A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	GT03-111-052-A	-	-	View	Buy Now

GT03-111-052-A Overview

Pulse Transformers Gate Drive Transformer

GT03-111-052-A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BREADTH & HEIGHT DIM. INCLUDES TERMINALS ASLO
application	GATE DRIVE
ET product minimum value	51.9 V-us
high	6.8 mm
Insulation voltage	1500 V
length	10.7 mm
Installation features	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	130 °C
Minimum operating temperature	-40 °C
method of packing	REEL
physical size	L10.7XB16.0XH6.8 (mm)
Primary inductance	1985 µH
surface mount	YES
Transformer type	PULSE TRANSFORMER
Turns ratio (Np:Ns)	1:1:1
width	16 mm
Base Number Matches	1

Preview

Download Datasheet

View All

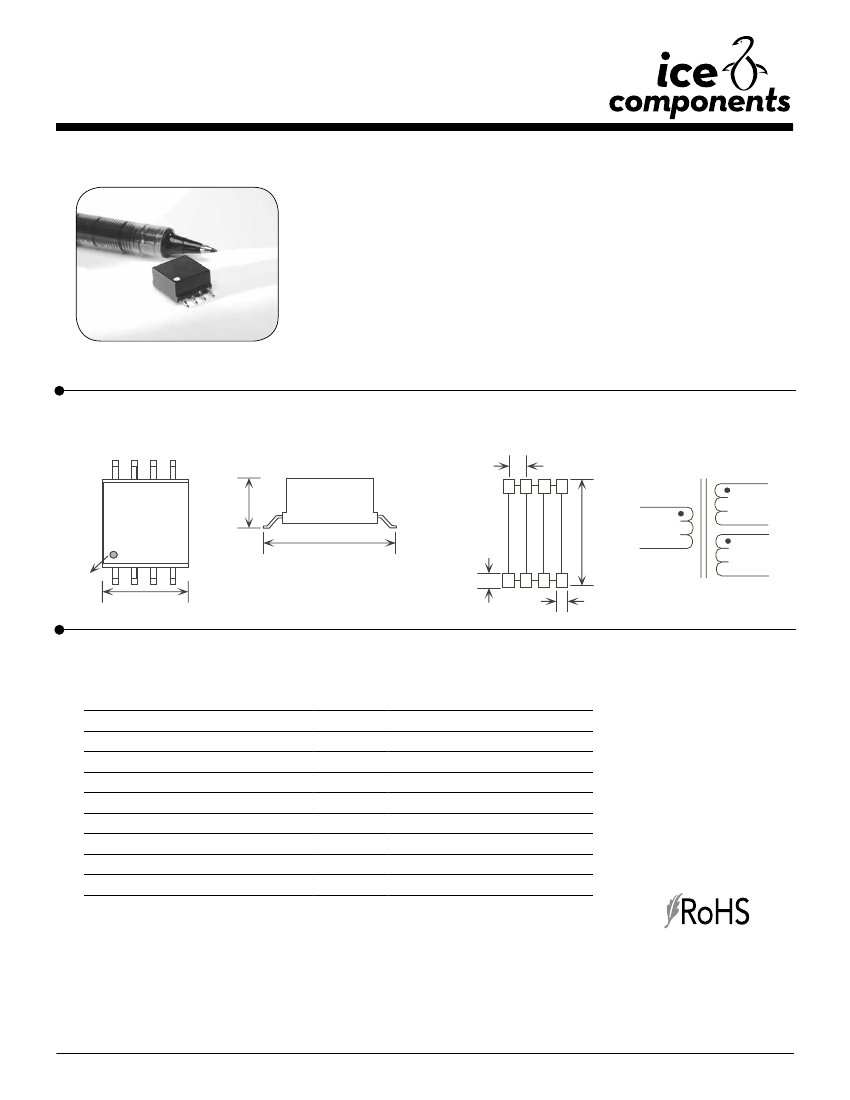

GT03 Series

Gate Drive Transformer

Features

• Optimized for frequencies from

100 kHz to 350 kHz

Applications

• Gate Drive Transformer

• AC/DC and DC/DC

Converters

• Signal Transformer Across

Isolation Barrier

Packaging

Reel diameter: 13”, Reel width: 24mm, Pieces/reel: 500

Mechanical

Recommended

PCB layout

2.54

6.8

max

16.9

16.0 ref.

1.6

Schematic

GT03-XXX-XXX-X

YYWW

Gate

Drive

Gate

color dot

for pin 1

10.7 max

units: mm

1.2

Electrical Specifications

Part

Number

Turns Ratio

Drive:Gate

Drive Ind.

(µH, min.)

DCR

, max.)

Lkg. Ind.

(nH, max.)

E-T Prod

(V-µs)

Hi-Pot

GT03-111-034-A

GT03-111-052-A

GT03-111-069-A

GT03-111-110-A

GT03-122-037-A

GT03-122-055-A

GT03-111-034-B

GT03-111-069-B

GT03-122-037-B

1:1:1

1:2.5:2.5

1:1:1

1:2.5:2.5

882

1985

2000

5100

162

365

882

2000

162

550:550

850:850

1300:1300

1900:1900

265:590

400:900

600:600

1430:1300

280:590

300

370

300

550

180

300

360

470

240

34.6

51.9

110

37.1

55.6

34.6

37.1

1500 V

3750 V

1. Tested at 100kHz, 0.1Vrms.

2. Electrical specifications at

25°C.

3. Operating range: -40° C

to +130° C.

4. Meets UL 94V-0.

5. E-T product rating is for

secondary (gate) windings

and is based upon flux

density of 2200 Gauss at

25°C in a bipolar drive

application.

6. Meets Class F (155°C) insu-

lation system requirements.

GT03-XXX-XXX-A: 0mm creepage/clearance

B: 3mm creepage/clearance

Specifications subject to change without notice.

800.729.2099 tel

www.icecomponents.com

(01/14) GT03-1

GT03-111-052-A Related Products

	GT03-111-052-A	GT03-111-034-B	GT03-111-110-A	GT03-122-055-A	GT03-111-069-C
Description	Pulse Transformers Gate Drive Transformer		USB Interface IC 4-Port Super Speed USB3 Hub Controller	Pulse Transformers SMT Gate Driver Xfmr 1:2.5:2.5	Pulse Transformers Gate Drive Xfmr 1:1:1 69 V-us
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	BREADTH & HEIGHT DIM. INCLUDES TERMINALS ASLO	BREADTH & HEIGHT DIM. INCLUDES TERMINALS ASLO	BREADTH & HEIGHT DIM. INCLUDES TERMINALS ASLO	BREADTH & HEIGHT DIM. INCLUDES TERMINALS ASLO	BREADTH & HEIGHT DIM. INCLUDES TERMINALS ASLO
application	GATE DRIVE	GATE DRIVE	GATE DRIVE	GATE DRIVE	GATE DRIVE
ET product minimum value	51.9 V-us	34.6 V-us	110 V-us	55.6 V-us	69 V-us
high	6.8 mm	6.8 mm	6.8 mm	6.8 mm	6.8 mm
Insulation voltage	1500 V	3750 V	1500 V	1500 V	3750 V
length	10.7 mm	10.7 mm	10.7 mm	10.7 mm	10.7 mm
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1
Maximum operating temperature	130 °C	130 °C	130 °C	130 °C	130 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
method of packing	REEL	REEL	REEL	REEL	REEL
physical size	L10.7XB16.0XH6.8 (mm)	L10.7XB16.0XH6.8 (mm)	L10.7XB16.0XH6.8 (mm)	L10.7XB16.0XH6.8 (mm)	L10.7XB16.0XH6.8 (mm)
Primary inductance	1985 µH	882 µH	5100 µH	365 µH	2000 µH
surface mount	YES	YES	YES	YES	YES
Transformer type	PULSE TRANSFORMER	PULSE TRANSFORMER	PULSE TRANSFORMER	PULSE TRANSFORMER	PULSE TRANSFORMER
Turns ratio (Np:Ns)	1:1:1	1:1:1	1:1:1	1:2.5:2.5	1:1:1
width	16 mm	16 mm	16 mm	16 mm	16 mm
Base Number Matches	1	1	1	1	1
