FMBC
2-stage filter for 3-phase systems
Approvals and Compliances
Description
- 3 phase line filter with standard attenuation
Applications
-
-
-
-
Voltage rating 480 VAC for world wide acceptance
Protection against interference voltage from the mains
For standard and industrial applications
Suitable for use in equipment according to IEC/UL 60950
Weblinks
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Detailed request for product, Microsite
Technical Data
Rated Current
Rated voltage
Approval for
Overload Current
Leakage Current
Dielectric Strength
8 - 64 A
480 VAC, 50/60 Hz
8 - 64 A @ 40 (75) °C / 480 VAC
1.5 x Ir
industrial < 5 mA (440 V / 50 Hz)
480 VAC:
2.25 kVDC between L-L
3 kVDC between L-PE
Test voltage (2 sec)
2-stage
1.7 - 7.45 kg
Metal
UL 94V-0
Mounting
Terminal
Operating Temperature
Climatic Category
Degree of Protection
Protection Class
MTBF
Screw-on mounting on chassis, from
top
Screw clamps
-25 °C to 100 °C
25/100/21 acc. to IEC 60068-1
IP 20 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
> 200'000 h acc. to MIL-HB-217 F
Number of Filter Stages
Weight
Material: Housing
Sealing Compound
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: FMBC
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
Certificate Number: 40004666
UL File Number: E72928
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Standard
IEC 60939
UL 1283
Description
Passive filters for suppressing electromagnetic interference
Electromagnetic interference filters
EMC Products
1
FMBC
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
3-Phase AC Filters / DC Filters
https://www.schurter.com /PG80
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG

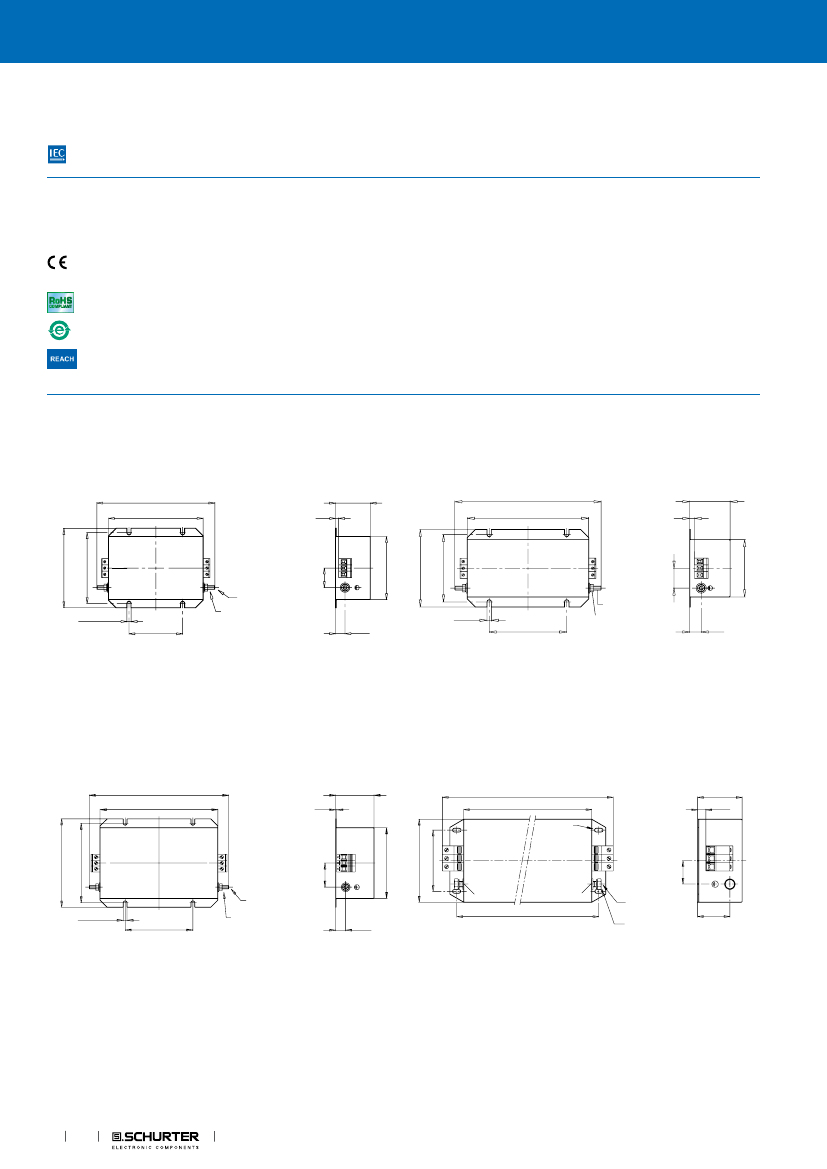

Dimension [mm]
Case 27-3
Case 31-3
187 max.
151 max.
127 max.
56 max.
(5)
101 max.
max. 217
max. 181
(7)
max. 61
112
100
-1
1)
2)
M6
max. 116
1)
2)
(30)
6.5
±0.3
85
±0.3
3)
(15)
6.5
±0.3
M6
115
±0.3
3)
(17)
1) Line
2) Load
3) Nut torque 3...4 Nm
Case 32-7
Case 37-3
237 max.
201 max.
66 max.
(2)
378 max.
301 max.
6.5x15
81 max.
(15)
151 max.
121 max.
150 max.
110
±0.3
+0
135
-1
1)
2)
(41)
1)
2)
(42)
M6
6.5
±0.3
115
±0.3
3)
(17)
5)
325
±1
5)
M10
4)
(58)
2
EMC Products
max. 86
+0
-1
+0
3-Phase AC Filters / DC Filters
https://www.schurter.com /PG80
FMBC
Case 38-3
Case 40-3
351 max.
301 max.
6.5x15
150 max.
81 max.
(12)
351 max.
301 max.
6.5x15
150 max.
(12)
81 max.
110
±0.3
1)
2)
(34)
110
±0.3
1)
2)
(34)
M6
325
±1
3)
(55)
M6
325
±1
3)
(55)
1) Line
2) Load
3) Tightening torque 3...4 Nm
4) Tightening torque 10...17 Nm
5) Do not unscrew lock-nut
Technical data to the filter components
Rated Current
@ Ta 40°C (75°C) [A]
8 (5.6)
12 (6.6)
16 (8.8)
25 (13)
25 (16)
36 (19)
36 (19.5)
50 (27)
64 (36)
Characteristic
Excellent attenuation
Excellent attenuation
Excellent attenuation
High attenuation
Excellent attenuation
High attenuation
Excellent attenuation
High attenuation
Excellent attenuation
L [mH]
8
5.5
4.5
2.4
4.5
1.5
3
1
0.85
C1 [μF]
1.0
1.0
1.0
1.0
1.0
1.0
1.0
2.2
2.2
C2 [μF]
1.0
1.0
1.0
2.2
2.2
2.2
2.2
2.2
2.2
C3 [nF]
2.2
2.2
2.2
2.2
2.2
4.4
4.4
4.4
4.4
C4 [nF]
47
47
47
47
47
47
47
100
100
R1 [MΩ] R2 [MΩ] R3 [MΩ] R4 [MΩ]
-
-
-
-
-
-
1
-
-
-
-
-
-
-
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1

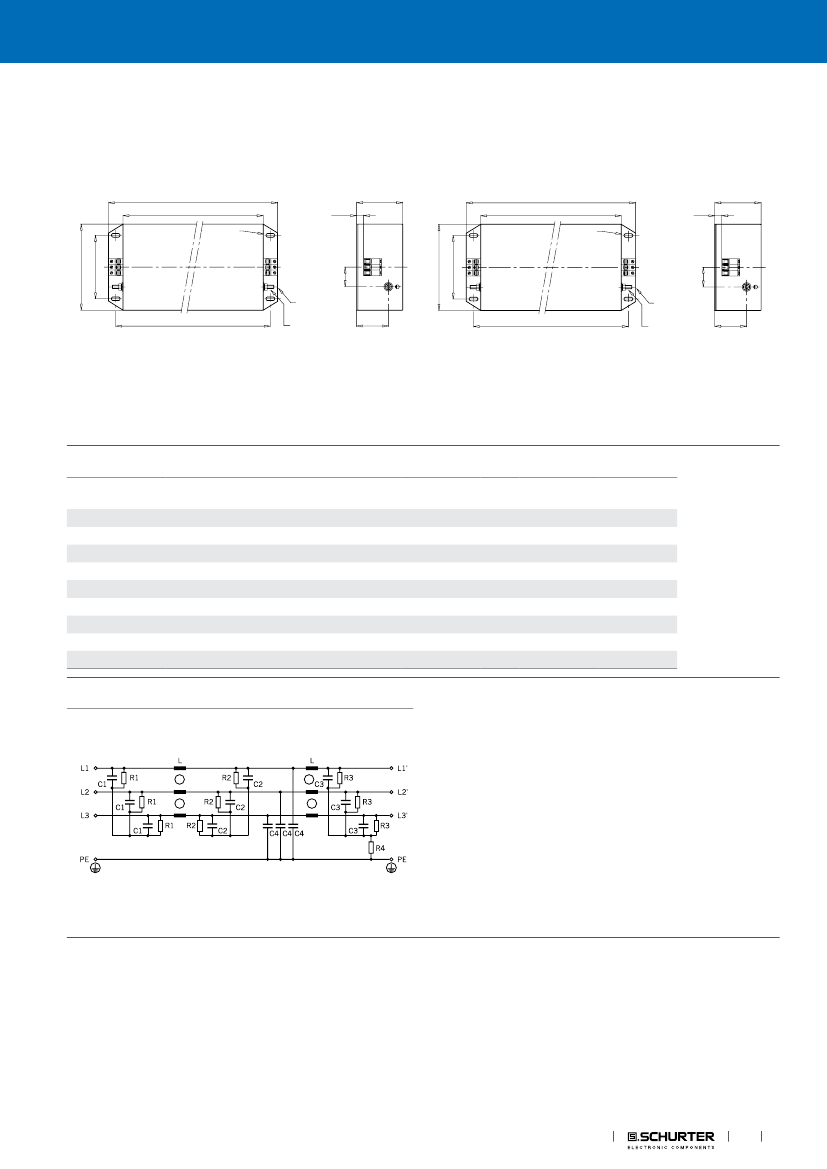

Diagrams
1)
1) Line
EMC Products
3
FMBC
Derating Curves
Permissible Working Current as a Function of Ambient Temperature
Admissible operating current in % of In
100
80
60
UL Listed
40
20
0
0
20
Ambient air temperature T
a
°C
40
60
75
100
3-Phase AC Filters / DC Filters
https://www.schurter.com /PG80

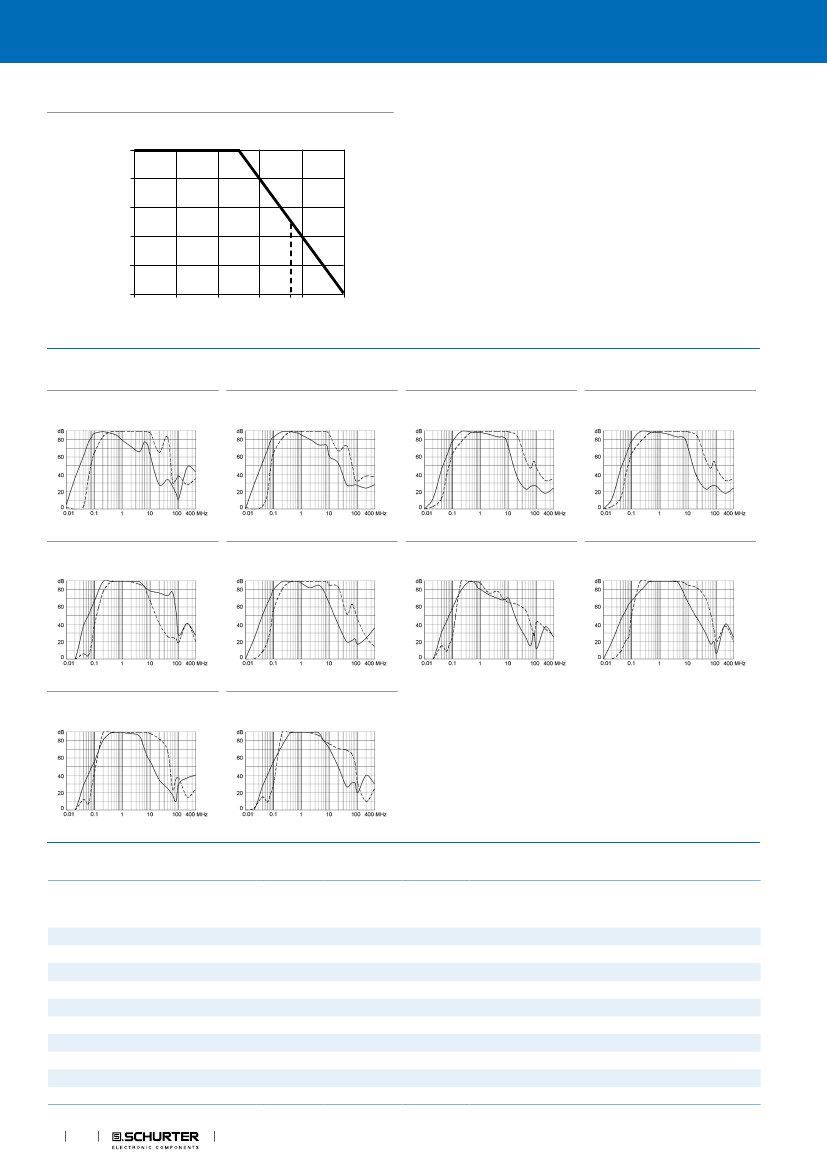

Attenuation Loss
Industrial version
- - - - 50Ω differential mode _____ 50Ω common mode
8A (FMBC-0927-0810)
12A (FMBC-0927-1210)
16A (FMBC-0931-1610)
25A (FMBC-0932-2510)
25A (FMBC-0932-2510L)
36A (FMBC-0938-3610)
36A (FMBC-0940-3610L)
50A (FMBC-0938-5010)
50A (FMBC-0938-5010L)
64A (FMBC-0937-6410)
All Variants
Rated Current
@ Ta 40°C (75°C)
[A]
8 (5.6)
12 (6.6)
16 (8.8)
25 (13)
25 (16)
36 (19)
36 (19.5)
50 (27)
50 (27)
64 (36)
Characteristic
Tripped Power
Dissipation [W]
Contact Resi-
stance [mΩ]
Leakage Cur-
rent [mA] @
440V, 60Hz
1)
0.5
0.5
0.5
0.5
0.5
0.5
0.5
1.2
1.2
1.2
Weight [kg]
Screw clamps
[mm
2
]
2)
Housings
Order Number
Excellent attenuation
Excellent attenuation
Excellent attenuation
High attenuation
Excellent attenuation
High attenuation
Excellent attenuation
High attenuation
Excellent attenuation
Excellent attenuation
10.6
10
14.6
20.7
18.8
18.3
29.2
25.9
30.3
47.9
55
23
19
11
10
4.7
7.5
3.45
4.0
3.9
1.7 kg
1.9 kg
2.28 kg
3.5 kg
3.4 kg
6.5 kg
7.4 kg
7 kg
7 kg
7.45 kg
4
4
4
6
6
6
6
10
10
25
27-3
27-3
31-3
32-7
32-7
40-3
38-3
38-3
38-3
37-3
FMBC-0927-0810
FMBC-0927-1210
FMBC-0931-1610
FMBC-0932-2510L
FMBC-0932-2510
FMBC-0940-3610L
FMBC-0938-3610
FMBC-0938-5010L
FMBC-0938-5010
FMBC-0937-6410
█
4
EMC Products
3-Phase AC Filters / DC Filters
https://www.schurter.com /PG80
FMBC
Tripped Power
Dissipation [W]
Contact Resi-
stance [mΩ]
Leakage Cur-
rent [mA] @
440V, 60Hz
1)
Weight [kg]
Screw clamps
[mm
2
]
2)
Housings
Order Number
Rated Current
@ Ta 40°C (75°C)
[A]
█
Most Popular.
Characteristic
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
1) Nominal leakage current acc. to IEC60950 - 5.2.5. under normal operating conditions. Note: worst case leakage current acc. to IEC60950 - Annex G4 (situation with two
interrupted lines) can be much higher.
2) Maximum conductor cross section (wire gauge) to be used; a comparative table for AWG and mm² values can be found in the general product information www.schurter.
com/emc_info
Packaging unit
1 Pcs
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
EMC Products
5
30.11.2017
