Sentrex Surge Protection Devices
PA & PB Series Panel Protection Devices
Sentrex
®
PA and PB Series surge protection devices
protect your sensitive electronic equipment from
external or internal transient activity. Units can be
customized with remote monitoring, noise filtration and
flush mount options.
All PA and PB units are approved for indoor or outdoor
use and feature all-mode protection. Units provide
excellent protection when placed at branch panels or at
specific pieces of equipment. They can also suppress
external surges when mounted at the main service panel.
Also, the PA120T and PB120T are ideal for installation
in residences to protect the entire home infrastructure,
including expensive home appliances and home theater
equipment.
Meets UL1449
Third Edition

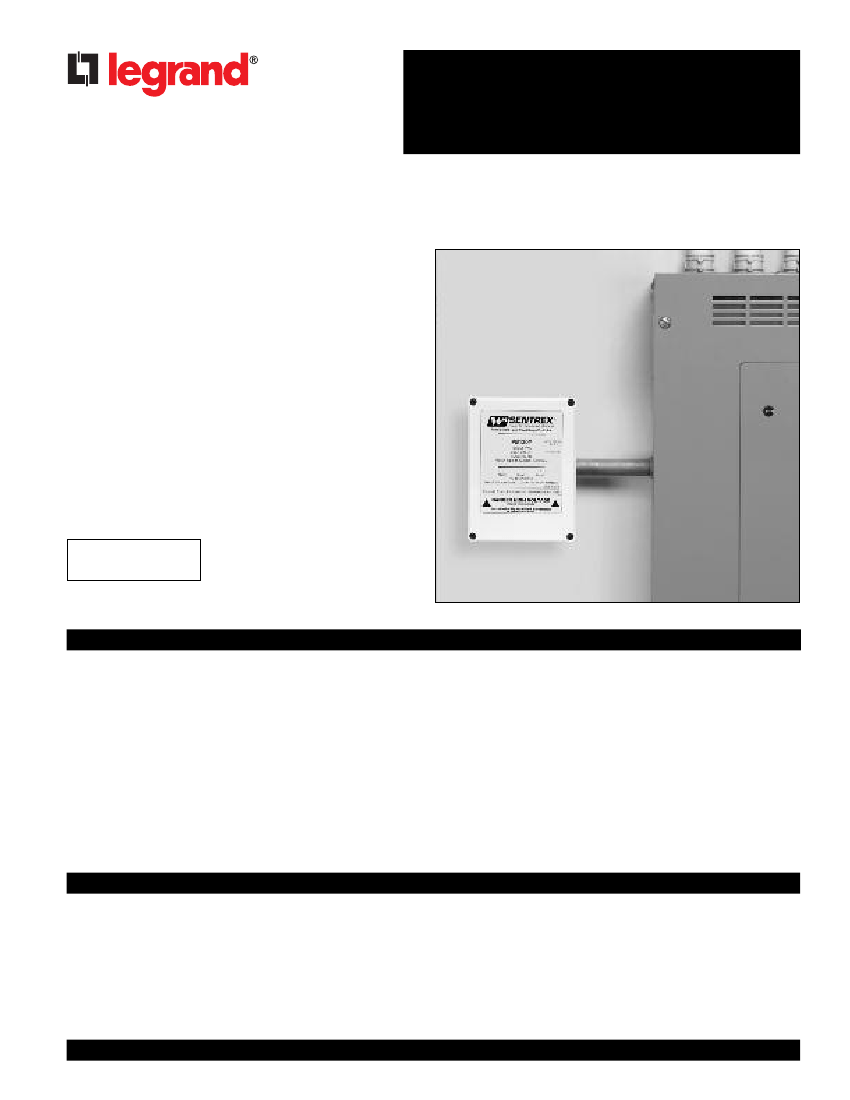

PA & PB Series provide
surge protection at the
main service panel, sub panel
or at sensitive equipment.
FEATURES & BENEFITS
n
Up to 160kA maximum surge current protection
per phase.
n
Easy installation.
Enclosure can be easily drilled or
punched for conduit/cable access and positioned to
the electrical panel at the discretion of the installer.
n
All-mode protection is standard on all units.
n
NEMA 1, 2, 3, 3S, 4, 4X, 12, 13 rated, water-tight,
fire-resistant plastic enclosure.
n
34mm MOV circuitry.
Well exceeds the capacity of
20mm MOVs in parallel to manage surges over time.
n
Residential infrastructure protection.
PA120T &
PB120T are ideal for providing protection for homes.
n
Type 2 Surge Protective Device (SPD).
Nominal Discharge
Current (In) Rating of 5kA
n
Short circuit and thermal fusing.
n
Low impedance circuitry.
n
Short circuit current rating of 10kA.
n
Visual indication of protection status.
n
Ten-year product warranty.
n
cETLus Listed to UL1449 Third Edition.
AVAILABLE OPTIONS
n
Remote diagnostic connection.
Using NO/NC dry
contacts via on-board relay. Remote monitoring device
sold separately.
n
EMI/RFI noise filter.
Noise attenuation -20dB minimum
100 kHz to 100 MHz.
n
Flush mount cover.
Sold separately.
ED1198R4 – Updated December 2013 – For latest specs visit www.legrand.us/wiremold
PA/PB Series Product Selection Guide
PB Series – 160kA
CATALOG
NUMBER
PB-120T
PB-120Y
PB-240DCT
PB-277Y
VOLTAGE
(V ac)
120/240
120/208
120/240
277/480
PHASE
1
3Y
3H
3Y
MCOV*
150/300
150/300
150/300
320/640
L-N
800
800
800
1200
VOLTAGE PROTECTION LEVEL (VPR)
L-G
N-G
L-L
H-N
H-G
1200
800
1200
2000
700
700
800
1200
1500
1500
1500
2000
–
–
1200
–
–
–
1500
–
H-L
–
–
1800
–
In
RATING
5kA
5kA
5kA
5kA
* Maximum Continuous Operating Voltage
L – (Line), N – (Neutral), G – (Ground), H – (High Leg), +D – (Delta), Y – (Wye), H – (High Leg Delta)
PA Series – 80kA
CATALOG
NUMBER
PA-120T
PA-120Y
PA-240DCT
PA-277Y
VOLTAGE
(V ac)
120/240
120/208
120/240
277/480
PHASE
1
3Y
3H
3Y
MCOV*
150/300
150/300
150/300
320/640
L-N
800
800
800
1200
VOLTAGE PROTECTION LEVEL (VPR)
L-G
N-G
L-L
H-N
H-G
1200
800
1200
2000
700
700
800
1200
1500
1500
1500
2000
–
–
1200
–
–
–
1500
–
H-L
–
–
1800
–
In
RATING
5kA
5kA
5kA
5kA
* Maximum Continuous Operating Voltage
L – (Line), N – (Neutral), G – (Ground), H – (High Leg), +D – (Delta), Y – (Wye), H – (High Leg Delta)
Options:
(select options by adding hyphen and suffix to part number)
A – Remote Monitoring Capability
Adds NO/NC dry contacts to PA/PB unit via on-board relay. Dry contacts will allow for connection of remote monitoring unit.
Remote monitoring unit itself sold separately under part #ZHRMU. See page 3 for ZHRMU specifications.
B – Noise Filter
Provides noise attenuation of -20dB minimum 100kHz to 100 MHz.
How to Configure A Part Number:
1 Select CATALOG NUMBER.
2 Select OPTIONS if desired.
3 Part Number is CATALOG NUMBER, followed by HYPHEN, followed by OPTIONS in alphabetical order.
SAMPLE
160kA for 120/208V
with Noise Filter
SAMPLE
80kA for 277/480V
with Remote Contacts
with Noise Filter
SAMPLE
80kA for 120/240V
No Options Selected
Part#: PB120Y-B
Part#: PA277Y-AB
Part#: PA120T
PA/PB Series Accessories

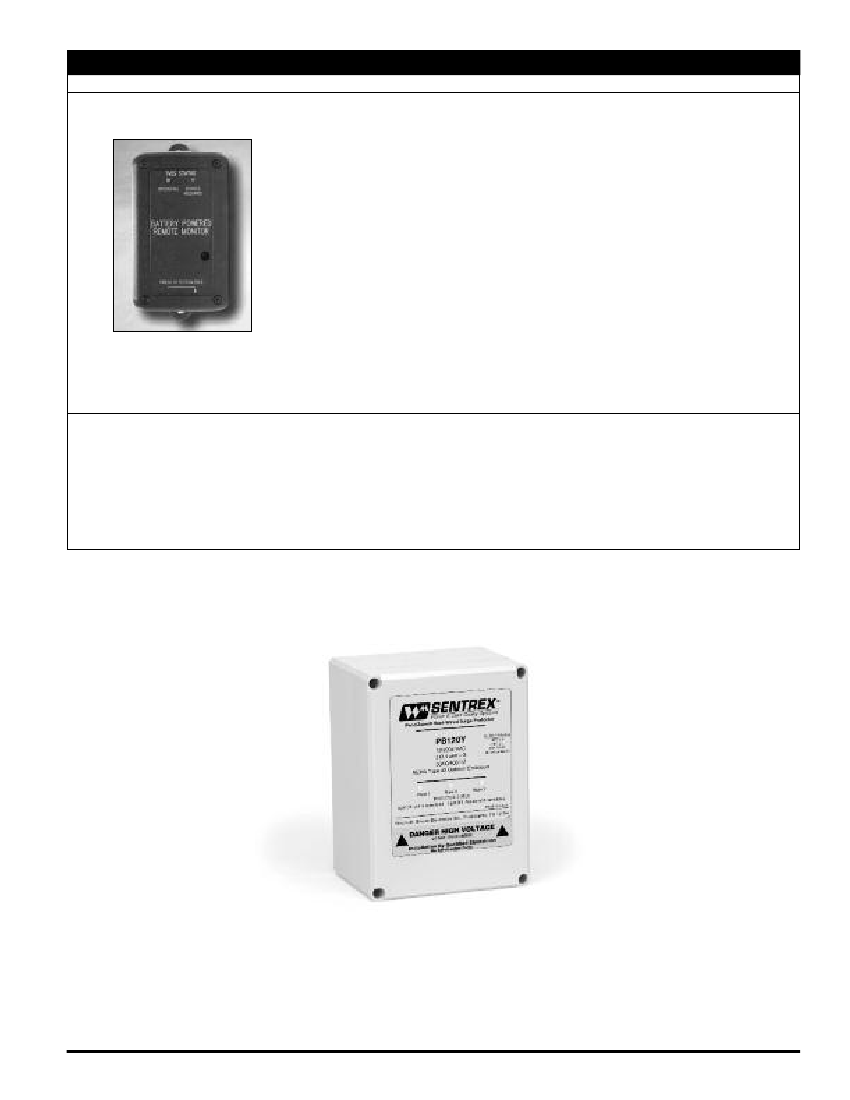

Product
Remote Monitoring Unit
Description/Specifications
Offers clear audio/visual indication of the status of the surge suppressor unit.
The RMU can be installed adjacent to the suppressor or as a remote
installation. Can also be used as a standalone diagnostic device using NO/NC
dry contacts. Powered by 2 AA alkaline batteries (included) which will power
the unit for approximately 2 years. Unit connects with with Cat5 cable (not
included).
SPECIFICATIONS
Dimensions:
Weight:
Protection Indication:
Fault Indication:
Test Functions:
Silent Function:
Connections:
5.4" x 2.6" x 1.3"
[13.7mm x 6.6mm x 3.3mm]
Approx. 0.35lb [0.16kg] including batteries.
Bright green LED: Illuminated, flashing
Audible alarm. Bright red LED: Illuminated
Switch tests audible alarm
(checks monitoring circuitry)
Switch silences audible alarm
Accepts wires up to #14 AWG
(Cat5 recommended)
PABFMC
Flush Mount Cover
– For installing PA/PB units on sheetrock or firewall
construction. Cover hides the hole cut and gives the unit a finished look.
Brushed metal cover can be painted to match any decor.
SPECIFICATIONS
Dimensions:
9" x 7"
[229mm x 178mm]
* NOTE: ZHRMU can only be used on PA/PB Units with remote contacts (Option A). ZHRMU is also compatible with all ZoneMaster Units
(see ED1165 for details).
PA/PB Series Specifications
MECHANICAL SPECIFICATIONS:
Durable, lightweight, corrosion-resistant high impact plastic. Approved for outdoor or indoor use.
NEMA 1, 2, 3, 4, 4X, 12, and 13 rated.

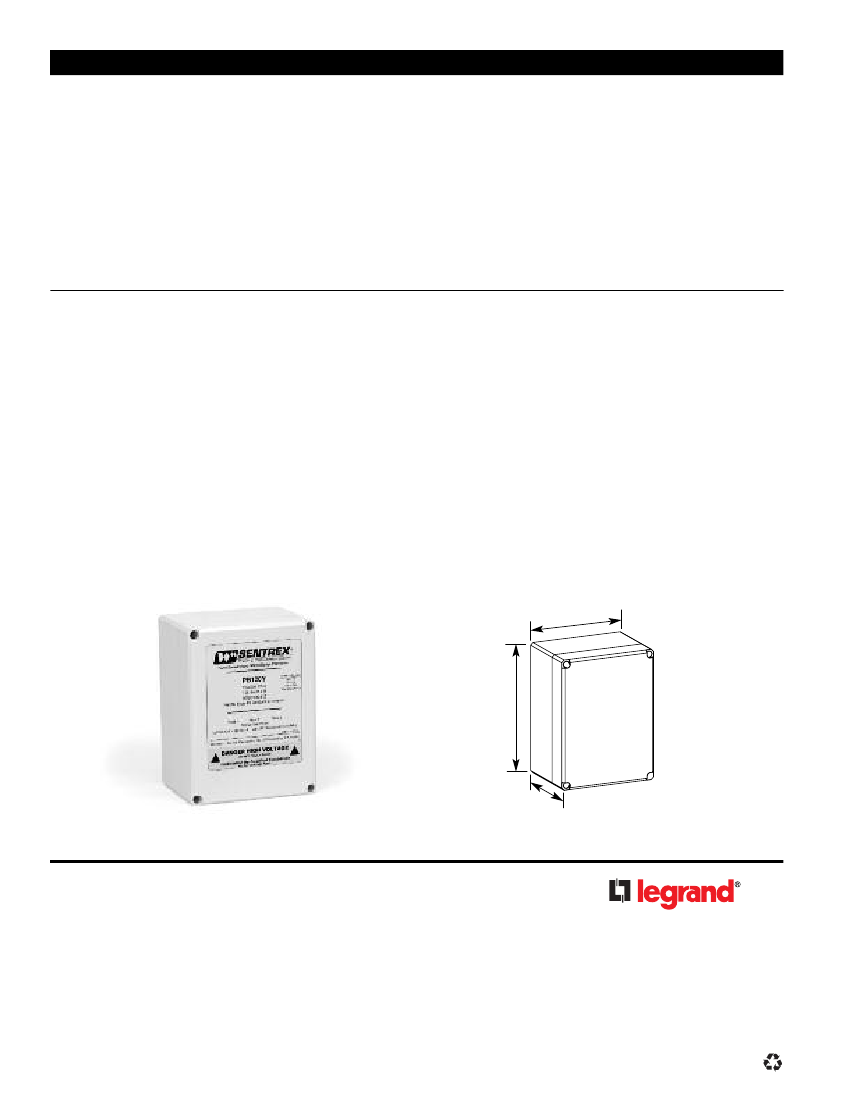

Dimensions:
6 5/16" x 4 3/4" x 3 9/16" (160mm x 120mm x 90mm).
Weight:
PB Series: 1.8 lbs. (0.8 kg), PA Series: 1.4 lbs. (0.6 kg).
Operating Environment:
-40°C to 85°C, 95% relative humidity (non-condensing).
Construction:
Low impedance circuitry. Single board system to minimize transient impedance and
suppression voltage.
Terminal Lugs:
#10 AWG maximum and recommended wire size.
Mounting:
Built-in mounting holes, 11/64" [4.4mm] diameter. Enclosure can be easily drilled or punched for
conduit/cable access.
Enclosure:
ELECTRICAL SPECIFICATIONS:
Maximum Surge Current Capacity
Per Phase:
Maximum Surge Current Capacity:
Per Mode:
PB Series: 160,000A
PA Series: 80,000A
PB Series:
L-G 80,000A (8/20µs), L-N 80,000A (8/20µs),
L-L 160,000A (8/20µs), N-G 80,000A (8/20µs)
PA Series:
L-G 40,000A (8/20µs), L-N 40,000A (8/20µs),
L-L 80,000A (8/20µs), N-G 40,000A (8/20µs)
PB Series: 20 pulses at 10,000A
PA Series: 10 pulses at 10,000A
20% above nominal
10,000A
NO/NC dry contacts via on-board relay, 125VAC, 2A rated
-20dB Minimum 100 kHz to 100 MHz
Green LED per phase indicates protection present on each phase
34mm MOV based, backed by thermal and short circuit fusing
Unit should be connected through a dedicated 30 amp circuit breaker
with the appropriate poles (customer supplied).
4 3/4"
[120mm]
Duty Cycle Performance (Surge Life):
Maximum Continuous Operating Voltage:
Short Circuit Current Rating:
Optional Remote Indication Contacts:
Optional EMI/RFI Noise Attenuation:
Diagnostics:
Protection Technology:
Installation:
6 5/16"
[160mm]
3 9/16"
[90mm]
Questions? Call Technical Support at 1-800-SENTREX
Electrical Wiring Systems
60 Woodlawn Street
West Hartford, CT 06110
Phone: 1.877.BY.LEGRAND (295-3472)
www.legrand.us
570 Applewood Crescent
Vaughan, Ontario L4K 4B4
Phone:905.738.9195
www.legrand.ca
ED1198R4 – Updated December 2013 – For latest specs visit www.legrand.us/wiremold
© Copyright 2013 Legrand All Rights Reserved
