PSM03A-050Q datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> PSM03A-050Q

PSM03A-050Q: CategoryPower/power management; File Size48KB，2 Pages; ManufacturerPHIHONG; Websitehttp://phihong.com/

Download Datasheet Parametric Compare View All

PSM03A-050Q Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PSM03A-050Q	-	-	View	Buy Now

PSM03A-050Q Parametric

Parameter Name	Attribute value
Product Category	Wall Mount AC Adapters
Manufacturer	PHIHONG
Region	North America
Product	Fixed Plug
Input Voltage	90 VAC to 264 VAC
Number of Outputs	1 Output
Output Power	2.75 W
Output Voltage-Channel 1	5 V
Output Current-Channel 1	550 mA
Commercial/Medical	Commercial
DC Output Connector	USB Type A
Efficiency	Level VI
AC Plug included/required	Included
Load Regulation	Regulated

Preview

Download Datasheet

View All

WWW.PHIHONG.COM

2.75W Compact Fixed Blade Charger

EISA Compliant Level VI Efficient USB Adapter

Standby Power

Features



Fixed Blade



CC & CV control



Level VI Compliant

Applications



MPEG Players



PDA

Safety Approvals



cUL/UL

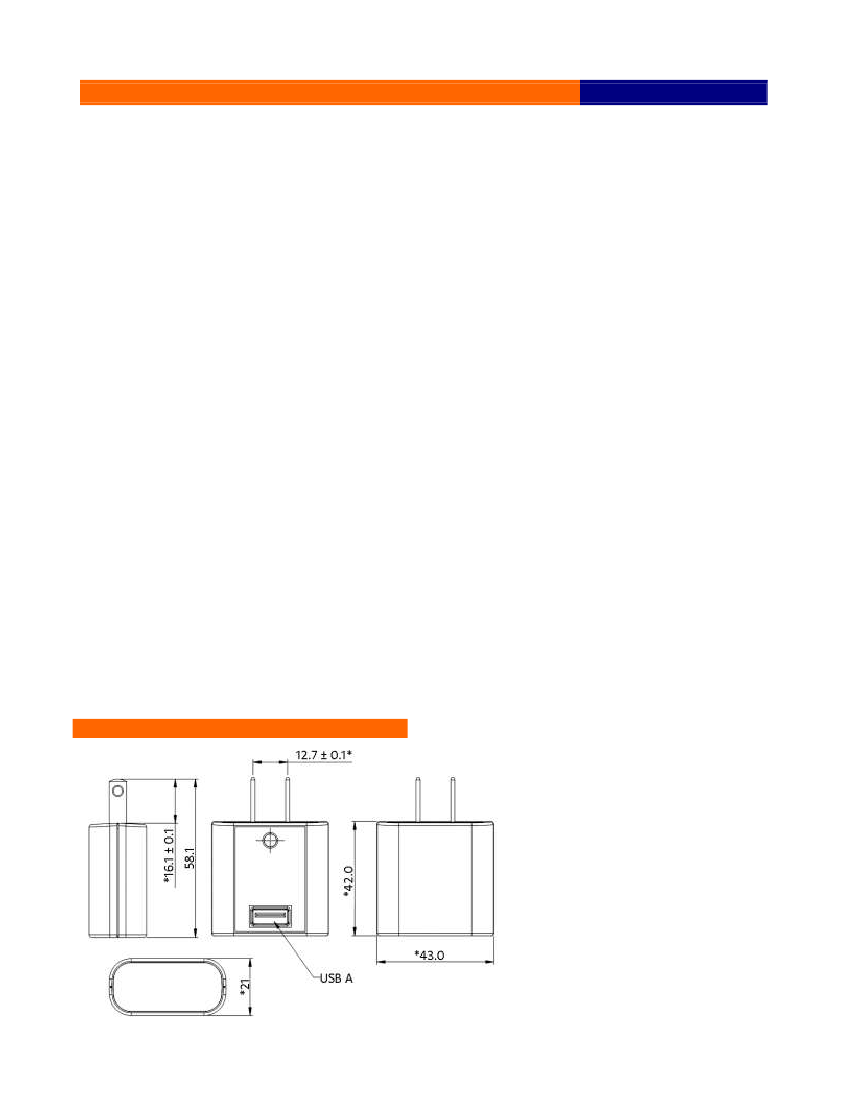

Mechanical Characteristics



Length: 42mm (1.65in)



Width: 43mm (1.65in)

Output Specifications

DC Output

Voltage



Low Cost

5 Star Standby power <0.03W

No Y Cap

Personal Electronics

Digital Camera

IEEE1725 Approved

Height: 21.0mm (0.87in)

Weight: 80g (3oz)

Model

PSM03A-050Q

PSM03A-050Q-3W

Note:

Load

Min. Max.

0.55A

Ripple (1)

P-P (max)

100mV

Regulation

Line Load

5%

Case

Color

Black

White

(1) Measured after 10 minutes with by-pass capacitors 0.1uf // 10uf at output connector terminal and oscilloscope

set at 20MHz.

Phihong is not responsible for any error and change. Content is subject to change without notice. Please consult the

Phihong directly or visit

www.midspans.com

for the most up-to-date specifications.

Revised 2/2/2015

PSM03A-050Q Related Products

	PSM03A-050Q	PSM03A-050Q-3-R	PSM03A-050Q-3W-R
Description		Bluetooth / 802.15.1 Modules Class 2.1 Bluetooth Module w/ Antenna	Headers u0026 Wire Housings 3P 2.54MM HOUSING
Product Category	Wall Mount AC Adapters	Wall Mount AC Adapters	Wall Mount AC Adapters
Manufacturer	PHIHONG	PHIHONG	PHIHONG
Region	North America	North America	North America
Product	Fixed Plug	Fixed Plug	Fixed Plug
Input Voltage	90 VAC to 264 VAC	90 VAC to 264 VAC	90 VAC to 264 VAC
Number of Outputs	1 Output	1 Output	1 Output
Output Power	2.75 W	2.75 W	2.75 W
Output Voltage-Channel 1	5 V	5 V	5 V
Output Current-Channel 1	550 mA	550 mA	550 mA
DC Output Connector	USB Type A	USB Type A	USB Type A
Efficiency	Level VI	Level VI	Level VI
AC Plug included/required	Included	Required	Included
Load Regulation	Regulated	Regulated	Regulated
RoHS	-	Details	Details
Height	-	21 mm	21 mm
Length	-	42 mm	42 mm
Mounting Style	-	Wall Mount	Wall Mount
Factory Pack Quantity	-	200	1
Width	-	43 mm	43 mm
Unit Weight	-	2.821917 oz	2.821917 oz
