WWW.PHIHONG.COM

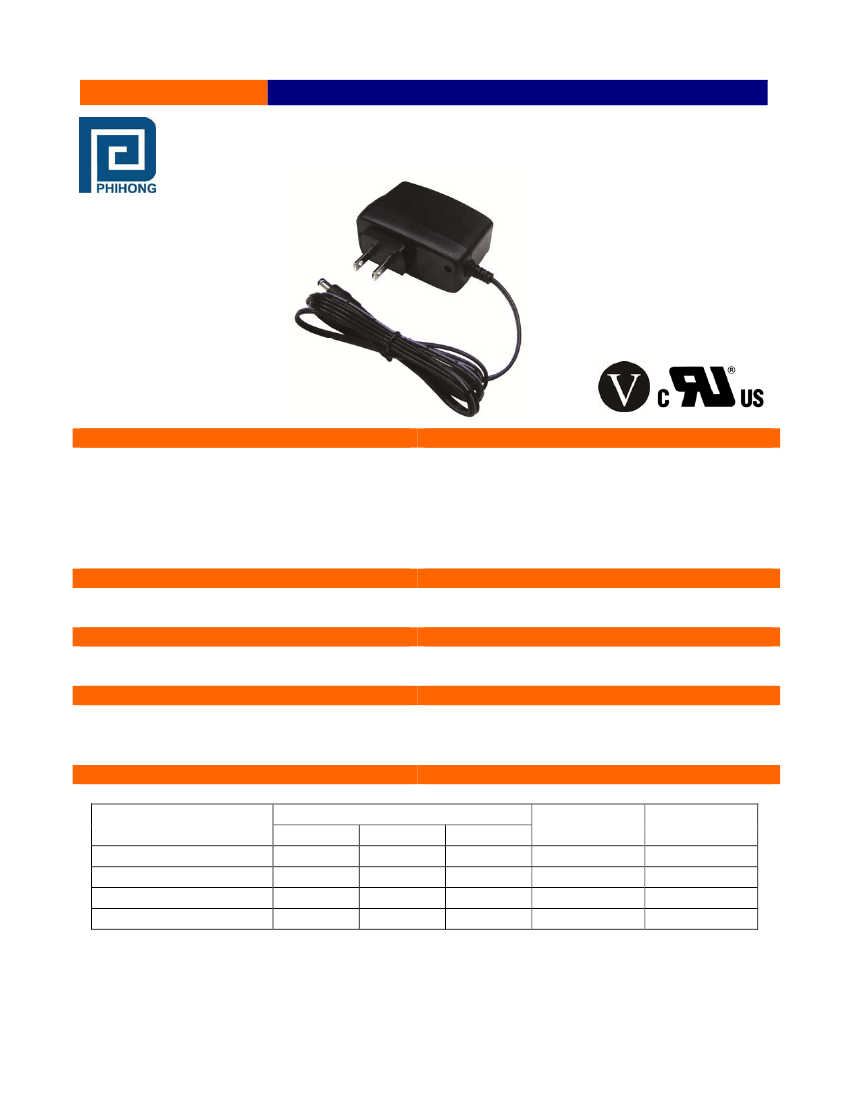

12W Adapter Style Constant Current LED Driver
PDA012A Wall Plug LED Power Supply
Features
Low Profile Design
OVP, IOCP, Over-Load and Short-
Circuit Protection
Power Factor Correction
Low Cost Fixed Wall Plug
Applications
Indoor Lighting
Safety Approvals (PENDING)
cUL/UL
Mechanical Characteristics
Length: 71.5mm (2.81in)
Width: 33.75mm (1.33in)
Output Specifications
Model
PDA012A-350S-R
PDA012A-700S-R
PDA012A-1A0S-R
PDA012A-1A5S-R
IP20 Rating
SELV Compliant
UL 8750 Compliant
Very Low Leakage
Class 2 Output
Floor Lamps
Height: 46mm (1.81in)
Weight: 85g (3.00oz)
DC Output Voltage
Min.
Typ.
Max.
17V
-
34V
9V
-
17V
6V
-
12V
6V
-
8V
Output
Current
350mA
700mA
1000mA
1500mA
Output
Power
12W
12W
12W
12W
Phihong is not responsible for any error, and reserves the right to make changes without notice. Please visit our website at
www.phihong.com for the most up-to-date specifications and contact information.
Revised 7/17/2012
PDA012A Characteristics
INPUT:
AC Input Voltage
90 to 132VAC
Nominal AC Input Voltage
110 to 120VAC
Leakage Current
<0.25mA at 110VAC and maximum load
Maximum Input Current
≤500mA
at full load, 120VAC
No-Load Power Draw
<300mW at 115VAC, 60Hz
OUTPUT:
Total Output Power
6W maximum
Efficiency
≥77%
at nominal input voltage, full load
Meets requirements for Level V efficiency marking
Power Factor
≥0.9
at nominal input voltage, full load
ENVIRONMENTAL:
Operating Temperature
Storage Temperature
Operating Humidity
Ingression Protection
IP20; plastic housing
0 to +40°C
-40 to +85°C
10 to 95%
EMC
FCC Part 15 Class B
Immunity
EN61000-4-2
EN61000-4-4
EN61000-4-5
EN61000-4-11
WWW.PHIHONG.COM
Isolation Test
Primary to Secondary: 3000VAC, <10mA, 1 minute
Insulation Resistance
Primary to Secondary: 500VDC, >5M ohm, 1
minute
FEATURES:
Input Current Protection
The input power line will be fused with a 2A/250V
time-lag fuse
Short Circuit
Auto restart without damage
Output Overvoltage Protection
Output should not exceed voltage limits, auto shut
down
AC Input
Fixed Blade (North America)
DC Output
2.1mm x 5.5mm x 9.5mm center positive barrel
Lifespan
20K Hours minimum at max load

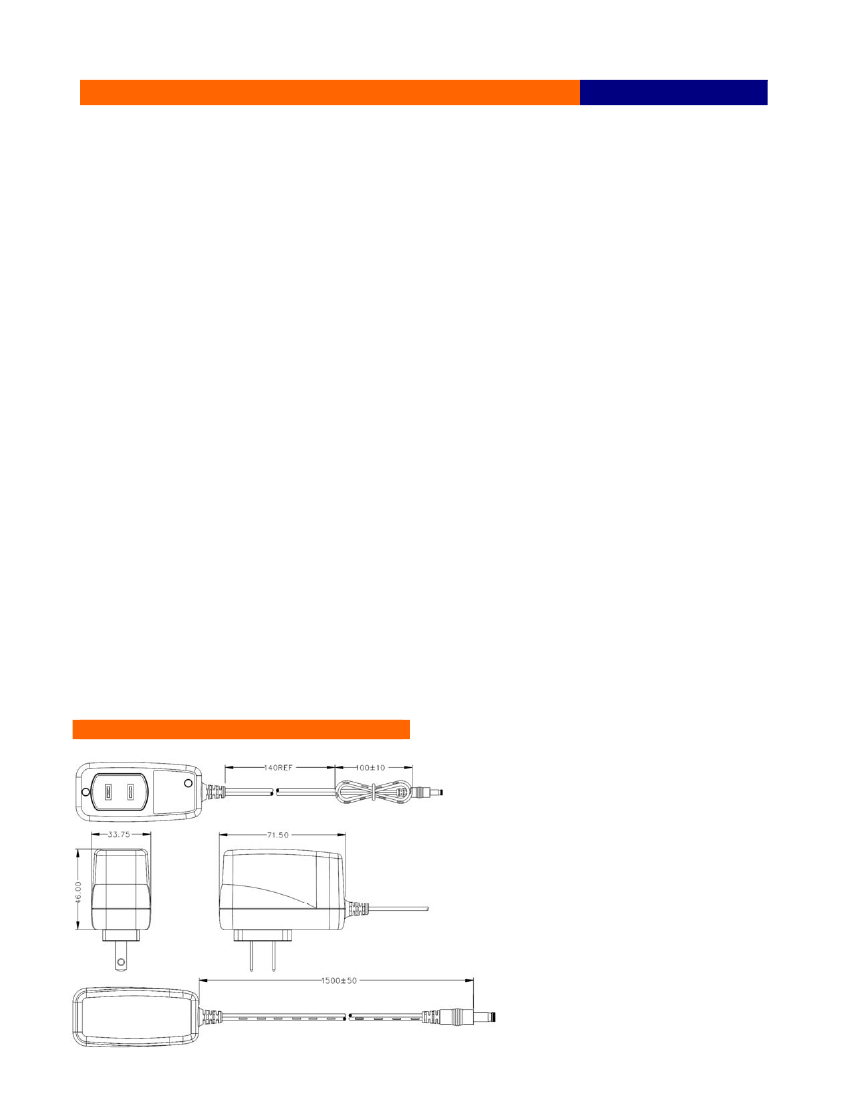

Dimension Diagram Unit:mm
