MV871X: DescriptionT-1 3/4 SINGLE COLOR LED, SUPER ORANGE, 5 mm; CategoryLED optoelectronic/LED; File Size106KB，3 Pages; ManufacturerQT Optoelectronics

Download Datasheet Parametric Compare View All

MV871X Overview

T-1 3/4 SINGLE COLOR LED, SUPER ORANGE, 5 mm

MV871X Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	2
Minimum operating temperature	-40 Cel
Maximum operating temperature	100 Cel
Viewing angle	12 deg
Processing package description	PLASTIC PACKAGE-2
state	Active
Optoelectronic device type	SINGLE COLOR LED
color	SUPER ORANGE
structure	SINGLE
forward_current_max	0.0400 A
Lens type	WATER CLEAR
luminous_intensity_nom__mcd_	1500.0
Installation features	RADIAL MOUNT
verall_heigh	8.64 mm
cking_method	BULK
eak_wavelength__nm_	620
shape	ROUND
size	5 mm
T code	T-1 3/4
Terminal spacing	2.54 mm
dditional_feature	HIGH RELIABILITY

Preview

Download Datasheet

View All

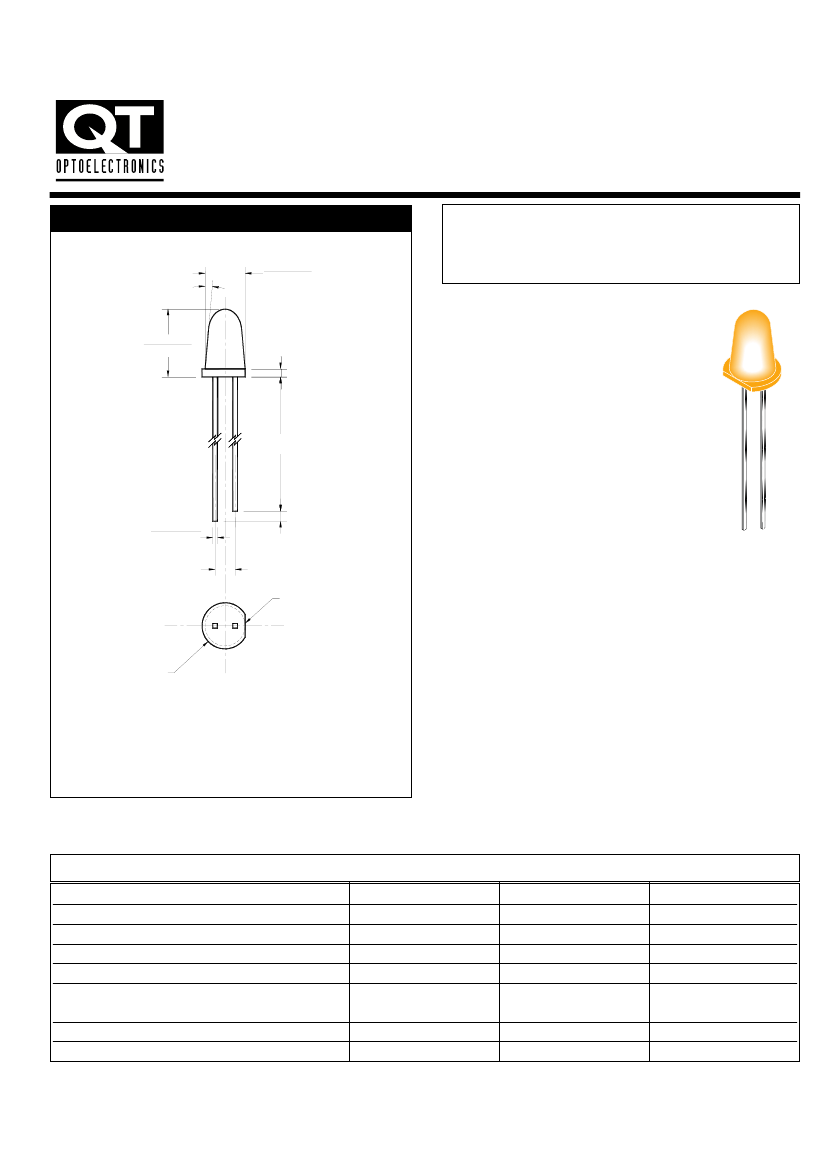

SUPER BRIGHT T-1 3/4 (5 mm)

LED LAMP - Water Clear

PACKAGE DIMENSIONS

0.200 (5.08)

0.180 (4.57)

5°

SUPER ORANGE

MV8713 MV8714

MV8715 MV8716

MV871X

0.350 (8.89)

0.330 (8.38)

0.040 (1.02)

FEATURES

• Popular T-1 3/4 package

• Super high brightness suitable for outdoor

1.00 (25.4)

MIN

applications

• Solid state reliability

• Water clear optics

0.023 (0.58)

0.017 (0.43)

SQ. (2X)

0.100 (2.54)

NOM

• Standard 100 mil. lead spacing

0.050 (1.27)

NOM

FLAT DENOTES

CATHODE

Ø0.230 (5.84)

NOTES:

1. Dimensions for all drawings are in inches (mm).

2. Lead spacing is measured where the leads emerge from

the package.

3. Protruded resin under the flange is 1.5 mm (0.059") max.

DESCRIPTION

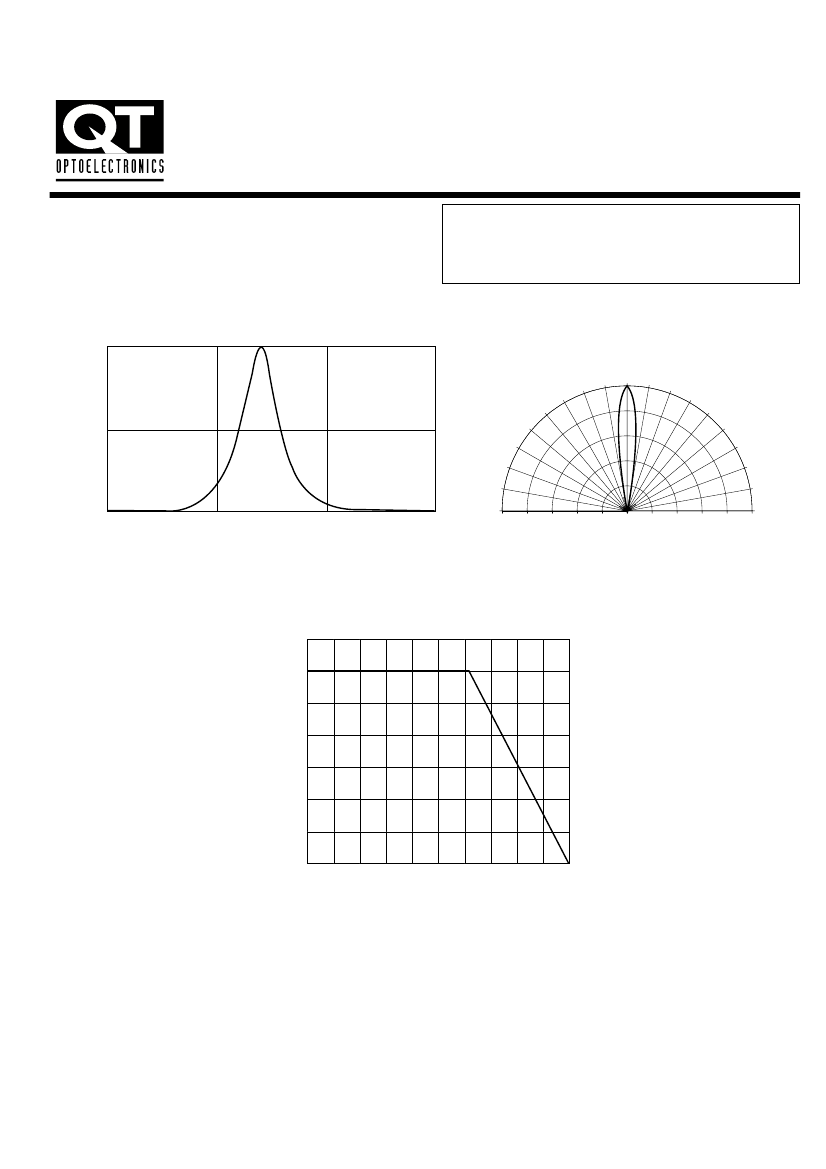

This T-1 3/4 super bright LED has a moderate viewing angle of

12° for concentrated light output. It is made with an AllnGaP LED

that emits orange light at 620 nm. It is encapsulated in a water

clear epoxy lens package.

ABSOLUTE MAXIMUM RATINGS

Parameter

Operating Temperature

Storage Temperature

Lead Soldering Time

Continuous Forward Current

Peak Forward Current

(f = 1.0 KHz, Duty Factor = 1/10)

Reverse Voltage

Power Dissipation

= 25°C unless otherwise specified)

Symbol

OPR

STG

SOL

Rating

-40 to +100

260 for 5 sec

160

100

Unit

°C

1 of 3

1/27/00

300028A

MV871X Related Products

	MV871X	MV8716	MV8715	MV8714	MV8713
Description	T-1 3/4 SINGLE COLOR LED, SUPER ORANGE, 5 mm	T-1 3/4 SINGLE COLOR LED, SUPER ORANGE, 5 mm	T-1 3/4 SINGLE COLOR LED, SUPER ORANGE, 5 mm	T-1 3/4 SINGLE COLOR LED, SUPER ORANGE, 5 mm	T-1 3/4 SINGLE COLOR LED, SUPER ORANGE, 5 mm
Number of functions	1	1	1	1	1
Number of terminals	2	2	2	2	2
Minimum operating temperature	-40 Cel	-40 °C	-40 °C	-40 °C	-40 °C
Maximum operating temperature	100 Cel	100 °C	100 °C	100 °C	100 °C
color	SUPER ORANGE	SUPER BRIGHT ORANGE	SUPER BRIGHT ORANGE	SUPER BRIGHT ORANGE	SUPER BRIGHT ORANGE
Lens type	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
shape	ROUND	ROUND	ROUND	ROUND	ROUND
size	5 mm	5 mm	5 mm	5 mm	5 mm
T code	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4
Maker	-	QT Optoelectronics	QT Optoelectronics	QT Optoelectronics	QT Optoelectronics
Reach Compliance Code	-	unknow	unknow	unknow	unknow
Configuration	-	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	-	0.04 A	0.04 A	0.04 A	0.04 A
Nominal luminous intensity	-	3500 mcd	2400 mcd	1500 mcd	940 mcd
Optoelectronic device types	-	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	-	8.64 mm	8.64 mm	8.64 mm	8.64 mm
method of packing	-	BULK	BULK	BULK	BULK
peak wavelength	-	620 nm	620 nm	620 nm	620 nm
surface mount	-	NO	NO	NO	NO
Terminal pitch	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	-	12 deg	12 deg	12 deg	12 deg
