MV8714 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> MV8714

MV8714: DescriptionT-1 3/4 SINGLE COLOR LED, SUPER ORANGE, 5 mm; CategoryLED optoelectronic/LED photoelectric; File Size123KB，4 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

MV8714 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MV8714	-	-	View	Buy Now

MV8714 Overview

T-1 3/4 SINGLE COLOR LED, SUPER ORANGE, 5 mm

MV8714 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Fairchild
Reach Compliance Code	compli
color	ORANGE
color@wavelength	Orange
Configuration	SINGLE
Maximum forward current	0.04 A
Maximum forward voltage	2.8 V
Lens type	WATER CLEAR
Nominal luminous intensity	1500.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	8.6 mm
method of packing	BULK
peak wavelength	620 nm
Maximum reverse voltage	5 V
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal pitch	2.54 mm
perspective	12 deg

Preview

Download Datasheet

View All

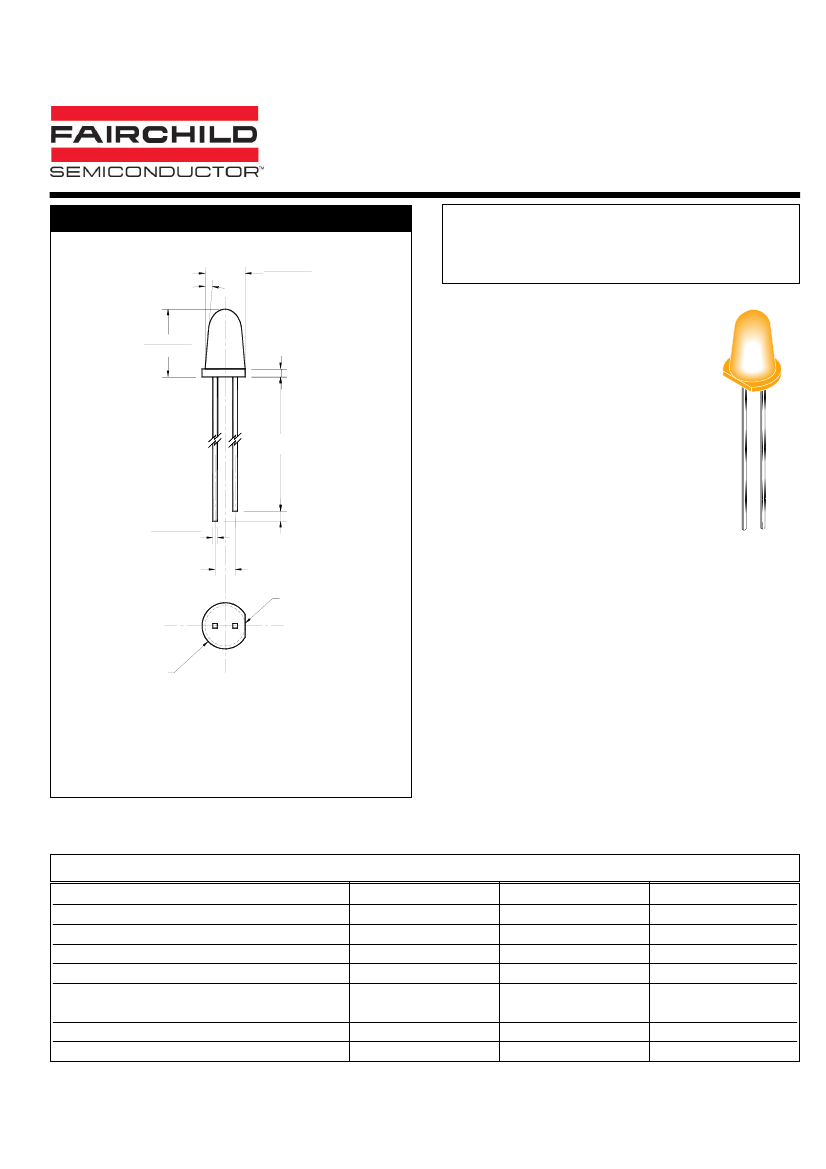

SUPER BRIGHT T-1 3/4 (5 mm)

LED LAMP - Water Clear

PACKAGE DIMENSIONS

0.200 (5.08)

0.180 (4.57)

5°

SUPER ORANGE

MV8713 MV8714

MV8715 MV8716

MV871X

0.350 (8.89)

0.330 (8.38)

0.040 (1.02)

FEATURES

• Popular T-1 3/4 package

• Super high brightness suitable for outdoor

1.00 (25.4)

MIN

applications

• Solid state reliability

• Water clear optics

0.023 (0.58)

0.017 (0.43)

SQ. (2X)

0.100 (2.54)

NOM

• Standard 100 mil. lead spacing

0.050 (1.27)

NOM

FLAT DENOTES

CATHODE

Ø0.230 (5.84)

NOTES:

1. Dimensions for all drawings are in inches (mm).

2. Lead spacing is measured where the leads emerge from

the package.

3. Protruded resin under the flange is 1.5 mm (0.059") max.

DESCRIPTION

This T-1 3/4 super bright LED has a moderate viewing angle of

12° for concentrated light output. It is made with an AllnGaP LED

that emits orange light at 620 nm. It is encapsulated in a water

clear epoxy lens package.

ABSOLUTE MAXIMUM RATINGS

Parameter

Operating Temperature

Storage Temperature

Lead Soldering Time

Continuous Forward Current

Peak Forward Current

(f = 1.0 KHz, Duty Factor = 1/10)

Reverse Voltage

Power Dissipation

= 25°C unless otherwise specified)

Symbol

OPR

STG

SOL

Rating

-40 to +100

260 for 5 sec

160

100

Unit

°C

1 of 4

1/27/00

300028A

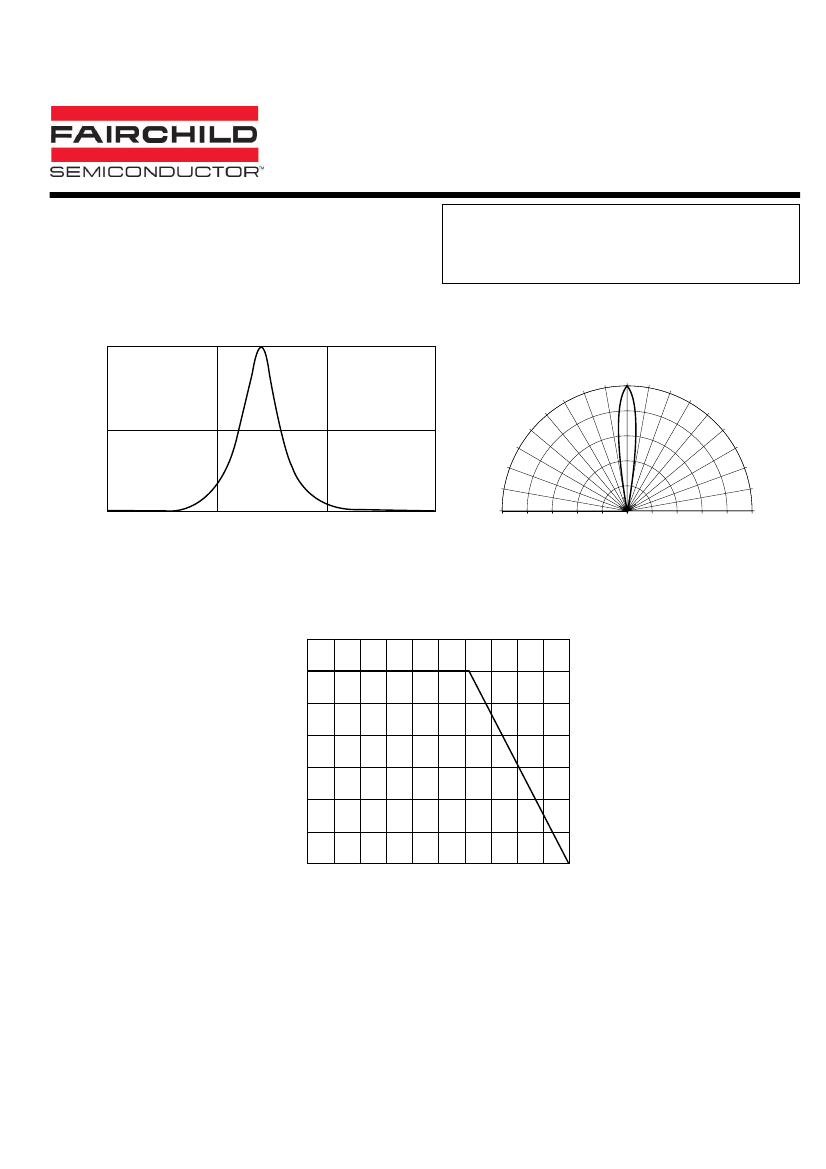

MV8714 Related Products

	MV8714	MV871X	MV8716	MV8715	MV8713
Description	T-1 3/4 SINGLE COLOR LED, SUPER ORANGE, 5 mm	T-1 3/4 SINGLE COLOR LED, SUPER ORANGE, 5 mm	T-1 3/4 SINGLE COLOR LED, SUPER ORANGE, 5 mm	T-1 3/4 SINGLE COLOR LED, SUPER ORANGE, 5 mm	T-1 3/4 SINGLE COLOR LED, SUPER ORANGE, 5 mm
color	ORANGE	SUPER ORANGE	ORANGE	ORANGE	SUPER ORANGE
Lens type	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	100 °C	100 Cel	100 °C	100 °C	100 Cel
Minimum operating temperature	-40 °C	-40 Cel	-40 °C	-40 °C	-40 Cel
shape	ROUND	ROUND	ROUND	ROUND	ROUND
size	5 mm	5 mm	5 mm	5 mm	5 mm
T code	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4
Is it Rohs certified?	conform to	-	conform to	conform to	-
Maker	Fairchild	-	Fairchild	Fairchild	-
Reach Compliance Code	compli	-	compli	compli	-
color@wavelength	Orange	-	Orange	Orange	-
Configuration	SINGLE	-	SINGLE	SINGLE	-
Maximum forward current	0.04 A	-	0.04 A	0.04 A	-
Maximum forward voltage	2.8 V	-	2.8 V	2.8 V	-
Nominal luminous intensity	1500.0 mcd	-	3500.0 mcd	2400.0 mcd	-
Optoelectronic device types	SINGLE COLOR LED	-	SINGLE COLOR LED	SINGLE COLOR LED	-
total height	8.6 mm	-	8.6 mm	8.6 mm	-
method of packing	BULK	-	BULK	BULK	-
peak wavelength	620 nm	-	620 nm	620 nm	-
Maximum reverse voltage	5 V	-	5 V	5 V	-
surface mount	NO	-	NO	NO	-
Terminal pitch	2.54 mm	-	2.54 mm	2.54 mm	-
perspective	12 deg	-	12 deg	12 deg	-
