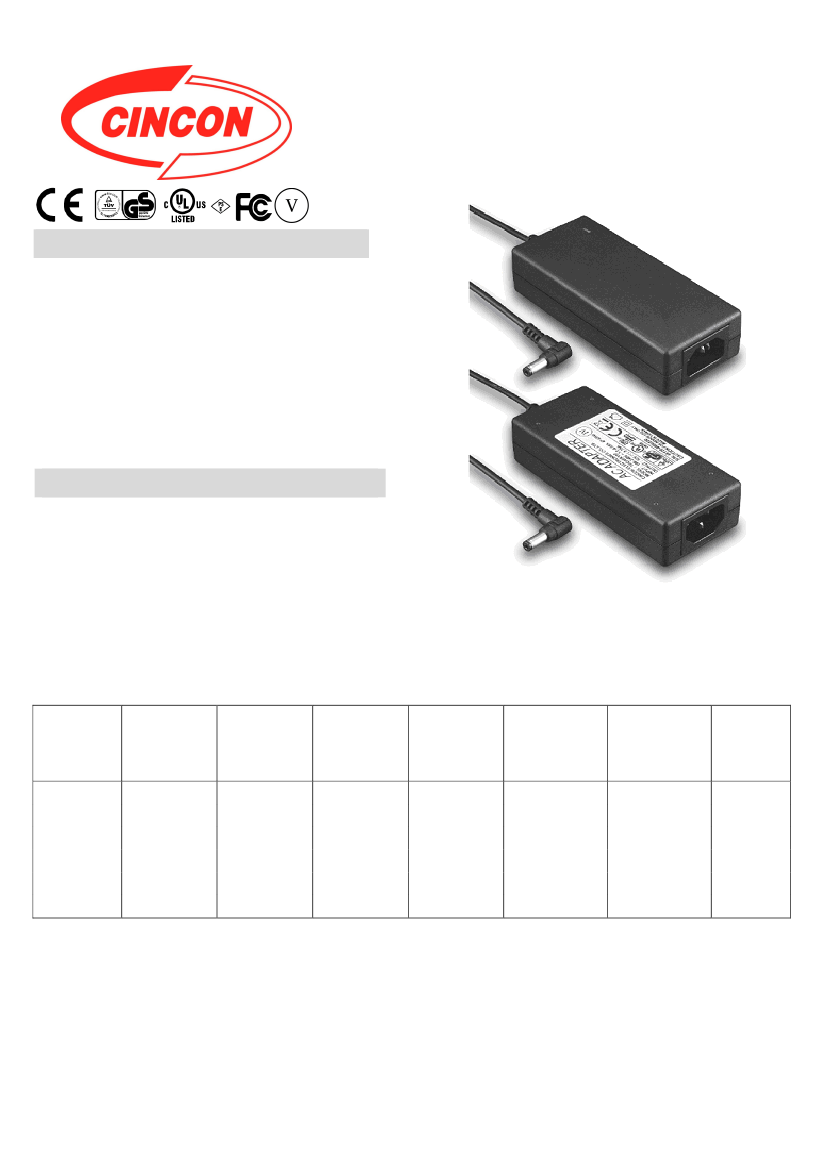

V15
Specifications
INPUT SPECIFICATIONS:
Voltage …....………........….............................................. 90~264Vac
Frequency ………………………………………….……………..... 47 to 63Hz
Inrush Current ……………….. Cold Start @25℃ 70A max. @240Vac
Conducted EMI ……………………………………..…… CISPR/FCC Class B
Leakage Current ………………………………………..…….…… 3.5mA max.
TRG45 Series Derating Curve
100%
Rated Load(%)
80%
60%
40%
20%
0%
0
10
20
30
40
Ambient Temperature(
o
C)
50
60
20LFM(Natural Convection)
OUTPUT SPECIFICATIONS:
Holdup Time ……………………………………………… 8ms typ. @115Vac
Short Circuit Protection …………………………….…………… Continuous
Over Voltage Protection …………………………………………………… Yes
Temperature Coefficient ……………………............................… ±0.05%/℃
GENERAL SPECIFICATIONS:
Isolation …………………………………………… Input to output = 4,242VDC
Operating Temperature .............................. 0 ~ 60℃ (see derating curve)
Storage Temperature …………………………...….......……........ -20 ~ 85℃
Humidity …………………...….......……........ 93% RH max. Non condensing
Cooling ……………………………………………………. Natural Convection
Switching Frequency ………………………………………… 100KHz Typical
MTBF ……… MIL-HDBK-217F, GB, at 25℃/115VAC ………. 200K hrs min.
Altitude …………………………………………………………………… 2000m
Dimensions ….…….. 4.724x2.047x1.220 inches (120.00x52.00x31.00mm)
Weight …………………………………………………… 280g (0.62 Pounds)
AC Inlet …………………………………………………………….. IEC320/C14
NOTE:
1.Voltage accuracy at 60% full load.
2. Add a 0.1uF ceramic capacitor and a 10uF E.L. capacitor to output for
Ripple & Noise measurement @20MHz BW.
3. Line regulation measured from 100Vac to 240Vac, full load.
4. Load regulation measured from 60% to 100% full load and from
60% to 20% full load (60% +/- 40% full load).
5. Typical efficiency at 230VAC and full load at 25
℃
.
6. ”Various TR Series adapters are PSE certified. PSE certification
alone is not sufficient for importation into Japan. A valid PSE mark
must contain the name of the importer as shown in the example below.
If PSE mark is required, the name of the registered importer must be
supplied to Cincon on order placement. Product labels will not contain
PSE mark if importer name is not supplied. Consult factory or local
represen tative for details”.
SAFETY AND EMC:
Emission and lmmunity ………… EN55022 Class B, FCC Part 15 Class B
EN61000-6-3, EN61000-3-2, EN61000-3-3
EN55024, EN61204-3, EN61000-6-1
Safety ………………………………… IEC60950-1, EN60950-1, UL60950-1
Mechanical Specification
All Dimensions are in inches(mm)
Tolerance:Inches:X.XXX±0.02
Millimeters:X.XX±0.5
DC Plug type: V+ ─●)─ V-
DC Plug :Right Angle(ψ5.5／ψ2.1) L12mm
18AWG／1800mm
Typical at 25˚C, nominal line and 75% load, unless otherwise Specified
2
