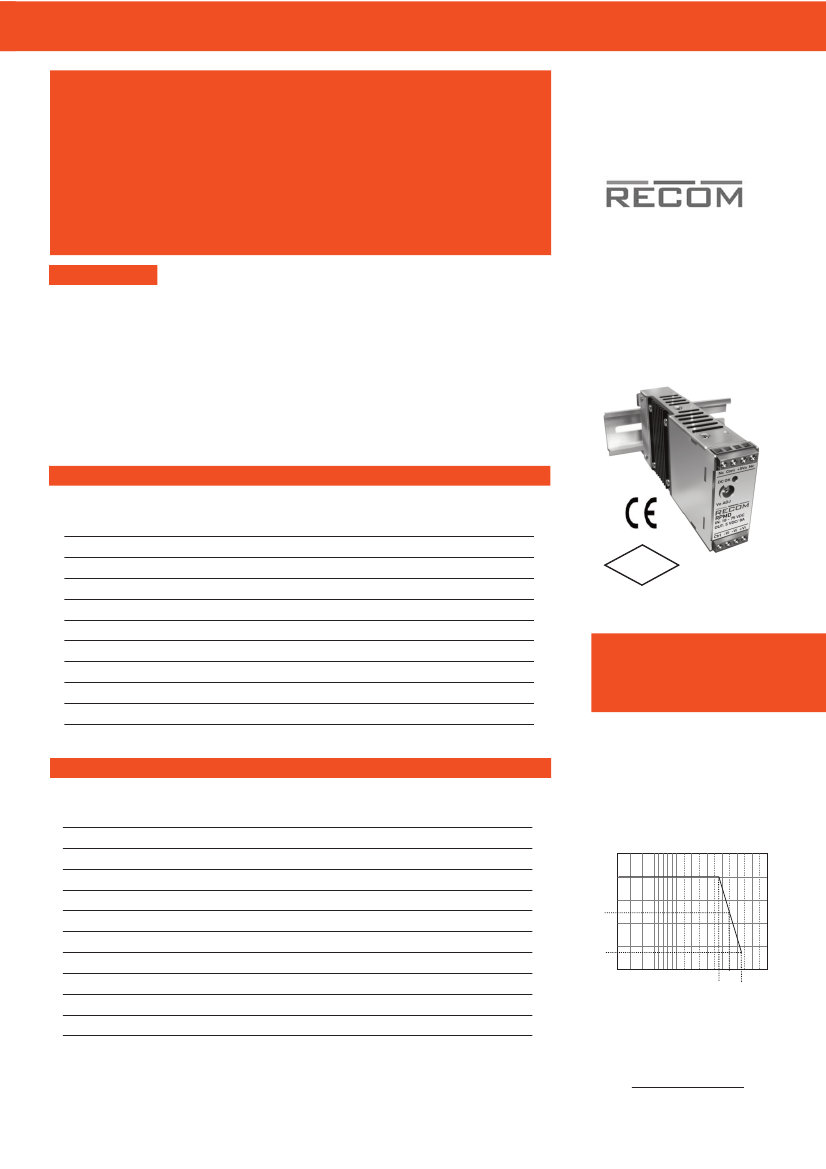

Features
●
●
●
●
●
●
●
●
●
●
DC/DC Power Module
15W to 40W with 4:1 inputs, 60W with 2:1
Screw Terminal Connections
Class B EMC Filter built-in
Input Fuse
Reverse Polarity Protected
Inrush Current Limiting (Soft Start)
Output Trim Potentiometer
Output LED Indicator
DIN Rail Mounting or Panel Mount Options
POWERLINE
DC/DC-Converter
Power Module
with 3 year Warranty
Description
The Recom Power Module takes a standard 15W-60W converter and mounts it on a
PCB with screw terminals, an EMC filter, input protection circuitry and a built-in
heatsink to offer a complete power module that can be mounted on a bulkhead or on
a standard DIN rail. The Power Module is primarily designed for transport
applications such as a GPS vehicle tracking power supply or a radio communications
power supply, but will also find many uses in industrial, communications or
battery-powered applications.
15-60 Watt
Single
&
Dual
Outputs
How to use this datasheet:
1. Select the converter that suits your application from the converter series list below
2. Decide on DIN Mount (RPMD) or bulkhead (RPM) version
Ordering example: 40W, 18-75 VDC in, single 12V out, DIN Mount = RPMD40-4812SGW
Selection Guide
Single and Dual Outputs - Panel Mount Version
Power Module
Part Number
(Bulkhead Version)
RPM15-24xxS_DFW**
RPM15-48xxS_DFW**
RPM20-24xxS_DFW**
RPM20-48xxS_DFW**
RPM30-24xxS_DEW**
RPM30-48xxS_DEW**
RPM40-48xxS_DGW**
RPM60-24xxSG**
RPM60-48xxSG**
Input
Range
VDC
9.5-36
18-75
9.5-36
18-75
10-40
18-75
18-75
18-36
36-75
Output
Power
Watts
15
15
20
20
30
30
40
60
60
Internal
Fuse
(Replaceable)
T4A
T4A
T4A
T4A
T6A
T4A
T4A
T8A
T4A
Converter
Series
RP15-24xxS_DFW
RP15-48xxS_DFW
RP20-24xxS_DFW
RP20-48xxS_DFW
RP30-24xxS_DEW
RP30-48xxS_DGW
RP40-48xxS_DGW
RP60-24xxSG
RP60-48xxSG
2011/65/EU
6/6
RoHS
EN-60950-1 Certified
CE Marked
Power
Modules
Derating-Graph
(Ambient Temperature)
DIN Rail Version
125
Output Power (%)
** add /P or /N for Positive or Negative CTRL logic
Selection Guide
Single and Dual Outputs - DIN Rail Version
Power Module
Part Number
(DIN rail Version)
RPMD15-24xxS_DFW**
RPMD15-48xxS_DFW**
RPMD20-24xxS_DFW**
RPMD20-48xxS_DFW**
RPMD30-24xxS_DEW**
RPMD30-48xxS_DEW**
RPMD40-24xxS_DGW**
RPMD40-48xxS_DGW**
RPMD60-24xxSG**
RPMD60-48xxSG**
Input
Range
VDC
9.5-36
18-75
9.5-36
18-75
10-40
18-75
9.5-36
18-75
18-36
36-75
Output
Power
Watts
15
15
20
20
30
30
40
40
60
60
Internal
Fuse
(Replaceable)
T4A
T4A
T4A
T4A
T6A
T4A
T4A
T4A
T8A
T4A
Converter
Series
RP15-24xxS_DFW
RP15-48xxS_DFW
RP20-24xxS_DFW
RP20-48xxS_DFW
RP30-24xxS_DEW
RP30-48xxS_DEW
RP40-24xxS_DGW
RP40-48xxS_DGW
RP60-24xxSG
RP60-48xxSG
100
75
60
50
25
RPMD40-4805SGW
Natural
Convection
85 100 110
93
78
Ambient Temperature Range (°C)
20
0
-40 -25 -10 0 30 50 60 70
** add /P or /N for Positvie or Negative CTRL logic
Single Outputs: 3.3S = 3.3V
Dual Outputs: 12D = ±12V
Refer to converter series datasheets for detailed information.
xx = Output Voltage Options
05S = 5V
12S = 12V
15D = ±15V
15S = 15V
Derating graphs are valid only for the shown
part numbers. If you need detailed derating
information about a part-number not shown
here please contact our technical support
service at info@recom-development.at
Please Read Application Notes
REV: 1/2014
P-101
www.recom-international.com
POWERLINE
DC/DC-Converter
Selection Guide
Triple Outputs - Panel Mount Version
Power Module
Part Number
(Bulkhead Version)
RPM40-120512TG**
RPM40-120515TG**
RPM40-240512TG**
RPM40-240515TG**
RPM40-480512TG**
RPM40-480515TG**
Input
Range
VDC
9.5-18
9.5-18
18-36
18-36
36-75
36-75
Output
Power
Watts
40
40
40
40
40
40
Internal
Fuse
(Replaceable)
T4A
T4A
T4A
T4A
T4A
T4A
Converter
Series
RP40-120512TG
RP40-120515TG
RP40-240512TG
RP40-240515TG
RP40-480512TG
RP40-480515TG
Power Module
Series
Selection Guide
Triple Outputs - DIN Rail Version
Power Module
Part Number
(DIN rail Version)
RPMD40-120512TG**
RPMD40-120515TG**
RPMD40-240512TG**
RPMD40-240515TG**
RPMD40-480512TG**
RPMD40-480515TG**
Input
Range
VDC
9.5-18
9.5-18
18-36
18-36
36-75
36-75
Output
Power
Watts
40
40
40
40
40
40
Internal
Fuse
(Replaceable)
T4A
T4A
T4A
T4A
T4A
T4A
Converter
Series
RP40-120512TG
RP40-120515TG
RP40-240512TG
RP40-240515TG
RP40-480512TG
RP40-480515TG
Specifications
(typical at nominal input and 25°C unless otherwise noted)
RPM
Specifications are as in individual converter datasheets with the following exceptions:
Bulkhead Version
Input Voltage Range
Inrush current
Startup time
Thermal impedance
Conducted Emissions
Radiated Emissions
ESD
Radiated Immunity
Fast Transient
Surge
Conducted Immunity
Chassis Material
Connectors
Weight
Packing Quantity
Dimensions
Certifications
LVD20110124
REV: 1/2014
EN55022
EN55022
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
Nominal Vin and Full Load
Power up: Nominal Vin and Full Load
CTRL pin: Nominal Vin and Full Load
see selection guide
soft start
100ms typ.
20ms typ.
8.5°C/W
Class B
Class B
Perf. Criteria A
Perf. Criteria A
Perf. Criteria A
Perf. Criteria A
Perf. Criteria A
Aluminium
Screw Terminal
134g
1 pc.
101.6 x 57.15 x 19.0mm
EN-60950-1:2006 + A11:2009 +A1:2010
www.recom-power.com
P-102
POWERLINE
DC/DC-Converter

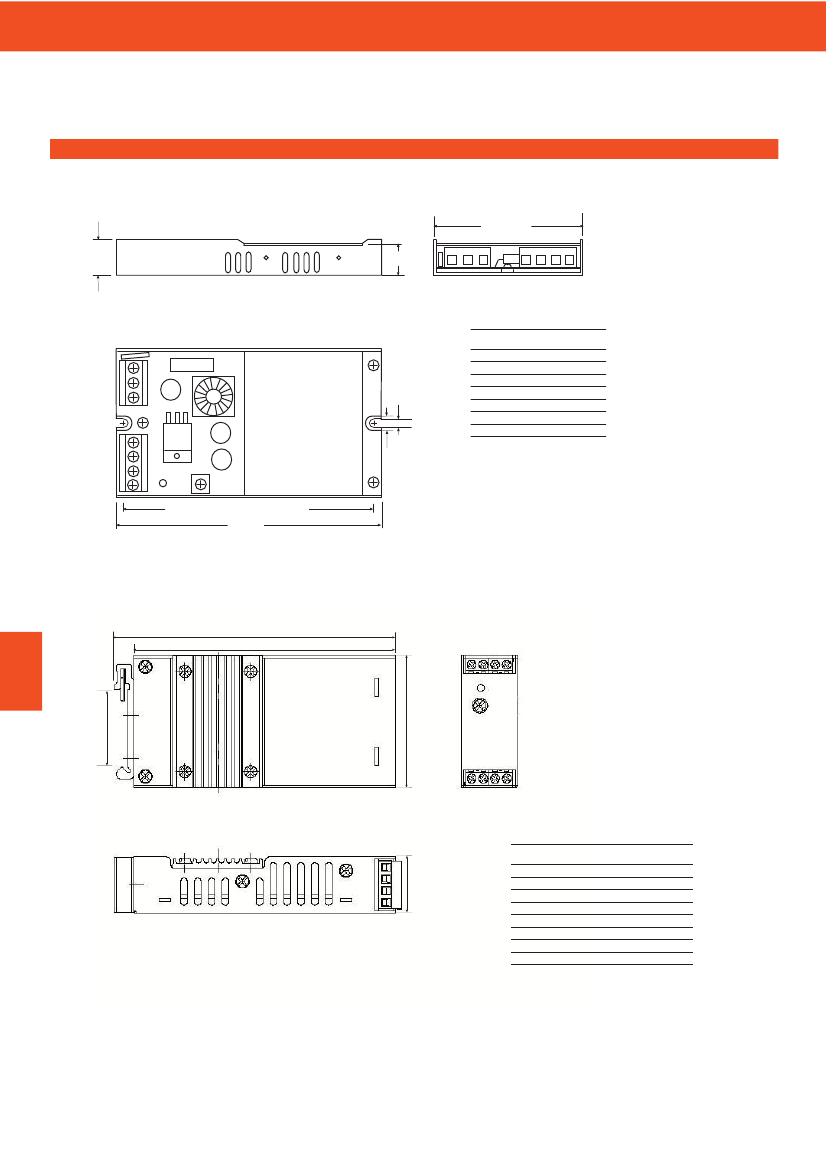

Package Style and Connections
Power Module
Series
57.15
Panel Mount Version
19.0
17.2
Screw Terminal Connections
TVS
1
2
3
4
5
6
7
Fuse
CMC
Heat Sink Plate
FET
LED
3.5
Terminal
1
2
3
4
5
6
7
Single
+Vin
-Vin
CTRL
NC
-Vout
+Vout
NC
Dual
+Vin
-Vin
CTRL
NC
-Vout
Com
+Vout
6.35
Trim
Tolerance ±0.25 mm
Mounting Centres 92.1
101.6
DIN Rail Version
125.0
116.3
5 6 7 8
RPM
LED
Trim
34.0
57.6
1 2 3 4
Screw Terminal Connections
Terminal
1
2
3
4
5
6
7
8
Single
CTRL
-Vin
-Vin
+Vin
NC
-Vout
+Vout
NC
Dual
CTRL
-Vin
-Vin
+Vin
NC
-Vout
Com
+Vout
Triple
CTRL
-Vin
-Vin
+Vin
+Auxiliary
Com
-Auxiliary
+Vout
24.5
Tolerance ±0.5 mm
The product information and specifications are subject to change without prior notice. All products are designed for non-safety critical commercial and industrial applications.
The Buyer agrees to implement safeguards that anticipate the consequences of any failures that might cause harm, loss of life and/or damage property.
P-104
REV: 1/2014
www.recom-power.com
