PTH05020
5 Vin single output
DC-DC CONVERTERS
•
•
•
•
•
•
•
•
•
•
•
POLA Non-isolated
NEW Product
1
22 A output current
5 V input voltage
Wide-output voltage adjust (0.8 Vdc to 3.6 Vdc)
Auto-track™ sequencing*
Margin up/down controls
Pre-bias start-up capability
Efficiencies up to 96%
Output ON/OFF inhibit
Output voltage sense
Point-of-Load-Alliance (POLA) compatible
Available RoHS compliant

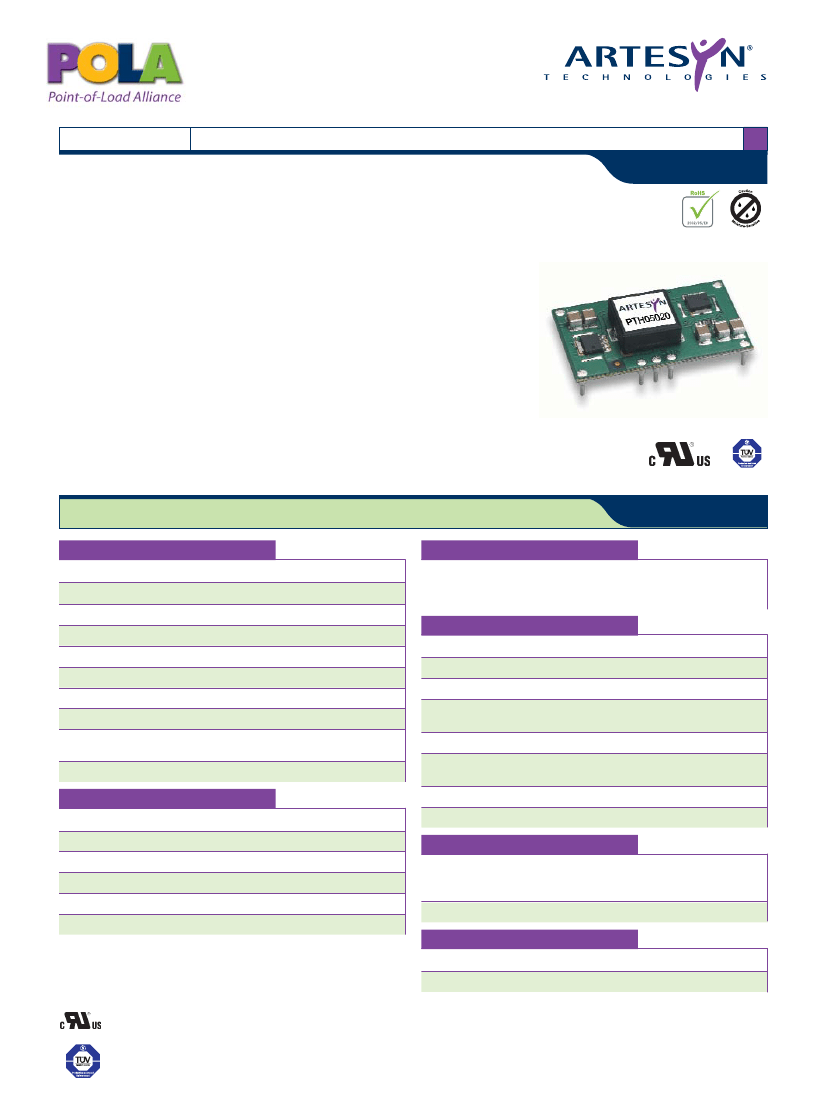

The PTH05020 is a next generation series of non-isolated dc-dc converters offering some
of the most advanced POL features available in the industry. The primary new feature
provides for sequencing between multiple modules, a function, which is becoming a
necessity for powering advanced silicon including DSP’s, FPGA’s and ASIC’s requiring
controlled power-up and power-down Other industry leading features include margin
up/down controls, pre-bias start-up capability and efficiencies up to 96%. The
PTH05020 has an input voltage of
4.5 V
dc
to 5.5 Vdc
and offers a wide 0.8 Vdc to 3.6 Vdc
output voltage range with up to 22 A output current, which allows for maximum design
flexibility and a pathway for future upgrades.
All specifications are typical at nominal input, full load at 25 °C unless otherwise stated
C
in
= 1000 µF, C
out
= 0 µF
OUTPUT SPECIFICATIONS
Voltage adjustability
Setpoint accuracy
Line regulation
Load regulation
Total regulation
Minimum load
Ripple and noise
20 MHz bandwidth
(See Note 4)
0.8-3.6 Vdc
±2.0% Vo
±5 mV typ.
±5 mV typ.
±3.0% Vo
0A
20 mV pk-pk
±0.5% Vo
GENERAL SPECIFICATIONS
Efficiency
Insulation voltage
Switching frequency
Approvals and
standards
Material flammability
Dimensions
Weight
(See Note 3)
No load
(See Note 1)
4.5-5.5 Vdc
10 mA typ.
Positive logic
1 V/ms
3.7-4.3 Vdc typ.
Pin 8 (See Note 6, 7)
±0.3 Vin
PROTECTION
Short-circuit
Thermal
International Safety Standard Approvals
UL/cUL CAN/CSA-C22.2 No. 60950-1-03/UL 60950-1,
File No. E174104
TÜV Product Service (EN60950) Certificate No. B 04 06 38572 044
CB Report and Certificate to IEC60950, Certificate No.
US/8292/UL
2 YEAR WARRANTY
SPECIFICATIONS
EMC CHARACTERISTICS
Electrostatic discharge
Conducted immunity
Radiated immunity
EN61000-4-2, IEC801-2
EN61000-4-6
EN61000-4-3
(See Efficiency Table)
96% max.
Non-isolated
250 kHz to 340 kHz
EN60950
UL/cUL60950
UL94V-0
(L x W x H)
37.97 x 22.10 x 9.00 mm
1.495 x 0.870 x 0.354 in
7 g (0.25 oz)
Telcordia SR-332
5,236,000 hours
Temperature co-efficient -40 ºC to +85 ºC
Transient response
(See Note 5)
Margin adjustment
INPUT SPECIFICATIONS
Input voltage range
Input current
Remote ON/OFF
Start-up time
Undervoltage lockout
Track input voltage
70 µs recovery time
Overshoot/undershoot 120 mV
±5.0% Vo
MTBF
ENVIRONMENTAL SPECIFICATIONS
Thermal performance
(See Note 2)
MSL (‘Z’ suffix only)
Operating ambient,
temperature
Non-operating
JEDEC J-STD-020C
-40 ºC to +85 ºC
-40 ºC to +125 ºC
Level 3
Auto reset
41 A typ.
Auto recovery
*Auto-track™ is a trade mark of
Texas Instruments
File Name: pth05020.pdf Rev (07): 16 Dec 2005
PTH05020
5 Vin single output
DC-DC CONVERTERS
POLA Non-isolated
NEW Product
2
For the most current data and application support visit www.artesyn.com/powergroup/products.htm
OUTPUT
POWER
(MAX.)
79.2 W
OUTPUT
CURRENT
(MIN.)
0A
OUTPUT
CURRENT
(MAX.)
22 A
INPUT
VOLTAGE
4.5-5.5 Vdc
OUTPUT
VOLTAGE
0.8-3.6 Vdc
EFFICIENCY
(MAX.)
96%
REGULATION
LINE
±5 mV
LOAD
±5 mV
MODEL
NUMBER
(9,10)
PTH05020
Part Number System with Options
PTH05020WAST
Packaging Options
No Suffix = Trays
T = Tape and Reel
(8)
Mounting Option
(9)
D = Horizontal Through-Hole (Matte Sn)
H = Horizontal Through-Hole (Sn/Pb)
S = Surface-Mount (63/37 Sn/Pb
pin solder material)
Z = Surface-Mount (96.5/3.0/0.5 Sn/Ag/Cu
pin solder material)
Pin Option
A = Through-Hole Std. Pin Length (0.140”)
A = Surface-Mount Tin/Lead Solder Ball
Output Voltage Code
W = Wide
Output Voltage Adjustment of the PTH05020 Series
Product Family
Point of Load Alliance
Compatible
Input Voltage
05 = 5 V
Output Current
02 = 22 A
Mechanical Package
Always 0
The ultra-wide output voltage trim range offers major advantages to users who
select the PTH05020. It is no longer necessary to purchase a variety of
modules in order to cover different output voltages. The output voltage can be
trimmed in a range of 0.8 Vdc to 3.6 Vdc. When the PTH05020 converter
leaves the factory the output has been adjusted to the default voltage of 0.8 V.
Notes
1
Remote ON/OFF. Positive Logic
ON:
Pin 3 open; or V > Vin - 0.5 V
OFF:
Pin 3 GND; or V < 0.8 V (min - 0.2 V).
2
See Figure 1 for safe operating curve.
3
A 1,000 µF electrolytic input capacitor is required for proper operation.
The capacitor must be rated for a minimum of 700 mA rms of ripple
current.
4
An external output capacitor is not required for basic operation. Adding
330 µF of distributed capacitance at the load will improve the transient
response.
5
1 A/µs load step, 50 to 100% I
omax
, C
out
= 330 µF.
6
If utilized Vout will track applied voltage by ±0.3 V (up to Vo set point).
7
The pre-bias start-up feature is not compatible with Auto-Track
™
. This is
because when the module is under Auto-Track
™
control, it is fully active
and will sink current if the output voltage is below that of a back-feeding
source. Therefore to ensure a pre-bias hold-off, one of the following two
techniques must be followed when input power is first applied to the
module. The Auto-Track
™
function must either be disabled, or the
module’s output held off using the Inhibit pin. Refer to Application Note
156 for more details.
8
Tape and reel packaging only available on the surface-mount versions.
9
To order Pb-free (RoHS compatible) surface-mount parts replace the
mounting option ‘S’ with ‘Z’, e.g. PTH05020WAZ. To order Pb-free
(RoHS compatible) through-hole parts replace the mounting option ‘H’
with ‘D’, e.g. PTH05020WAD.
10
NOTICE: Some models do not support all options. Please contact your
local Artesyn representative or use the on-line model number search tool at
http://www.artesyn.com/powergroup/products.htm to find a suitable
alternative.
EFFICIENCY TABLE (I
O
= 10 A)
OUTPUT VOLTAGE
Vo = 1.0 V
Vo = 1.2 V
Vo = 1.5 V
Vo = 1.8 V
Vo = 2.0 V
Vo = 2.5 V
Vo = 3.3 V
EFFICIENCY
88%
90%
91%
92%
93%
94%
96%
File Name: pth05020.pdf Rev (07): 16 Dec 2005
PTH05020
5 Vin single output
DC-DC CONVERTERS
POLA Non-isolated
NEW Product
3
For the most current data and application support visit www.artesyn.com/powergroup/products.htm
90
TEMPERATURE (ºC)
80
EFFICIENCY (%)
70
60
50
40
30
20
0
2
4 6 8 10 12 14 16 18 20 22
OUTPUT CURRENT (A)
Nat conv
100 LFM
200 LFM
400 LFM
100
90
80
70
60
50
40
0
2
4
6
8 10 12 14 16 18 20 22
3.3V
2.5V
1.8V
1.5V
1.2V
1.0V
OUTPUT CURRENT (A)

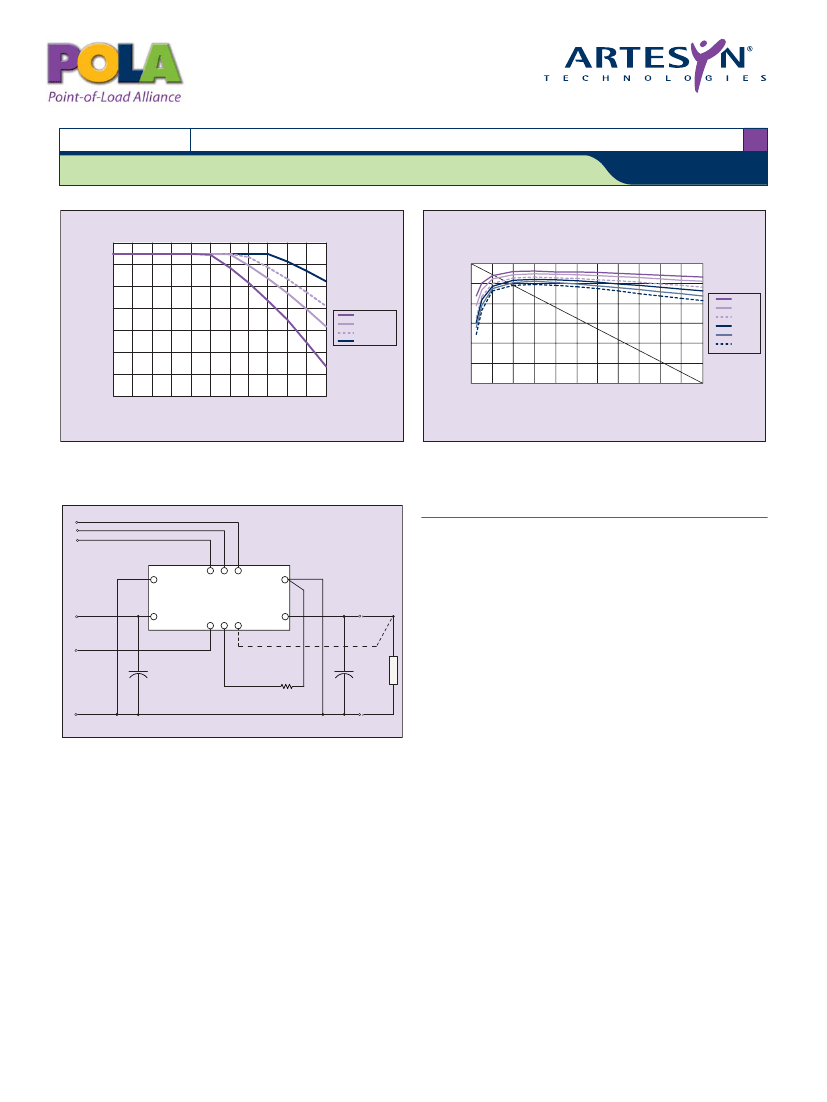

Figure 2 - Efficiency vs Load Current
Vin = 5 V (See Note B)
Figure 1 - Safe Operating Area
Vin = 5 V, Output Voltage = 3.3 V (See Note A)
Notes
Track
Margin Down
Margin Up
10
1
9
8
7
A
SOA curves represent the conditions at which internal components are
within the Artesyn derating guidelines.
B
Characteristic data has been developed from actual products tested at
25 °C. This data is considered typical data for the converter.
PTH05020
(Top View)
V
in
2
6
V
out
Inhibit
3
4
5
V
o
Sense
+
C
in
1000µF
(Required)
R
SET
1%, 0.1W
(Required)
+
C
out
330µF
(Optional)
L
O
A
D
GND
GND
Figure 3 - Standard Application
File Name: pth05020.pdf Rev (07): 16 Dec 2005
PTH05020
5 Vin single output
DC-DC CONVERTERS
POLA Non-isolated
NEW Product
4
For the most current data and application support visit www.artesyn.com/powergroup/products.htm
1.495 (37.97)
0.125 (3.18)
0.125 (3.18)
0.060
(1.52)
1
0.500
(12.70)
10
9
8
0.625 (15.88)
0.060
(1.52)
0.140
(3.55)
ø
0.040 (1.02)
10 Places
7
(0.070 (1.78)
(Standoff Shoulder)
0.750 0.870
(19.05) (22.10)
3
2
4
5
6
Lowest Component
0.010 min. (0.25)
Bottom side Clearance
PIN CONNECTIONS
PIN NO.
1
FUNCTION
Ground
Vin
Inhibit*
Vo adjust
Vo sense
Vout
Ground
Track
Margin down*
Margin up*
TOP VIEW
0.354
(9.00)max.
Side View
Host Board
2
3
4
5
6
Dimensions in Inches (mm)
Tolerances (unless otherwise specified)
2 Places
±0.030
(±0.76)
3 Places
±0.010
(±0.25)

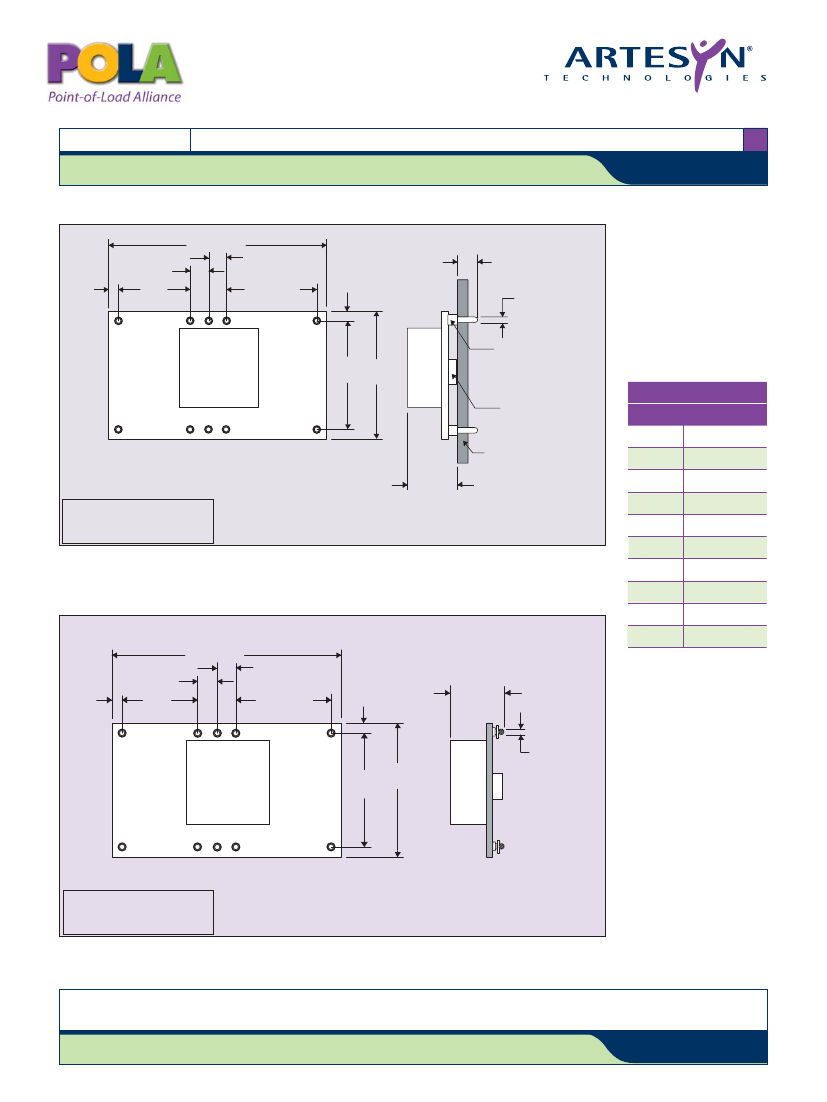

Figure 4 - Plated Through-Hole Mechanical Drawing
7
8
9
10
1.495 (37.97)
0.125 (3.18)
0.125 (3.18)
0.060
(1.52)
1
0.500
(12.70)
10
9
8
0.625 (15.88)
0.060
(1.52)
0.354 (9.00)
max.*
*After solder reflow
on customer board
*Denotes negative logic:
Open = Normal operation
Ground = Function active
7
0.870
0.750 (22.10)
(19.05)
Solder Ball
ø0.040 (1.02)
10 Places
2
3
4
5
6
SIDE VIEW
TOP VIEW
Dimensions in Inches (mm)
Tolerances (unless otherwise specified)
2 Places
±0.030
(±0.76)
3 Places
±0.010
(±0.25)
Figure 5 - Surface-Mount Mechanical Drawing
Datasheet © Artesyn Technologies® 2005
