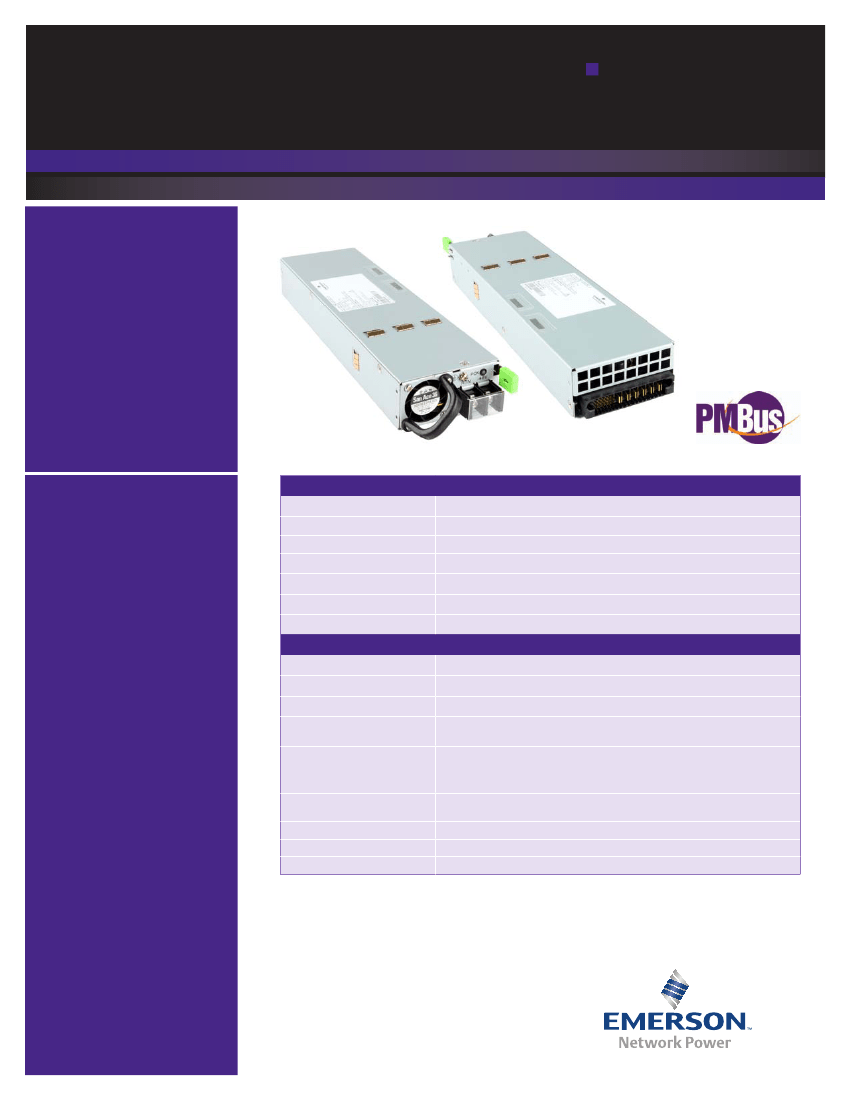

DS1200DC
1200 Watts
Distributed Power System
Distributed Power Bulk Front-End
Total Output Power:
1200 Watts
3.3 or 5.0 Vdc Stand-by Output
Telco Input Range:
-40 to -72 Vdc
Rev. 02.17.11_18
DS1200DC
1 of 4
Electrical Specifications
Special Features
• GR-1089-CORE Issue 4 compliant
• 1U X 2U form factor
• 21.71 W / in
3
• +12 Vdc Output
• +3.3 Vdc stand-by
(5 V standby - option)
• No minimum load required
• Hot plug operation
• N + 1 redundant
• Internal OR’ing fets
• Active current sharing
shares with DS1200 AC unit
(10 - 100% load)
• Built-in cooling fan
(40 mm x 28 mm)
• I
2
C communication interface bus
• PMBus compliant
• EERPOM for FRU data
• Red/green bi-color LED status
• Internal fan speed control
• Fan Fail Tach Output Signal
• INTEL, SSI Std. logic timing
• INTEL, SSI Std. FRU data format
• Full digital control
• Two year warranty
• NEBS compliant
Input
Input ra nge:
Inrush current:
Efficiency:
Conducted EMI:
Radiated EMI:
Leakage current:
Hold up time:
-40 Vdc to -72 Vdc
ETSI EN300 132-2 part 4.7 compliant
> 85% typical at high line 50% load
Per GR-1089-CORE Issue 4
Per GR-1089-CORE Issue 4
1.40 mA @ 240 VAC
12 ms minimum
+12 V @ 100 A
+3.3 Vsb @ 6 A (5 V @ 4 A available)
±5% on +12V only using I
2
C
+12 Vdc; ± 5%
3.3 or 5.0 Vsb ± 5%
+12 Vdc; latches off if overcurrent lasts over 1 second,
otherwise it is auto recovery (See Table 1 next page) +3.3 Vsb, 9 A
max (hiccup mode)
+12 Vdc; 13.2 - 14.4 Vdc
+3.3 Vsb; 3.76 - 4.30 Vdc
+12 Vdc; 9 - 10.8 V (latch off)
2 second max, 5 - 50 mS, monotonic rise
5 - 50 mS, monotonic rise
Output
Main DC voltage:
Stand-By:
Adjustment range:
Regulation:
Over current:
Over voltage:
Under voltage:
Turn-on delay:
Main output rise time:
Safety
• UL/cUL 60950 (UL Recognized)
• NEMKO+ CB Report EN60950
• EN60950
• CE Mark
• China CCC
Embedded Power for
Business-Critical Continuity
Logic Control
PS_SEATED (A4):
PWR GOOD (C3):
AC OK (B1):
PS_INHIBIT/PS_KILL (B4):
TTL logic LOW if power supply is seated into system connector. This is a short pin. A logic HIGH if
the PSU is removed
Active TTL high when output is within regulation limits.
A low logic level if the input voltage is within allowable limits. A TTL logic HIGH level, and a 5mS
early warning signal before 12.0 V DC output loss of regulation.
When left open power supply operation will be inhibited. When the power supply is
inserted into the system, this pin will be pull low by the system and turn the power supply on only
after all other power supply pins have seated.
The output will be enabled when this signal is pulled low, below 0.8 V outputs disabled when pin
is driven high or left open.
Rev. 02.17.11_18
DS1200DC
2 of 4
PS ON (A1):
Environmental Specifications
Operating temperature:
Storage temperature:
Altitude, operating:
Electromagnetic susceptibility / Input transients:
RoHS & lead-free
Humidity:
Shock and vibration specificatons:
MTBF (Demonstrated):
-10° to 55 °C
-40 °C to +85 °C
13,000 ft
GR-1089-CORE Issue 4
Compliant
20 to 90% RH, non-condensing
Complies with Astec Std. Specifications, Q3205 + additional NEBS requirement
500K Hrs at full load, 40 °C
Ordering Information
Nominal Output Set Point
Voltage Set Point Tolerance
12.0 Vdc
±0.2%
DS1200DC-3
DS1200DC-3-001
12.0 Vdc
±0.2%
DS1200DC-3-002
12.0 Vdc
±0.2%
DS1200DC-3-004**
12.0 Vdc
±0.2%
Model Number
Total
Regulation
±5%
±5%
±5%
±5%
Minimum Maximum Output Ripple
Current
Current
P/P
0 A
100 A
120 mV
0 A
100 A
120 mV
0 A
100 A
120 mV
0 A
100 A
120 mV
Over Current
118 A - 147.6 A*
118 A - 147.6 A*
118 A - 147.6 A*
118 A - 147.6 A*
Stand-by
3.3 V @ 6 A
3.3 V @ 6 A
5.0 V @ 4 A
5.0 V @ 4 A
Air Flow
STD
REV
†
STD
REV
†
*Over current latches off if overcurrent lasts over 1 seconds, otherwise it is auto recovery.
**Release in April 2010
† Derating may apply.
Embedded Power for
Business-Critical Continuity

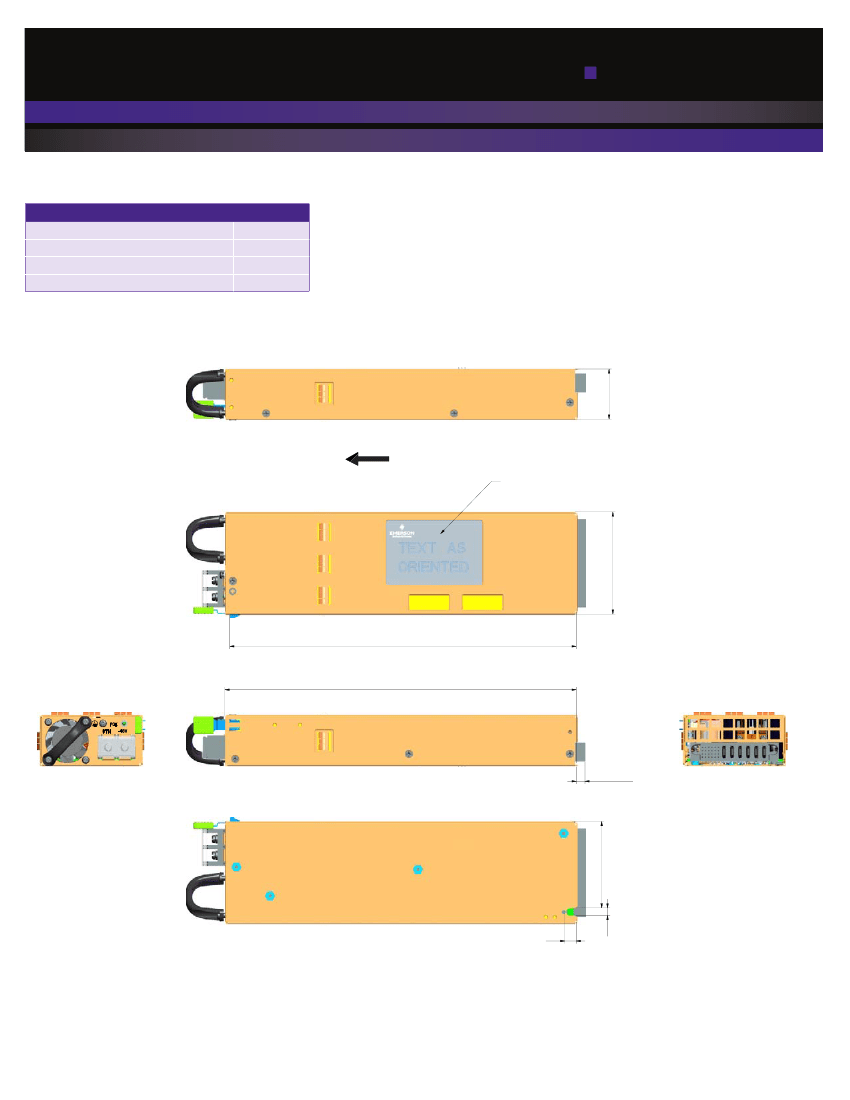

Mechanical Drawing
Condition
Stand-by - ON; Main output - OFF; AC PRESENT
Stand-by - ON; Main output - ON;
Main output OCP, UVP, OVP
FAN_FAULT; OTP; Stand-by OCP/UVP
Rev. 02.17.11_18
DS1200DC
3 of 4
LED Status
Blinking green
Solid green
Blinking Amber
Amber
FORWARD AIRFLOW DIRECTION
MODEL LABEL
(LABEL TEXT & CHARACTERS AS ORIENTED)
275.5
279.4 ± 1
7.02 ± 0.8
9
6
68.8
81.3 ± 0.8
39.9 ± 0.5
Embedded Power for
Business-Critical Continuity
DC Output Connector Pinout Assignment
Male connector as viewed from the rear of the supply:
D1
C1
B1
A1
D2
C2
B2
A2
D3
C3
B3
A3
D4
C4
B4
A4
D5
C5
B5
A5
D6
C6
B6
A6
PB1 PB2 PB3
PB4
PB5
PB6
Americas
5810 Van Allen Way
Carlsbad, CA 92008
USA
Telephone: +1 760 930 4600
Facsimile: +1 760 930 0698
Rev. 02.17.11_18
DS1200DC
4 of 4
Europe (UK)
Pin Assignments
Pin
PB 1
PB 2
PB 3
PB 4
PB 5
PB 6
A1
A2
A3
A4
A5
A6
B1
B2
B3
B4
B5
B6
C1
C2
C3
C4
C5
C6
D1
D2
D3
D4
D5
D6
Signal Name
Main output return
Main output return
Main output return
+ Main output
+ Main output
+ Main output
PS_ON
Main output remote sense return
Spare
PS_SEATED (Power Supply Seated)
STAND-BY
STAND-BY RETURN
AC_OK (AC Input Present)
Main output remote sense
Main output current share
PS_INHIBIT / PS_Kill
STAND-BY
STAND-BY RETURN
SDA (I
2
C Data Signal)
SCL (I
2
C Clock Signal)
POWER GOOD
Spare
STAND-BY
STAND-BY RETURN
A0 (I
2
C Address BIT 0 Signal)
A1 (I
2
C Address BIT 1 Signal)
S_INT (Alarm)
STAND-BY RMT SENSE
STAND-BY
STAND-BY RETURN
P1 - Power Supply Side
1.
2.
FCI Power Blade 51721 series
51721-10002406AA
Molex Power Connector
SD-87667 series
87667-7002
Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX
United Kingdom
Telephone: +44 (0) 1384 842 211
Facsimile: +44 (0) 1384 843 355
Mating Connector (System Side)
1.
FCI Power Blade
51741-10002406CC
Straight Pins
FCI Power Blade
51761-10002406AALF
Right Angle
Asia (HK)
2.
14/F, Lu Plaza
2 Wing Yip Street
Kwun Tong, Kowloon
Hong Kong
Telephone: +852 2176 3333
Facsimile: +852 2176 3888
For global contact, visit:
www.Emerson.com/EmbeddedPower
techsupport.embeddedpower
@emerson.com
While every precaution has been taken to ensure
accuracy and completeness in this literature, Emerson
Network Power assumes no responsibility, and disclaims
all liability for damages resulting from use of this
information or for any errors or omissions.
Emerson Network Power.
The global leader in enabling
business-critical continuity.
AC Power
Connectivity
DC Power
Embedded Computing
Embedded Power
Monitoring
Outside Plant
Power Switching & Controls
Precision Cooling
Racks & Integrated Cabinets
Services
Surge Protection
EmersonNetworkPower.com
Emerson Network Power and the Emerson
Network Power logo are trademarks and
service marks of Emerson Electric Co.
©2011 Emerson Electric Co.
