20W Single Output LED Power Supply
PLP-20
series
■
Features :
Universal AC input / Full range(up to 277VAC)
Protections:Short circuit/Over current/Over voltage/Over temperature
Cooling by free air convection
Built-in constant current limiting circuit with adjustable OCP level
Built-in active PFC function
Class
Ⅱ
power unit, no FG
Class 2 power unit
Small and compact size
100% full load burn-in test
High reliability,low cost
Suitable for built-in applications of LED lighting
2 years warranty
Bauar t gepruft
Sicherheit
egel ma ge
od
o s
be wac
g

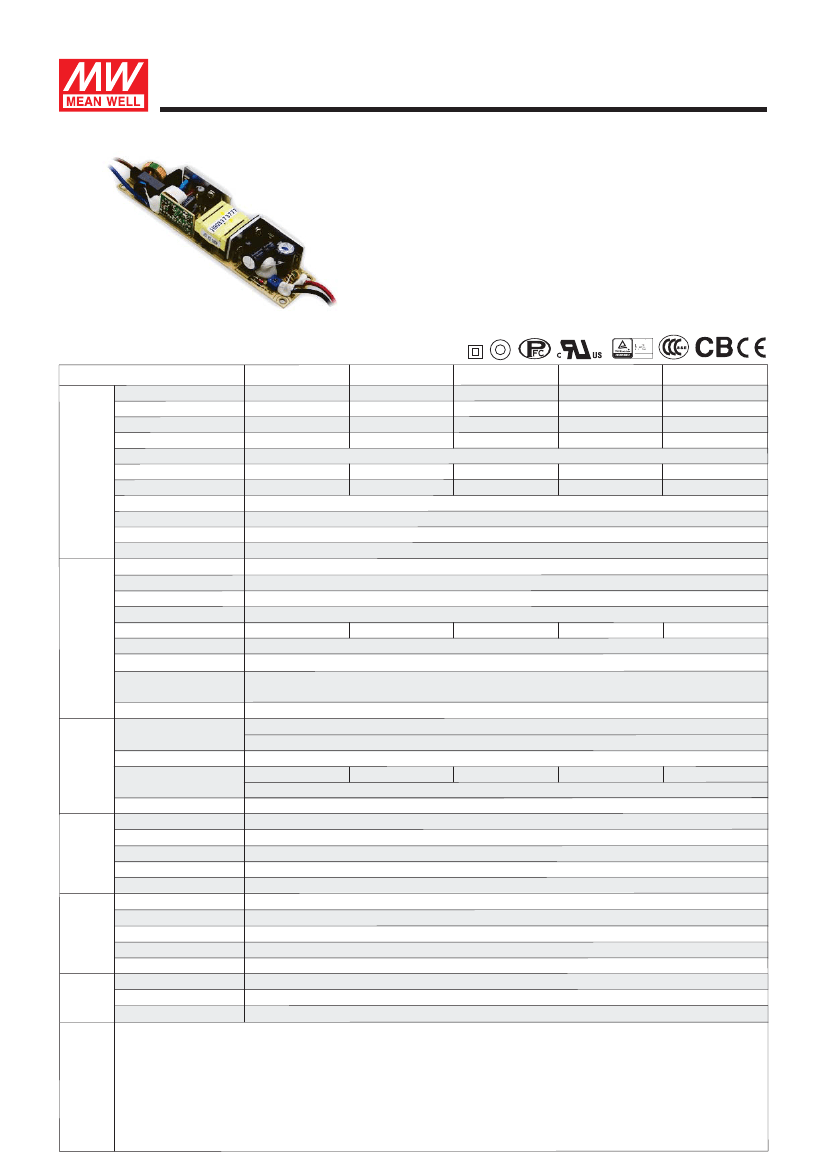

SPECIFICATION
MODEL
DC VOLTAGE
PLP-20-12
12V
CONSTANT CURRENT REGION
Note.5
9 ~ 12V
1.6A
RATED CURRENT
CURRENT RANGE
CURRENT ADJ. RANGE
RATED POWER
OUTPUT
0 ~ 1.6A
75% ~ 100%
19.2W
PLP-20-18
18V
13.5 ~ 18V
1.1A
0 ~ 1.1A
19.8W
3.0Vp-p
PLP-20-24
24V
18 ~ 24V
0.8A
0 ~ 0.8A
19.2W
3.0Vp-p
PLP-20-36
36V
27 ~ 36V
0.55A
0 ~ 0.55A
19.8W
3.0Vp-p
www. tuv.com
ID 2000000000
PLP-20-48
48V
36 ~ 48V
0.42A
0 ~ 0.42A
20.2W
3.8Vp-p
RIPPLE & NOISE (max.)
Note.2
2.5Vp-p
VOLTAGE TOLERANCE
Note.3
±10%
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
VOLTAGE RANGE
FREQUENCY RANGE
POWER FACTOR
TOTAL HARMONIC DISTORTION
EFFICIENCY(Typ.)
±3.0%
±10%
500ms / 230VAC 2000ms / 115VAC at full load
Note.4
90 ~ 277VAC 127~392VDC
47 ~ 63Hz
PF
≥
0.9 at 75~100% load, 115VAC/230VAC;PF
≥
0.9 at 85~100% load 277VAC (Please refer to "Power Factor Characteristic" curve)
THD< 20% when output loading
≧
75% at 115VAC/230VAC input and output loading
≧
75% at 277VAC input
83%
80%
83.5%
82%
81%
0.4A/115VAC 0.2A/230VAC
0.15A/277VAC
COLD START 25A(twidth=60
μ
s measured at 50% Ipeak) at 230VAC
92 units (circuit breaker of type B) / 98 units (circuit breaker of type C) at 230VAC
0.5mA / 240VAC
Note.5
INPUT
AC CURRENT
INRUSH CURRENT(Typ.)
MAX. No. of PSUs on 16A
CIRCUIT BREAKER
LEAKAGE CURRENT
OVER CURRENT
SHORT CIRCUIT
95 ~ 110%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
Hiccup mode, recovers automatically after fault condition is removed.
27 ~ 34V
14 ~ 16V
19 ~ 22V
Protection type : Shut off o/p voltage, clamping by zener diode
Shut down o/p voltage, recovers automatically after temperature goes down
-30 ~ +60
℃
(Refer to "Derating Curve")
20 ~ 90% RH non-condensing
-40 ~ +80
℃
, 10 ~ 95% RH
±
0.06%/
℃
(0 ~ 50
℃
)
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
TUV EN61347-1, EN61347-2-13, GB19510.14, GB19510.1, UL8750, CSA C22.2 No. 250.0-08 approved
I/P-O/P:3.75KVAC
I/P-O/P:100M Ohms/500VDC / 25
℃
/ 70%RH
Compliance to EN55015, GB17743, GB17625.1, EN61000-3-2 Class C(
≧
75% load); EN61000-3-3
Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level, criteria A
643.6Khrs min.
140*32*22(L*W*H)
0.12kg;60pcs/9.2kg/0.62CUFT
MIL-HDBK-217F (25
℃
)
41 ~ 46V
54 ~ 60V
PROTECTION
OVER VOLTAGE
OVER TEMPERATURE
WORKING TEMP.
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
WITHSTAND VOLTAGE
SAFETY & ISOLATION RESISTANCE
EMC
EMC EMISSION
EMC IMMUNITY
MTBF
OTHERS
DIMENSION
PACKING
NOTE
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25
℃
of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage, please check the static characteristic for more details.
5.
P
lease refer to "DRIVING METHODS OF LED MODULE".
6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on
a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to
perform these EMC tests, please refer to EMI testing of component power supplies. (as available on http://www.meanwell.com)
7. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently
connected to the mains.
File Name:PLP-20-SPEC 2016-01-21
20W Single Output LED Power Supply
Power Factor Characteristic
Power factor will be higher than 0.9 when output loading is 75% or higher.
PLP-20
series
Constant Current Mode
1.00
0.98
0.96
0.94
0.92
0.90
0.88
0.86
0.84
0.82
0.80
0.78
50%
60%
70%
80%
90%
100%
(20W)
PF
277Vac
230Vac
115Vac
LOAD
EFFICIENCY vs LOAD (48V Model)
PLP-20 series possess superior working efficiency that up to 83.5% can be reached in field applications.
90
86
82
78
74
70
66
62
58
54
50
46
42
10%
EFFICIENCY (%)
277Vac
230Vac
115Vac
20%
30%
40%
50%
LOAD
60%
70%
80%
90% 100%
DRIVING METHODS OF LED MODULE
This LED power supply is suggested to work in constant current mode area (CC) to drive the LEDs.
In the constant current region, the highest voltage at the output of the driver
depends on the configuration of the end systems.
Should there be any compatibility issues, please contact MEAN WELL.
Vo(%)
Constant
Current area
100
75
(max.)
Hiccup
Protection
50
100
Io (%)
Typical LED power supply I-V curve
File Name:PLP-20-SPEC 2016-01-21
