45W World Wide – Two Wire Universal Input
PSS45W Single Output Adapter Series
Features
•
Compact Low Profile Case
•
Power On LED
Applications
•
Portable Equipment
•
Peripherals
Safety Approvals
•
cUL/UL
•
CE
Mechanical Characteristics
•
Length: 104.6mm (4.12in)
•
Width: 60.7mm (2.39in)
Output Specifications
Model
PSS45W-090
PSS45W-120
PSS45W-150
PSS45W-180
PSS45W-240
DC Output
Voltage
+9V
+12V
+15V
+18V
+24V
Load
Min.
0A
0A
0A
0A
0A
•
•
•
•
•
Non-vented/Spill-proof Case
Double Insulated
Notebook Computers
Networking
TUV
•
•
Height: 28.5mm (1.12in)
Weight: 185g (6.53oz.)
Max.
5A
4A
3.4A
2.8A
2.1A
Ripple (1)
P-P (max.)
90mV
120mV
150mV
180mV
240mV
Regulation
Line & Load
±5%
±5%
±5%
±5%
±5%
(1) Measured with by-pass capacitors 0.1uf/10uf at output connector terminal and oscilloscope set at 20 Mhz.
Phihong reserves the right to make changes without further notice. Please consult Phihong USA and visit
www.phihong.com
for the most up-to-date specifications.
PSS45W Characteristics
INPUT:
AC Input Voltage Rating
100 to 240VAC
WWW.PHIHONG.COM
Over Voltage Protection
Built-in Zener diode Clamping
ENVIRONMENTAL:
AC Input Voltage Range
90 to 264VAC
Temperature
Operation
(with no derating)
0 to +40°C
AC Input Frequency
47 to 63Hz
Humidity
Operation
5 to 80%
Leakage Current
Max. 0.25mA (254VAC)
Emissions
FCC Class B
EN55022 Class B
Input Current
1A (rms) typical @ 115VAC
0.5A (rms) typical @ 230VAC
Dielectric Withstand (Hi-pot) Test
Input to output: 3000VAC for 1 minute, 10mA
Inrush Current (cold)
15A max. (120VAC)
30A max. (240VAC)
Power On Indicator
Green LED
OUTPUT:
Efficiency
85% typical
DC Output Connector
2.1x5.5mm Center Positive Standard
Mating Connector
Hold-up Time
8mS min. @ 115VAC typcial
Kycon KLD-0202-A or equivalent
Over Current Protection
>120%, Auto Restart

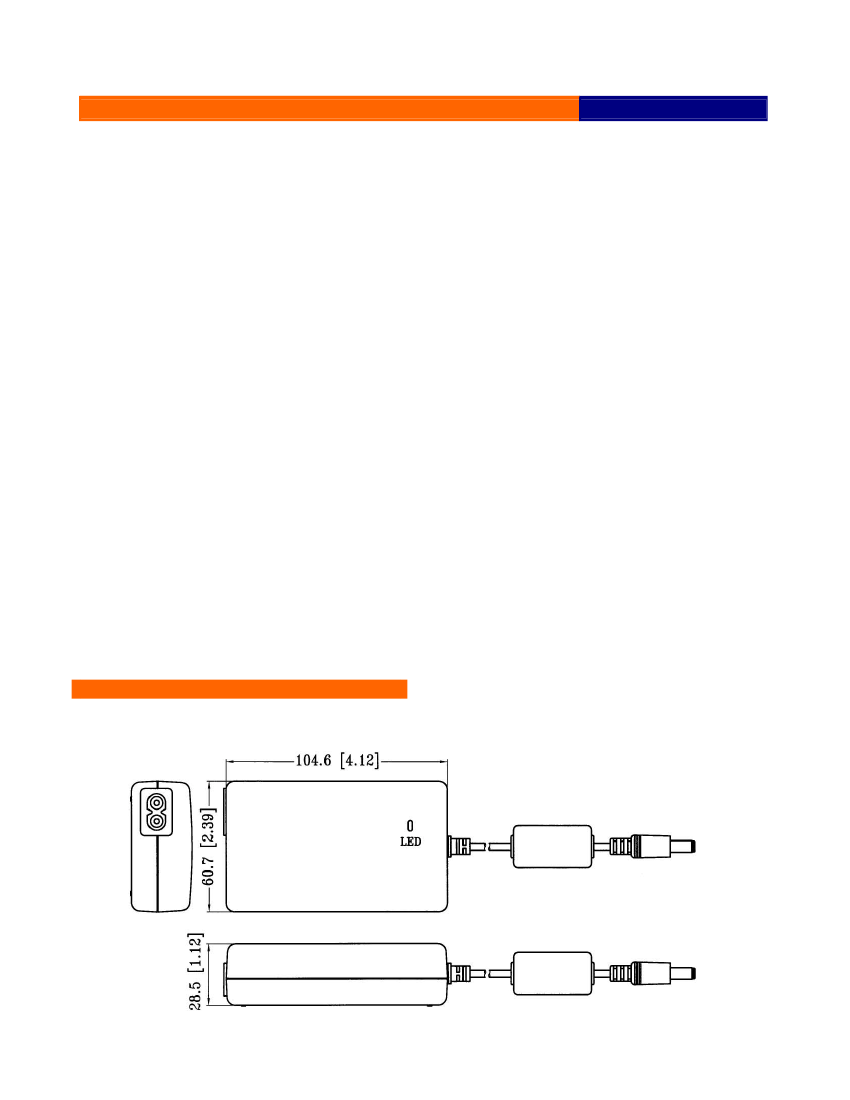

Dimension Diagram Unit: mm (inch)
