DTD120-12SX-F-W6: DescriptionDesktop AC Adapters 120W 12V 8.33A; CategoryPower/power management; File Size2MB，3 Pages; ManufacturerETA-USA

Download Datasheet Parametric Compare View All

DTD120-12SX-F-W6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DTD120-12SX-F-W6	-	-	View	Buy Now

DTD120-12SX-F-W6 Overview

Desktop AC Adapters 120W 12V 8.33A

DTD120-12SX-F-W6 Parametric

Parameter Name	Attribute value
Product Category	Desktop AC Adapters
Manufacturer	ETA-USA
RoHS	Details
Region	Universal
Input Voltage	90 VAC to 264 VAC
Number of Outputs	1 Output
Output Power	100 W
Output Voltage-Channel 1	12 V
Output Current-Channel 1	8.33 A
Commercial/Medical	Commercial
DC Output Cord Length	1.05 m
Efficiency	Level VI
AC Plug included/required	Required
Height	37 mm
Length	170 mm
Mounting Style	Desktop
Factory Pack Quantity	1
Width	64.8 mm

Preview

Download Datasheet

View All

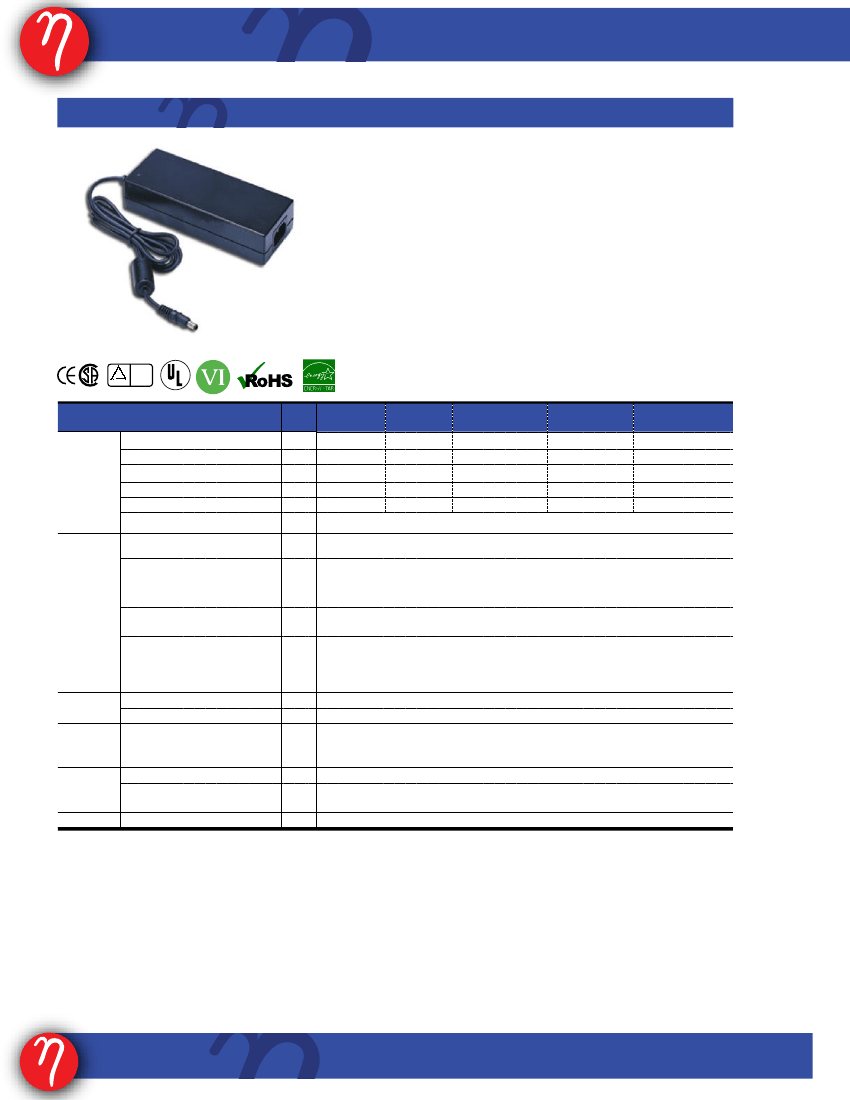

ETA-USA

DTD120-SX-F-W6

The Power Professionals

120W External Power Supply

FEATURES:

•

3-pole IEC320-C14 AC inlet, Class I

•

Output voltage range from +12V to +48V

•

Meet Efficiency Level VI & CoC V5 Tier 2 requirements

•

No load Power consumption < 150mW

•

Power ON LED indicator

•

3 year warranty

Output voltage and constant current level

can be adjusted through potential meter.

Constant current level adjustable through

output cable with 1~10Vdc.

BAUART

GEPRÜFT

TUV Rheinland

OUTPUT

MODEL/CHANNEL

Norminal Voltage

Norminal Current

Output Regulation

Output Power

Ripple & Noise Max

Unit

A

W

mV

ms

V

A

%

-

%

V

A

-

mm/g

V

DTD120-

12SX-F-W

12

8.33

5

100

240

DTD120-

19SX-F-W

19

6.3

5

120

240

DTD120-

24SX-F-W

24

5

120

240

DTD120-

28SX-F-W

28

4.3

5

120

240

DTD120-

48SX-F-W

48

2.5

5

120

240

INPUT

Turn-on Time Typ.

Input Voltage Range

Frequency

Input Current(rms)

Power factor

Efﬁciency

CEC

800 (AC IN 100V, Io=100%)

90-264VAC

47-63Hz

2A @ 90Vac;

1A @ 264Vac max

>0.9(20%~100%Load)

>80% @ full load, 115VAC

No load power consumption <0.3 W @240 VAC

AC Recycle

CISPR 22 Class B,FCC Part 15 Class B,EN 55022 Class B,

EN 61000-3-2 Class D, EN 55024, CE

UL 60950 CSA 22.2-No.60950-1

TUV EN60950-1 CB IEC 60950-1 PSE J60950 CCC

0 to ±40°C

-10 to +70°C

>80’000 hours at full load and 25 °C ambient temperature

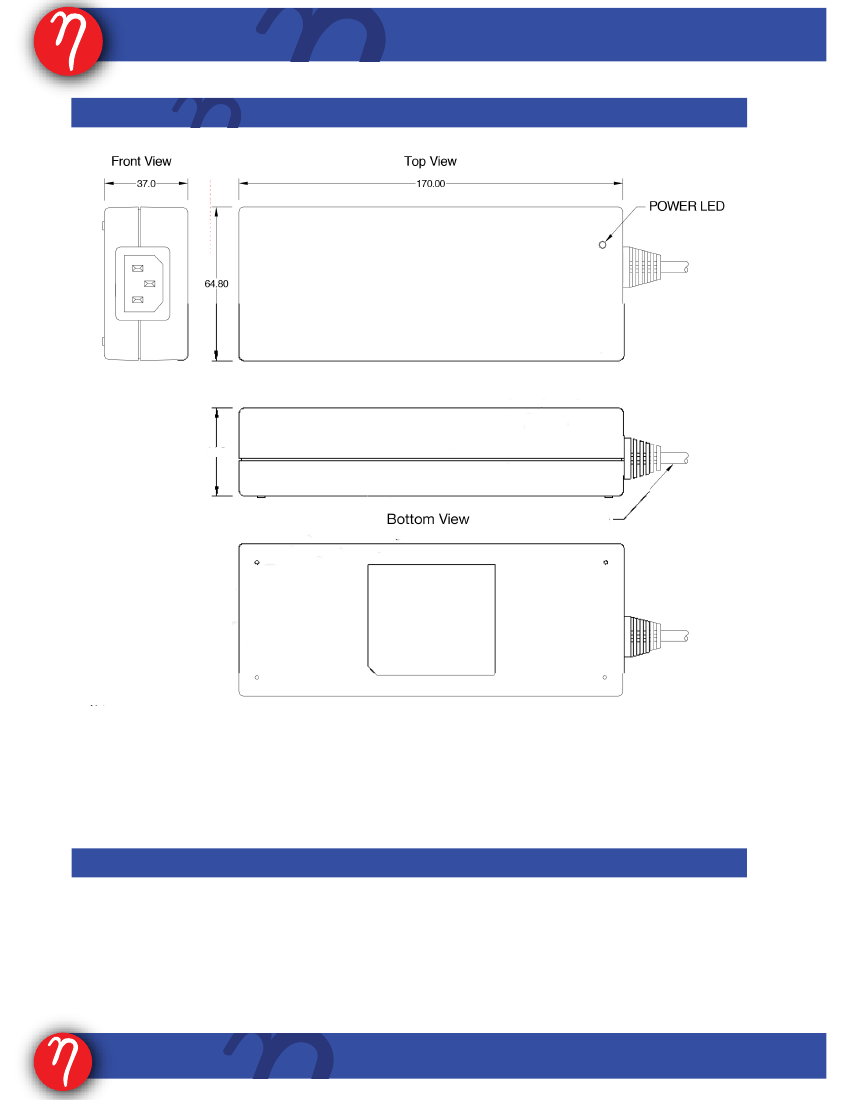

L170×W64.8×H37mm

Auto Recovery

Protection

Short circuit protection

Environmental

Agencies

Over Voltage Protection

Safety Standards

EMC Standards

Storage temp. & Humidity

MTBF demonstrated

Environment

Operating temp. & Humidity

Dimension

Size(WxHxD) /

Weight

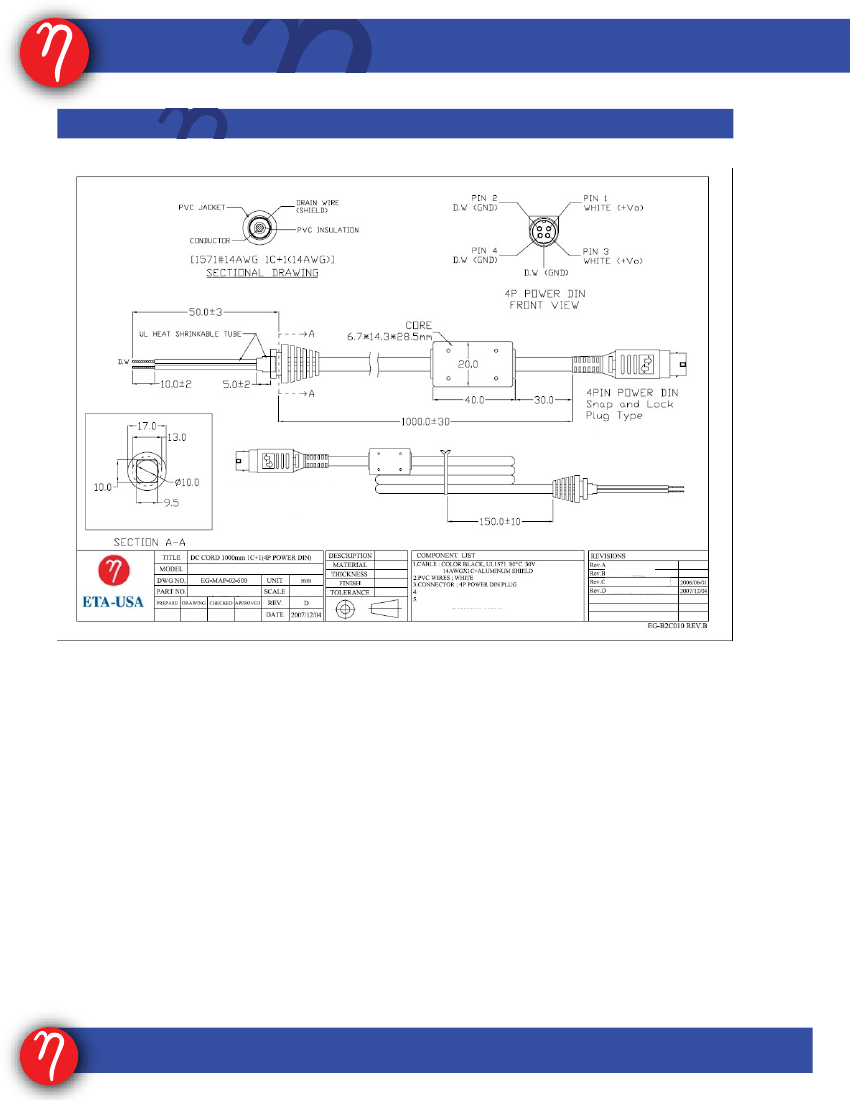

ETA-USA

16170 Vineyard Blvd. Suite 180 Morgan Hill, CA 95037 http://www.eta-usa.com

Toll-free (US only): 800-ETA-POWR (800-382-7697) Telephone: 408 778-2793 FAX: 408-779-2753
