1-Phase Line Filters
https://www.schurter.com /PG84

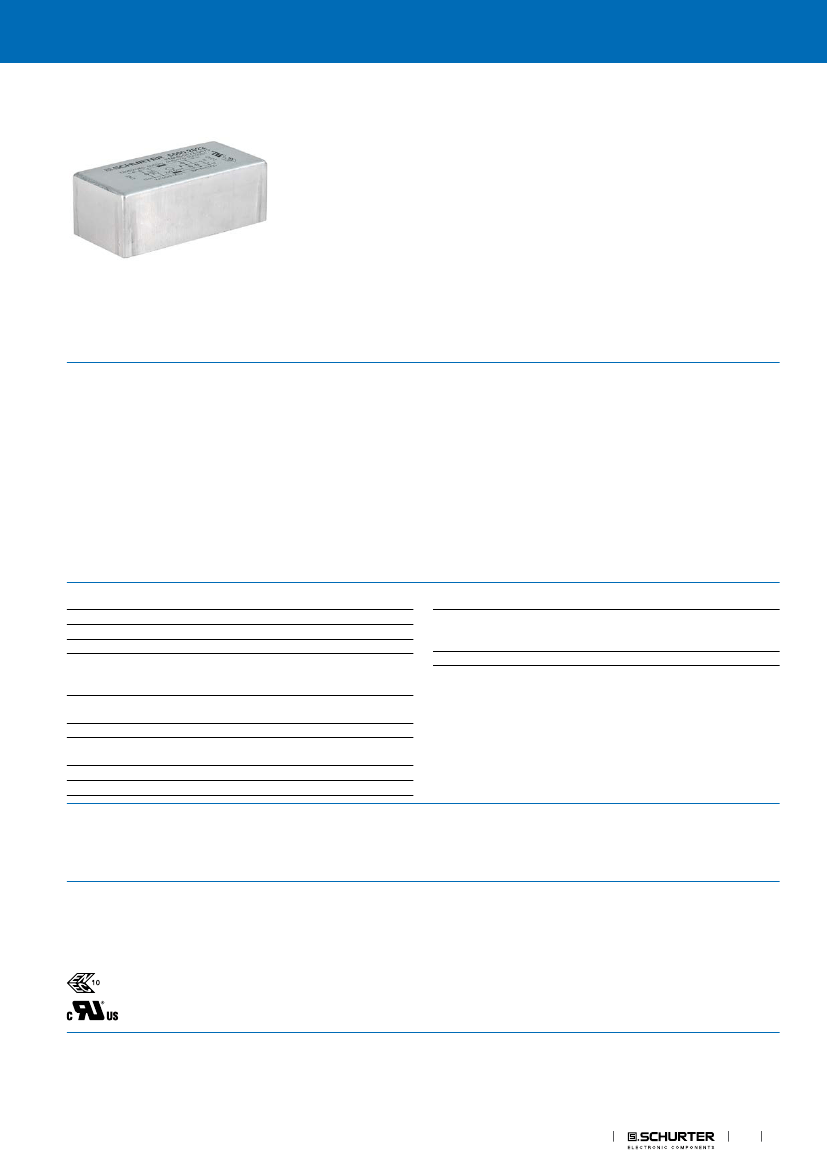

FMAB-72
AC Filter for PCB Mounting in Flat Aluminum Housing
Approvals and Compliances
Description
- Line filter in standard and medical version
- 1-stage
- standard attenuation
Characteristics
- Aluminum case provides good shielding
Designed for standard applications
- Protection against interference voltage from the mains
Possible interferences generated in the equipment are strongly attenu-
ated
- Universal line filter for standard applications
- Suitable for use in equipment according to IEC/UL 60950
Other versions on request
- Medical version M80
References
Weblinks
Alternative: Standard version
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Detailed request for product, Microsite
Technical Data
Ratings IEC
Ratings UL/CSA
Leakage Current
Dielectric Strength
2 - 16 A @ Ta 40 °C / 250 VAC; 50 Hz
2 - 16 A @ Ta 40 °C / 125 VAC; 60 Hz
standard < 0.5 mA (250 V / 60 Hz)
> 1.7 kVDC between L-N
> 2.7 kVDC between L/N-PE
Test voltage (2 sec)
-25 °C to 100 °C
25/100/21 acc. to IEC 60068-1
Suitable for appliances with protection
class I acc. to IEC 61140
For PCB mounting , tin-plated
Aluminum
Line Filter
Standard and Medical Version, IEC
60939, UL 1283, CSA C22.2 no. 8
Technical Details
> 200'000 h acc. to MIL-HB-217 F
MTBF
Allowable Operation Tempe-
rature
Climatic Category
Protection Class
Terminal
Material: Housing
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: FMAB
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
Certificate Number: 40004673
UL File Number: E72928
EMC Products
1
FMAB-72
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 60939
UL 498
UL 1283
CSA C22.2 no. 42
CSA C22.2 no. 8
Description
https://www.schurter.com /PG84
1-Phase Line Filters
Appliance couplers for household and similar general purposes
Passive filters for suppressing electromagnetic interference
Standard for Attachment Plugs and Receptacles
Electromagnetic interference filters
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Electromagnetic interference (EMI) filters
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Designed for applications acc.
Standard
IEC/UL 60950
IEC 60601-1
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Medical electrical equipment - Part 1: General requirements for basic
safety and essential performance
Compliances
The product complies with following Guide Lines
Identification
Details
RoHS
China RoHS
REACH
Initiator
SCHURTER AG
SCHURTER AG
SCHURTER AG
Description
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
Suitable for use in medical equipment according to IEC/UL 60601-1
Medical Equipment
SCHURTER AG
Dimension [mm]
Case 72
70 max.
25.5 max.
34.5 max.
15
±0.2
55
±0.2
2.5
±0.2
3.5
-0.5
+0
2
EMC Products
ø1
FMAB-72

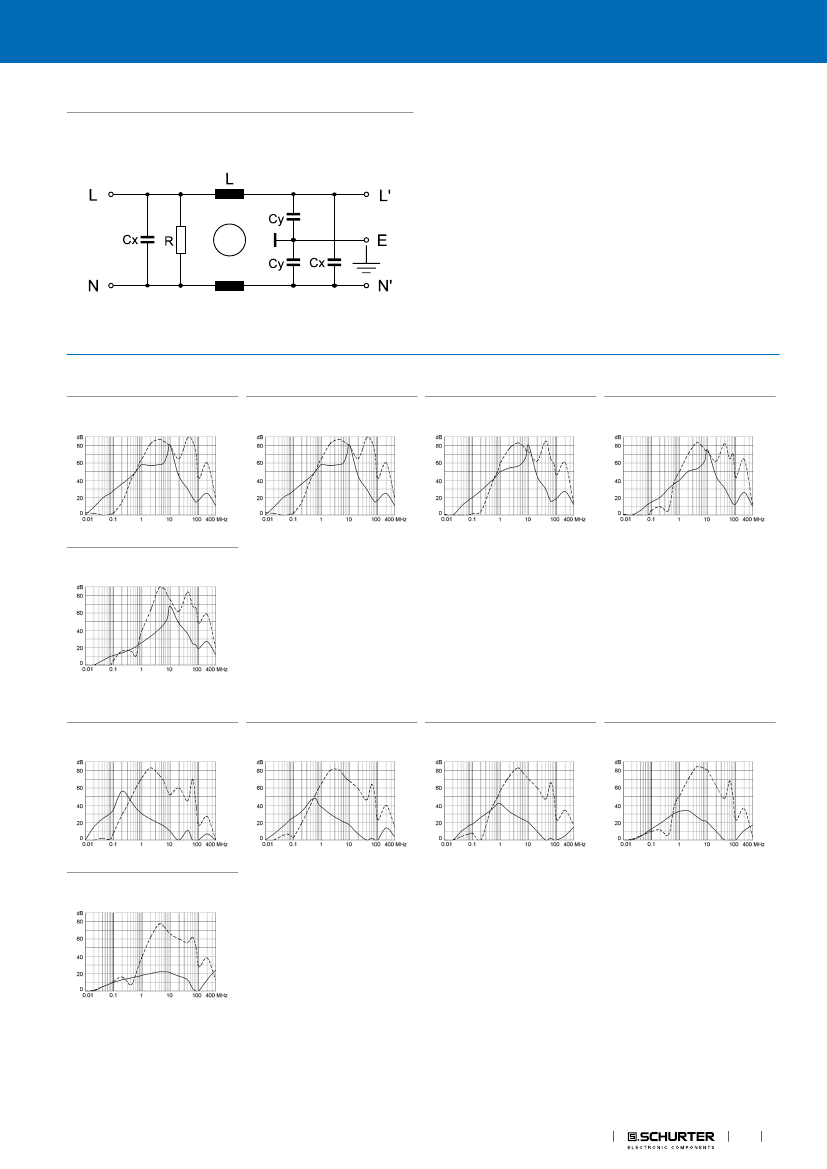

Medical version (M80)
https://www.schurter.com /PG84
1-Phase Line Filters
2A
4A
6A
10 A
16 A

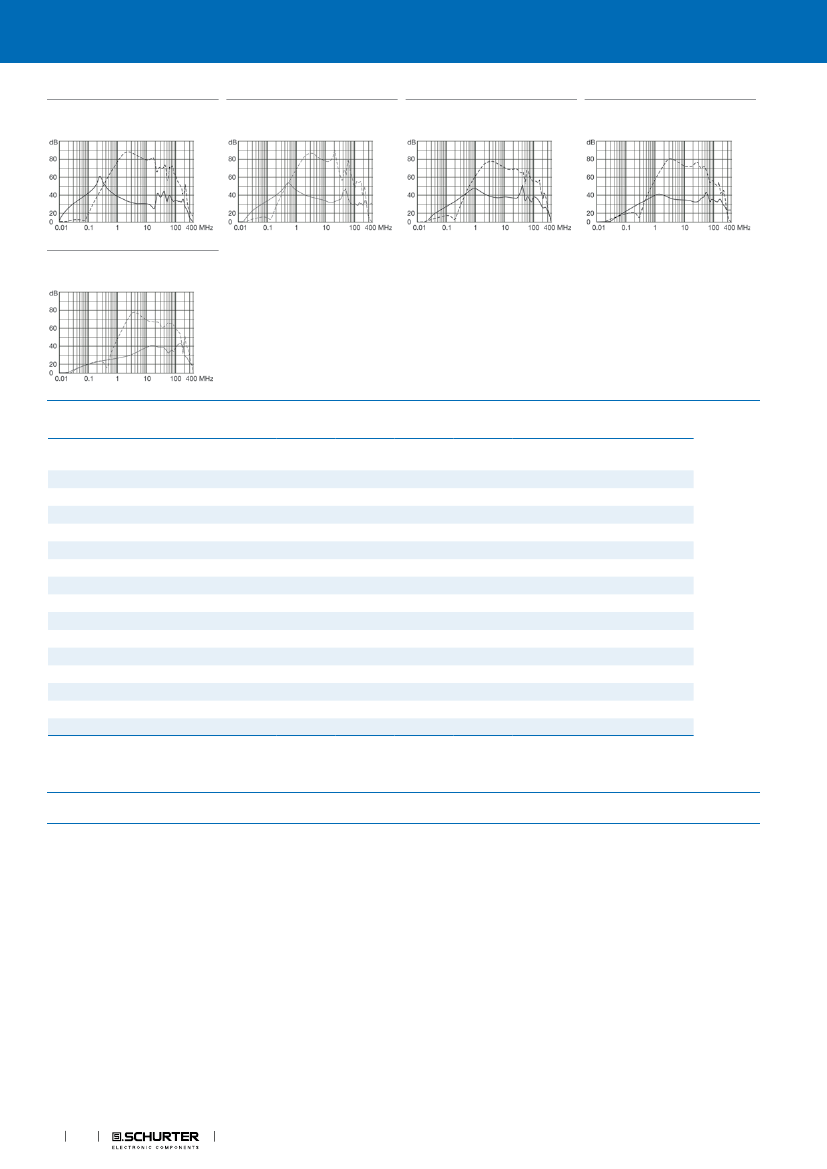

All Variants
Rated Current
[A]
2
4
6
10
16
2
4
6
10
16
2
4
6
10
16
█
Most Popular.
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Filter-Type
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M80)
Medical Version (M80)
Medical Version (M80)
Medical Version (M80)
Medical Version (M80)
L [mH]
2x8
2 x 3.5
2 x 1.8
2 x 0.82
2 x 0.65
2x8
2 x 3.5
2 x 1.8
2 x 0.82
2 x 0.65
-
-
-
-
-
Cx (X2) [nF]
100
100
100
100
100
100
100
100
100
100
-
-
-
-
-
Cy (Y2) [nF]
4.7
4.7
4.7
4.7
4.7
-
-
-
-
-
-
-
-
-
-
R [MΩ]
1
1
1
1
1
1
1
1
1
1
-
-
-
-
-
Weight
[g]
114 g
114 g
115 g
115 g
115 g
114 g
114 g
115 g
115 g
115 g
114 g
114 g
115 g
115 g
115 g
Housings
72
72
72
72
72
72
72
72
72
72
72
72
72
72
72
Order Number
5500.2021
5500.2022
5500.2023
5500.2024
5500.2025
5500.2106
5500.2107
5500.2108
5500.2109
5500.2110
5500.2111
5500.2112
5500.2113
5500.2114
5500.2115
█
Packaging unit
10 Pcs
4
EMC Products
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
24.11.2017
