1-Phase Line Filters
https://www.schurter.com /PG84

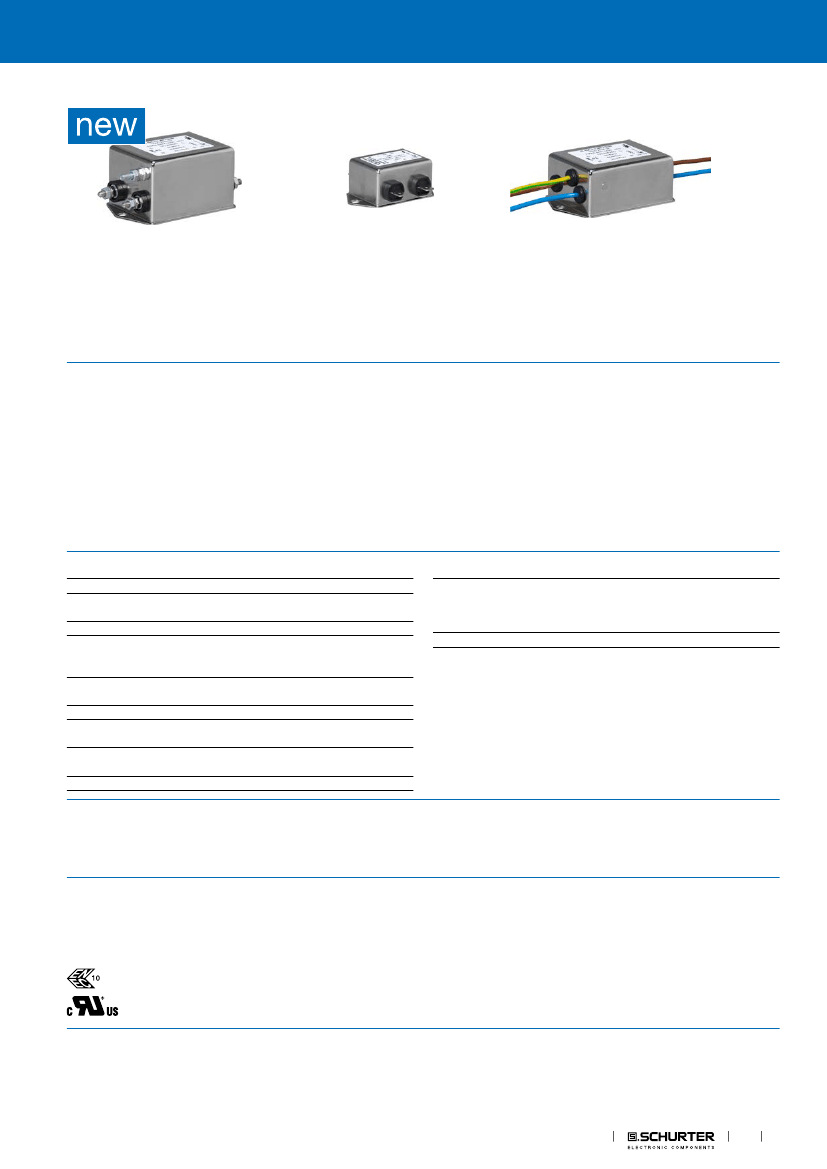

FMAB NEO
AC Filter, High Symmetrical Attenuation
Bolt and nut M4 Case PK
Quick connect terminals 6.3x0.8 mm Case PG
Wire leads Case PI
Approvals and Compliances
Description
-
-
-
-
Line-filter in standard version
1-stage
high attenuation
3 designs
N) excellent symmetrical noise attenuation
P) high symmetrical noise attenuation
Q) standard symmetrical noise attenuation
Excellent symmetrical attenuation
Compact and cost optimized
Completely closed steel housing
Optional wire leads
Characteristics
- Compact filter with high symmetrical attenuation
- Designed for universal industrial applications
- Especially designed forapplications with symmetrical noise caused by
switching semiconductors
- Suitable for use in equipment according to IEC/UL 60950
Suitable for use in medical equipment according to IEC/UL 60601-1
Other versions on request
- Version with wire connection
Unique Selling Proposition
-
-
-
-
Weblinks
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Detailed request for product, Microsite
Technical Data
Ratings IEC
Ratings UL/CSA
Leakage Current
Dielectric Strength
1 - 60 A @ Ta 40 °C / 250 VAC; 50 Hz
1 - 60 A @ Ta 40 °C / 125/250 VAC;
60 Hz
industrial < 1 mA (250 V / 60 Hz)
> 1.7 kVDC between L-N
> 2.7 kVDC between L/N-PE
Test voltage (2 sec)
-40 °C to 100 °C
40/100/21 acc. to IEC 60068-1
Suitable for appliances with protection
class I acc. to IEC 61140
Quick connect terminal 6.3 x 0.8 mm
Bolt and nut
Metal
Line Filter
Standard, medical and industrial ver-
sion, IEC 60939, UL 1283, CSA C22.2
no. 8
Technical Details
> 200'000 h acc. to MIL-HB-217 F
MTBF
Allowable Operation Tempe-
rature
Climatic Category
Protection Class
Terminal
Material: Housing
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: FMAB NEO
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
Certificate Number: 40041643
UL File Number: E72928
EMC Products
1
FMAB NEO
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 60939
UL 498
UL 1283
CSA C22.2 no. 42
CSA C22.2 no. 8
Description
https://www.schurter.com /PG84
1-Phase Line Filters
Appliance couplers for household and similar general purposes
Passive filters for suppressing electromagnetic interference
Standard for Attachment Plugs and Receptacles
Electromagnetic interference filters
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Electromagnetic interference (EMI) filters
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Compliances
The product complies with following Guide Lines
Identification
Details
RoHS
China RoHS
REACH
Initiator
SCHURTER AG
SCHURTER AG
SCHURTER AG
Description
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
Dimension [mm]
Case PG with quick connect terminals
max. 58
max. 24.8
9.5
max. 35.5
32.5
16.2
9.5
max. 44
54
±0.3
1)
2)
6.3x0.8
(5x)
21
64
ø 5.3
1) Line
2) Load
2
EMC Products
6.3
21
