260M: DescriptionAluminum Electrolytic Capacitors - Leaded 25Volts 6800uF; CategoryPower/power management; File Size232KB，1 Pages; ManufacturerHammond; Websitehttp://www.hammondmfg.com

Download Datasheet Parametric Compare View All

260M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	260M	-	-	View	Buy Now

260M Overview

Aluminum Electrolytic Capacitors - Leaded 25Volts 6800uF

260M Parametric

Parameter Name	Attribute value
Product Category	Power Transformers
Manufacturer	Hammond
RoHS	Details
Product	Isolation Transformers
Primary Voltage Rating	100 VAC to 240 VAC
Secondary Voltage Rating	700 VAC CT
Power Rating	248 VA
Secondary Current Rating	288 mA
Mounting Style	Chassis
Primary Winding	Single Primary Winding
Secondary Winding	Dual Secondary Winding
Length	114.3 mm
Width	82.55 mm
Height	95.25 mm
Operating Frequency	50 Hz, 60 Hz
Factory Pack Quantity	1
Termination Style	Wire Leads
Type	Classic Low Power Plate and Filament Transformers
Unit Weight	8.650 lbs

Preview

Download Datasheet

View All

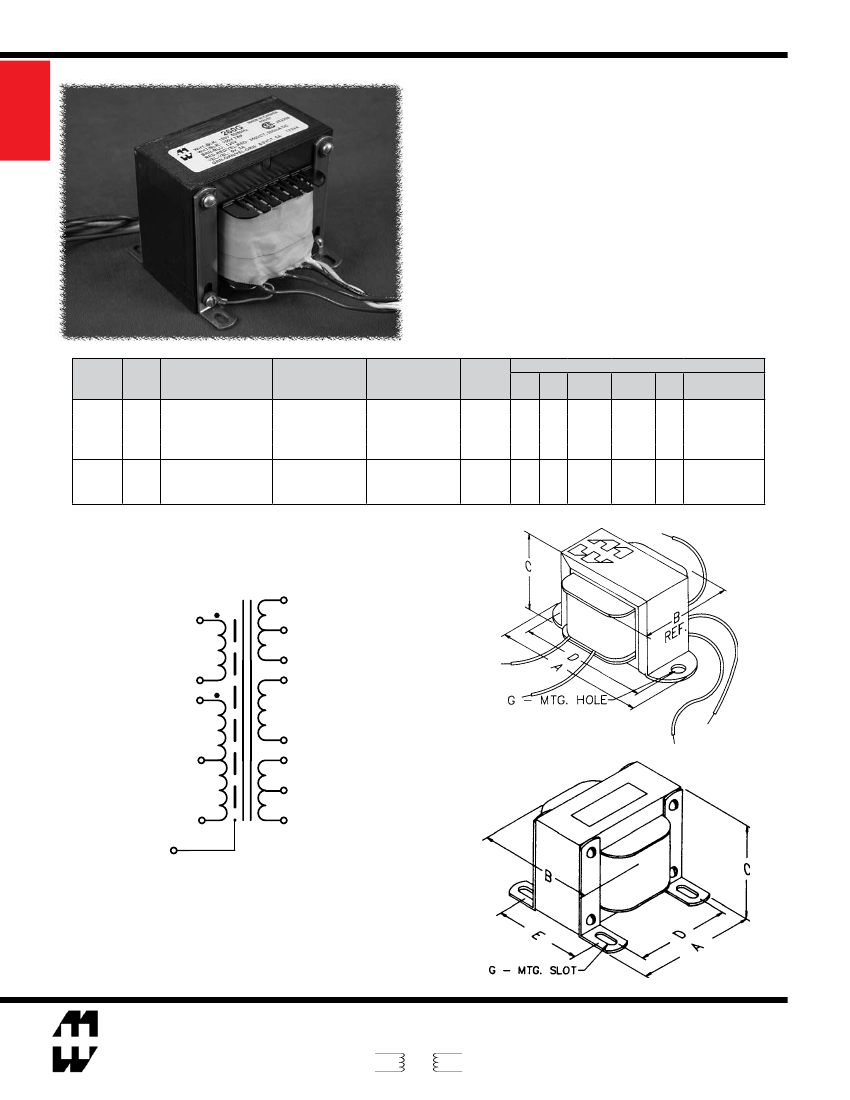

"Classic" Plate & Filament - Chassis Mount (260 Series)

Power

"CLASSIC" - UNIVERSAL PRIMARY

PLATE & FILAMENT

•

Universal primary with taps for 100, 120, 220 or 240

VAC, 50/60 Hz.

•

Designed for preamps, low power amps, general

replacement, test equipment, etc.

•

Units include a Faraday shield between the primary and

secondary windings.

•

Economical , two hole (.187 dia. = G) channel bracket or

four hole, open frame - chassis mount.

•

Minimum 5" long leads.

•

For more selection see our "300" series of universal

plate & filament transformers.

Part No.

260A

260C

260E

260G

260J

260K

260M

VA

25

65

80

175

152

197

248

A.C. High Voltage

Secondary #1

RMS

400V C.T. @ 40ma.

500V C.T. @ 85ma.

450V C.T. @ 115ma.

550V C.T. @ 230ma.

650V C.T. @ 173ma.

650V C.T. @ 230ma.

700V C.T. @ 288ma.

A.C. Filament

Sec. #2

RMS

6.3V C.T. @ 1A

5V @ 2A

5V @ 3A

5V @ 2A

5V @ 3A

A.C. Filament

Sec. #3

RMS

-

6.3V C.T. @ 2A

6.3V C.T. @ 3A

6.3V C.T. @ 5A

6.3V C.T. @ 4A

6.3V C.T. @ 5A

Figure #

1

2

Dimensions (Inches)

A

3.25

4.03

3.00

3.75

4.50

B

2.00

2.65

3.06

3.50

3.13

3.25

C

2.00

2.625

2.53

3.135

3.13

3.75

D

2.81

3.56

2.50

3.25

3.125

3.75

E

-

2.40

3.25

2.75

3.00

G

0.187

0.206 x 0.377

0.203 x 0.375

0.218 x 0.562

Transformer Schematic

PRIMARY

120V BLU

0V BRN

120V BLK

100V WHT/BLK

0V WHT

SH GRY

SECONDARY

RED

RED/YEL

RED

YEL

GRN

GRN/YEL

GRN

Figure 1

Notes:

- This series is designed to operate with

both

primary windings ener

gized for maximum efficiency.

- The gray wire (connected to the core) marked SH (shield) should

remain grounded.

For wiring diagrams - visit our website:

www.hammondmfg.com

Guelph, Ontario (519) 822-2960

St. Laurent, Quebec (514) 343-9010

©

Cheektowaga, NY (716) 630-7030

Figure 2

CANADA

USA

www.hammondmfg.com

Basingstoke, UK 01256 812812

Queenstown, Australia 61-8-8240-2244

EUROPE

36

AUSTRALIA
