DTA27-3X-W-33PIN: DescriptionDesktop AC Adapters ADAPTER DESKTOP AC/DC *; CategoryPower/power management; File Size2MB，3 Pages; ManufacturerETA-USA

Download Datasheet Parametric Compare View All

DTA27-3X-W-33PIN Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DTA27-3X-W-33PIN	-	-	View	Buy Now

DTA27-3X-W-33PIN Overview

Desktop AC Adapters ADAPTER DESKTOP AC/DC *

DTA27-3X-W-33PIN Parametric

Parameter Name	Attribute value
Product Category	Desktop AC Adapters
Manufacturer	ETA-USA
Region	Universal
Input Voltage	90 VAC to 264 VAC
Number of Outputs	3 Output
Output Power	27 W
Output Voltage-Channel 1	5 V
Output Current-Channel 1	3 A
Commercial/Medical	Commercial

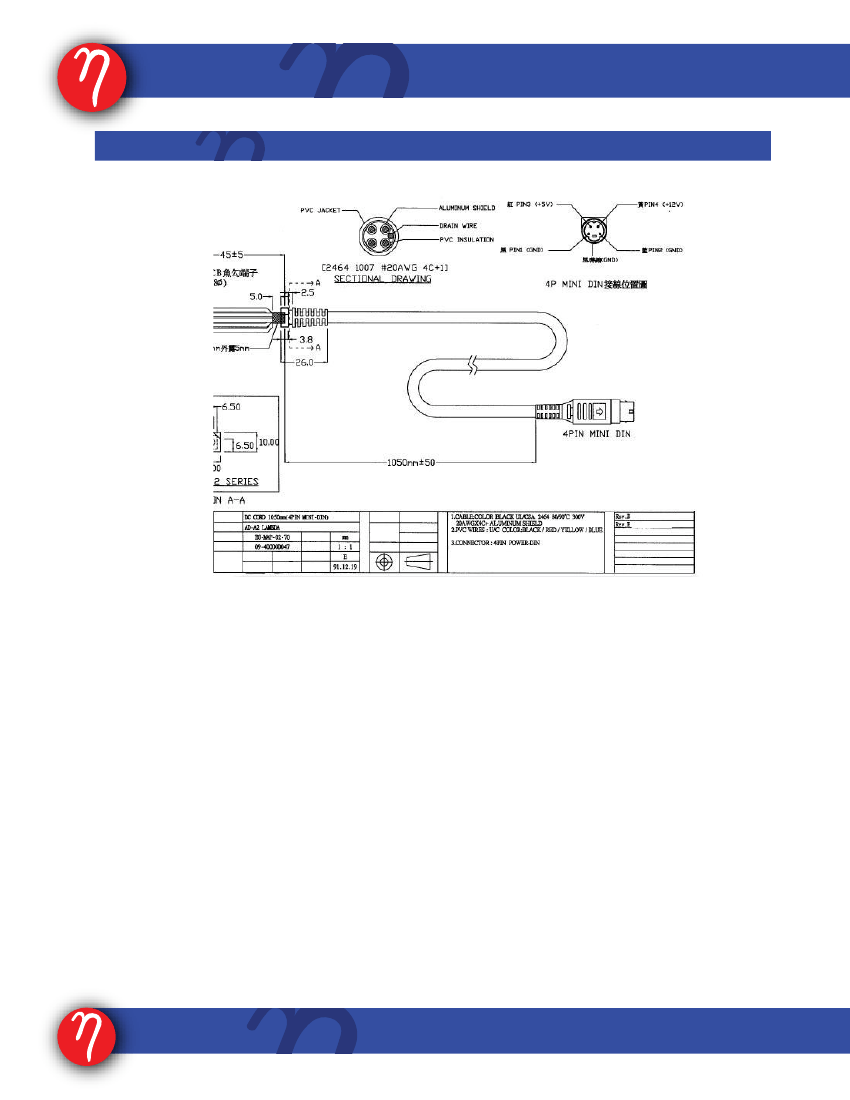

DC Output Connector	5 Pin DIN
DC Output Cord Length	5 ft
AC Plug included/required	Required
Height	30 mm
Length	106 mm
Load Regulation	Not Regulated
Mounting Style	Desktop
Output Current-Channel 2	0.8 A
Output Current-Channel 3	0.25 A
Output Voltage-Channel 2	12 V
Output Voltage-Channel 3	- 12 V
Width	60 mm

Preview

Download Datasheet

View All

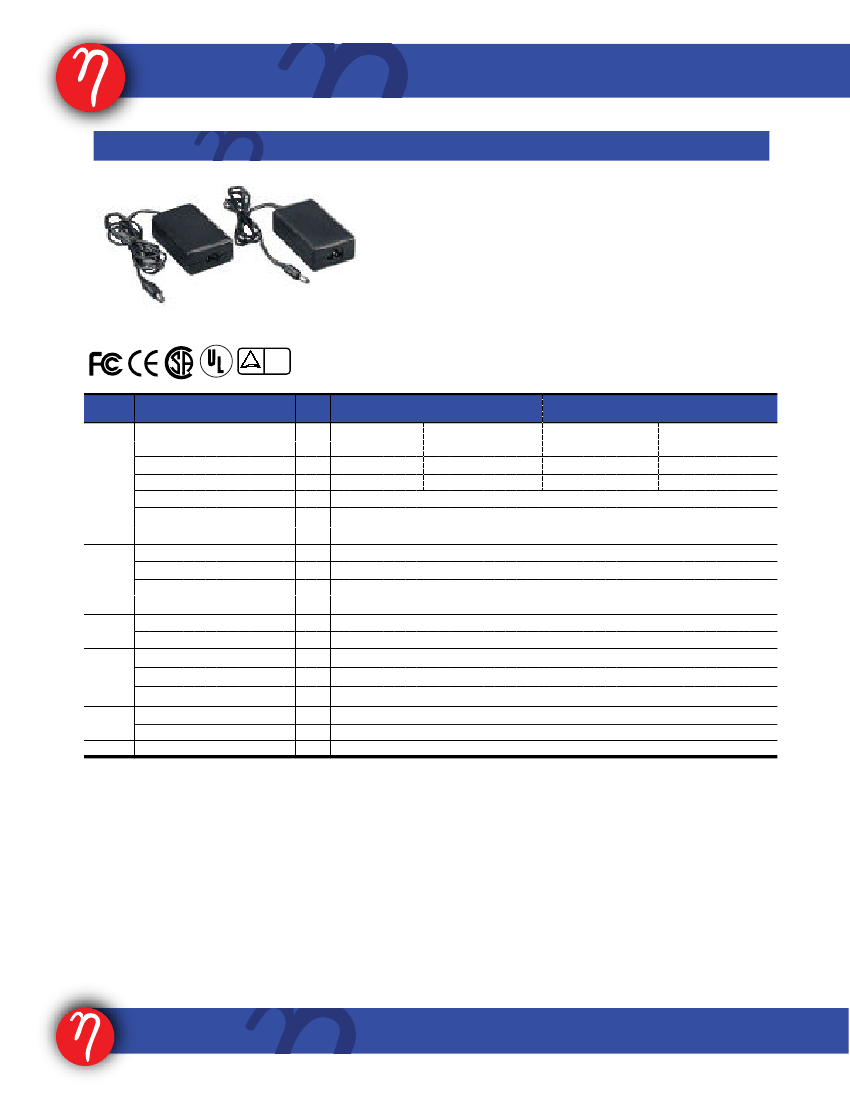

ETA-USA

DTA-0512FWX-W

The Power Professionals

27W

FEATURES:

• 3-pole IEC320-C6 Class I and C8 Class II AC inlet available

• 2 year warranty

• Black color plastic enclosed case

TUV Rheinland

BAUART

GEPRÜFT

OUTPUT

Output Voltage

MODEL/CHANNEL

Unit

Vdc

A

mV

-

Vac

A

Hz

A

-

mm/g

W

A

Ripple and Noise(max.) *3

Voltage Regulations

Hold Up Time

Power

Output Current Max.

Output Current Min.

+5

0.5

2~5

50

DTA27-

0512FWX-W 2-Pole

+12

0.1

0.2~1.5

120

±5%

27W

+5

0.5

2~5

50

DTA27-

0512FWX-W 3-Pole

+12

0.1

0.2~1.5

120

10ms typical at full load @ 115VAC

90VAC~264VAC

1A@264Vac 2A@90Vac

47Hz to 63Hz

>70% 115VAC at full load (DC Conversion)

Auto Recovery

UL 1950

CSA 22.2-234

TUV EN60950

IEC 950

CE: EMC &LVD

FCC Class B; CISRP22 Class B; EN 55022 Class B

>100’000 hours at full load and 25°C ambient temperature.

0°C to 40°C

-10°C to +70°C

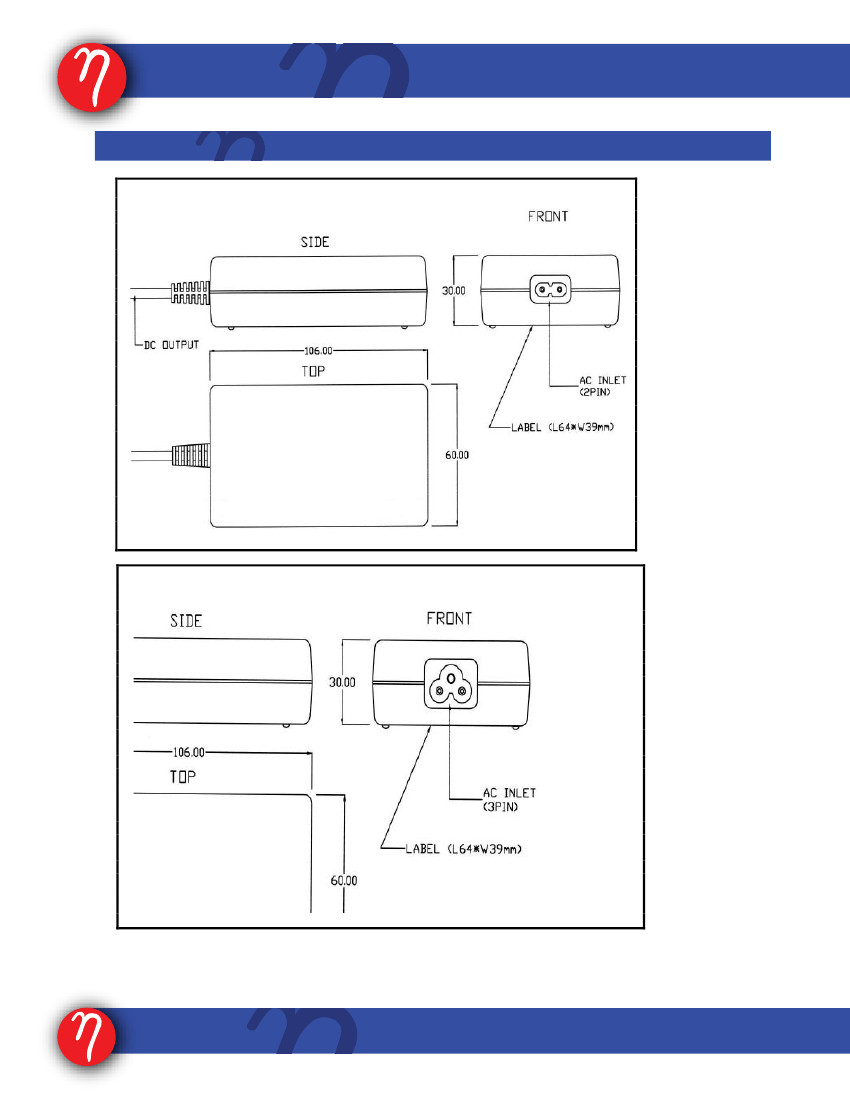

106(L) × 60(W) × 30(H)mm

INPUT

Input Voltage

Input Current

Line Frequency

Protection

Over Voltage Protection

Environmental

Agencies

Efficiency

Short circuit protection

Safety

EMC Standards

MTBF

Environment

Operating Temperature

Dimension

Size(WxHxD) / Weight

Storage Temperature

ETA-USA

16170 Vineyard Blvd. Suite 180 Morgan Hill, CA 95037 http://www.eta-usa.com

Toll-free (US only): 800-ETA-POWR (800-382-7697) Telephone: 408 778-2793 FAX: 408-779-2753
