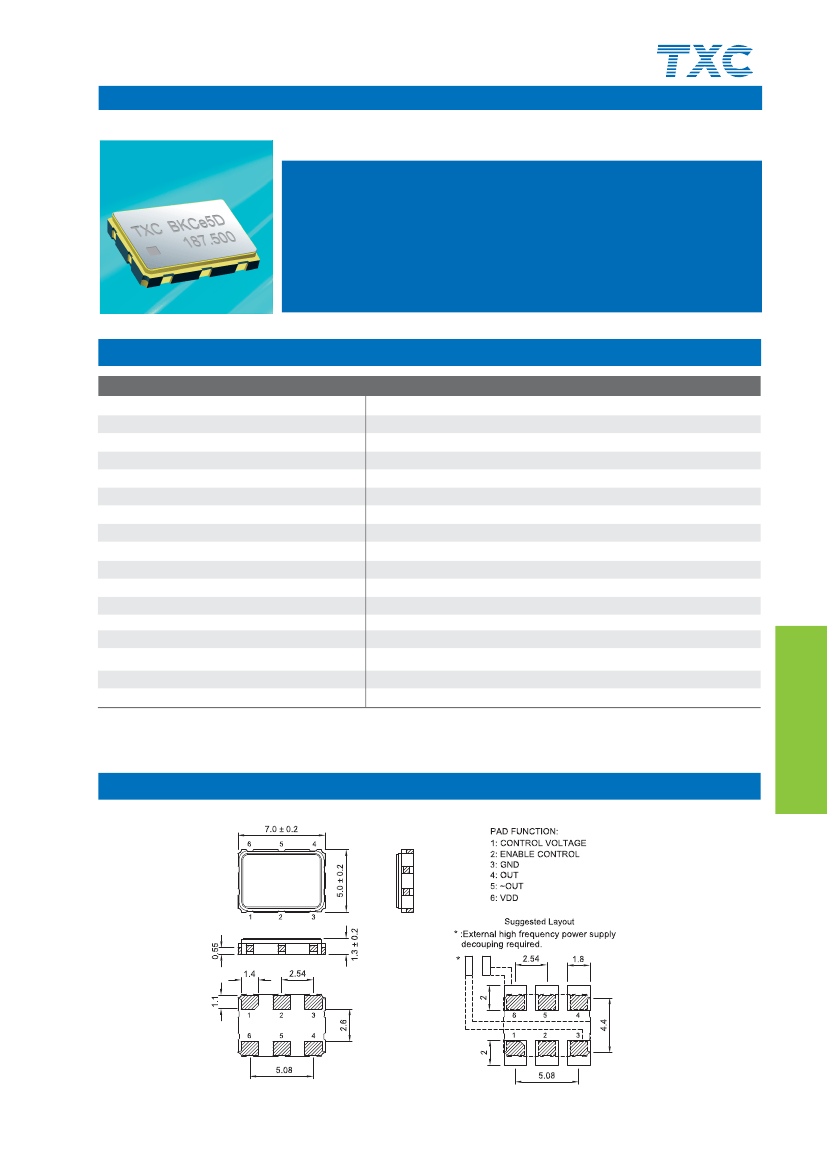

Oscillators
7 x 5 mm SMD LVPECL VCXO
BK SERIES
Features
>
PLL solution.
>
Volatage Controlled Crystal Oscillatior(VCXO).
>
PECL output, output frequencies 100 MHz to 700 MHz.
>
Wide pull range and good linearity.
>
Low phase noise and jitter.
>
Tri-State function available.
>
Applications : SDH / SONET.
>
RoHS Compliant / Pb Free.
e5D
TXC BKC .500
187
Electrical Specifications
Item / Type
Output Type
Output Load
Oscillation Mode
Supply Voltage
Frequency Range
Frequency Stability / Operating Temperature
Storage Temperature Range
Voltage Vol ( Max.) / Voh ( Min.)
Rise ( Tr ) / Fall ( Tf ) Time ( 20 % ~ 80 % )
Supply Current
Symmetry
Start-up Time
Absolute Pulling Range ( APR ) *
Nominal Control Voltage
Control Voltage Range
Linearity
Phase Jitter (12 KHz ~ 20 MHz )
50
BK
LVPECL
to VDD - 2 V
PLL
3.3 V
100 ~ 700 MHz
± 50 ppm / - 40 ~ + 85
o
C
- 55 ~ + 125
o
C
VDD - 1.62 V / VDD - 1.025 V
1 ns Max.
99 mA
45 ~ 55 %
10 ms Max.
± 100 ppm Min. or specify
1.65 V
0 ~ 3.3 V
± 10 % Max.
1 ps Max.
Oscillators
* APR=(Pull Range) - (Degrations due to initial tolerance, operating temperature, supply voltage variation and aging)
Dimensions
Units:mm
Remark : Specification subject to change without prior notice. Please confirm with our sales.
51
