C0603H222J5GAC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> C0603H222J5GAC

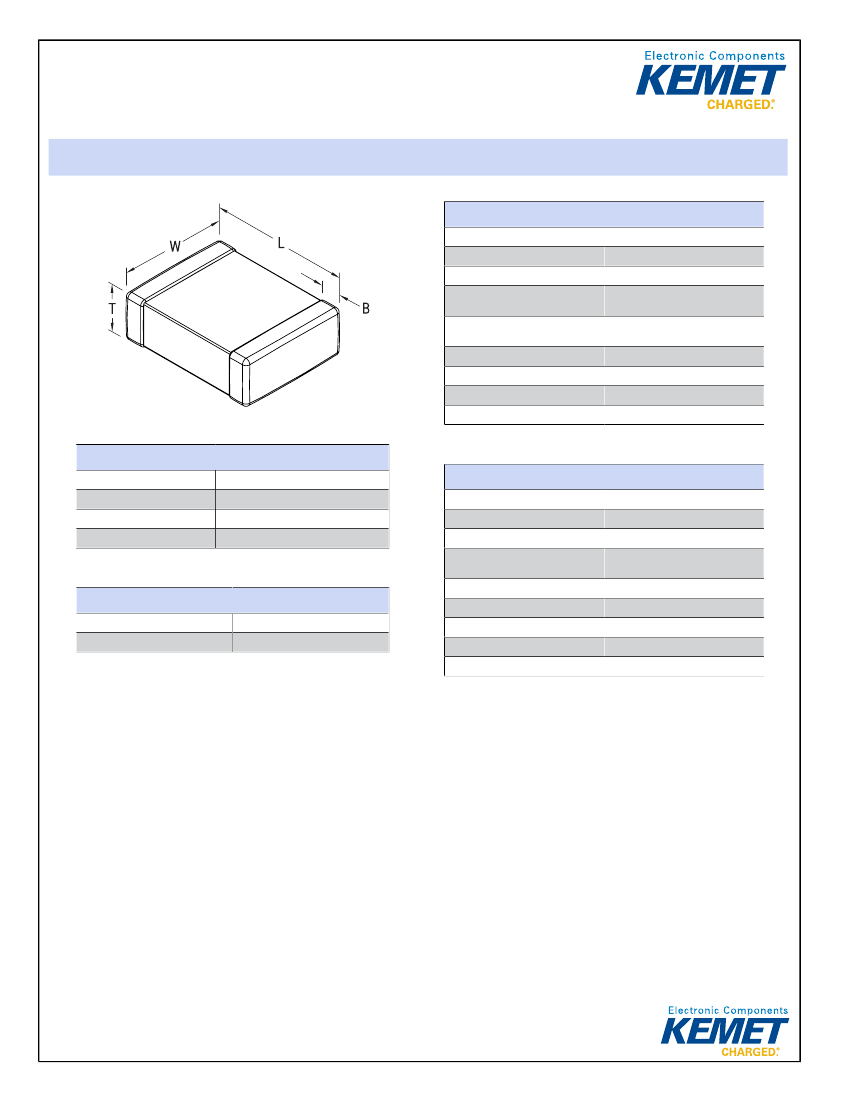

C0603H222J5GAC: DescriptionMultilayer Ceramic Capacitors MLCC - SMD/SMT; CategoryPassive components; File Size54KB，1 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

C0603H222J5GAC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	C0603H222J5GAC	-	-	View	Buy Now

C0603H222J5GAC Overview

Multilayer Ceramic Capacitors MLCC - SMD/SMT

C0603H222J5GAC Parametric

Parameter Name	Attribute value
Product Category	Multilayer Ceramic Capacitors MLCC - SMD/SMT
Manufacturer	KEMET
Capacitance	2200 pF
Voltage Rating DC	50 VDC
Dielectric	C0G (NP0)
Tolerance	5 %
Case Code - in	0603
Case Code - mm	1608
Height	0.8 mm
Maximum Operating Temperature	+ 200 C
Minimum Operating Temperature	- 55 C
Termination	-
Product	General Type MLCCs
Capacitance - nF	2.2 nF
Capacitance - uF	0.0022 uF
Class	Class 1
Length	1.6 mm
Package / Case	0603 (1608 metric)
Factory Pack Quantity	4000
Termination Style	SMD/SMT
Voltage Rating AC	-
Width	0.8 mm
Unit Weight	0.000071 oz

Preview

Download Datasheet

View All

KEMET Part Number: C2220H333JCGACTU

(C2220H333JCGAC7800)

SMD Indust C0G HVHT200C, Ceramic, 200C, 0.033 uF, 5%, 500 VDC, C0G, SMD, MLCC, High Temperature, Ultra-Stable, Low

Loss, 2220

General Information

Supplier:

Series:

Style:

Description:

Features:

RoHS:

Termination:

Marking:

Chip Size:

KEMET

SMD Indust C0G HVHT200C

SMD Chip

SMD, MLCC, High Temperature,

Ultra-Stable, Low Loss

High Temp, Ultra-Stable, Low

Loss

Yes

Tin

2220

Dimensions

5.7mm +/-0.4mm

5mm +/-0.4mm

2.5mm +/-0.20mm

0.6mm +/-0.35mm

Specifications

Capacitance:

Capacitance Tolerance:

Voltage DC:

Dielectric Withstanding

Voltage:

Temperature Range:

Temperature Coefficient:

Dissipation Factor:

Aging Rate:

Insulation Resistance:

0.033 uF

500 VDC

750 V

-55/+200C

C0G

0.10% 1kHz 25C

0% Loss/Decade Hour

30.303 GOhms

Packaging Specifications

Packaging:

Packaging Quantity:

T&R, 180mm, Plastic Tape

500

Statements of suitability for certain applications are based on our knowledge of typical operating conditions for such applications, but are not intended to constitute - and

we specifically disclaim - any warranty concerning suitability for a specific customer application or use. This Information is intended for use only by customers who have the

requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by us

with reference to the use of our products is given gratis, and we assume no obligation or liability for the advice given or results obtained.

Generated 10/21/2018 - a451f9dc-2d6d-4fc0-83ea-5571455516bc
