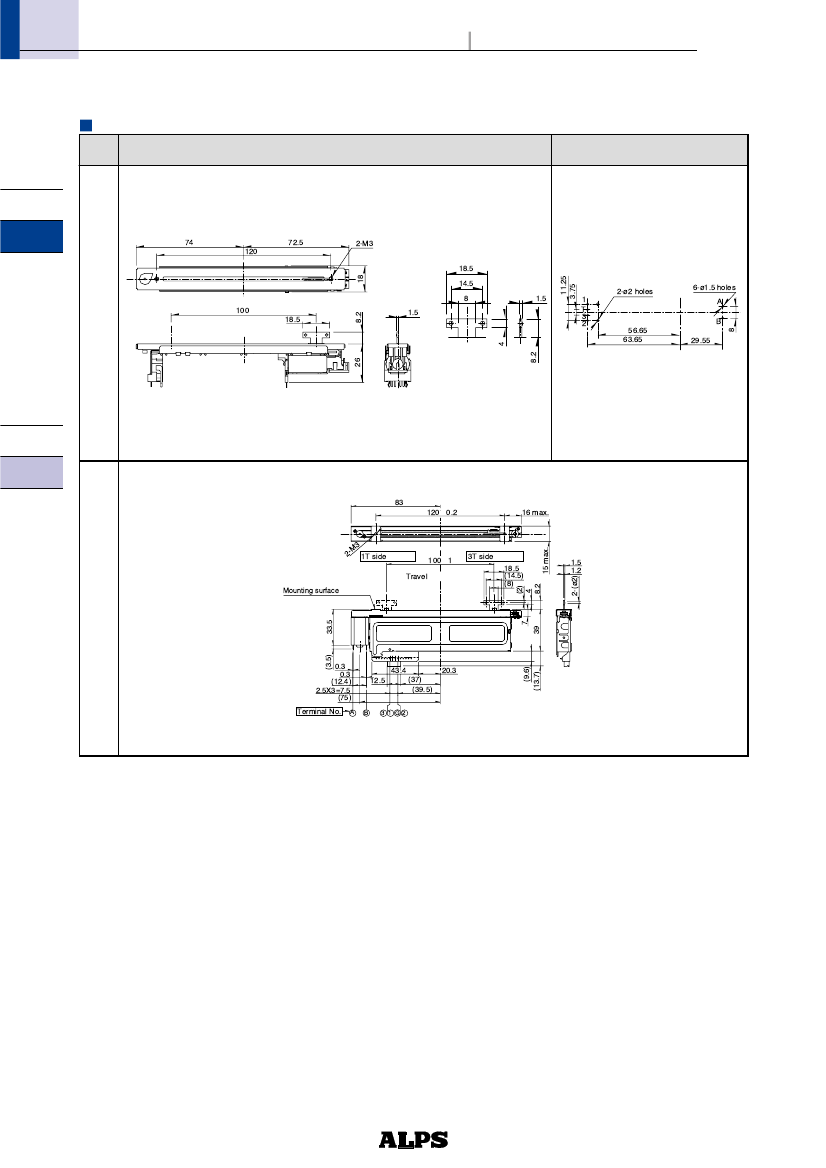

Slide Potentiometers for Fader Control of Mixers
Motor-driven Master Type Motor N Fader, Motor K Fader）
（
RS□□N1□M/RSA0K1□V
Series
Provides a superior operational feel with high-speed tracking in motor drive mode.
Rotary
Potentiometers
Slide
Potentiometers
Typical Specifications
Specifications
Items
Motor N fader
Motor K fader
Total resistance tolerance
Maximum operating voltage
Operating force
Operating life
Operating temperature range
General-use
Mixer
Rated voltage of motor
Maximum current of motor
±20%
10V DC, 200V AC
（Travel：60mm）
10V DC, 500V AC
（Travel：100mm）
0.3 to 1.3N
30,000cycles
0.15 to 0.65N
CP type :
300,000cycles
−10℃
to
＋60℃
10V DC
800mA or less at 10V DC）
（
Product Line
Number of Travel
resistor
elements
（mm）
Type
Lever
type
Total
Length of
resistance
lever
（kΩ）
（mm）
Resistance
taper
Terminal
style
Lead
60
For PC board
Motor N Fadar
RS60N11M9A08
With
100
RSA0N11M9A06
RSA0N11M9A07
RSA0K11V900S
2
3
4
5
Touch Minimum
sense packing unit
track
（pcs.）
Products No.
Drawing
No.
1
RS60N11M9A05
Single-
unit
100
Motor K Fadar
（CP
type）
9-T
（T-bar）
8.2
10
1B
Lead
For PC board
Connector
Note
Products other than those listed in above products are also available. Please contact us for details.
Refer to
P.441
for product varieties.
438
Slide Potentiometers for Fader Control of Mixers
Motor-driven Master Type（Motor N Fader, Motor K Fader）
RS□□N1□M/RSA0K1□V
Series

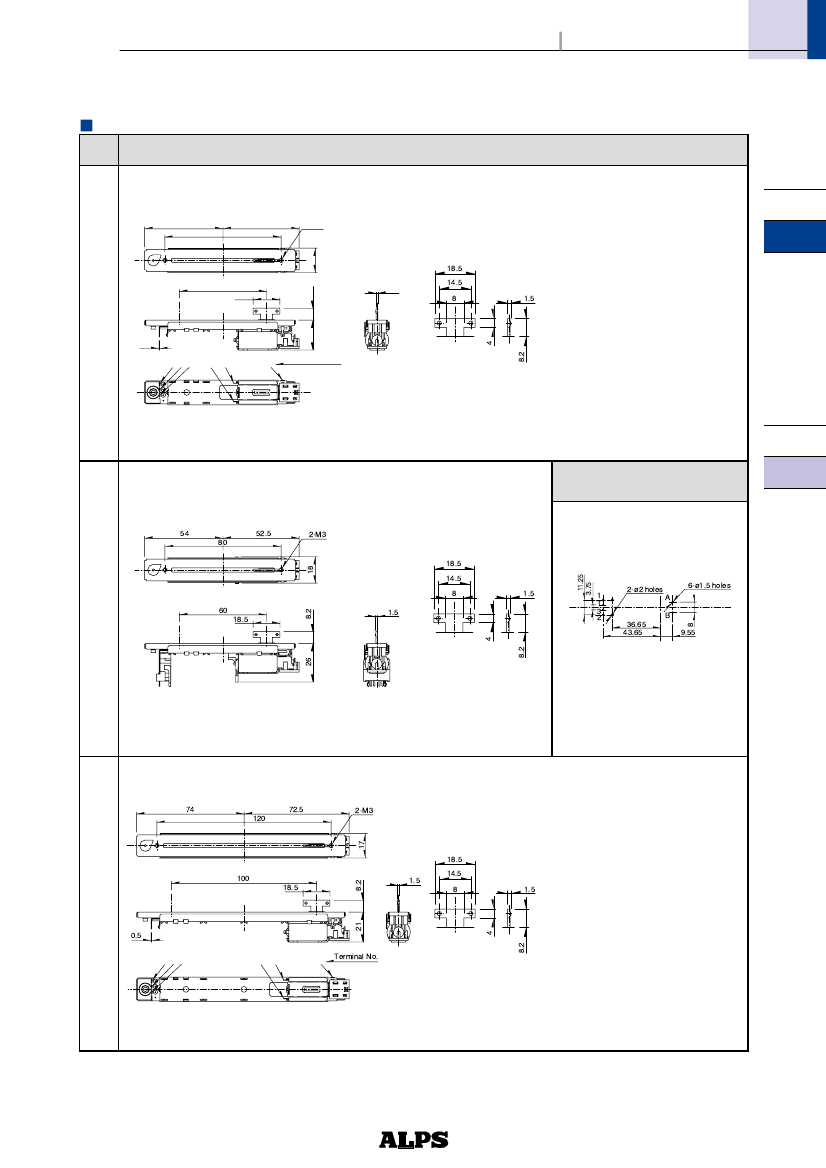

Dimensions
No.
Style
Unit:mm
Rotary
Potentiometers
54
80
17
52.5
2-M3
t=1.2
18.5
1.5
Slide
Potentiometers
18.5
8.2
60
14.5
8
1.5
1
21
0.5
23T
A B
1
Terminal No.
4
8.2
General-use
PC board mounting hole
dimensions
Mixer
54
80
52.5
2-M3
18.5
t=1.2
18
11.25
3.75
14.5
8
1.5
8.2
2
60
4
9.55
74
120
72.5
26
2-M3
t=1.2
17
18.5
18.5
8.2
100
1.5
14.5
8
1.5
3
0.5
23T
A B
1
21
4
Terminal No.
8.2
8.2
8
18.5
1.5
1
T
3
2
2-¿2 holes
6-¿1.5 holes
A
B
36.65
43.65
439
Slide Potentiometers for Fader Control of Mixers
Motor-driven Master Type Motor N Fader, Motor K Fader）
RS□□N1□M/RSA0K1□V
Series
（
Dimensions
No.
Style
Unit:mm
PC board mounting hole
dimensions
Rotary
Potentiometers
Slide
Potentiometers
74
72.5
2-M3
18.5
18
14.5
8
18.5
8.2
1.5
1.5
11.25
3.75
1
T
3
2
2-¿2 holes
6-¿1.5 holes
A
B
29.55
8
t=1.2
120
4
100
4
56.65
63.65
General-use
Mixer
83
26
120
±
0.2
16 max.
Mounting surface
（取付面）
5
33.5
7
39
0.3
0.3
(12.4)
2.5X3=7.5
(75)
Terminal No.
A
B
(3.5)
12.5
(37)
(39.5)
3 1 G 2
440
(9.6)
(13.7)
43.4
20.3
2-(¿2)
(2)
4
8.2
3T side
（3T側）
18.5
(14.5)
Travel
（移動距離）
(8)
100
±
1
15 max.
M3
2-
1T side
（1T側）
8.2
1.5
1.2
Motor-driven Master Type Slide Potentiometer
Product Varieties
In addition to the recommended products, the following specifications can also be accommodated.
Products Specifications
Type
Travel
（
mm
）
Model
RS60N11M
RSA0N11M
Touch sense track
Terminal
Rotary
Potentiometers
Slide
Potentiometers
60
Motor N fader
For PC board for
auto dipping Lead
Single-unit
Motor K fader
CP type
100
RSA0K11V
Available
60
RS60N12M
RSA0N12M
Fader Terminal：Connector
Motor Terminal：Lead
Printed wiring for
auto dipping Lead
Dual-unit
（Servo＋
Audio track）
Motor N fader
100
RSA0K12V
Motor K fader
CP type
Fader Terminal：Connector
Motor Terminal：Lead
Lever Types
Configuration code
9-T
（T-Bar）
Unit:mm
General-use
Mixer
t=1.2
18.5
14.5
Dimensions
8
1.5
4
Total Resistance Variety
Total resistance
（kΩ）
10
F
50
100
250
F
Motor K fader: Only 10kΩ
Resistance Taper
Resistance
taper
Servo
Audio
15A
1B
1B
10A
Circuit Diagram
Motor
Servo track
8.2
M
100% 3
100% 3
A=
＋
B=
＋
A
B
＋
−
or
−
＋
Wiper 2
100% 3
Moving direction of lever and contacts
1 0%
Touch sense track
1 0%
1 0%
Lever
T
Notes
1.
marked are specifications recommended by ALPS.
2. Products other than those listed in the above list are also available. Please contact us for details.
Refer to
P.442, 443, 502
for resistance taper.
441
Motor-driven Master Type
Slide Potentiometer Motor N Fader）
（
Orders Other Than Recommended Products
When ordering product varieties that are not listed in the Product Line, please specify by referring to the below example.
Sample Part Number
Rotary
Potentiometers
Slide
Potentiometers
R S 6 0 N 1 1 M
Travel (mm)
60
A0
60
100
T 0
B 1 0 3
Number of resistor elements
Single-unit
Dual-unit
General-use
Mixer
1
2
Touch sense track
Code
T0
T1
Touch sense track
Without
With
Resistance taper
Code
B
A
D
Resistance taper
1B
15A
10A
Output volt.across term.1-2
100 (
%
)
J
Input volt. across term. 1-3
G
100
90
80
70
60
50
40
1B
For dual-units specify the taper
of the audio track. Servo track
will always be 1B taper.
30
20
10
0
10
)
A(
0A)
D(1
15
A)
20 30 40 50 60 70
Rotation travel (
%
)
B(
80 90 100
Term."1"
J
Term."3"
Total resistance
Code
103
503
104
254
（kΩ）
Total resistance
10
50
100
250
Note
marked are specifications recommended by ALPS.
442
