LM1004H Series
SMD Power Choke Coil
SMD Power Choke Coil

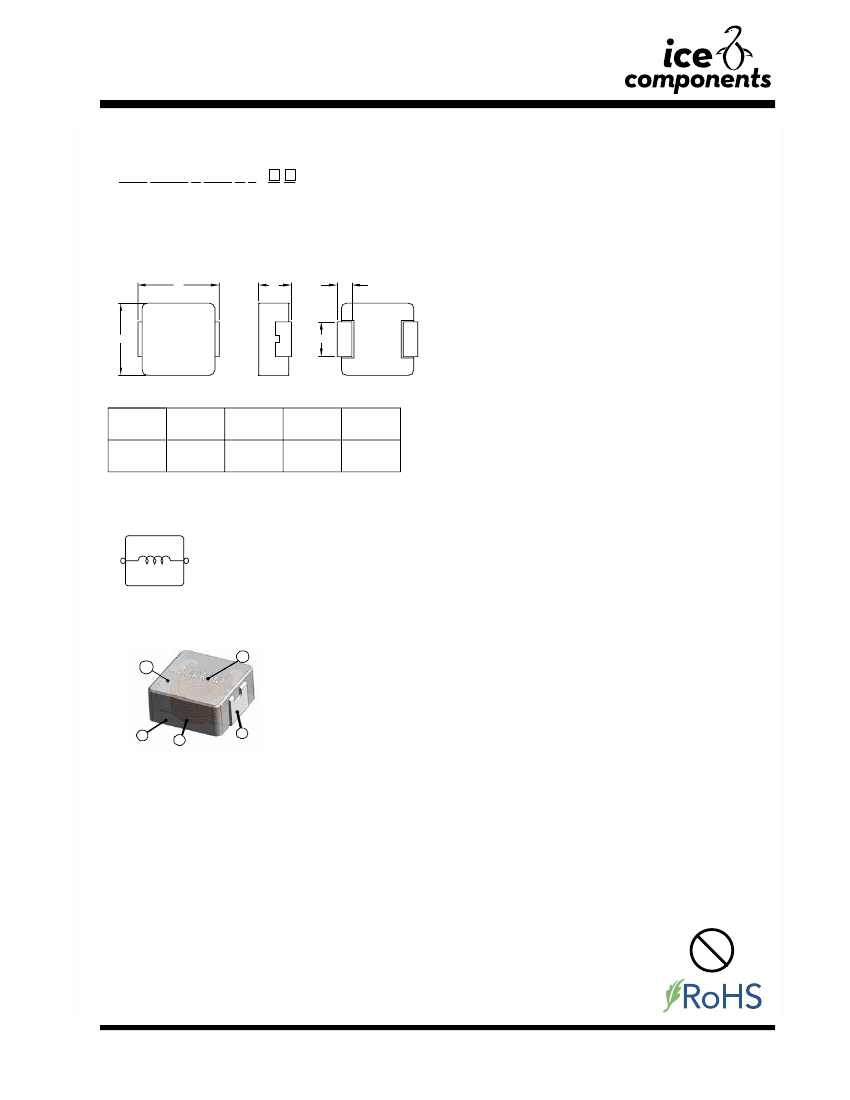

1. PART NO. EXPRESSION :
PIC1004H SERIES
LM 1 0 0 4 H 1 0 0 M F -
(a)
(b)
(c) (d)
(e)(f)
(g)
(a) Series code
(b) Dimension code
(c) Type code
(d) Inductance code : 100 = 10.0uH
(e) Tolerance code : M = ±20%
(f) F : RoHS Compliant
(g) 11~99 : Internal controlled number
2. CONFIGURATION & DIMENSIONS :
A
C
D
100
1150
B
E
Unit:m/m
A
1 1.0 ±0.5
B
10.0±0.3
C
3.8±0.2
D
2 .3±0.3
E
3.0±0.3
3. SCHEMATIC :
4. MATERIALS :
d
(a) Core : Carbonyl Powder.
(b) Wire : Polyester Wire or equivalent
(c) Solder Plating : 100% Pb free solder
(d) Ink : Halogen-free ketone
(e) Paint : Epoxy resin
e
a
b
c
5. GENERAL SPECIFICATION :
a) Test Freq. : L : 100KHz/1.0V
b) Ambient Temp. : 25°C
c) Operating Temp. : -40°C to +125°C
d) Storage Temp. : -10°C to + 40°C
e) Humidity Range : 50 ~ 60% RH (Product without taping)
f) Heat Rated Current (Irms) will cause the coil temperature rise approximately Δt of 40°C (keep 1min.)
g) Saturation Current (Isat) will cause L0 to drop 20% typical. (keep quickly).
h) Part Temperature (Ambient+Temp. Rise) : Should not exceed 125°C under worst case operating conditions.
Pb
(09/13) LM1004H-1
02.01.2013
NOTE : Specifications subject to change without notice. Please check our website for latest information.
800.729.2099 tel
SUPERWORLD ELECTRONICS (S) PTE LTD
www.icecomponents.com
PG. 1
LM1004H Series
SMD Power Choke Coil
SMD Power Choke Coil
6. ELECTRICAL CHARACTERISTICS :
Inductance L
0
( μH )
± 20% @ 0 A
0.19± 30%
0 .22
0 .24
0 .27
0 .36
0 .39
0 .45
0 .47
0 .56
0 .68
0 .88
1 .00
1 .20
1 .50
2 .20
2 .50
3 .30
3 .90
4 .00
4 .70
5 .60
6 .80
8 .20
1 0.0
1 5.0
2 2.0
2 7.0
3 3.0
4 7.0
6 8.0
Irms
(A)
Typ.
36
35
34
33
31
30
39
38
25
22
20
18
17
16
12
1 1.5
11
1 0.5
1 0.2
10
9.0
8.5
8.0
7.5
6 .25
5.0
4.0
3.5
3.0
2.0
Isat
(A)
Typ.
70
60
60
60
60
60
45
43
40
39
38
36
33
33
27
23
20
19
18
17
14
1 3.5
1 2.5
1 2.0
10
7.0
6.0
5.0
4.5
3.0
Part No.
LM1004HR19YF
LM1004HR22MF
LM1004HR24MF
LM1004HR27MF
LM1004HR36MF
LM1004HR39MF
LM1004HR45MF
LM1004HR47MF
LM1004HR56MF
LM1004HR68MF
LM1004HR88MF
LM1004H1R0MF
LM1004H1R2MF
LM1004H1R5MF
LM1004H2R2MF
LM1004H2R5MF
LM1004H-3R3MF
LM1004H-3R9MF
LM1004H4R0MF
LM1004H4R7MF
LM1004H5R6MF
LM1004H6R8MF
LM1004H8R2MF
LM1004H100MF
LM1004H150MF
LM1004H220MF
LM1004H270MF
LM1004H330MF
LM1004H470MF
LM1004H680MF
PIC1004H SERIES
DCR
( mΩ )
Typ. @ 25° C
0.6
0.8
0.8
0 .82
1 .05
1.1
1.3
1.3
1.6
2.4
2.5
3.0
3.3
4.0
6.5
7.9
1 0.8
1 2.6
13
1 5.0
17
1 7.5
20
2 7.0
40
64
86
92
1 45
2 05
DCR
( mΩ )
Max. @ 25° C
0.9
1.0
1.0
1.0
1.2
1.3
1.5
1.5
1.8
2.7
2.9
3.3
3.8
4.6
7.0
8.7
1 1.8
1 4.5
15
1 5.5
1 9.3
2 3.3
2 2.5
30
45
74
1 00
1 12
1 67
2 40
Pb
NOTE : Specifications subject to change without notice. Please check our website for latest information.
800.729.2099 tel
SUPERWORLD ELECTRONICS (S) PTE LTD
www.icecomponents.com
(09/13) LM1004H-2
02.01.2013
PG. 2
LM1004H Series
SMD Power Choke Coil
SMD Power Choke Coil

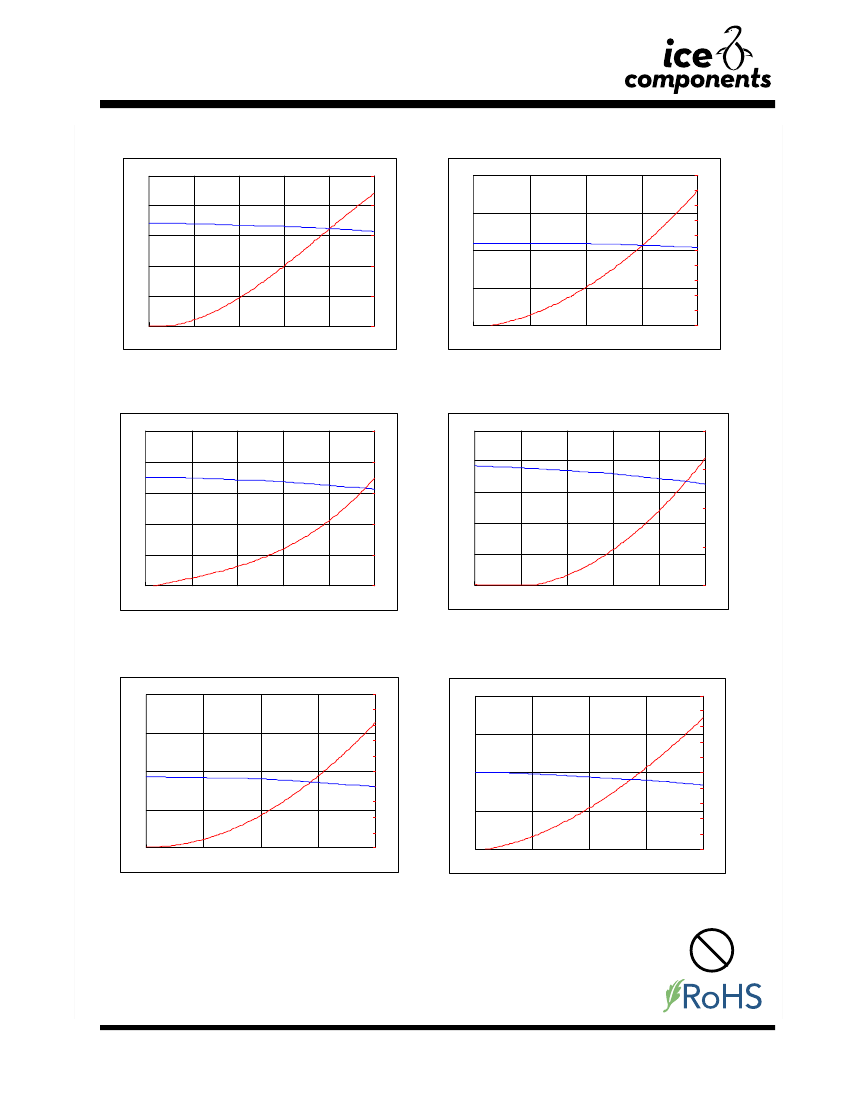

7. CHARACTERISTICS CURVES :
0.3
PIC1004H SERIES
LM1004HR19YF
TM PC1 004H-R19
100
0.4
LM1004HR22MF
TM PC1004H-R22
100
90
0.24
80
80
INDUCTANCE (uH)
INDUCTANCE (uH)
0.3
TEMP. RISE(
o
C)
0.18
60
60
0.2
50
40
30
0.1
20
10
0.12
40
0.06
20
0
0
0
0
0
14
DC CURRENT(A)
28
42
56
70
0
15
DC CURRENT(A)
30
45
60
0.4
LM1004HR24MF
24
TMP C1 004 H-R
10 0
0.4
LM1004HR27MF
7
TMPC 100 4H-R2
80
0.32
80
0 .32
INDUCTANCE (uH)
INDUCTANCE (uH)
60
TEMP. RISE(
o
C)
0.24
60
0 .24
40
0 .16
20
0.16
40
0.08
20
0 .08
0
0
0
0
0
12
DC CURRENT(A)
24
36
48
60
0
12
DC CURRENT(A)
24
36
48
60
0.8
LM1004HR36MF
6
TMPC 100 4H-R3
100
90
80
0.8
LM1004HR39MF
TMPC 1004H-R39
100
90
80
INDUCTANCE (uH)
0.6
TEMP. RISE(
o
C)
60
0.4
50
40
30
0.2
20
10
0
0
60
0.4
50
40
30
0.2
20
10
0
0
0
15
DC CURRENT(A)
30
45
60
0
15
DC CURRENT(A)
30
45
60
Pb
NOTE : Specifications subject to change without notice. Please check our website for latest information.
800.729.2099 tel
SUPERWORLD ELECTRONICS (S) PTE LTD
www.icecomponents.com
(09/13) LM1004H-3
02.01.2013
TEMP. RISE(
o
C)
70
INDUCTANCE (uH)
0.6
70
TEMP. RISE(
o
C)
TEMP. RISE(
o
C)
70
PG. 3
LM1004H Series
SMD Power Choke Coil
SMD Power Choke Coil

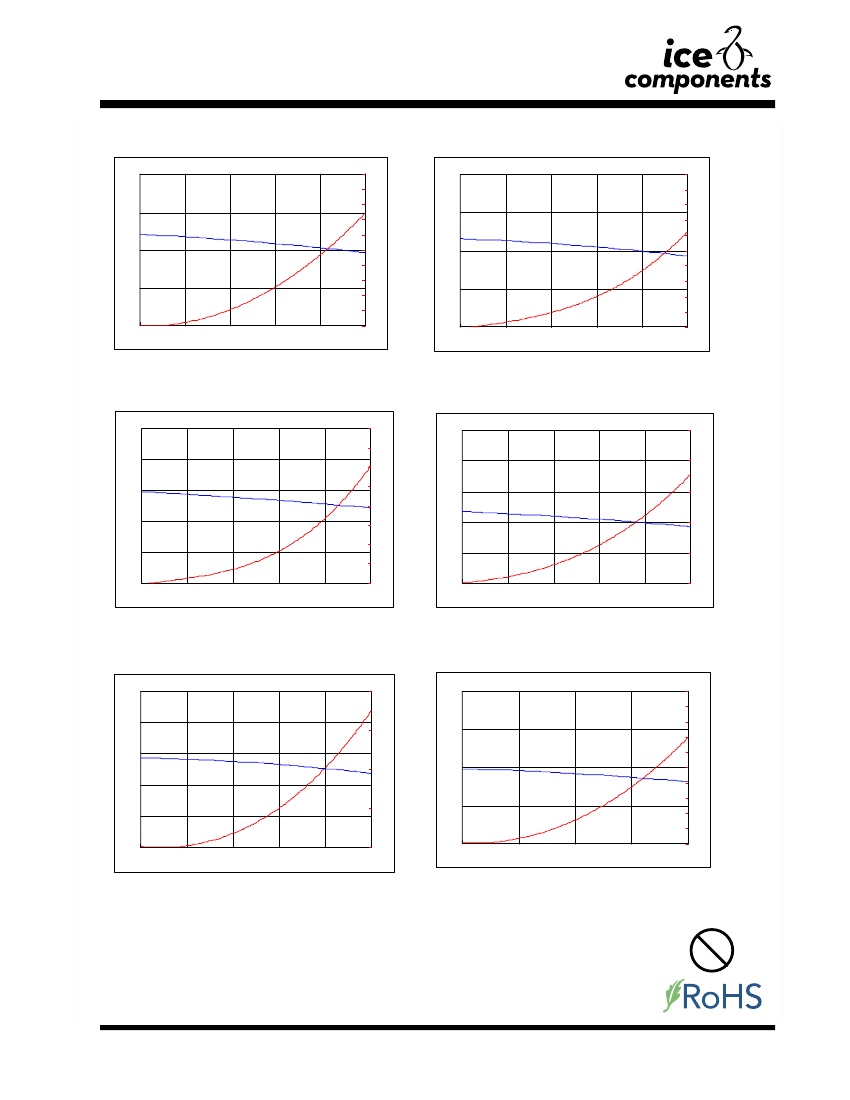

7. CHARACTERISTICS CURVES :
LM1004HR45MF
TMPC1004H-R45
0.8
1 00
90
0.6
80
0.8
PIC1004H SERIES
LM1004HR47MF
TMPC1004H-R47
100
90
80
INDUCTANCE (uH)
TEMP. RISE(
o
C)
60
0.4
50
40
0.2
30
20
10
0
0
60
0.4
50
40
30
0.2
20
10
0
0
0
9
DC CURRENT(A)
18
27
36
45
0
9
DC CURRENT(A)
18
27
36
45
1
LM1004HR56MF
6
TMPC 100 4H-R5
80
70
1.5
LM1004HR68MF
TMPC1004H-R68
100
0.8
INDUCTANCE (uH)
60
1.2
80
INDUCTANCE (uH)
TEMP. RISE(
o
C)
0.6
50
40
0.9
60
0.4
30
20
0.6
40
0.2
10
0
0
0.3
20
0
0
8
DC CURRENT(A)
16
24
32
40
0
7.8
15.6
23.4
31.2
39
0
DC CURRENT(A)
1.5
T MPC1 004 H-R
LM1004HR88MF
88
LM1004H1R0MF
12 0
2
TMPC1004H-1R0
1 00
90
1.2
INDUCTANCE (uH)
INDUCTANCE (uH)
90
1.5
80
TEMP. RISE(
o
C)
0.9
60
0.6
30
60
1
50
40
0.5
30
20
10
0.3
0
0
0
0
7 .6
DC CURRENT(A)
15 .2
22.8
30 .4
38
0
9
18
27
36
0
DC CURRENT(A)
Pb
NOTE : Specifications subject to change without notice. Please check our website for latest information.
TEMP. RISE( C)
70
o
800.729.2099 tel
SUPERWORLD ELECTRONICS (S) PTE LTD
www.icecomponents.com
(09/13) LM1004H-4
TEMP. RISE(
o
C)
TEMP. RISE(
o
C)
70
INDUCTANCE (uH)
0.6
70
02.01.2013
PG. 4
LM1004H Series
SMD Power Choke Coil
SMD Power Choke Coil

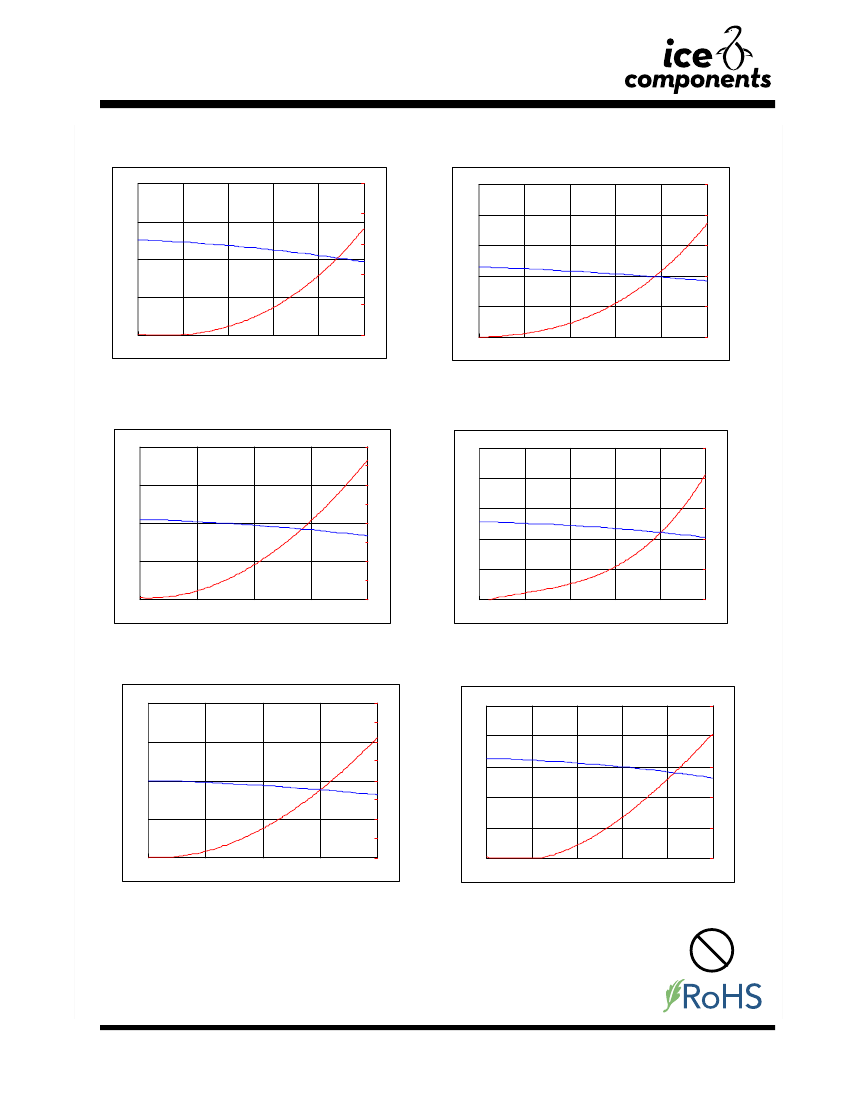

7. CHARACTERISTICS CURVES :
LM1004H1R2MF
TMPC1004H-1R2
2
15 0
3
PIC1004H SERIES
LM1004H1R5MF
TMPC1004H-1R5
150
INDUCTANCE (uH)
INDUCTANCE (uH)
1.5
12 0
2.4
120
TEMP. RISE(
o
C)
90
1
60
0.5
1.8
90
1.2
60
30
0.6
30
0
0
6.6
13.2
19.8
26.4
33
0
0
DC CURRENT(A)
0
6.6
13.2
19.8
26.4
33
0
DC CURRENT(A)
4
LM1004H2R2MF
TMPC1004H-2R2
LM1004H2R5MF
80
70
5
TMPC1004H-2R5
70
INDUCT ANCE (uH)
3
60
4
56
INDUCTANCE (uH)
TEMP. RISE(
o
C)
50
2
40
30
1
20
10
0
0
3
42
2
28
1
14
0
6.75
DC CURRENT(A)
13.5
20.25
27
0
0
5
10
15
20
25
0
DC CURRENT(A)
LM1004H3R3MF
6
TMPC1004H-3R3
LM1004H3R9MF
80
70
6
TMPC1004H-3R9
15 0
INDUCTANCE (uH)
4 .5
60
4.8
12 0
INDUCTANCE (uH)
TEMP. RISE( C)
50
3
40
30
1 .5
20
10
0
0
3.6
90
2.4
60
1.2
30
0
5
10
15
20
0
DC CURRENT(A)
0
3.8
7.6
11.4
15.2
19
0
DC CURRENT(A)
Pb
NOTE : Specifications subject to change without notice. Please check our website for latest information.
800.729.2099 tel
SUPERWORLD ELECTRONICS (S) PTE LTD
www.icecomponents.com
(09/13) LM1004H-5
02.01.2013
TEM P. RISE(
o
C)
o
TEMP. RISE(
o
C)
TEMP. RISE(
o
C)
PG. 5
MCU
